Automation PC NP-6120/6140 Series

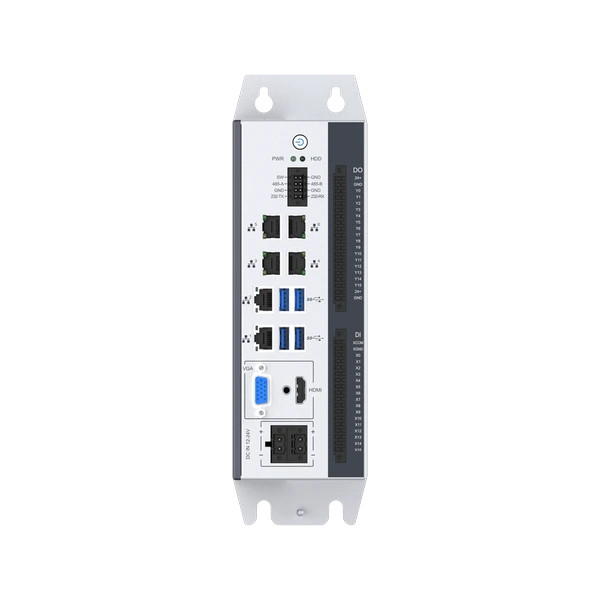

NP-6120-16I16O Automation PC
The NP-6120-16I16O Automation PC is a DIN-rail or wall-mount industrial computer designed for control cabinet installations. Powered by Intel® Core™ 6th–8th Gen processors, it integrates 6 GbE LAN ports, RS232/RS485 serial connectivity, and 16 DI/16 DO digital I/O for versatile control integration.

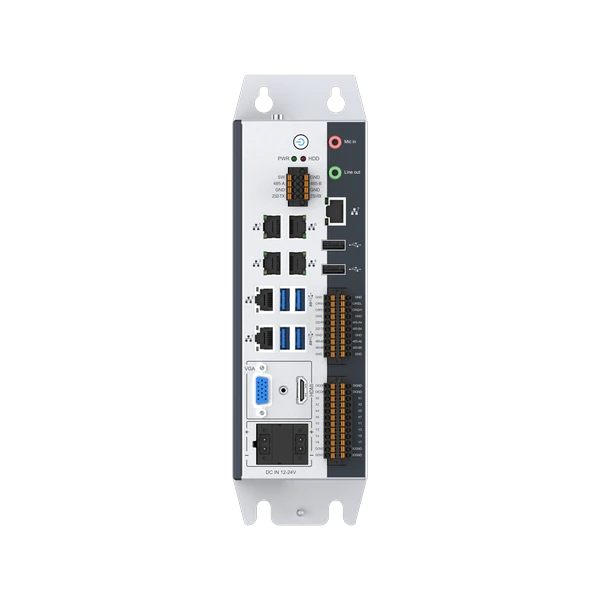

NP-6120-EX01 Automation PC
The NP-6120-EX01 Automation PC is a DIN-rail or wall-mount industrial computer designed for control cabinet installations. Powered by Intel® Core™ 6th–8th Gen processors, it integrates 7 GbE LAN ports, 2×RS232, 4×RS485, and 8 DI/8 DO for versatile connectivity.
NP-6140-16I16O Automation PC
The NP-6140-16I16O Automation PC is a DIN-rail or wall-mount industrial computer designed for control cabinet applications. Built on Intel® Core™ 12th–13th Gen processors, it offers 6 GbE LAN ports, RS232/RS485 serial connectivity, and 16 DI/16 DO for direct industrial control integration.
NP-6140-EX01 Automation PC
The NP-6140-EX01 Automation PC is a DIN-rail or wall-mount industrial computer built for control cabinet use. Powered by Intel® Core™ 12th–13th Gen processors, it provides 7 GbE LAN ports, 2×RS232, 4×RS485, and 8 DI/8 DO for industrial connectivity.
NP-6120 and NP-6140 Series Automation PC Features
The NP-6120 and NP-6140 Automation PC Series are built for control cabinet integration with a compact DIN-rail or wall-mount form factor and active cooling. Supporting Intel® Core™ 6th–13th Gen processors, these industrial PCs deliver flexible performance with up to seven Intel GbE LAN ports, multiple RS232/RS485 serial interfaces, and models featuring 8/8 or 16/16 digital I/O. Storage options include SSD, and expansion is supported via mini-PCIe slots with SIM card and optional CAN bus modules. Wide 12–24V DC power input with built-in protections ensures stable operation in industrial environments.
Show More
Application Areas
This series provides versatile computing platforms for industrial gateway, control cabinet automation, soft PLC, virtual control, and container-based industrial applications. By combining multi-LAN networking, digital I/O integration, and serial connectivity, the NP-6120/6140 series serves as a reliable solution for modern control cabinet industrial PC deployments.
| Model | CPU Support | LAN Ports | Serial Ports | DIO | Expansion | Mounting |
|---|---|---|---|---|---|---|
| NP-6120-16I16O | Intel(r) CoreTM 6th-8th Gen i7/i5/i3, Pentium, Celeron (LGA1151) | 6 × GbE (1× I219 + 5× I210) | 1 × RS232, 1 × RS485 | 16 DI, 16 DO | 1 × miniPCIe (SIM slot) | DIN-rail / Wall |
| NP-6120-EX01 | Intel(r) CoreTM 6th-8th Gen i7/i5/i3, Pentium, Celeron (LGA1151) | 7 × GbE (1× I219 + 6× I210) | 2 × RS232, 4 × RS485 | 8 DI, 8 DO | 1 × miniPCIe (SIM slot, CAN optional) | DIN-rail / Wall |
| NP-6140-16I16O | Intel(r) CoreTM 12th-13th Gen i9/i7/i5/i3 (LGA1700) | 6 × GbE (1× I219 + 5× I210) | 1 × RS232, 1 × RS485 | 16 DI, 16 DO | 1 × miniPCIe (SIM slot) | DIN-rail / Wall |
| NP-6140-EX01 | Intel(r) CoreTM 12th-13th Gen i9/i7/i5/i3 (LGA1700) | 7 × GbE (1× I219 + 6× I210) | 2 × RS232, 4 × RS485 | 8 DI, 8 DO | 1 × miniPCIe (SIM slot, CAN optional) | DIN-rail / Wall |
