ARM-Based Panel PC ARM6000-CXXX-C5E Series

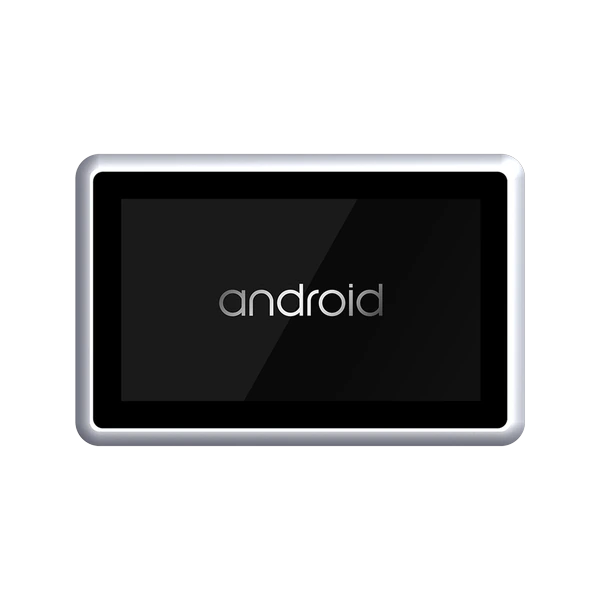

ARM6000-C101-C5E
10.1″ fanless ARM Panel PC with Rockchip RK3399 CPU, 4GB LPDDR4, 32GB eMMC, capacitive touchscreen, dual LAN, RS232/485, USB, Wi-Fi/4G option, and DC 12–24V input.

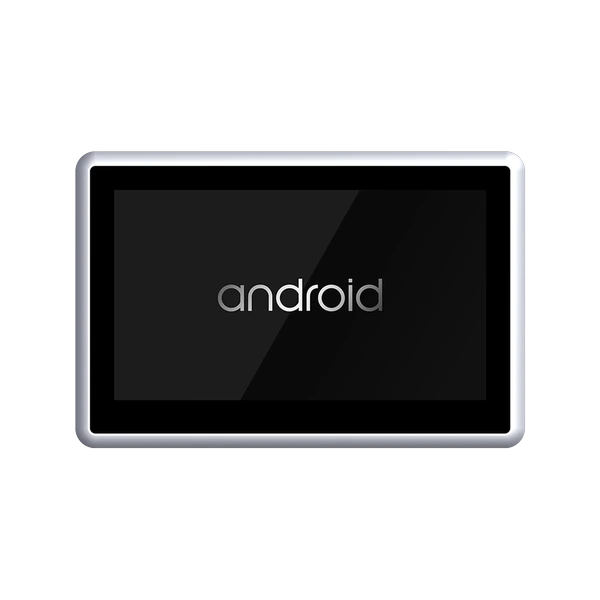

ARM6000-C125-C5E
12.5″ fanless ARM Panel PC with Rockchip RK3399 CPU, 4GB LPDDR4, 32GB/64GB eMMC, 1920×1080 capacitive touchscreen, dual LAN, RS232/485, USB, Wi-Fi/4G/5G option, and DC 12–24V input.
ARM6000-C156-C5E
15.6″ fanless ARM Panel PC with Rockchip RK3399 CPU, 4GB LPDDR4, 32GB/64GB eMMC, 1920×1080 capacitive touchscreen, dual LAN, RS232/485, USB, Wi-Fi/4G/5G option, and DC 12–24V input.

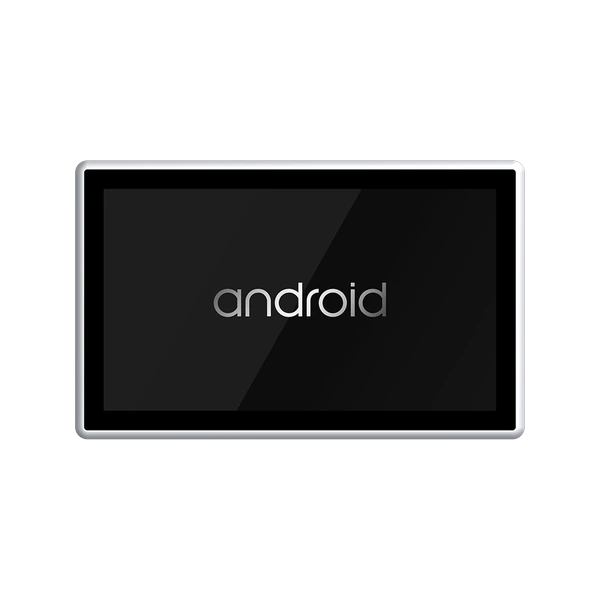

ARM6000-C215-C5E
21.5″ fanless ARM Panel PC with Rockchip RK3399 CPU, 4GB LPDDR4, 32GB/64GB eMMC, 1920×1080 capacitive touchscreen, dual LAN, RS232/485, USB, Wi-Fi/4G/5G option, and DC 12–24V input.
ARM6000-CXXX-C5E Panel PC Series Features
The ARM6000-CXXX-C5E series features Rockchip RK3399 processors and multi-size capacitive touchscreens ranging from 10.1” to 21.5”. Designed with fanless architecture, they integrate dual GbE LAN, RS232/RS485 serial ports, multiple USB interfaces, and optional Wi-Fi/4G modules. Storage support includes eMMC and SSD, while the 12-24V DC wide-range power input ensures reliable operation. The panel mount design is complemented by durable construction for industrial use, offering stable performance in varied environments.
Show More
Application Areas
The ARM6000-CXXX-C5E series is well-suited for industrial applications including smart kiosks, vending and locker systems, factory automation, machine vision terminals, SCADA systems, and edge computing deployments. These ARM Panel PCs provide scalable solutions for industrial IoT, transportation systems, retail service terminals, and smart energy management interfaces.
| Model | Screen Size | CPU | LAN Ports | Serial Ports | USB | Wireless | Power Input |
|---|---|---|---|---|---|---|---|
| ARM6000-C101-C5E-3399-T | 10.1" | Rockchip RK3399 | 2 × GbE | 2 × RS232, 1 × RS485 | 4 × USB | Wi-Fi / 4G (optional) | 12-24V DC |
| ARM6000-C125-C5E-3399-T | 12.5" | Rockchip RK3399 | 2 × GbE | 2 × RS232, 1 × RS485 | 4 × USB | Wi-Fi / 4G (optional) | 12-24V DC |
| ARM6000-C156-C5E-3399-T | 15.6" | Rockchip RK3399 | 2 × GbE | 2 × RS232, 1 × RS485 | 4 × USB | Wi-Fi / 4G (optional) | 12-24V DC |
| ARM6000-C215-C5E-3399-T | 21.5" | Rockchip RK3399 | 2 × GbE | 2 × RS232, 1 × RS485 | 4 × USB | Wi-Fi / 4G (optional) | 12-24V DC |
