TPC6000-C2153V-T | 21.5” Panel-Mount Industrial PC

21.5” fanless panel PC with capacitive touchscreen, Intel CPU options, panel-mount front, DVI-D + VGA output, and front panel with customizable Ø22 control buttons

Features

21.5″ 1920×1080 capacitive multi-touch display
Intel Celeron J1900 / 3855U / Core i5-7200U CPU options
Fanless design with aluminum-magnesium alloy front bezel
Supports DVI-D and VGA dual display output

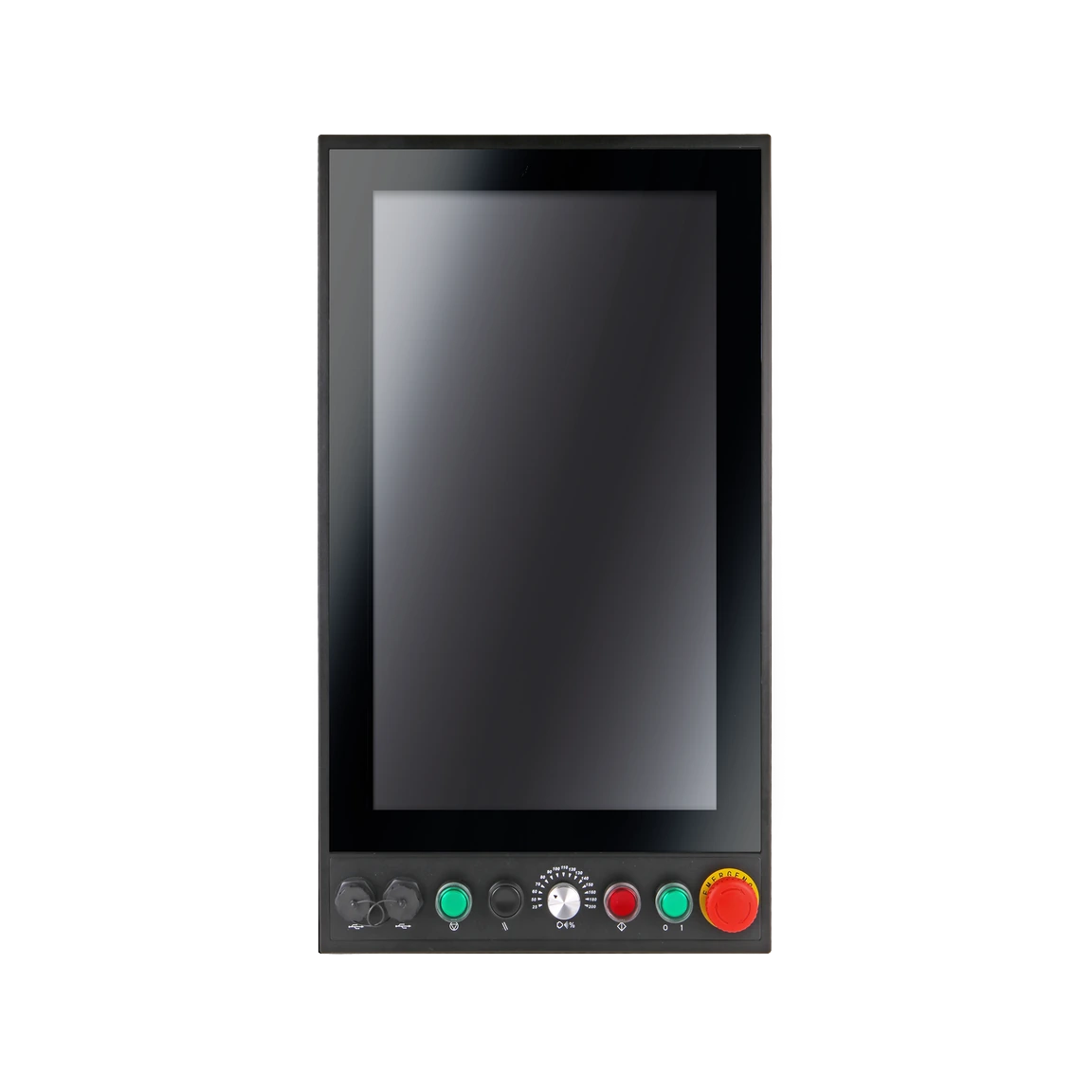

Customizable front panel supports up to 7x Ø22mm buttons: USB, E-stop, selector switch, potentiometer

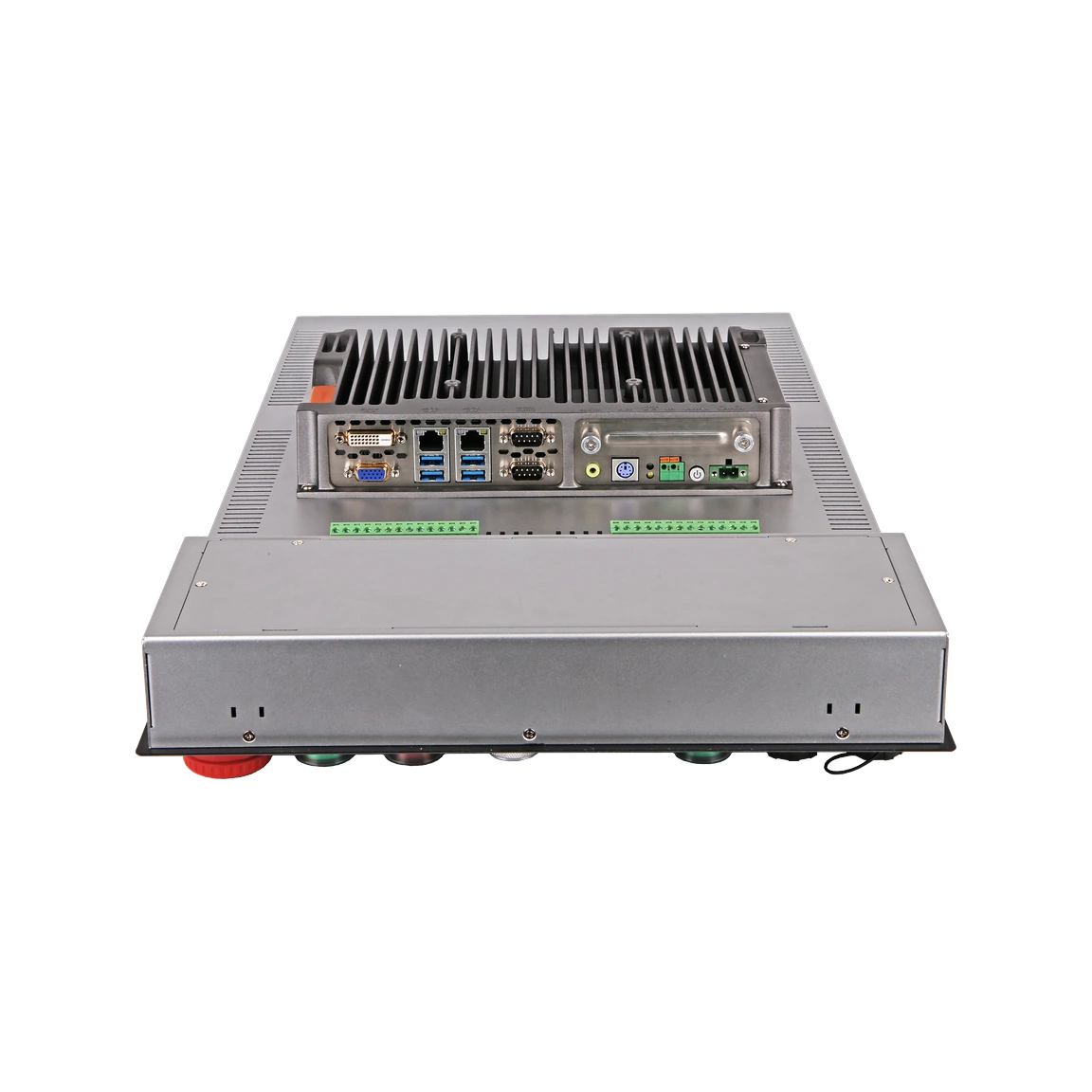

2 x RS232/485, 2 x Intel I210 GbE LAN, 4 x USB 2.0/3.0, 16 GPIO, audio I/O
1 x Mini PCIe with SIM, 1 x EasyBUS expansion slot
12~24V wide-range DC input with full protection
Supports Windows 7/8/10, Ubuntu, CentOS, VxWorks, QNX

Button-Integrated Industrial Panel PC HMI Product Information

Technical Specifications
Processor
CPU	Intel Celeron J1900 / Intel Celeron 3855U / Intel Core i5-7200U
Base Frequency	2.0 GHz / 1.6 GHz / 2.5 GHz (Dual Core)
L2 Cache	2MB / 2MB / 3MB
Chipset	Integrated PCH-LP
BIOS	AMI EFI 16Mbit
Memory
Type	DDR3L 1333MHz
Slot	1 x 204-pin SO-DIMM
Capacity	Up to 8GB
Graphics & Display
Controller	Intel HD Graphics 520 / 510
VGA	1920×1200 @60Hz or 2048×1152 @60Hz with reduced blanking
DVI-D	1920×1200 @60Hz or 2048×1152 @60Hz with reduced blanking
HDMI	N/A
Dual Display	Yes, VGA + DVI
Network
LAN1 / LAN2	Intel I210 GbE LAN controller
Audio
Audio Codec	Realtek ALC662, Line-out
I/O Interfaces
COM	2 x RS232/485 (DB9)
USB	4 x USB2.0/3.0
GPIO	16-bit GPIO
Mini PCIe	1 x Full-size Mini PCIe with SIM slot
EasyBUS	Supports 2xRS232/485, 2xLAN, 2xUSB, or DIO
Storage
HDD	1 x 2.5" HDD Bay (max 600MB/s)
SSD	1 x Full-size mSATA slot
Operating System
Windows	Windows 7, Windows 7 Embedded, Windows 8, Windows 10
Linux	Ubuntu, Fedora, CentOS
Real-time OS	VxWorks, QNX
Power
Type	AT/ATX
Input Voltage	12~24V DC ±10%
Minimum Input Power	12V, 3A
Power Adapter	AC to DC 12V/5A, 60W (Optional)
Power Consumption	5~30W
Mechanical
Structure	Aluminum-magnesium alloy shell
Mounting	Panel mounted
Dimensions (LWH)	629.7mm x 352.7mm x 74.2mm
Weight	10.42kg
Environmental
Operating Temp	-20°C to 60°C (SSD) / 0°C to 45°C (HDD)
Storage Temp	-40°C to 80°C
Humidity	5–95% RH, non-condensing
Vibration	1.5 Grms (SSD), IEC 60068-2-64
Shock	10G, IEC 60068-2-27, 11ms
Certification
Certifications	CE, FCC Class A, CCC
Waterproof	Front panel IP65

Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information
Product Code	CPU	Description	Display Interface
TPC6000-C2153V-T-3855	Intel 3855U, 1.6GHz Dual Core	No memory / no SSD / 2 x RS232 / RS485 (optional) / 2 x LAN / 4 x USB2.0/3.0 / DVI-D / VGA / DC12V~24V input	DVI-D / VGA
TPC6000-C2153V-T-7200	Intel i5-7200U, 2.8GHz Dual Core	No memory / no SSD / 2 x RS232 / RS485 (optional) / 2 x LAN / 4 x USB2.0/3.0 / DVI-D / VGA / DC12V~24V input	DVI-D / VGA
TPC6000-C2153V-T-J1900	Intel J1900, 2.0GHz Quad Core	No memory / no SSD / 2 x RS232 / RS485 (optional) / 2 x LAN / 4 x USB2.0/3.0 / DVI-D / VGA / DC12V~24V input	DVI-D / VGA
Option Items
Adapter	KPL-060F, with 2-pin terminal, 12V 60W
Power Cord	L = 1.8M
Memory	Supports DDR3L 1333MHz, up to 8GB
Storage	Supports 2.5" SSD / HDD, mSATA
