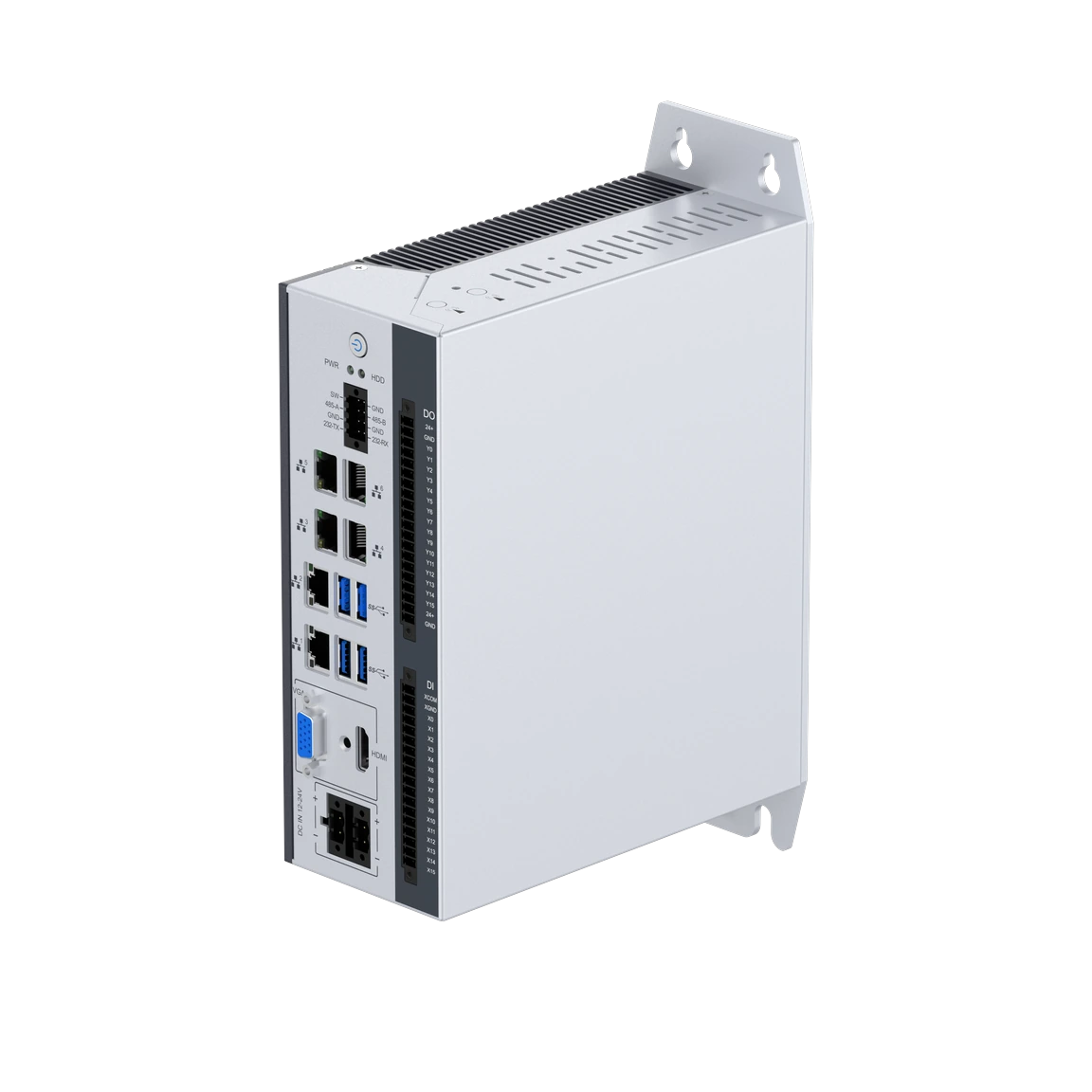

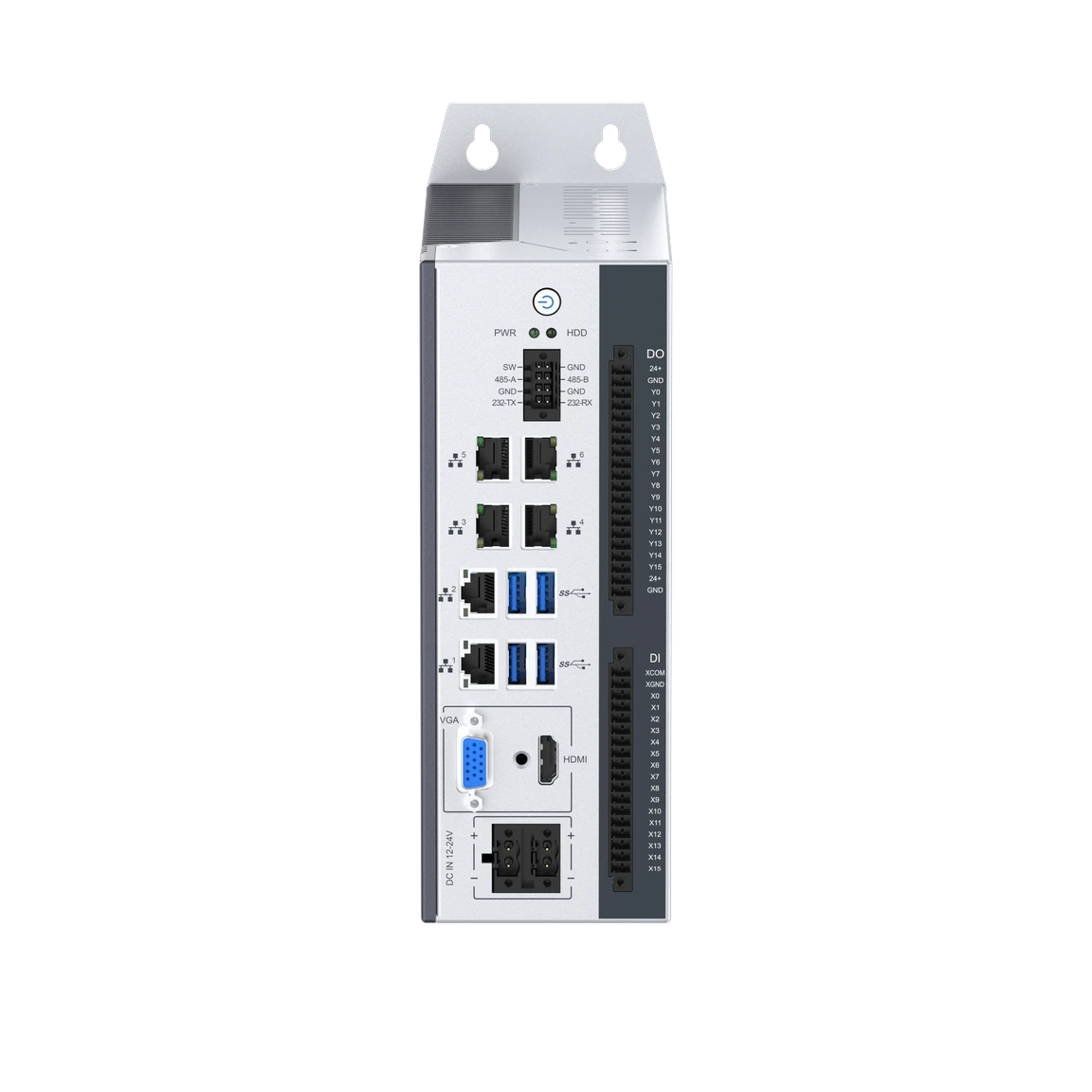

NP-6120-16I16O | Automation PC with 6 LAN, RS232/RS485, 16 DI/16 DO
DIN-rail/wall-mount Automation PC with Intel® Core™ 6th–8th Gen CPUs, 6 GbE LAN, RS232/RS485, 16 DI/16 DO, SSD storage, Mini PCIe expansion, and DC12–24V input.
Features
- Supports Intel(r) CoreTM 6th-8th Gen i7/i5/i3, Pentium, Celeron processors (LGA1151)
- 6 × Intel(r) GbE LAN ports (I210 and I219 controllers)
- 1 × RS232, 1 × RS485 serial interface
- 16 × DI, 16 × DO (NPN/PNP selectable)
- 1 × M.2 SSD 2242, 1 × M.2 SSD 2280, 1 × SATA SSD storage
- 1 × Mini PCIe expansion slot with SIM card holder
- VGA up to 1920×1080@60Hz, HDMI up to 3840×2160@30Hz

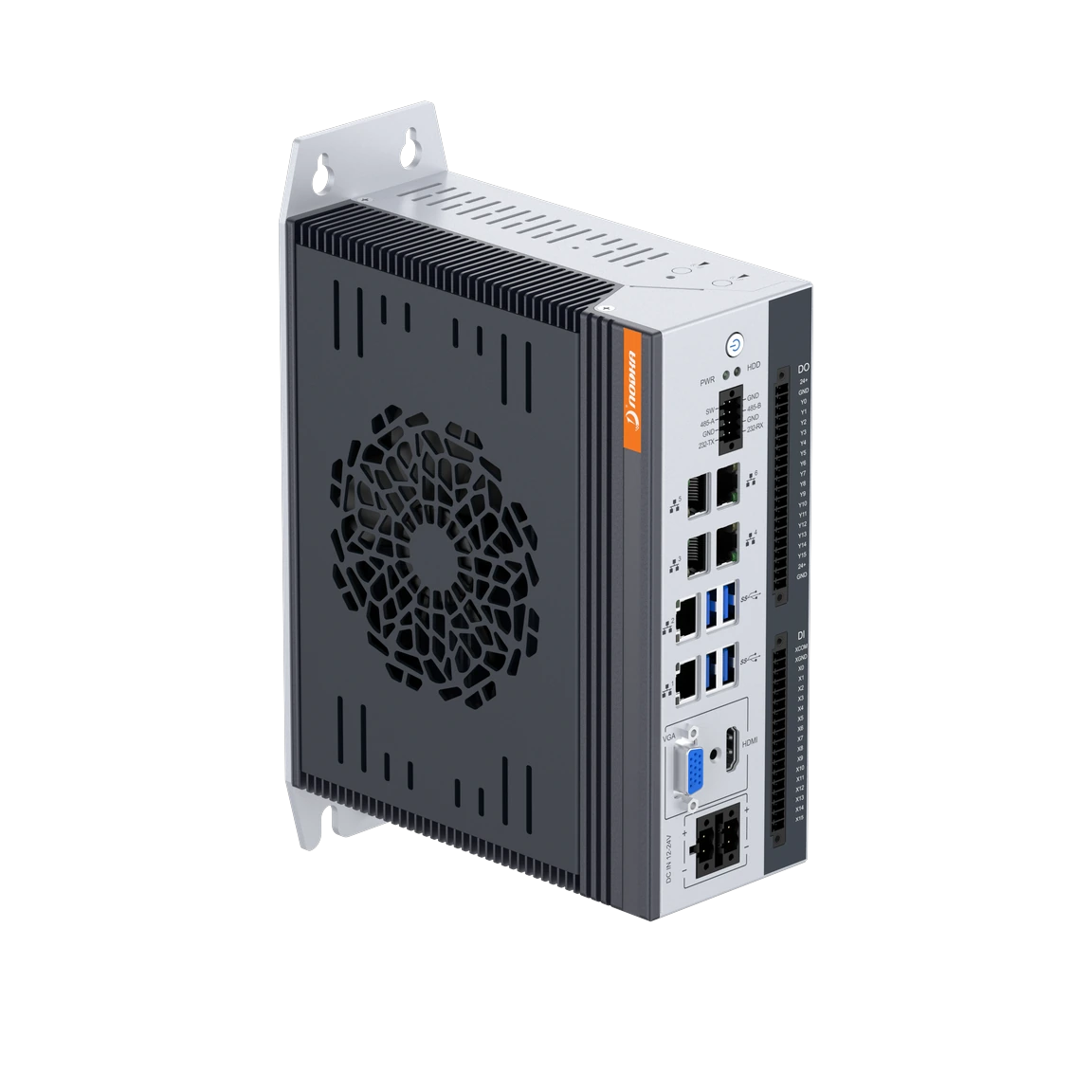

- Active cooling with aluminum-magnesium alloy housing
- DIN-rail or wall-mount installation
- 12-24V DC input with overcurrent, overvoltage, and reverse polarity protection
Control Cabinet Industrial Automation PC Product Information
| Technical Specifications -- NP-6120-16I16O | |
|---|---|
| System | |
| CPU | Intel(r) CoreTM 6th/7th/8th Gen i7/i5/i3, Pentium, Celeron (LGA1151) |
| TDP | 65W |
| BIOS | AMI UEFI BIOS |
| Memory | 2 × SO-DIMM DDR4-3200 MT/s, up to 32GB |
| Storage | 1 × M.2 SSD 2242 M-Key, 1 × M.2 SSD 2280 M-Key, 1 × SATA SSD |
| USB | 4 × USB3.0, 1 × USB2.0 Type-A (for dongle) |
| COM | 1 × RS232, 1 × RS485 |
| Ethernet | 1 × Intel I219-V GbE LAN, 1 × Intel I210-AT GbE LAN |
| DIO | 16 × DI, 16 × DO (NPN/PNP selectable, Imax 0.5A) |
| VGA | Up to 1920 × 1080 @60Hz |
| HDMI | Up to 3840 × 2160 @30Hz |
| Expansion | 1 × Full-size PCIe Mini slot with SIM card holder |
| Watchdog | 1-255 levels programmable |
| OS | |
| Supported OS | Microsoft Windows 10, Linux Ubuntu |
| Power | |
| Voltage Input | DC12-24V ±10%, overcurrent, overvoltage, polarity inverse protection |
| Power Consumption | Max. 120W |
| Chassis | |
| Structure | Aluminum-magnesium alloy box with fan cooling, wall-mounted or DIN-rail |
| Dimensions | 200mm (L) × 168mm (W) × 75mm (H) |
| Net Weight | 2.4 kg |
| Environment | |
| Operating Temperature | -20°C ~ 60°C (with airflow, SSD) |
| Storage Temperature | -40°C ~ 80°C (with airflow, SSD) |
| Relative Humidity | 5-95% (non-condensing) |
| Operating Vibration | 5-500Hz, 1.5Grms (with SSD), IEC60068-2-64 |
| Operating Shock | 206 peak acceleration (11ms, SSD), IEC60068-2-27 |
| EMC | CE/FCC |
| Ordering Information -- NP-6120-16I16O | |
|---|---|
| Part No. | Description |
| B73.61200.0Q.0001 | NP-6120-16I16O, CPU: NULL, RAM: NULL, M.2: NULL, SATA: NULL, 1 × RS232, 1 × RS485, 6 × LAN, 4 × USB3.0, 16 × DI, 16 × DO, VGA/HDMI display, DC12-24V DC IN |
| Options | |
| CPU | Intel(r) Pentium G3900, G4400 ... Intel(r) CoreTM i3-6100, i3-6100T, i5-6400, i5-6400T, i5-6500, i5-6500T, i7-6700, i7-6700T Intel(r) CoreTM i3-7100, i3-7100T, i5-7400, i5-7400T, i5-7500, i5-7500T, i7-7700, i7-7700T Intel(r) CoreTM i3-8100, i3-8100T, i5-8400, i5-8400T, i5-8500, i5-8500T, i7-8700, i7-8700T Intel(r) CoreTM i3-9100, i3-9100T, i5-9400, i5-9400T, i5-9500, i5-9500T, i7-9700, i9-9900T |
| DDR4 Memory | DDR4-3200 MHz: 4GB, 8GB, 16GB |
| M.2 SSD 2242 | 64GB, 128GB, 256GB, 512GB, 1TB |
| M.2 SSD 2280 | 64GB, 128GB, 256GB, 512GB, 1TB, 2TB |
| SATA SSD | 64GB, 128GB, 256GB, 512GB, 1TB, 2TB |
| WiFi Set | Mini PCIe: Intel 7260 |
| 3G/4G Module | Mini PCIe: EC20, EG25, EC25 |
| Mount Option | DIN rail (IEC 60715: width 35mm, thickness 1mm) |
