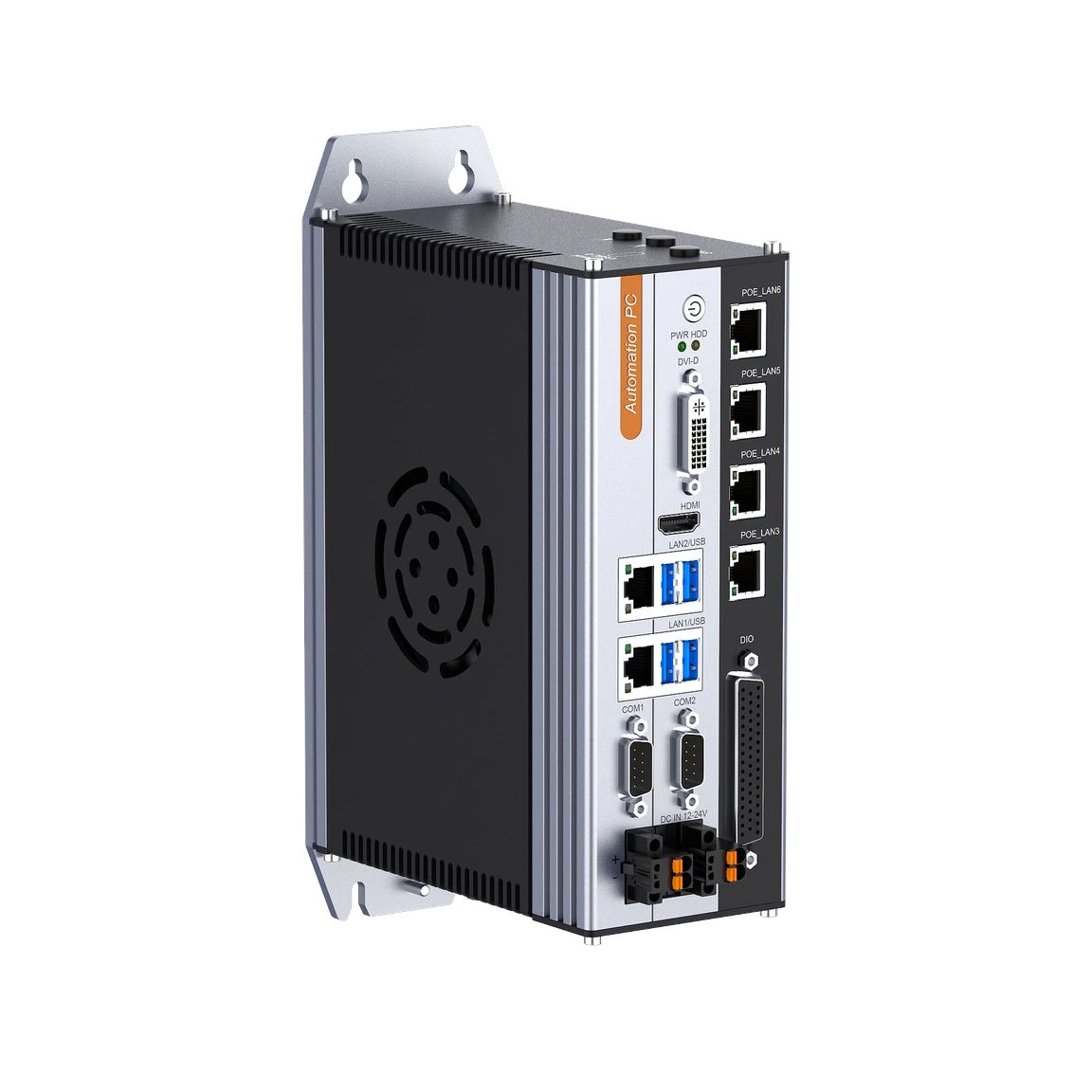

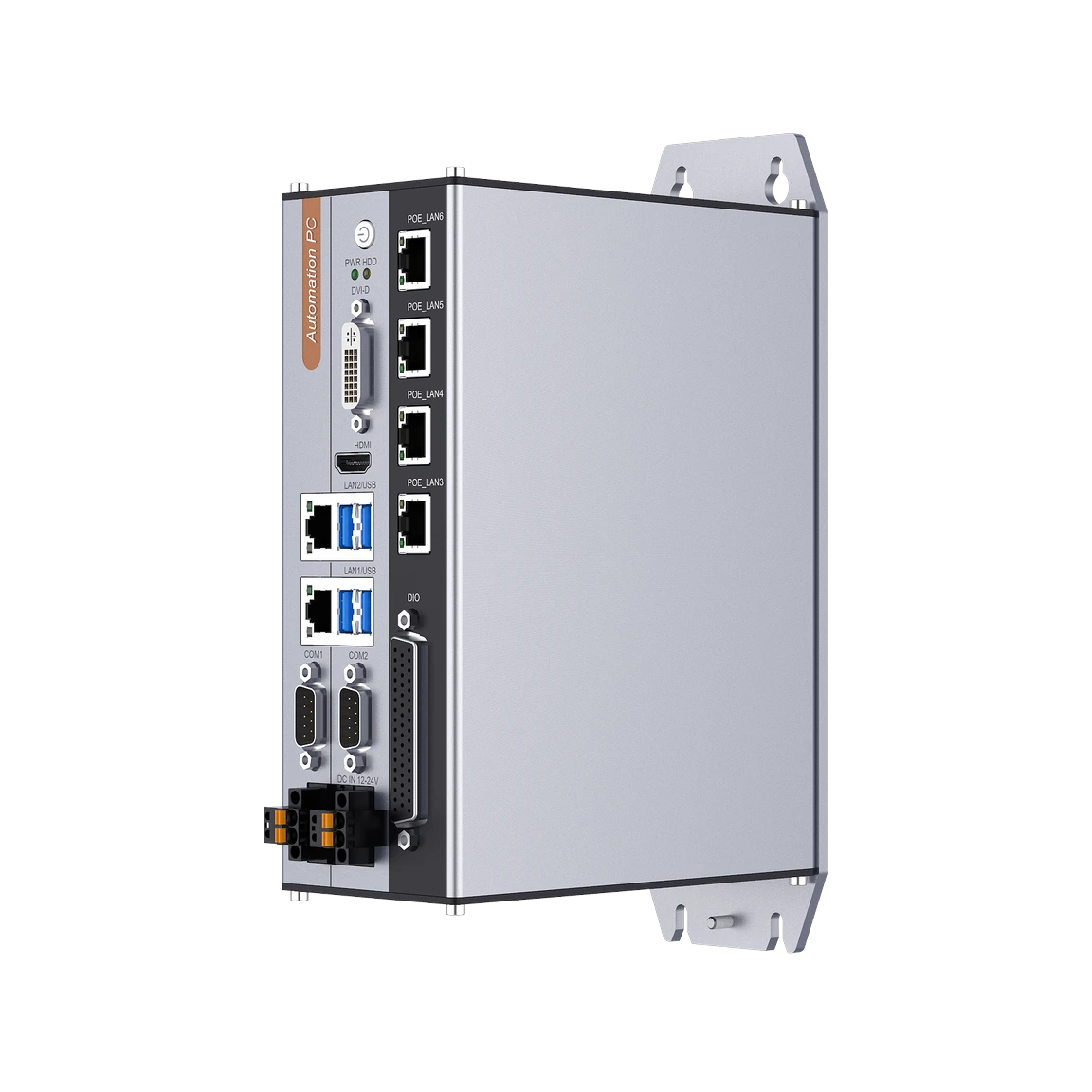

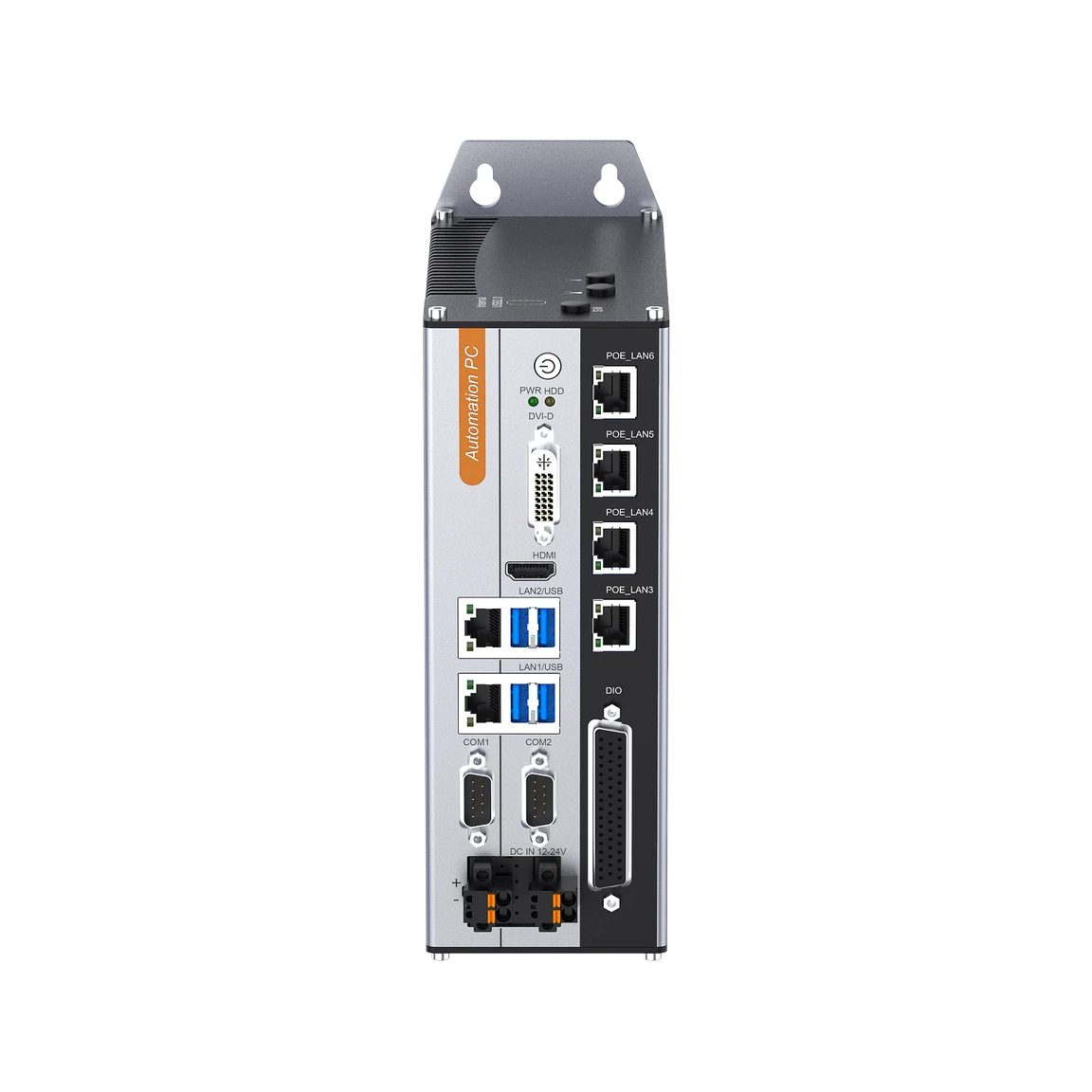

NP-6122-H1BP / NP-6132-H1BP | Machine Vision Automation PC with 16DI/16DO & PoE
Active-cooled Machine Vision Automation PC with Intel LGA1151/1200 CPU support, 16DI/16DO, 6 LAN (4 PoE), dual display, M.2 + mSATA storage, and Mini PCIe for wireless or 4G module
- Actively cooled Machine Vision Automation PC with compact, robust metal enclosure
- Supports Intel® 6th–11th Gen Core / Pentium / Celeron CPUs (LGA1151 / LGA1200)
- 16DI (NPN/PNP), A/B phase encoder input (up to 1MHz), suitable for motion sensing
- 16DO: NPN (-N model) or PNP (-P model), with 2 x PWM outputs
- 6 LAN ports total: 2 x Intel GbE + 4 x PoE GbE (15W per channel)
- 2 x RS232/RS485 COM ports with ESD protection
- Video output: HDMI and DVI-D, supporting 4K and FHD displays
- 4 x USB 3.0, 1 x internal USB 2.0 for license dongle
- Storage: 1 x mSATA, 1 x M.2 SATA SSD (B key, 2280)
- 1 x Mini PCIe slot with SIM support for Wi-Fi/4G communication
- Wide input voltage: DC12~24V ±10%, with over-voltage, current, and polarity protection
- DIN Rail and Wall Mount supported
- Operating temperature: -20°C to 60°C (SSD)
Machine Vision Automation PC Product Information
| Technical Specifications | ||||
|---|---|---|---|---|
| Model Name | NP-6122-H1BP-N | NP-6122-H1BP-P | NP-6132-H1BP-N | NP-6132-H1BP-P |
| System | ||||
| CPU | Intel(r) CoreTM 6th/7th/8th Gen (LGA1151) | Intel(r) CoreTM 10th/11th Gen (LGA1200) | ||
| Max TDP | Up to 65W | |||
| Memory | 2 x SO-DIMM DDR4, up to 32GB | |||
| Storage | 1 x mSATA, 1 x M.2 (B Key, 2280 SATA) | |||
| I/O Interfaces | ||||
| USB | 4 x USB 3.0, 1 x USB 2.0 (onboard for dongle) | |||
| Serial Ports | 2 x RS232/RS485 (switchable), ESD protected | |||
| LAN | 2 x Intel GbE, 4 x Intel GbE PoE (15W/channel) | |||
| DI | 16 x DI (NPN/PNP), 2-ch A/B phase encoder, up to 1MHz | |||
| DO | 16 x NPN, PWM x2 | 16 x PNP, PWM x2 | 16 x NPN, PWM x2 | 16 x PNP, PWM x2 |
| Display | ||||
| Resolution | DVI-D up to 1920x1080 @ 60Hz, HDMI up to 3840x2160 @ 60Hz | |||
| Expansion | ||||
| Slots | 1 x Full-size Mini PCIe with SIM holder | |||
| Power | ||||
| Input Voltage | DC 12~24V ±10%, with OVP, OCP, reverse polarity protection | |||
| Max Power Consumption | 220W | |||
| Mechanical | ||||
| Mounting | Wall-mounted or DIN-Rail | |||
| Dimensions (mm) | 200 x 154.5 x 74.6 | |||
| Weight | 2.4 kg | |||
| Environment | ||||
| Operating Temperature | -20°C ~ 60°C (with SSD) | |||
| Storage Temperature | -40°C ~ 80°C | |||
| Humidity | 5~95% RH, non-condensing | |||
| Vibration | 1.5Grms, 5-500Hz (IEC 60068-2-64) | |||
| Shock | 20G, 11ms (IEC 60068-2-27) | |||
| EMC | CE/FCC Class A | |||
| OS Support | ||||
| Supported OS | Windows 10, Ubuntu, CentOS, Debian | |||
| Ordering Information | ||||
|---|---|---|---|---|
| Model Name | CPU Support | LAN | DO Type | Description |
| NP-6122-H1BP-N | Intel(r) 6th/7th/8th Gen Core (LGA1151) | 2 LAN + 4 PoE | NPN | Compact Machine Vision Automation PC with 16DI (NPN/PNP), 16DO (NPN), 2 COM, USB3.0, HDMI/DVI, M.2 + mSATA, 12-24V DC input |
| NP-6122-H1BP-P | Intel(r) 6th/7th/8th Gen Core (LGA1151) | 2 LAN + 4 PoE | PNP | Same as above, with 16DO (PNP) |
| NP-6132-H1BP-N | Intel(r) 10th/11th Gen Core (LGA1200) | 2 LAN + 4 PoE | NPN | Machine Vision Automation PC with higher CPU support, 16DI (NPN/PNP), 16DO (NPN), 2 COM, USB3.0, HDMI/DVI, M.2 + mSATA, 12-24V DC input |
| NP-6132-H1BP-P | Intel(r) 10th/11th Gen Core (LGA1200) | 2 LAN + 4 PoE | PNP | Same as above, with 16DO (PNP) |
| Options | |
|---|---|
| CPU Options | Intel(r) CoreTM i3/i5/i7, Pentium, Celeron (LGA1151 or LGA1200 depending on model) |
| Memory | DDR4 8GB, 16GB, 32GB |
| mSATA | 64GB, 128GB, 256GB, 512GB, 1TB |
| M.2 SATA SSD | 128GB, 256GB, 512GB, 1TB, 2TB |
| Wi-Fi Kit | Mini PCIe Wi-Fi Kit (e.g., Intel 7260 Series), antenna included |
| 3G/4G Module | Mini PCIe: EC20, EG25, EC25 with SIM support |
| Mounting Options | DIN Rail Mount or Wall Mount |
