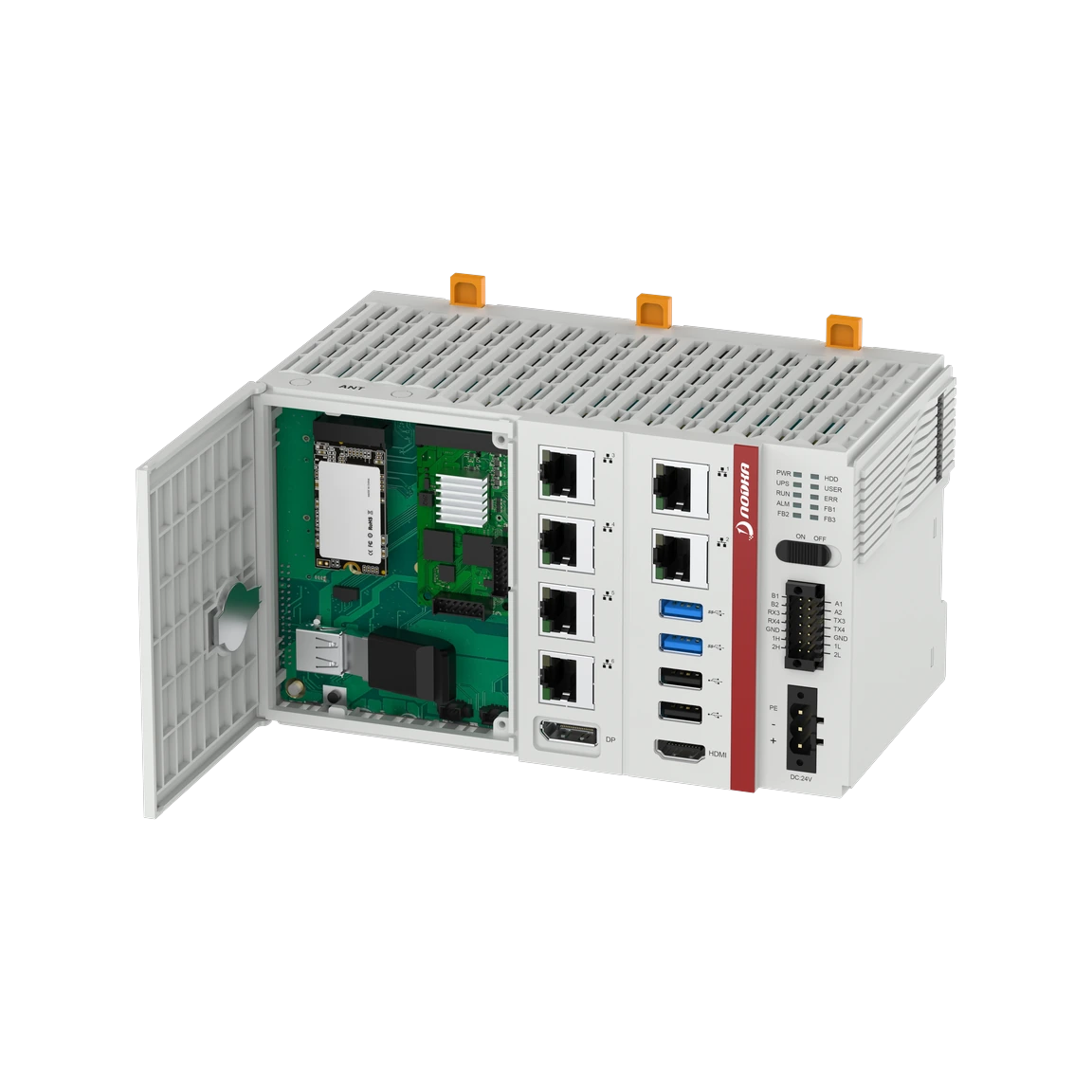

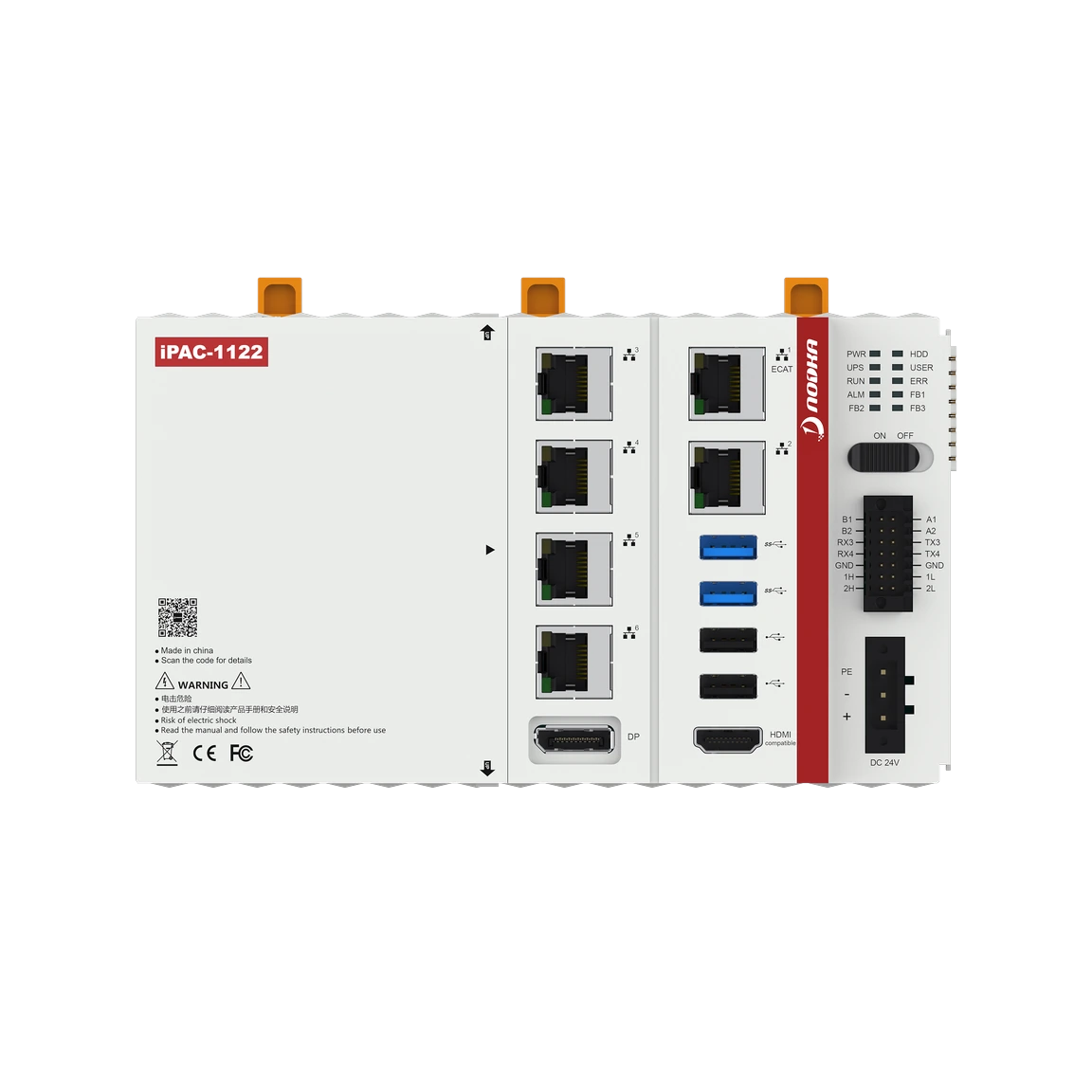

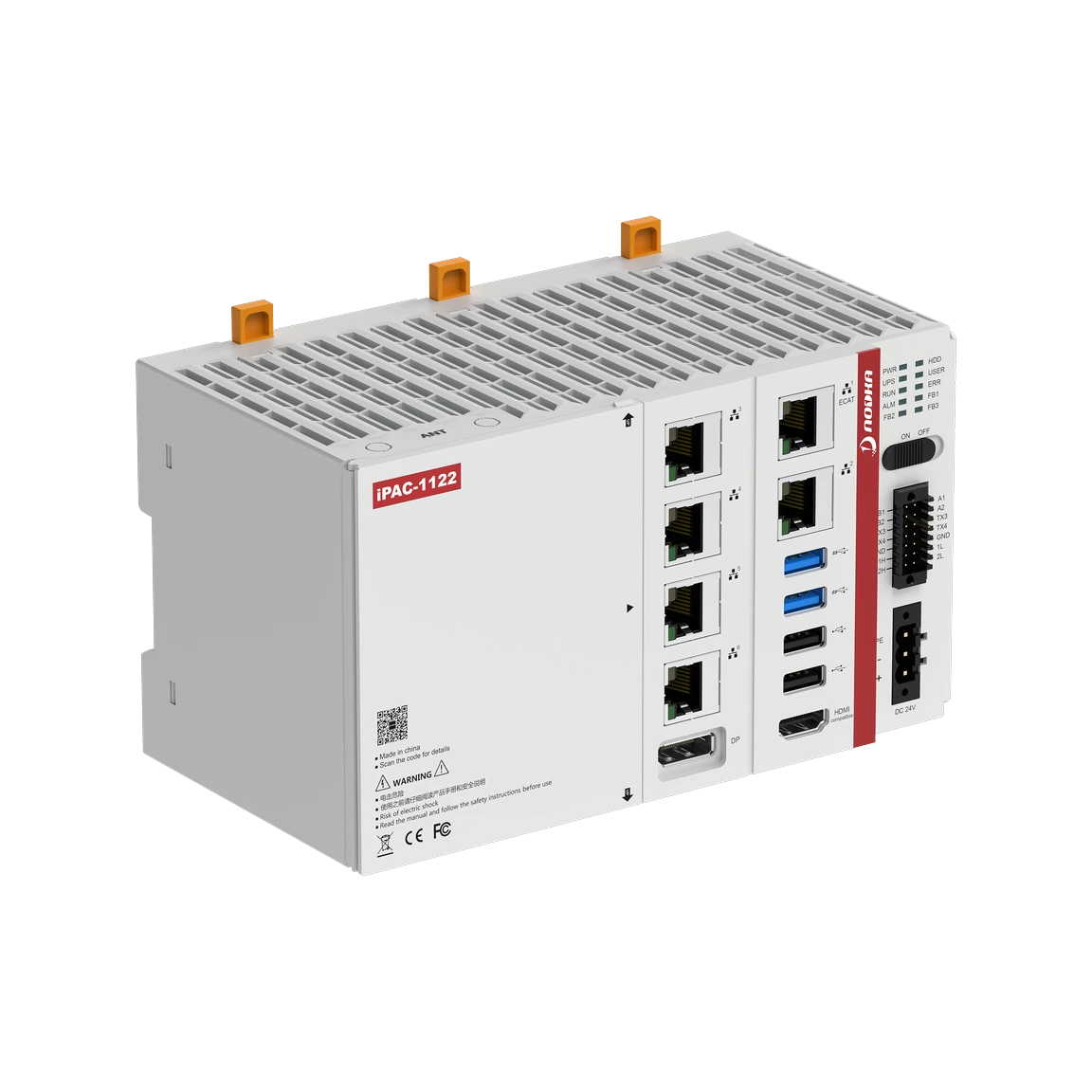

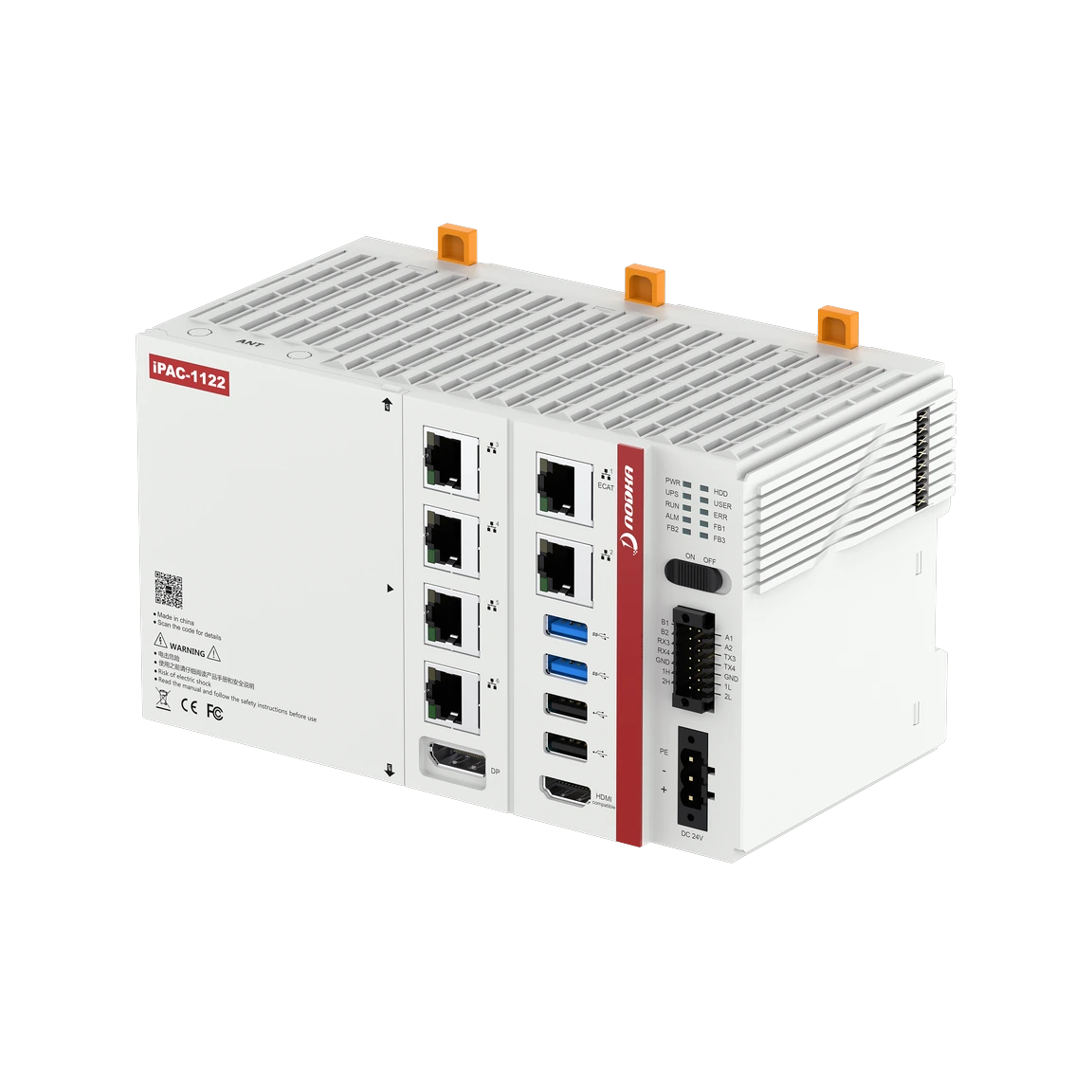

AC-1121 | High-Performance DIN-Rail Industrial IPC Controller with 5 LAN & EtherCAT
Fanless Core i7/i5/i3-based industrial PC with 5 LAN, EtherCAT, HDMI + DP, RS232/485, modular expansion, and wide-temp DIN-rail form factor
Features
- High-performance DIN-rail IPC powered by Intel® Core™ i7/i5/i3 (6th–8th Gen)
- 5 x Gigabit LAN ports using Intel® i210-AT for industrial networking
- EtherCAT interface for real-time automation control
- HDMI + DisplayPort output, up to 4K resolution
- 2 x RS232, 2 x RS485, 2 x USB 3.0, 2 x USB 2.0 + onboard USB

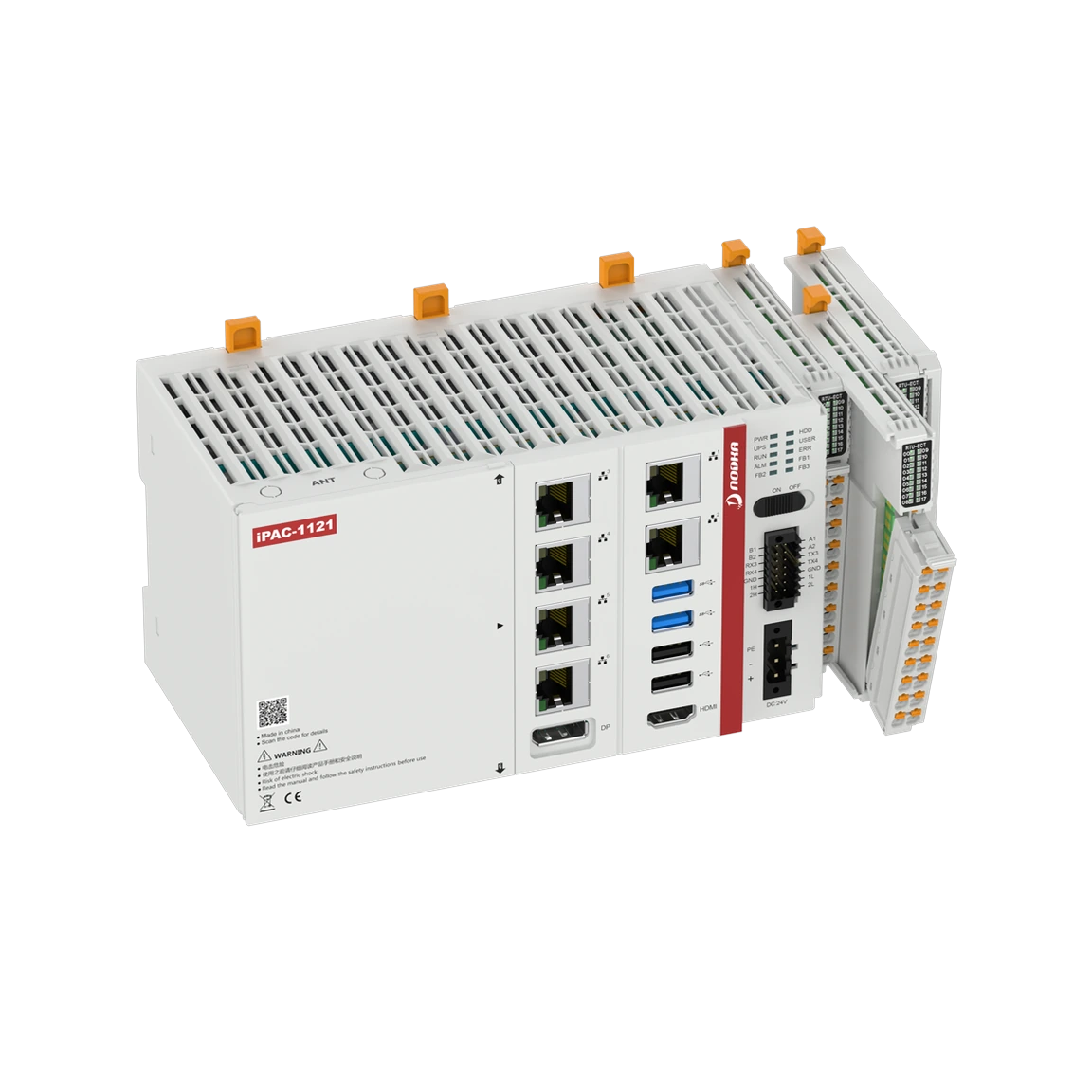

- E-BUS expansion slot for modular I/O scalability
- 1 x Mini PCIe with SIM slot for wireless communication
- 5 x programmable LEDs, system LEDs, and programmable switch
- 24V wide-range input with surge and reverse polarity protection
- -20°C ~ 60°C operating range with airflow (SSD required)
DIN-Rail Industrial IPC Controller Product Information
| Technical Specifications | |
|---|---|
| System | |
| CPU | Intel(r) Core i3/i5/i7 (6th, 7th, 8th generation) |
| TDP | 65W |
| BIOS | AMI UEFI BIOS |
| Memory | 2 x SO-DIMM DDR4, up to 32GB |
| Storage | 1 x M.2 (B Key, Type 2242), supports SATA |
| I/O Interfaces | |
| USB | 2 x USB 3.0, 2 x USB 2.0, 1 x USB 2.0 Type A onboard |
| COM | 2 x RS485 (COM1/COM2), 2 x RS232 (COM3/COM4) |
| LAN | 5 x Intel(r) i210-AT Gigabit Ethernet |
| EtherCAT | 1 x RJ45 |
| I/O Expansion | E-BUS |
| Expansion | |
| Mini PCIe | 1 x Full-size Mini PCIe slot with SIM card holder |
| Indicators & Switch | |
| LEDs | 1 x POWER, 1 x HDD, 1 x UPS, 1 x SYS, 1 x EC LINK 5 x Programmable LEDs (Run, Error, ALM, 2 x FB) |
| Switch | 1 x Programmable Switch |
| Display | |
| HDMI | Up to 1920 × 1080 @60Hz |
| DP | Up to 4096 × 2160 @60Hz |
| Watchdog | 1-255 levels programmable |
| OS Support | |
| Microsoft Windows | Windows 10 |
| Linux | Ubuntu, CentOS, Debian |
| Power | |
| Voltage Input | DC 24V ±15%~±20%, with surge, OVP, OCP, reverse protection. Supercapacitor holds for 10s full load |
| Power Consumption | Max. 120W |
| Chassis | |
| Dimensions | 180mm (L) x 107mm (W) x 97mm (H) |
| Net Weight | 1.25 Kg |
| Environment | |
| Operating Temperature | -20°C ~ 60°C (with airflow, SSD) |
| Storage Temperature | -40°C ~ 80°C (with airflow, SSD) |
| Relative Humidity | 5-95% RH (non-condensing) |
| Vibration | 5-500Hz, 1.5Grms (SSD), IEC60068-2-64 |
| Shock | 20G peak, 11ms, IEC60068-2-27 |
| EMC | CE / FCC Class A |
Click the link below to download datasheets or drivers:
| Ordering Information | ||
|---|---|---|
| Model | CPU | Description |
| AC-1121 | Intel(r) CoreTM i3/i5/i7 (6th-8th Gen) | Fanless DIN-rail controller with 5 x LAN, 2 x RS485, 2 x RS232, 2 x USB3.0, 2 x USB2.0, HDMI + DP, EtherCAT, 5 x LEDs, 1 x Switch, 2 x CAN (Optional), DC24V input |
| Optional Items | |
|---|---|
| DDR4L Memory | DDR4-3200MHz: 4GB, 8GB, 16GB |
| M.2 SSD | 64GB, 128GB, 256GB, 512GB, 1TB |
| Wi-Fi Module | Mini PCIe: Intel 7260 |
| 3G/4G Module | Mini PCIe: EC20, EG25, EC25 |
