| Technical Specifications |
|---|
| System |
|---|
| CPU | Intel(r) Celeron J1900, 2.0GHz, 4 cores/4 threads, 2MB L2 cache |
| TDP | 10W |
| BIOS | AMI 64Mb UEFI |
| Memory | 1 x SO-DIMM DDR3L-1333MHz (up to 8GB) |
| Storage | 1 x M.2 2242 SATA2.0 |
| I/O Interfaces |
|---|
| USB | 1 x USB 3.0, 2 x USB 2.0 |
| COM | 1 x RS232, 1 x RS485 |
| LAN | 3 x Gigabit Ethernet (2 x RTL8111H, 1 x Intel controller) |
| Display | 1 x HDMI (up to 1920 x 1080 @60Hz), 1 x DP (up to 2560 x 1600 @60Hz) |
| DIO | 8 x DI, 8 x DO (NPN or PNP model dependent) |
| LED | 1 x Programmable LED |
| Expansion |
|---|
| Mini PCIe | 1 x Full-size Mini PCIe slot with SIM card holder |
| Watchdog Timer | 1~255 level programmable |
| Power |
|---|
| Input Voltage | DC 12~24V ±10%, with over-current, over-voltage, and reverse polarity protection |
| Power Consumption | Max. 45W |
| Mechanical |
|---|
| Structure | Fanless embedded cooling, Wall-mounted or DIN-Rail fixing style |
| Dimensions | 178mm (L) x 102mm (W) x 48mm (H) |
| Net Weight | 1.15 Kg |
| Environmental |
|---|
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -40°C ~ 80°C |
| Humidity | 5~95% RH (Non-condensing) |
| Vibration | 1.5Grms (5~500Hz, with SSD), IEC60068-2-64 compliant |
| Shock | 20G peak acceleration (11ms), IEC60068-2-27 compliant |
| EMC | CE/FCC Class B |
| OS Support |
|---|
| Microsoft Windows | Windows 10 |
| Linux | Ubuntu |
| Ordering Information |
|---|
| Model | CPU | Description |

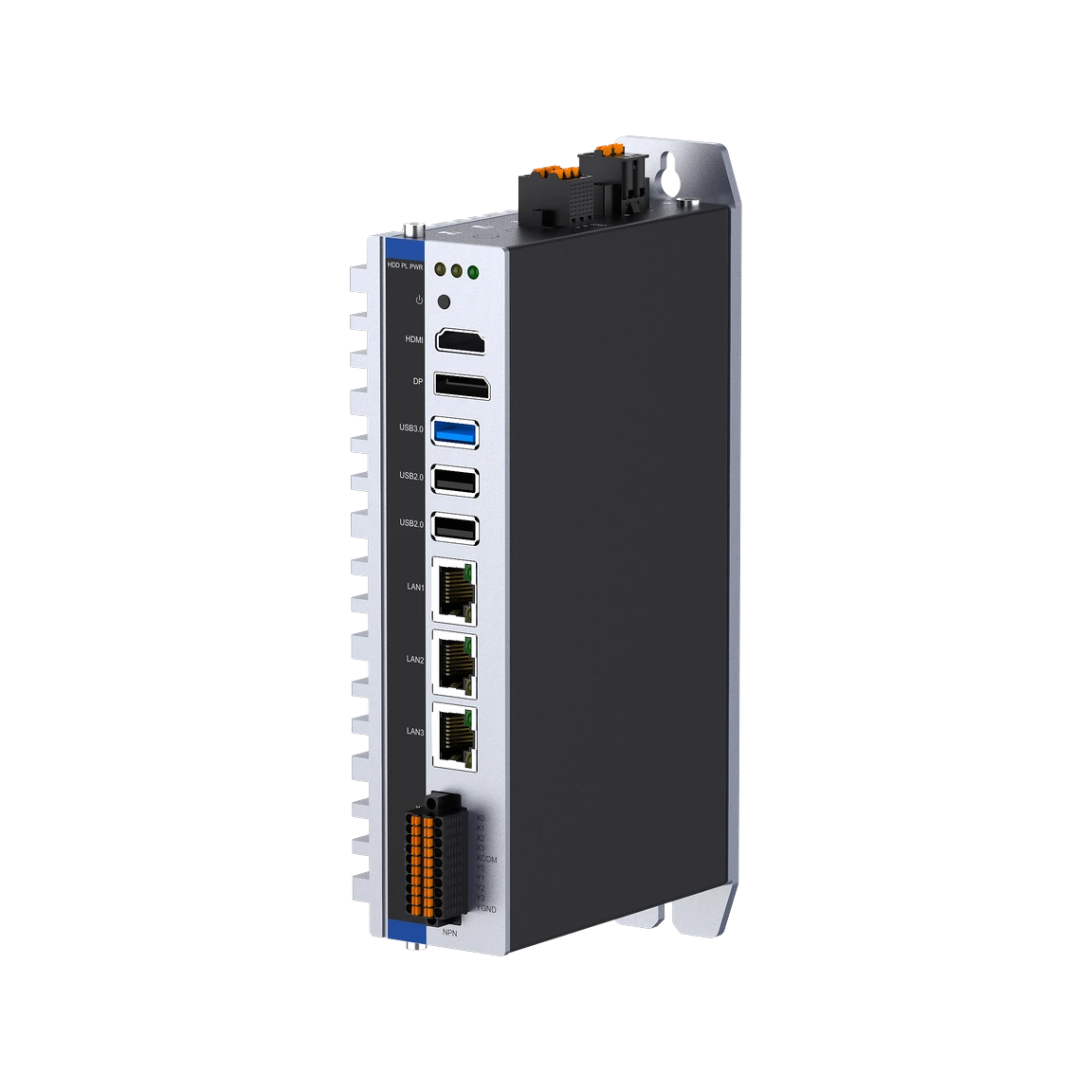

| NP-6116-IO-N-J1900 | Intel(r) Celeron J1900 | Fanless automation PC with 3 x LAN, 2 x COM, 3 x USB, 8 x DI, 8 x DO (NPN), HDMI + DP, Mini PCIe with SIM, 12-24V DC input, DIN/wall mount |
| NP-6116-IO-P-J1900 | Intel(r) Celeron J1900 | Fanless automation PC with 3 x LAN, 2 x COM, 3 x USB, 8 x DI, 8 x DO (PNP), HDMI + DP, Mini PCIe with SIM, 12-24V DC input, DIN/wall mount |
| Optional Items |
|---|
| Memory | 4GB / 8GB DDR3L SO-DIMM |
| Storage | M.2 SATA SSD: 128GB / 256GB / 512GB / 1TB / 2TB |
| Wireless Module | Mini PCIe Wi-Fi (7260 Series) / 3G/4G module (EC20, EG25, EC25) with SIM slot support |
| Mounting Kit | Wall-mount and DIN rail brackets (included) |
