Fanless Automation PC NP-6116 Series
NP-6116-CAN2
Fanless industrial automation PC with Intel Celeron J1900/J6412/J6413, 2 CAN2.0A/B (SocketCAN), 3 GbE, RS232/RS485, 3 USB, HDMI/DP, M.2 2242 SATA and DC 12-24V.
NP-6116-COM2
Fanless automation PC with Intel Celeron J1900/J6412/J6413, 1 RS232, 1 RS485, 2 configurable RS232/RS485 ports, 3 GbE, 3 USB, HDMI/DP, M.2 2242 SATA and DC 12-24V.

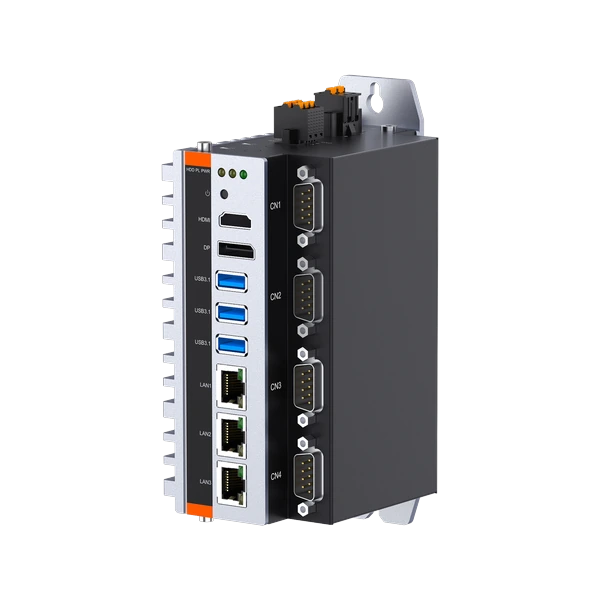

NP-6116-COM4
Fanless DIN-rail/wall-mount PC with Intel Celeron J1900/J6412/J6413, 3 GbE, 6 serial ports including four configurable RS232/485/422, 3 USB, HDMI/DP, M.2 2242 SATA and DC 12-24V input.

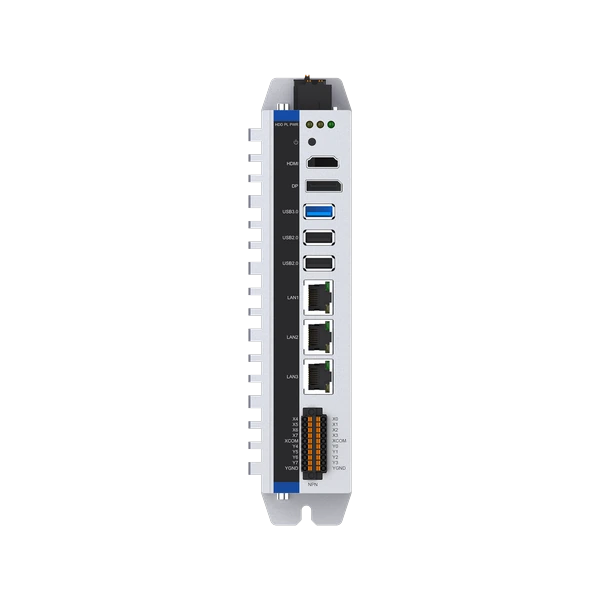

NP-6116-IO
Fanless DIN-rail/wall-mount automation PC with Intel Celeron J1900/J6412/J6413, 8 isolated DI, 8 DO in NPN or PNP variants, 3 GbE, RS232/RS485, USB, HDMI/DP, mini-PCIe, M.2 SATA and DC 12-24V input.
NP-6116-J1900
Fanless automation PC supports Intel Celeron J1900, 2 x GbE LAN, RS232/485, M.2 SSD, HDMI & DP, DIN Rail & wall-mounting, and DC12~24V input

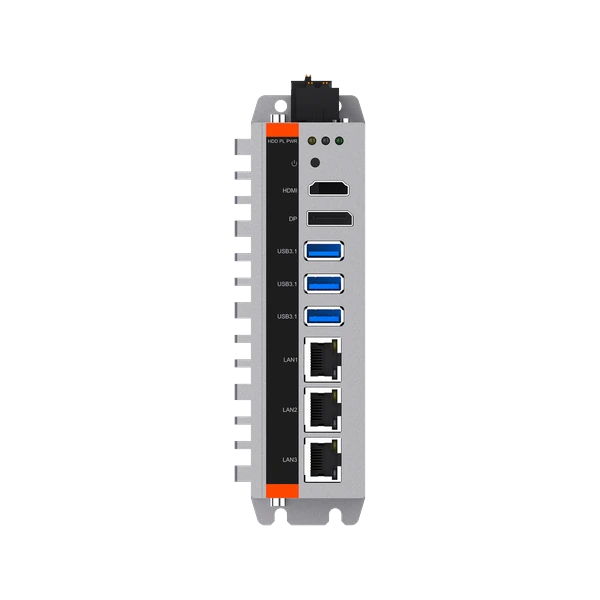

NP-6116-J6412
Fanless automation PC supports Intel Celeron J6412, 3 x GbE LAN, RS232/485, M.2 SSD, HDMI & DP, DIN Rail & wall-mounting, and DC12~24V input
NP-6116-L2
Fanless control cabinet PC with Intel Celeron J1900/J6412/J6413, 5 GbE, 3 USB, RS232/RS485, HDMI/DP, M.2 2242 SATA, and DC 12-24V input for DIN-rail/wall mounting.
NP-6116-N97/X7425E
Compact fanless box PC with Intel N97 CPU, 4 LAN, 2 COM, HDMI + DP, M.2 SSD, Mini PCIe with SIM, DC 12–24V input, designed for industrial edge applications.
NP-6116 Series Fanless Automation PC Features
The NODKA NP-6116 Series is a family of compact fanless industrial automation PCs available with Intel x86 and Rockchip ARM processors. Intel-based configurations support Intel® Celeron® J1900, J6412 and J6413, Intel® Processor N97, and Intel Atom® x7425E processors, with DDR3L or DDR4 SO-DIMM memory and M.2 2242 SATA storage. The NP-6116-4L-A3588 and NP-6116-4U-A3588 models feature an 8-core Rockchip RK3588 processor with Mali-G610 MC4 graphics, a 6 TOPS INT8 NPU, onboard 8GB LPDDR5 memory and 64GB eMMC storage. Depending on configuration, the series provides 2–5 Gigabit Ethernet ports, multiple USB2.0/USB3.x interfaces, up to six serial ports, dual CAN2.0 interfaces, and 8-channel isolated digital inputs and outputs. The ARM configurations include onboard dual-band Wi-Fi, Bluetooth 5.0 and optional M.2 2280 SATA SSD expansion. All models feature fanless aluminum-magnesium enclosures, DC 12–24V power input and DIN-rail or wall mounting. Intel configurations support operating temperatures from -20°C to 60°C with airflow and SSD, while the Rockchip ARM configurations are specified for -20°C to 70°C operation.
Show More
Application Areas
The NP-6116 Series is suitable for industrial machine control, factory equipment monitoring, PC-based automation, industrial IoT gateways, edge computing, industrial data acquisition and SCADA connectivity. Configurations with additional serial ports support legacy equipment integration, Modbus RTU networks, energy management systems, building automation, UPS monitoring and industrial instrumentation. Models with integrated CAN bus interfaces are suitable for robotic subsystem communication, AGV/AMR equipment integration and CAN-based machine networks. Digital I/O configurations support sensor monitoring, actuator interfacing and production-line control. The Rockchip RK3588 ARM models extend the series into embedded edge AI and machine vision applications, with the NP-6116-4L-A3588 offering multiple Ethernet connections for networked devices and cameras, while the NP-6116-4U-A3588 provides high-density USB3.0 connectivity for USB cameras, image acquisition devices and automated inspection systems. Application-specific software and validation are required for PLC replacement, real-time control and AI vision deployment.
NP-6116 Series - Model Cross Reference
| Model | Processor | GbE LAN | USB | Serial Ports | CAN / Digital I/O | Storage | Max. Power |
|---|---|---|---|---|---|---|---|
| NP-6116 | Intel® Celeron® J1900 / J6412 / J6413 |
3 x GbE | 3 x USB* | 1 x RS232 1 x RS485 |
— | M.2 2242 SATA3.0 | 60W |
| NP-6116-CAN2 | Intel® Celeron® J1900 / J6412 / J6413 |
3 x GbE | 3 x USB* | 1 x RS232 1 x RS485 |
2 x CAN2.0A/B | M.2 2242 SATA3.0 | 60W |
| NP-6116-COM2 | Intel® Celeron® J1900 / J6412 / J6413 |
3 x GbE | 3 x USB* | 1 x RS232 1 x RS485 2 x RS232/485 configurable |
— | M.2 2242 SATA3.0 | 60W |
| NP-6116-COM4 | Intel® Celeron® J1900 / J6412 / J6413 |
3 x GbE | 3 x USB* | 1 x RS232 1 x RS485 4 x RS232/485/422 configurable |
— | M.2 2242 SATA3.0 | 60W |
| NP-6116-IO | Intel® Celeron® J1900 / J6412 / J6413 |
3 x GbE | 3 x USB* | 1 x RS232 1 x RS485 |
8 x Isolated DI 8 x Isolated DO NPN/PNP variants |
M.2 2242 SATA3.0 | 60W |
| NP-6116-L2 | Intel® Celeron® J1900 / J6412 / J6413 |
5 x GbE | 3 x USB* | 1 x RS232 1 x RS485 |
— | M.2 2242 SATA3.0 | 60W |
| NP-6116-N97 | Intel® Processor N97 | 4 x GbE | 2 x USB3.0 2 x USB2.0 |
1 x RS232 1 x RS485 |
— | M.2 2242 SATA3.0 | 90W |
| NP-6116-x7425E | Intel Atom® x7425E | 4 x GbE | 2 x USB3.0 2 x USB2.0 |
1 x RS232 1 x RS485 |
— | M.2 2242 SATA3.0 | 90W |
| NP-6116-4L-A3588 | Rockchip RK3588 8-core ARM 6 TOPS NPU |
5 x GbE (4 x Intel i210 + 1 x RTL8211F) |
1 x USB3.0 1 x USB3.0/OTG 1 x USB2.0 |
2 x RS232 2 x RS485 |
8 x Isolated DI 8 x Isolated DO |
64GB eMMC M.2 2280 SATA3.0 (optional) |
≤20W |
| NP-6116-4U-A3588 | Rockchip RK3588 8-core ARM 6 TOPS NPU |
2 x GbE | 5 x USB3.0 Type-A 1 x USB3.0/OTG |
2 x RS232 2 x RS485 |
8 x Isolated DI 8 x Isolated DO |
64GB eMMC M.2 2280 SATA3.0 (optional) |
≤20W |
* For the J1900 configuration: 1 x USB3.0 + 2 x USB2.0. For J6412/J6413 configurations: 3 x USB3.1.
J1900 models support DDR3L-1600 memory up to 8GB. J6412/J6413, N97 and x7425E models support DDR4-3200 memory up to 16GB. RK3588 models include onboard 8GB LPDDR5 and 64GB eMMC.
All models feature fanless cooling, DC 12-24V power input, and DIN-rail or wall mounting. Intel configurations are rated for -20°C to 60°C operation with airflow and SSD; RK3588 configurations are rated for -20°C to 70°C.
NP-6116-4U-A3588: the optional M.2 2280 SATA SSD shares a configuration choice with the RK1820 computing module.
