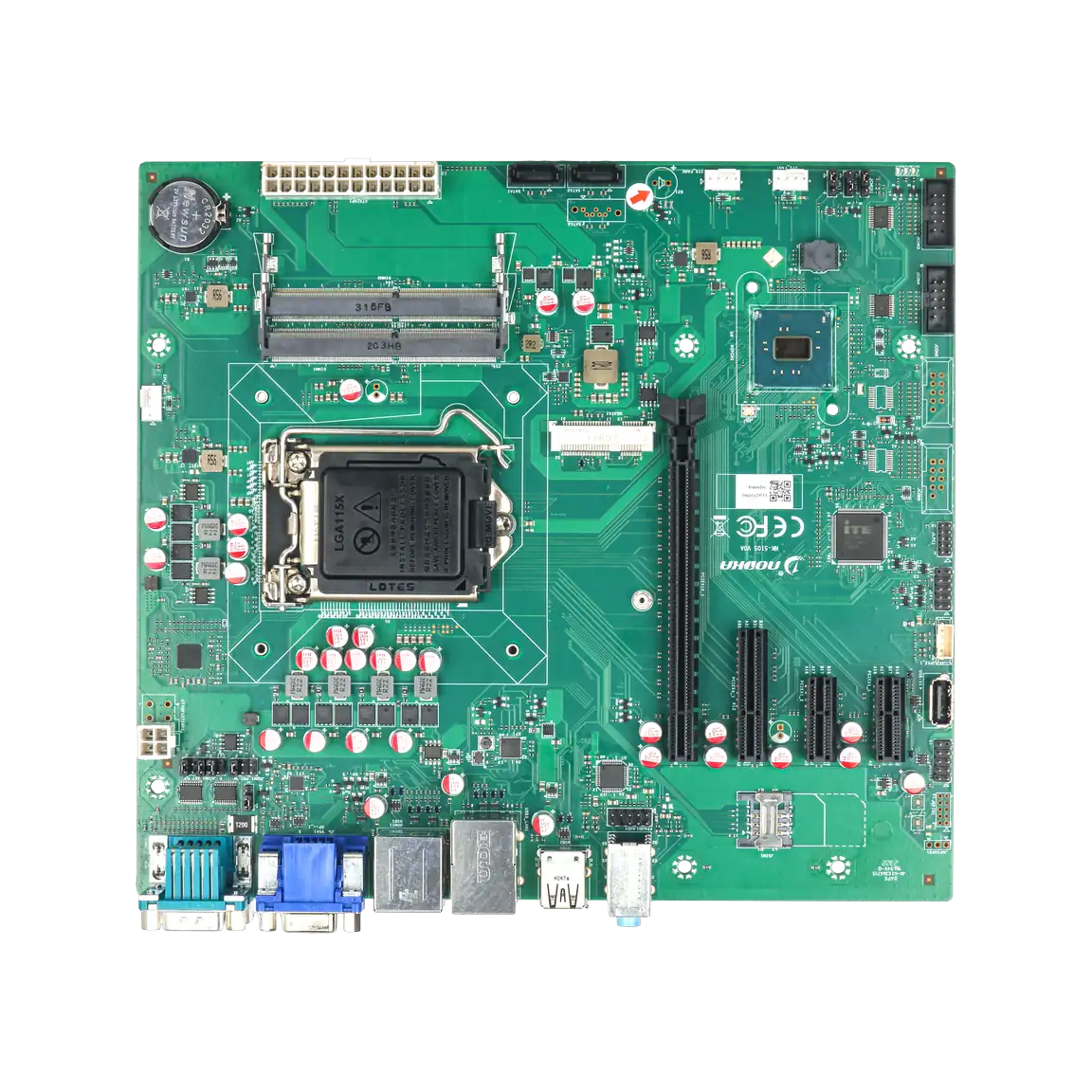

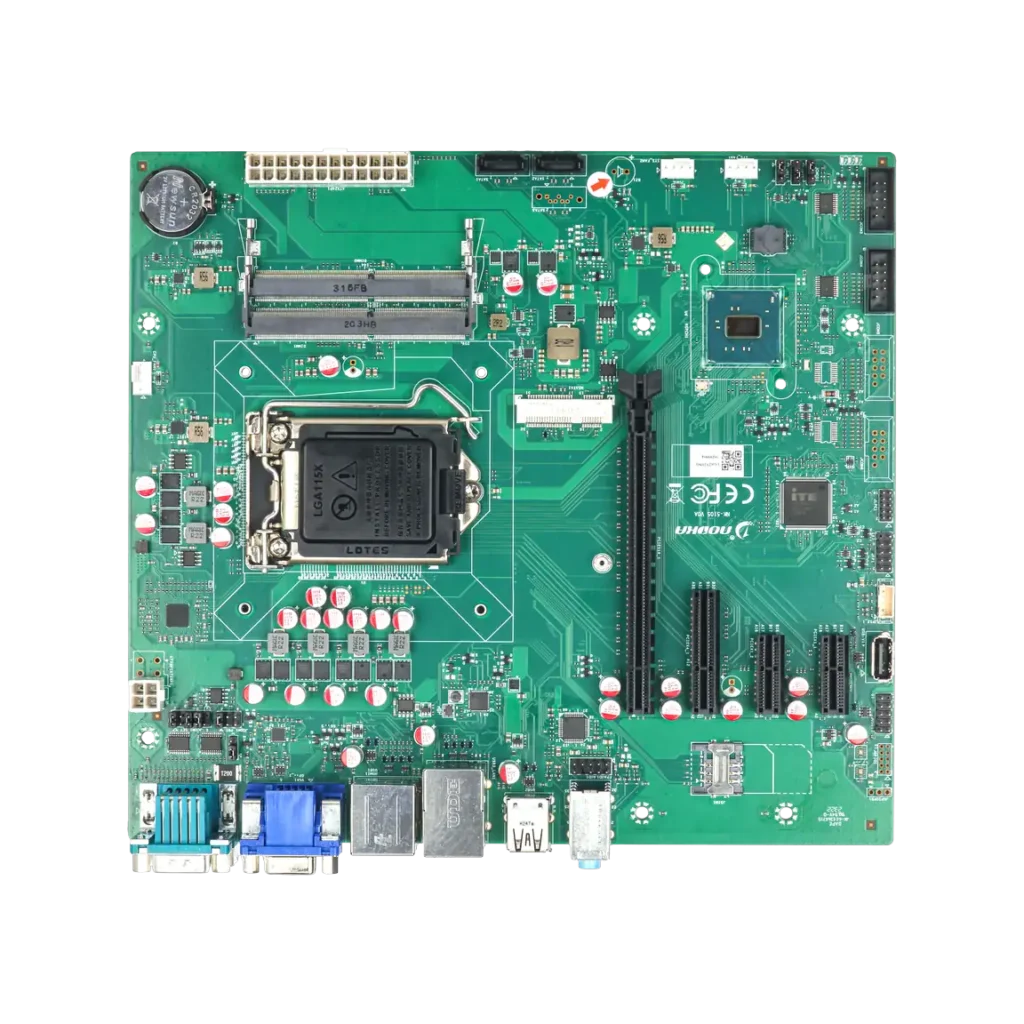

| Technical Specifications -- NK-5105 |
| Processor System |
| CPU |
Intel(r) 6th/7th/8th/9th Gen Celeron, Pentium, Core-i series processors, TDP up to 95W |
| Socket |
LGA1151 |
| Chipset |
Intel(r) H110 |
| BIOS |
AMI 128Mb UEFI BIOS |
| Memory |
| Technology |
Dual Channel (Non-ECC) DDR4-1866/2133/2400/2666MHz |
| Slots |
2 × DDR4 SO-DIMM slots, up to 64GB |
| Storage |
| mSATA |
1 × mSATA |
| SATA |
3 × SATA3.0 (up to 6Gb/s) |
| Graphics |
| Controller |
Intel(r) HD Graphics integrated |
| Display |
1 × VGA up to 1920×1200@60Hz, 1 × DP up to 4096×2304@60Hz, 1 × HDMI 1.4 up to 4096×2160@30Hz |
| Audio |
| Codec |
Realtek ALC897 |
| Interface |
1 × Line-out, 1 × Mic-in, 1 × Line-in |
| Ethernet |
| LAN |
1 × GbE Intel i219-V |

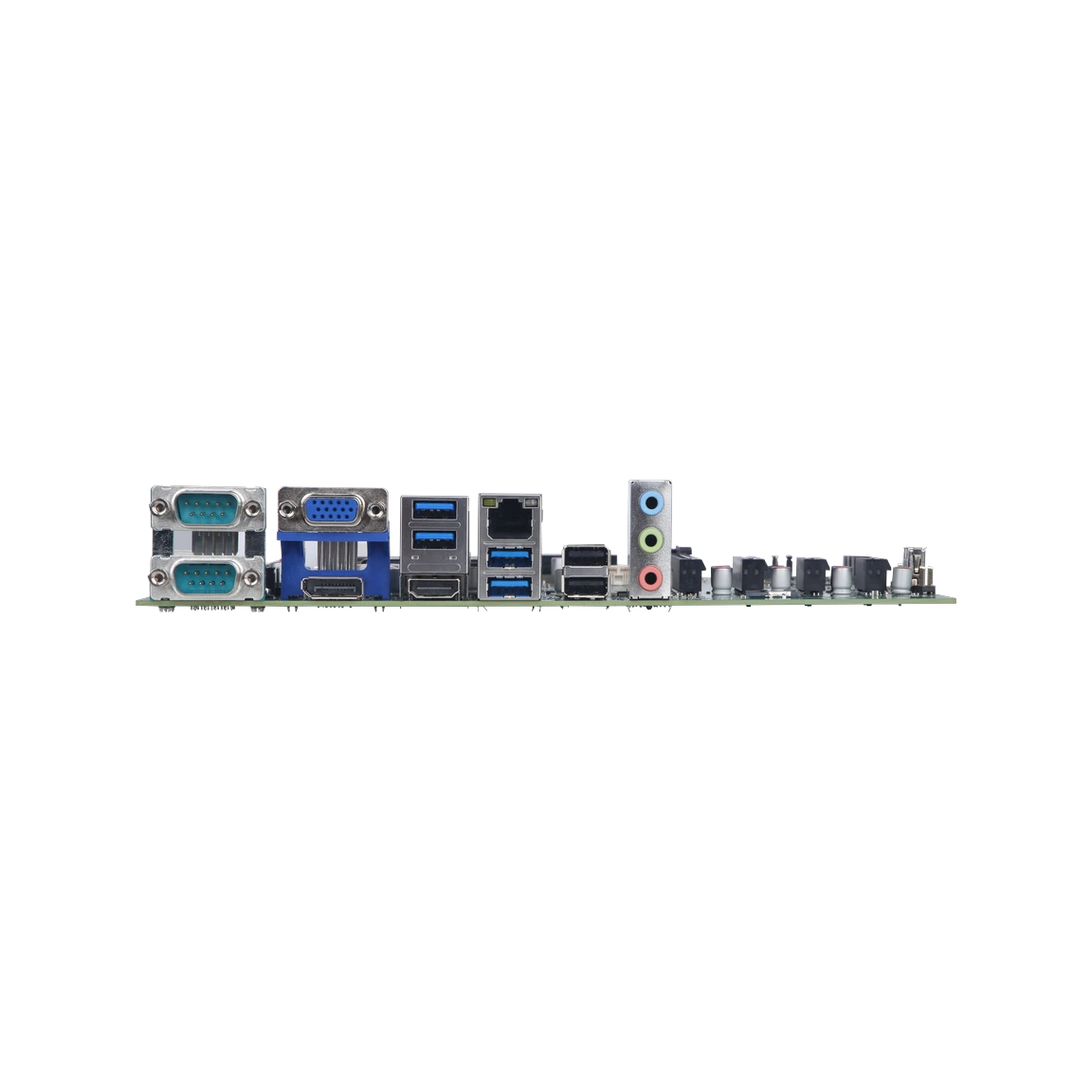

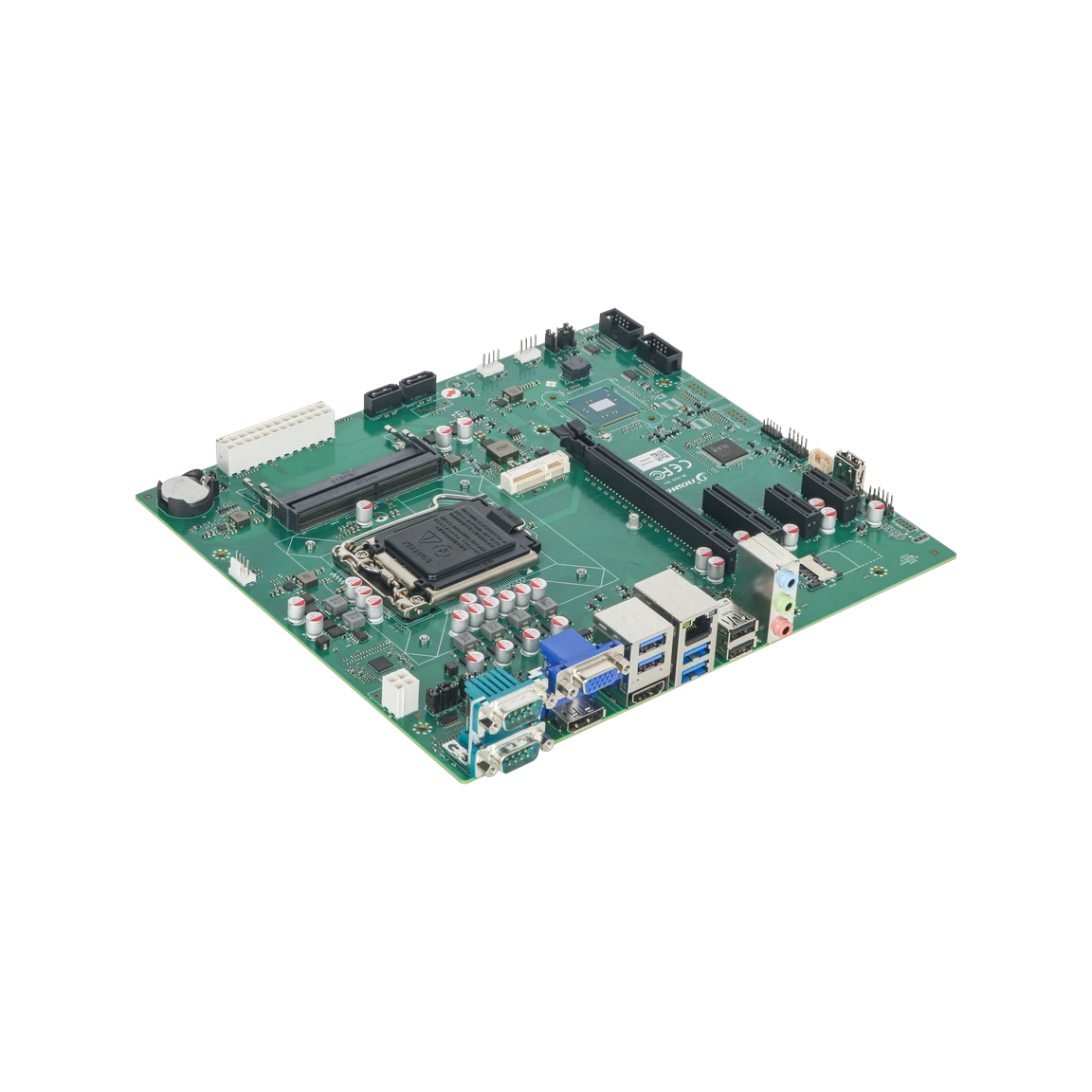

| Rear I/O |
| USB |
4 × USB3.0, 2 × USB2.0 |
| Serial |
1 × RS232/485, 1 × RS232 |
| Internal I/O |
| USB |
1 × USB2.0 pin header, 1 × Vertical USB2.0 Type-A connector |
| Serial |
2 × RS232 wafer, 2 × RS232 wafer (optional) |
| PS/2 |
1 × PS/2 wafer |
| LPC |
1 × LPC header |
| Front Panel |
1 × FP (Power LED, HDD LED, Power button, Reset button) |
| Fan |
2 × System FAN, 1 × CPU FAN |
| Expansion |
| PCIe |
1 × PCIe x16 (Gen3), 1 × PCIe x4 (Gen2, x2 link), 2 × PCIe x1 (Gen2) |
| Mini-PCIe |
1 × Mini-PCIe slot (SATA / USB signal) with Nano-SIM card slot |
| Security |
| TPM |
fTPM2.0 |
| Watchdog Timer |
| Output & Interval |
System reset, programmable from 1-255 sec |
| Power |
| Type |
ATX Power Input: 24-Pin ATX + 4-Pin ATX 12V |
| OS Support |
| Windows |
Windows 7/8.1 (6th Gen CPUs only), Windows 10 |
| Linux |
Linux |

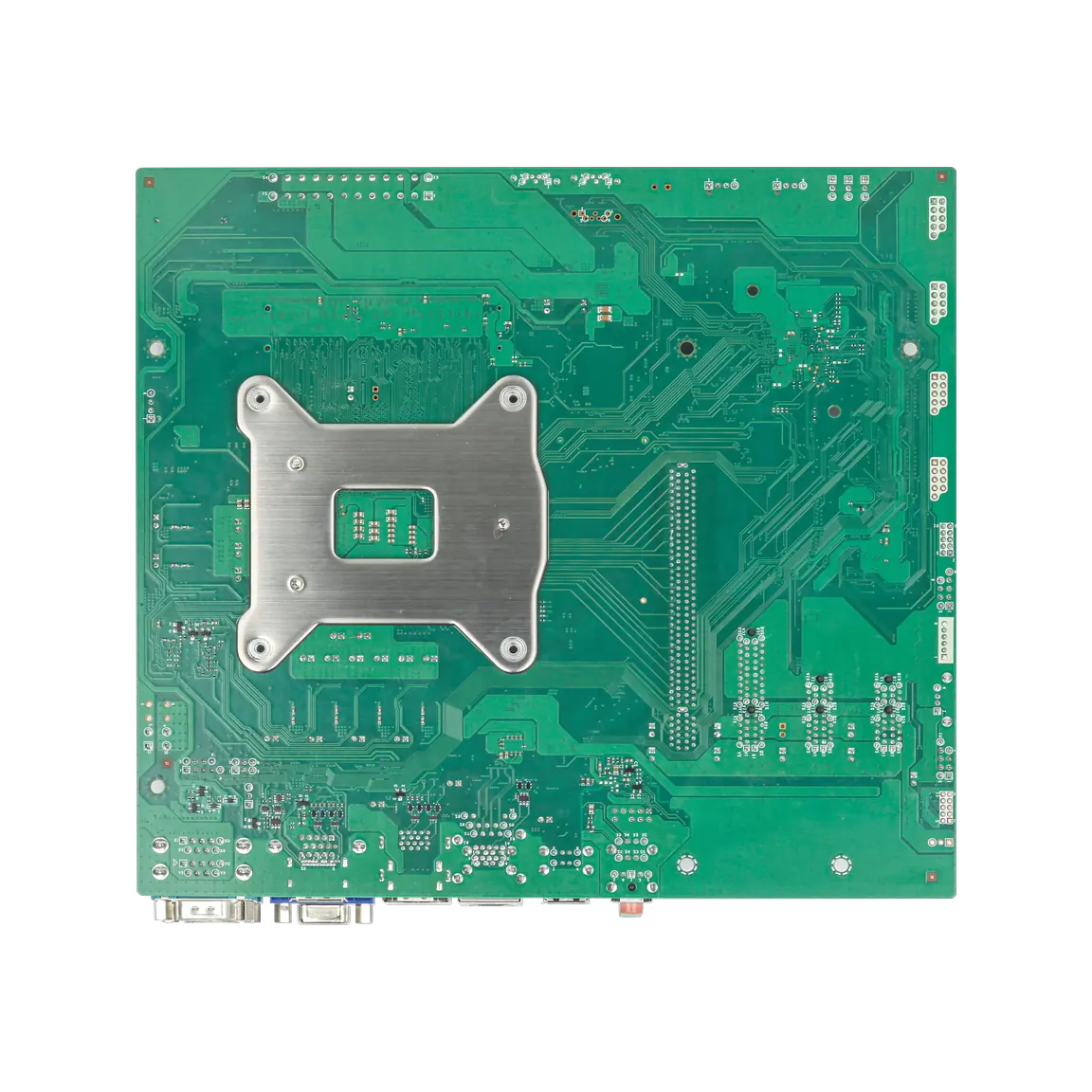

| Mechanical |
| Dimensions |
244mm (L) × 220mm (W) |
| Weight |
0.54 kg |
| Environment |
| Operating Temp |
0°C ~ 60°C |
| Storage Temp |
-40°C ~ 85°C |
| Humidity |
5-95% (non-condensing) |
| Ordering Information -- NK-5105 |
|---|
| Part No. | Product | Description |
| B13.51050.000 | NK-5105 | Micro-ATX motherboard, Intel(r) H110 chipset, LGA1151 socket, supports 6th-9th Gen Intel(r) CoreTM, Pentium, Celeron processors, DDR4 SO-DIMM up to 64GB, 1 × GbE, 1 × PCIe x16, 1 × PCIe x4, 2 × PCIe x1, 1 × Mini-PCIe, 3 × SATA3.0, 1 × mSATA, VGA/DP/HDMI, RS232/485, USB2.0/3.0, ATX power input |
| Options |
|---|
| Memory | DDR4 SO-DIMM 4GB, 8GB, 16GB, 32GB |
| Storage | mSATA: 64GB, 128GB, 256GB; SATA SSD: 64GB, 128GB, 256GB, 512GB, 1TB |
| Wi-Fi/4G | Mini-PCIe Wi-Fi module; 4G LTE module with SIM slot |
