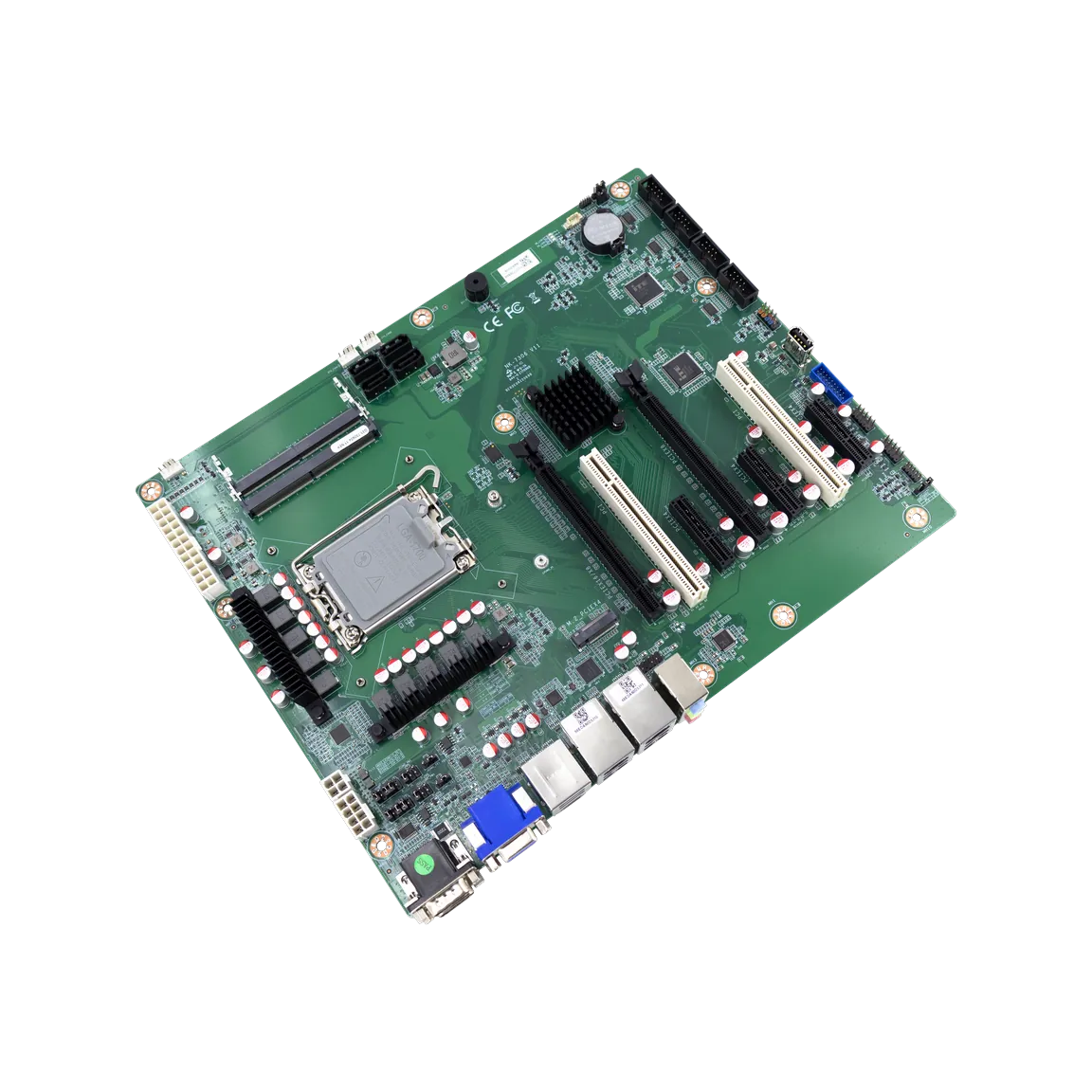

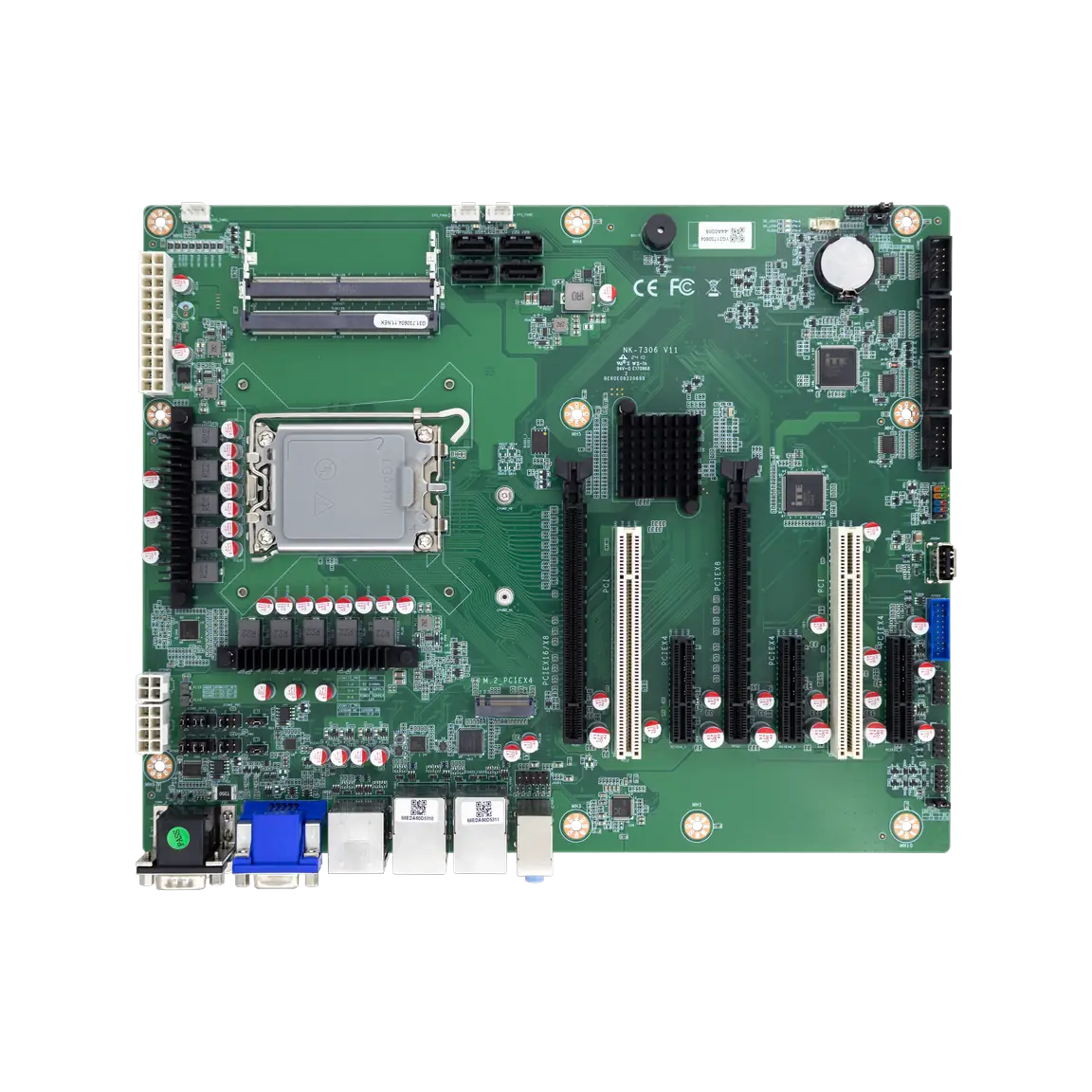

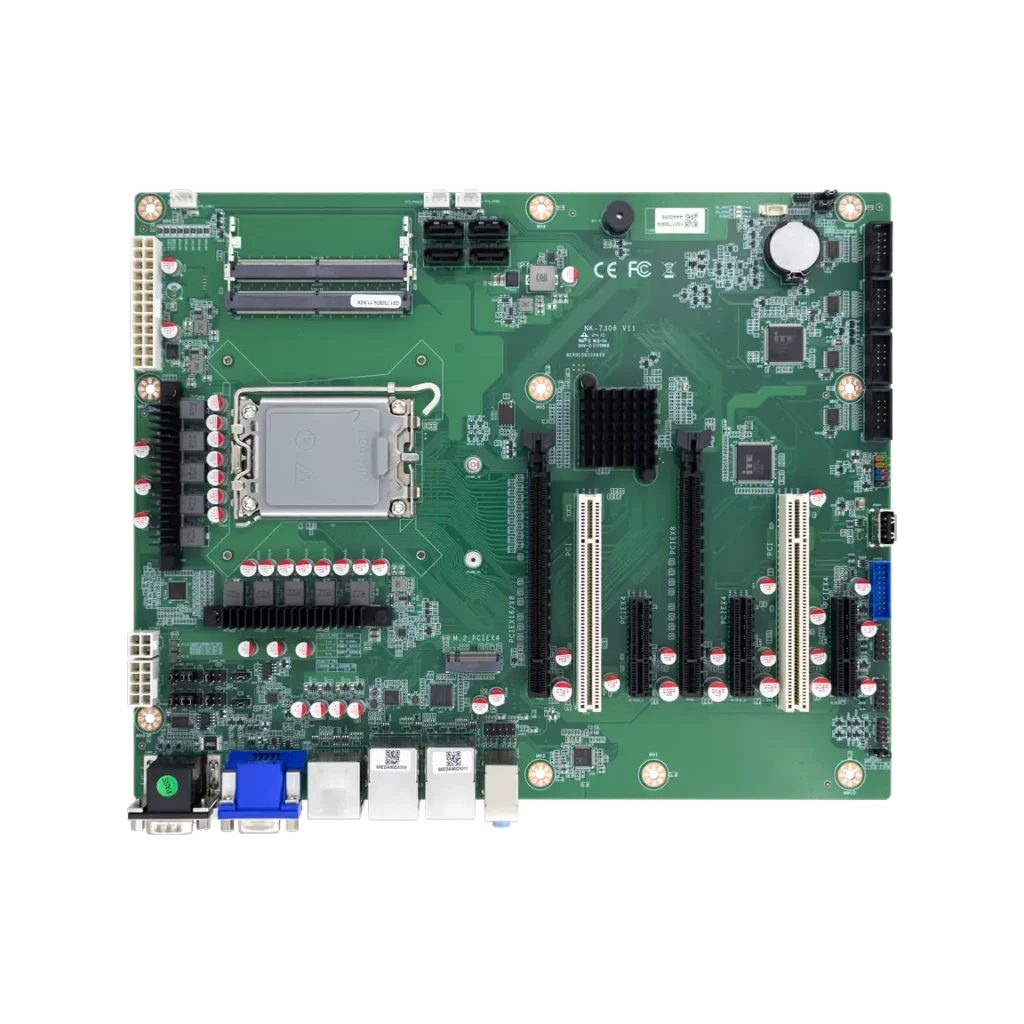

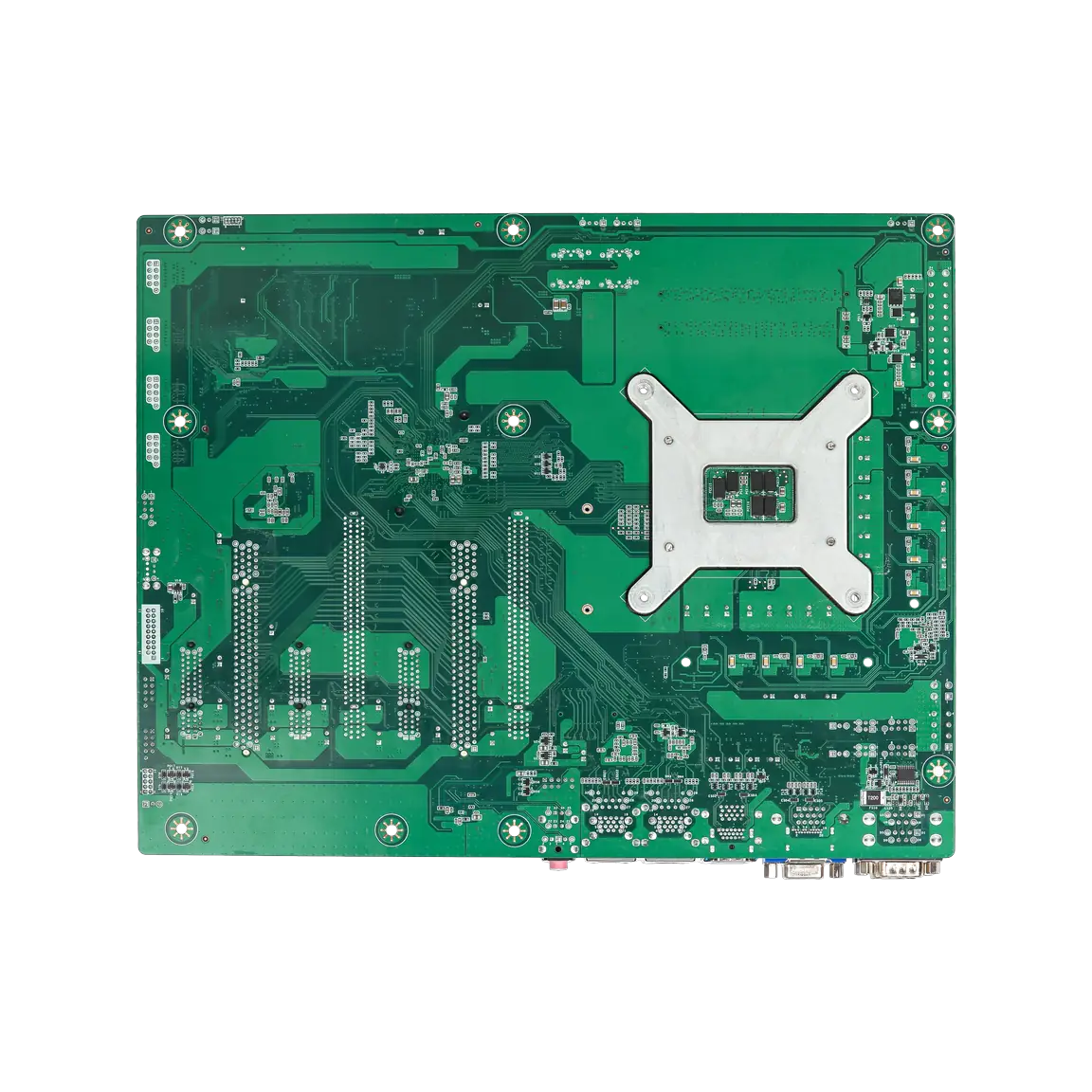

NK-7306 | Industrial ATX Motherboard with Q670/Q670E, Dual GbE, PCIe/PCI, and SATA/M.2 Storage

ATX motherboard with Intel® Q670/Q670E chipsets, LGA1700 socket, DDR5 up to 64GB, dual GbE LAN, SATA and M.2 storage, PCIe/PCI expansion, and RS232/485.

Features

Supports Intel(r) 12th-14th Gen CoreTM, Pentium, and Celeron processors (LGA1700, TDP up to 125W)
Intel(r) Q670/Q670E chipsets with AMI UEFI BIOS
Dual DDR5 SO-DIMM slots, up to 64GB memory
Dual Intel(r) GbE LAN ports (i219-V + I210AT)
Rich I/O: 2 × RS232/485, 4 × RS232, 6 × USB3.0, 5 × USB2.0
Storage: 4 × SATA3.0 with RAID 0/1/5/10, 1 × M.2 2242/2280 (PCIe)
Graphics: VGA, DP, HDMI triple display
Expansion: 2 × PCIe x16 (Gen4), 3 × PCIe x4 (Gen4), 2 × PCI
Audio: Realtek ALC897 codec, Mic-in, Line-in, Line-out
Watchdog timer programmable 1-255 sec
ATX form factor (305mm × 244mm), weight 0.71kg

Industrial ATX Motherboard Product Information

Technical Specifications -- NK-7306
Processor System
CPU	Intel(r) 12th/13th/14th Gen Celeron, Pentium, CoreTM i series processors, TDP up to 125W
Socket	LGA1700
Chipset	Intel(r) Q670 / Q670E
BIOS	AMI 256Mb UEFI BIOS
Memory
Technology	Dual Channel (Non-ECC) DDR5-4800/5600MHz, up to 64GB
Slots	2 × DDR5 SO-DIMM slots
Storage
SATA	4 × SATA3.0, support RAID 0/1/5/10
M.2	1 × M.2-2242/2280 M Key slot (PCIe/Signal)
Graphics
Controller	Intel(r) HD Graphics integrated
Display	1 × VGA up to 1920×1200@60Hz, 1 × DP up to 4096×2160@60Hz, 1 × HDMI up to 4096×2160@30Hz
Audio
Codec	Realtek ALC897
Interface	1 × Mic-in, 1 × Line-in, 1 × Line-out
Ethernet
LAN	2 × GbE (RJ45), LAN1: Intel(r) i219-V; LAN2: Intel(r) I210-AT

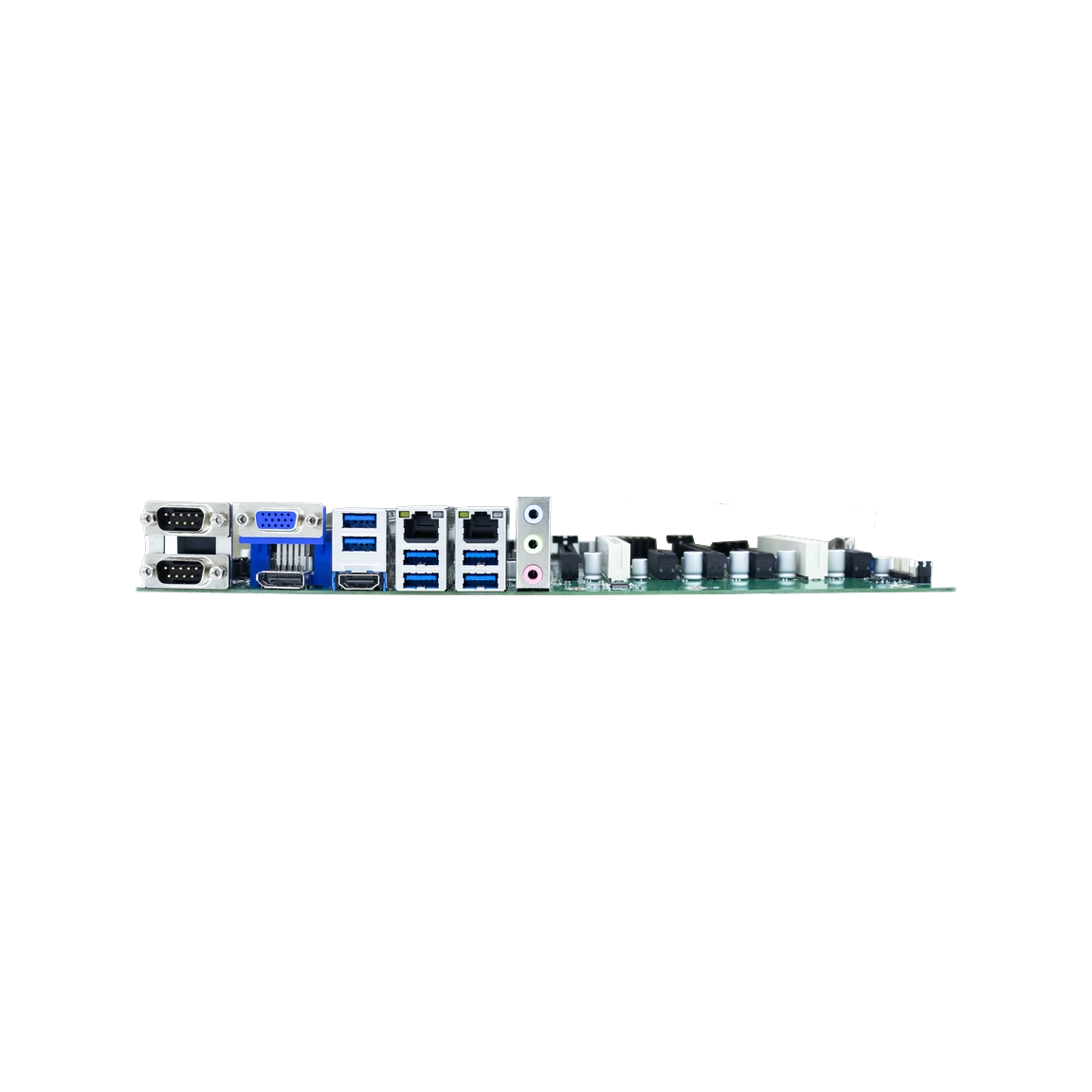

Rear I/O
USB	6 × USB3.0 (5Gbps)
Serial	2 × RS232/485
Audio	1 × Mic-in, 1 × Line-in, 1 × Line-out
Display	1 × VGA, 1 × DP, 1 × HDMI
Internal I/O
USB	2 × USB3.0 pin headers, 4 × USB2.0 pin headers, 1 × vertical USB2.0 Type-A
Serial	4 × RS232 wafer
eSPI	1 × eSPI header
FAN	2 × System FAN, 1 × CPU FAN
GPIO	1 × 8-bit GPIO
SMBus	1 × SMBus wafer
FP	1 × FP (Power LED, HDD LED, Power button, Reset button)
Expansion Slots
PCIe x16	2 × PCIe x16 (Gen4, 1 ×16 or 2 ×8 link)
PCIe x4	3 × PCIe x4 (Gen4)
PCI	2 × PCI slots
Security
TPM	fTPM2.0
Watchdog Timer
Output & Interval	System reset, programmable 1-255 sec
Power
Type	ATX Power Input: 24-pin ATX + 8/4-pin ATX 12V
OS Support
Microsoft Windows	Windows 10 / 11
Linux	Linux
Mechanical
Dimensions	305mm × 244mm (ATX)
Gross Weight	0.71 kg
Environment
Operating Temp	0°C ~ 60°C
Storage Temp	-40°C ~ 85°C
Humidity	5-95% (non-condensing)

Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information -- NK-7306
Part No.	Model	Description
F31.730603.10.NEK	NK-7306-Q670	ATX, Intel(r) Q670 chipset, supports Intel(r) 12th/13th/14th Gen processors, 2 × DDR5 SO-DIMM, M.2-2242/2280 (PCIe), ATX power input
F31.730603.20.NEK	NK-7306-Q670E	ATX, Intel(r) Q670E chipset, supports Intel(r) 12th/13th/14th Gen processors, 2 × DDR5 SO-DIMM, M.2-2242/2280 (PCIe), ATX power input
Packing List
KF0.001015.00.L54	2	Single COM port Cable (Length=500mm)
KF0.001025.00.L54	1	Single SATA Data Cable (Length=600mm)
L91.000117.00.G35	1	Single I/O Port Bracket
Optional Accessories
L45.000020.00.B14	LGA1700 2U CPU Cooler, TDP up to 125W
L45.000021.00.B14	LGA1700 4U CPU Cooler, TDP up to 125W
KF0.001092.00.L54	Dual COM Cable with Bracket (Length=300mm)
KF0.001091.00.L54	1 in 2*USB3.0 Type-A Y Cable with Bracket (Length=300mm)
KF0.001090.00.L54	1 in 2*USB2.0 Type-A Y Cable with Bracket (Length=300mm)
KF0.001052.00.L54	LPT Cable with Bracket (Length=300mm)
KF0.001093.00.Y09	PS2 Cable with Bracket (Length=300mm)
