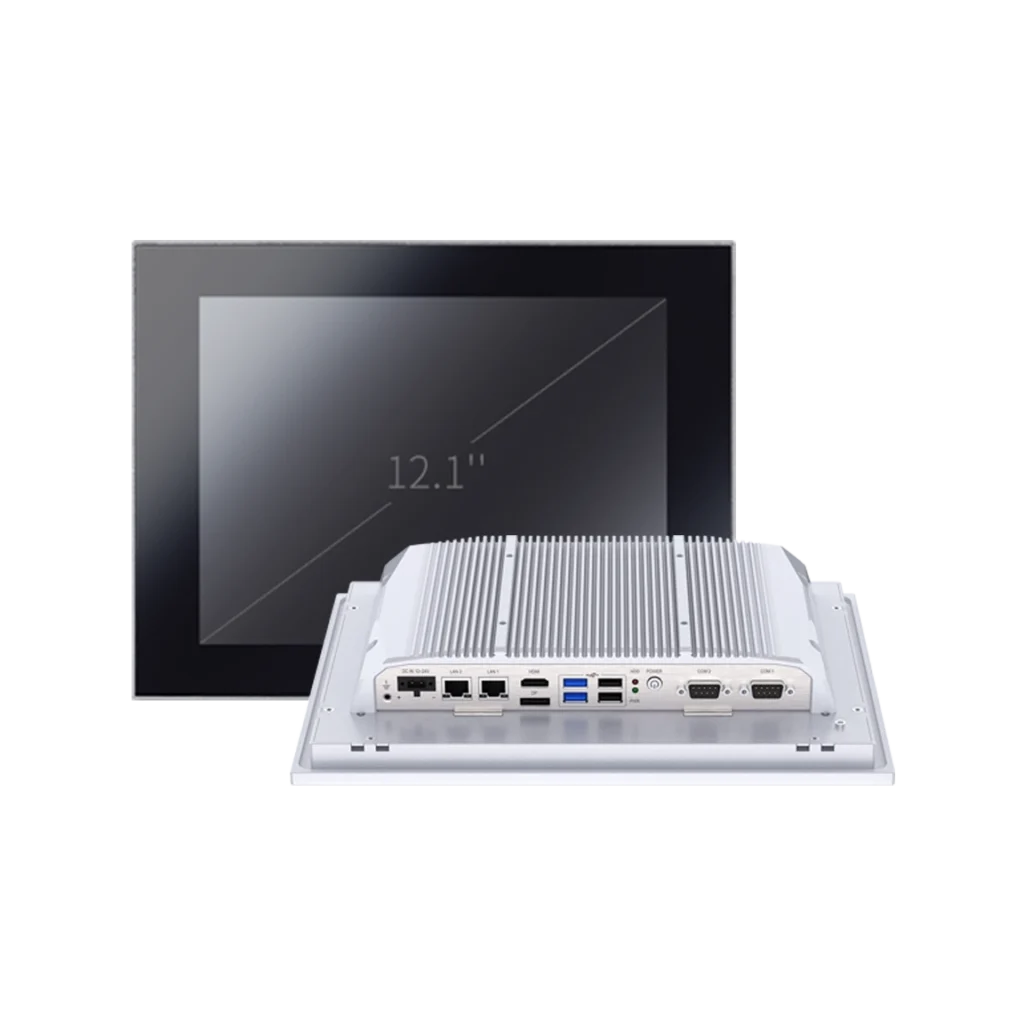

TPC-C121H-S Series | 12.1" Fanless Multi-Touch Panel PC

Compact 12.1” panel PC with projected capacitive multi-touch, Intel® J6412, N97, or 12th Gen Core processors, rich I/O, and ultra-rugged fanless design for industrial HMI applications.

Features

12.1″ TFT LCD with 1024 × 768 resolution and capacitive multi-touch
Supports Intel(r) J6412, N97, or 12th Gen i3/i5/i7 processors
Fanless aluminum housing with IP65-rated front panel
Dual Intel/Realtek Gigabit LAN, 2 × RS-232 (COM1 optional RS-485)
4 × USB ports (2 × USB 3.0, 2 × USB 2.0)
HDMI and DP video output support
1 × Mini PCIe expansion slot for Wi-Fi or 4G module
DC 12~24V wide-range power input
Supports panel mount and VESA mount

Multi-touch Panel PC Product Information

Technical Specifications
Model Name	TPC-C121H-S
System
CPU	Intel(r) Processor J6412 / N97 / CoreTM i3-1215U / i5-1235U / i7-1255U
Memory	1 × DDR4 3200MHz SO-DIMM, up to 32GB
Storage	1 × M.2 2242 Key B SSD slot (SATA 3.0) (12th Gen CPU: 1 × M.2 2280 M Key SSD slot, SATA 3.0)
I/O	2 × RS-232 (COM1 supports RS-485 optional), 2 × USB 3.0, 2 × USB 2.0
LAN	2 × GbE (RJ45), Realtek controller (N97 & 12th Gen: Intel I210-AT)
Display	HDMI / DP
Display
LCD Size	12.1" TFT LCD
Resolution	1024 × 768
Luminance	350 cd/m²
MTBF	50,000 hours
Contrast Ratio	800:1
Touch Screen
Type	Multipoint capacitive touch screen
Transmittance	≥ 87%
Controller Interface	USB 2.0
OS Support
Operating System	Windows 10, Windows 11, Linux
Power
Input Voltage	DC 12 ~ 24V
Power Consumption	< 60W
Mechanical
Structure	Ultra-compact fanless design, front panel IP65 compliant
Dimensions (W × H × D)	321 mm × 247 mm × 58.5 mm
Cut-out Size (W × H)	304 mm × 230 mm
Net Weight	3.54 kg
Environment
Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Relative Humidity	5% ~ 95% @40°C (non-condensing)
Vibration	1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1hr/axis
Shock	10G, IEC 60068-2-27, Half sine wave, 11ms
Certifications	CE / FCC Class A

Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information -- TPC-C121H-S
Model	Description
TPC-C121H-S-J6412	12.1" 1024×768 TFT LCD, Capacitive Touch, Intel Celeron J6412, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C121H-S-N97	12.1" 1024×768 TFT LCD, Capacitive Touch, Intel Processor N97, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C121H-S-i3-1215U	12.1" 1024×768 TFT LCD, Capacitive Touch, Intel Core i3-1215U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C121H-S-i5-1235U	12.1" 1024×768 TFT LCD, Capacitive Touch, Intel Core i5-1235U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C121H-S-i7-1255U	12.1" 1024×768 TFT LCD, Capacitive Touch, Intel Core i7-1255U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage

Options
RAM	4GB / 8GB / 16GB / 32GB DDR4
SSD	128GB / 256GB / 512GB / 1TB M.2 SATA SSD (2242 or 2280 depending on CPU)
Wi-Fi / 4G Module	Optional Mini PCIe Wi-Fi or 4G module (e.g., Quectel EC20, EC25)
Operating System	Windows 10, Windows 11, Linux (optional pre-installed)
