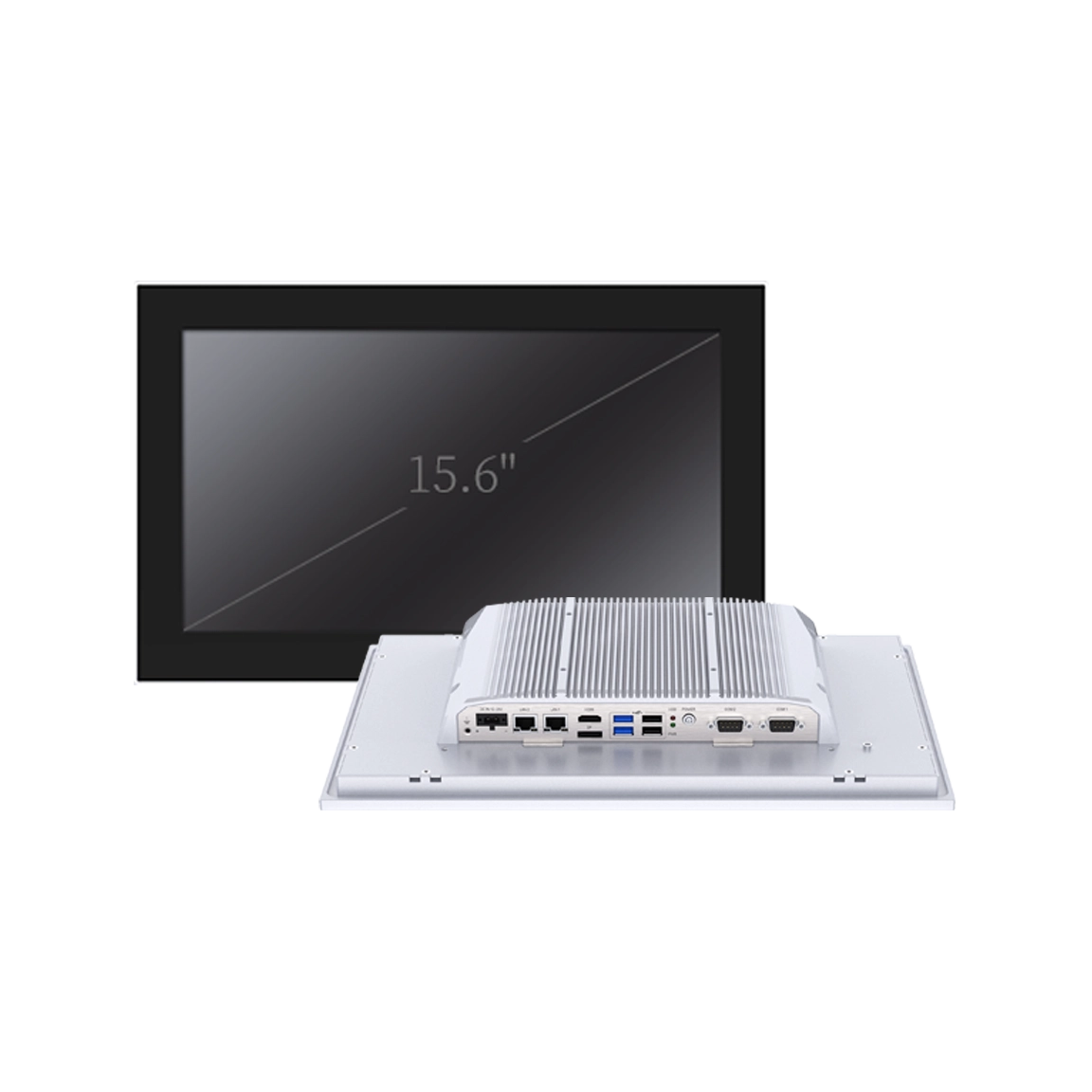

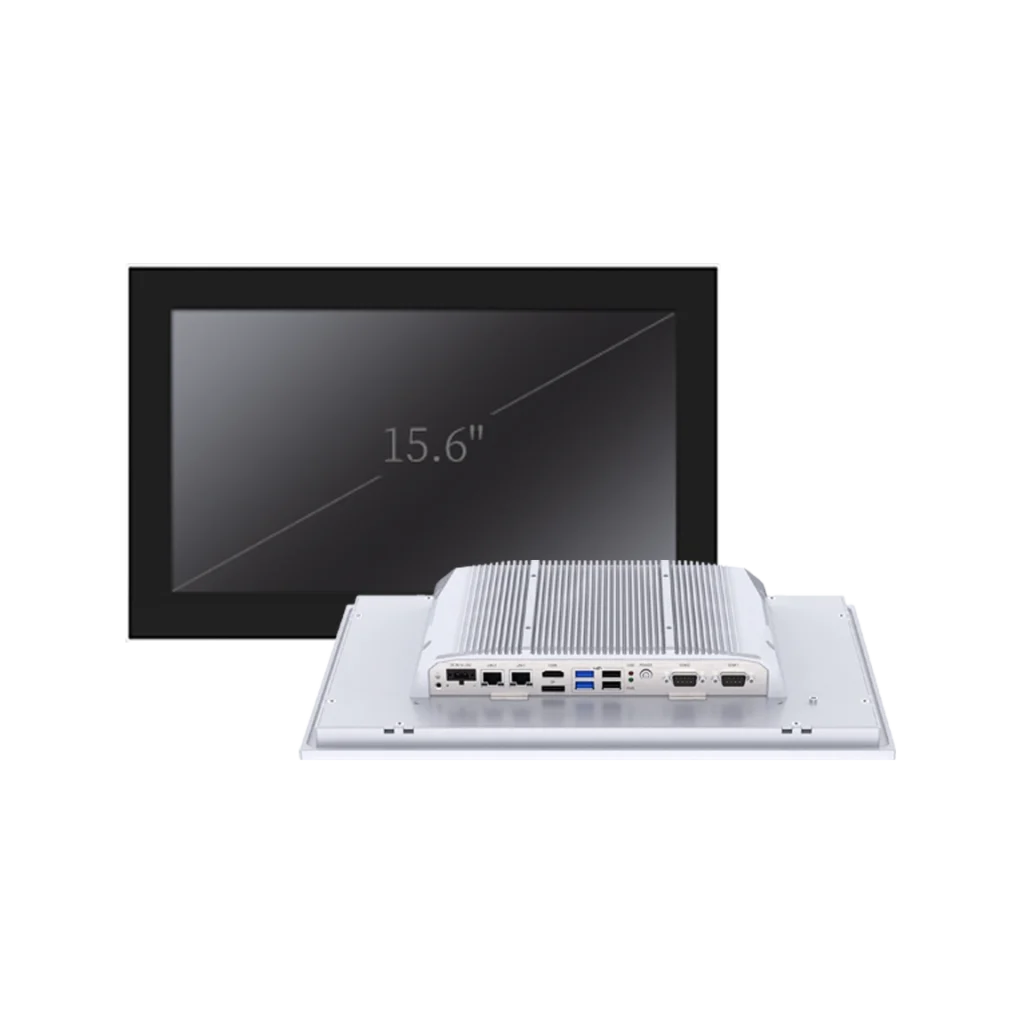

TPC-C156-S Series | 15.6" Fanless Capacitive Touch Panel PC

Rugged 15.6” widescreen panel PC with capacitive multi-touch, Intel® J6412/N97 or 12th Gen Core™ processors, wide-range DC input, and multiple I/O ports for automation applications.

Features

15.6″ widescreen TFT LCD with 1366 × 768 resolution
Capacitive multi-touch panel with ≥87% transmittance
Supports Intel(r) J6412, N97, and 12th Gen i3/i5/i7 processors
Fanless ultra-compact aluminum chassis with IP65 front panel

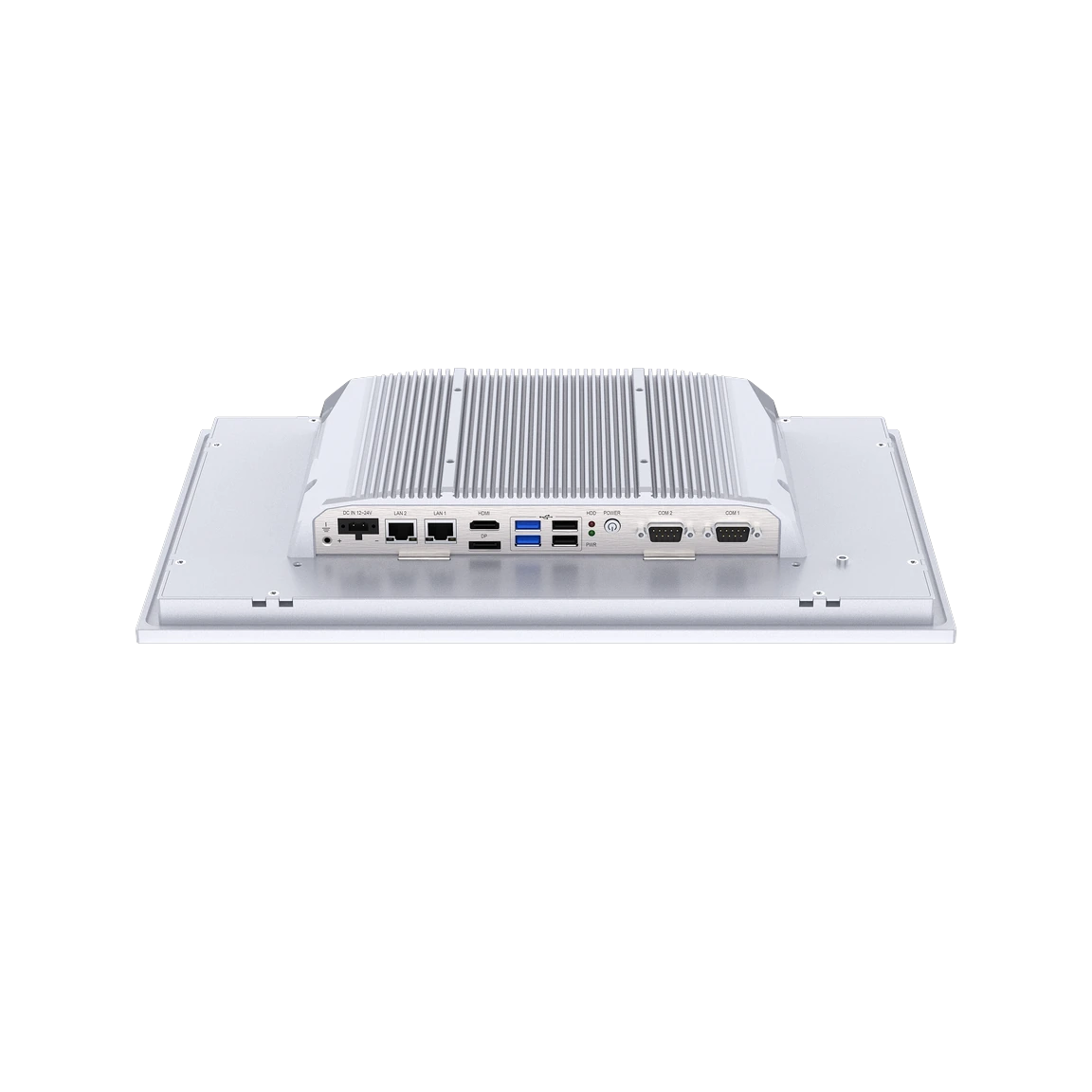

2 × RS-232 COM ports (COM1 supports RS-485 option)
4 × USB ports (2 × USB 3.0, 2 × USB 2.0)
HDMI and DP display outputs
Dual Intel GbE LAN ports
1 × Mini PCIe for optional Wi-Fi/4G expansion
Wide voltage DC input (12~24V), panel and VESA mounting

Multi-touch Panel PC Product Information

Technical Specifications
Model Name	TPC-C156-S
System
CPU	Intel(r) Processor J6412 / N97 / CoreTM i3-1215U / i5-1235U / i7-1255U
Memory	1 × DDR4 SO-DIMM, up to 32GB
Storage	1 × M.2 2242 Key M SATA slot (J6412/N97); 1 × M.2 2280 Key M SATA slot (12th Gen CPU)
I/O
Serial	2 × RS-232 (COM1 RS-485 optional)
USB	2 × USB3.0, 2 × USB2.0
LAN	2 × Intel GbE LAN (J6412/N97: I211; 12th Gen: I210)
Display Output	DP / HDMI (Only for non-clip cables)
Display
Size	15.6" TFT LCD
Resolution	1366 × 768
Luminance	400 cd/m²
Contrast Ratio	1000:1
Touch Screen	Capacitive Touch Screen
Power
Input Voltage	DC 12~24V
Power Consumption	< 60W
Mechanical
Dimensions (W × H × D)	405mm × 258mm × 58.5mm
Cut-out Size (W × H)	388mm × 241mm
Net Weight	4.7 kg
Mounting	Panel Mount / VESA Mount
Environmental
Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Humidity	5~95% @ 40°C, non-condensing
Vibration	1.5Grms, IEC60068-2-64, 5-500Hz, 1hr/axis (SSD)
Shock	10G, IEC60068-2-27, Half sine wave, 11ms (SSD)
EMC	CE/FCC Class A

Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information -- TPC-C156-S
Model	Description
TPC-C156-S-J6412	15.6" 1366×768 TFT LCD, Capacitive Touch, Intel Celeron J6412, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C156-S-N97	15.6" 1366×768 TFT LCD, Capacitive Touch, Intel Processor N97, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C156-S-i3-1215U	15.6" 1366×768 TFT LCD, Capacitive Touch, Intel Core i3-1215U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C156-S-i5-1235U	15.6" 1366×768 TFT LCD, Capacitive Touch, Intel Core i5-1235U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C156-S-i7-1255U	15.6" 1366×768 TFT LCD, Capacitive Touch, Intel Core i7-1255U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage

Options
RAM	4GB / 8GB / 16GB / 32GB DDR4
SSD	128GB / 256GB / 512GB / 1TB M.2 SATA SSD (2242 or 2280 depending on CPU)
Wi-Fi / 4G Module	Optional Mini PCIe Wi-Fi or 4G module (e.g., Quectel EC20, EC25)
Operating System	Windows 10, Windows 11, Linux (optional pre-installed)
