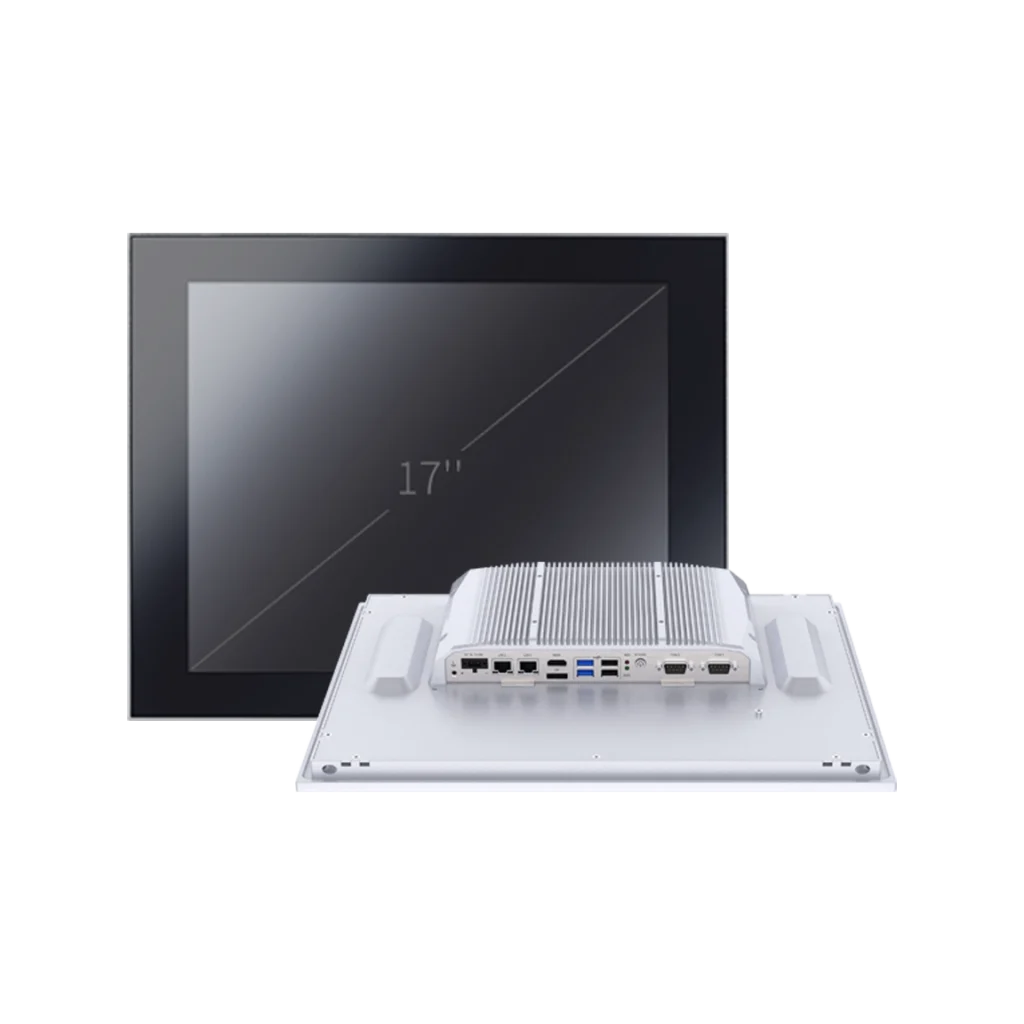

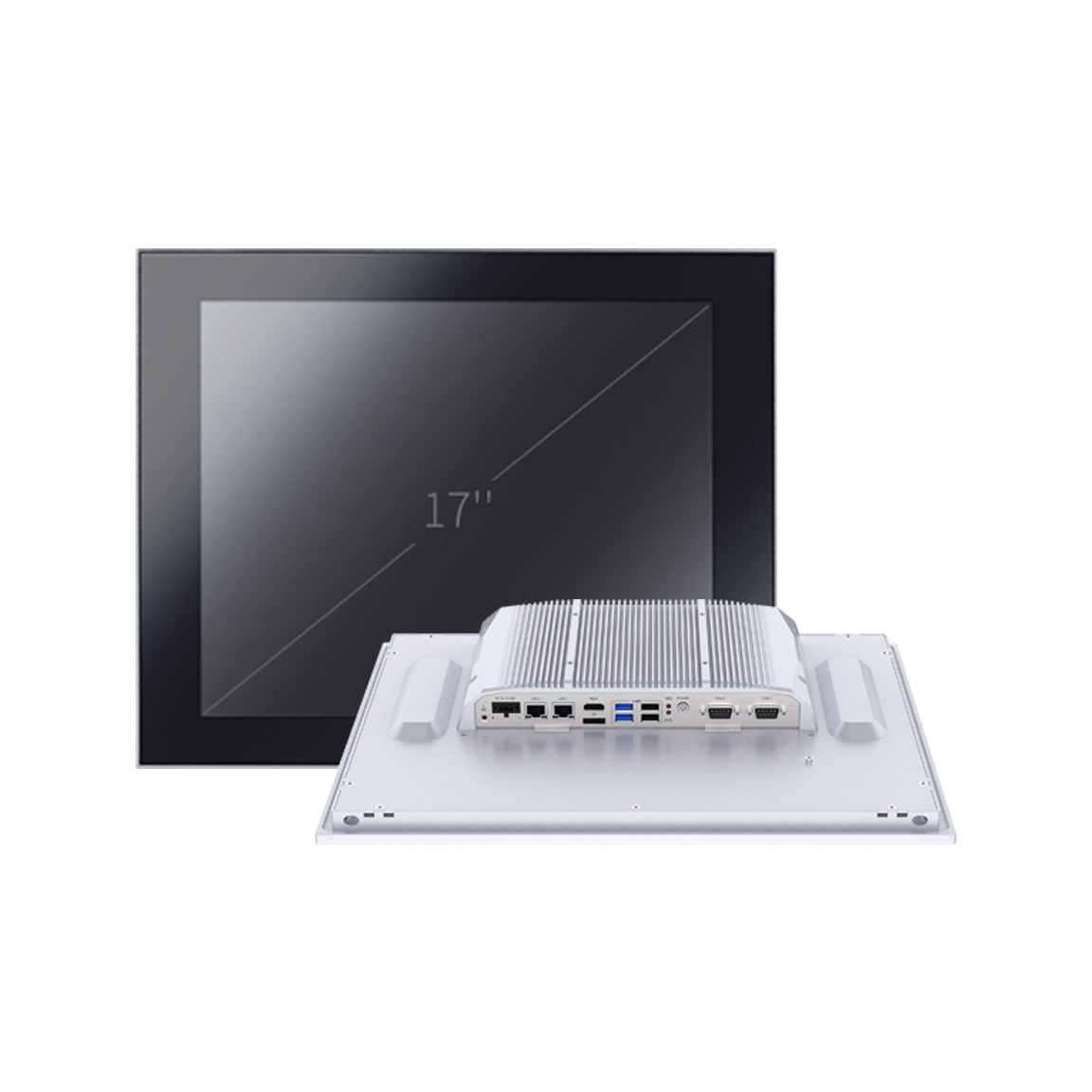

TPC-C170-S Series | 17" Fanless Capacitive Touch Panel PC

Rugged 17” industrial panel PC with capacitive multi-touch, Intel® J6412/N97 or 12th Gen Core™ processors, HDMI/DP output, dual GbE LAN, and wide voltage DC input.

Features

17″ SXGA (1280 × 1024) TFT LCD with capacitive multi-touch
Supports Intel(r) J6412, N97, and 12th Gen i3/i5/i7 processors
Fanless aluminum chassis with IP65-rated front panel
2 × COM ports (RS-232, COM1 optional RS-485)
4 × USB ports (2 × USB 3.0, 2 × USB 2.0)
2 × Intel Gigabit LAN ports
1 × HDMI, 1 × DP video outputs
1 × Mini PCIe for Wi-Fi or 4G module
Wide-range 12~24V DC input
Supports panel mount and VESA mount installations

Multi-touch Panel PC Product Information

Technical Specifications
Model Name	TPC-C170-S
System
CPU	Intel(r) Processor J6412 / N97 / CoreTM i3-1215U / i5-1235U / i7-1255U
Memory	1 × DDR4 SO-DIMM, up to 32GB
Storage	1 × M.2 2242 Key M SATA slot (J6412/N97); 1 × M.2 2280 Key M SATA slot (12th Gen CPU)
I/O
Serial	2 × RS-232 (COM1 RS-485 optional)
USB	2 × USB3.0, 2 × USB2.0
LAN	2 × Intel GbE LAN (J6412/N97: I211; 12th Gen: I210)
Display Output	DP / HDMI (Only for non-clip cables)
Display
Size	17" TFT LCD
Resolution	1280 × 1024
Luminance	350 cd/m²
Contrast Ratio	1000:1
Touch Screen	Capacitive Touch Screen
Power
Input Voltage	DC 12~24V
Power Consumption	< 60W
Mechanical
Dimensions (W × H × D)	432mm × 354mm × 58.5mm
Cut-out Size (W × H)	415mm × 337mm
Net Weight	5.5 kg
Mounting	Panel Mount / VESA Mount
Environmental
Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Humidity	5~95% @ 40°C, non-condensing
Vibration	1.5Grms, IEC60068-2-64, 5-500Hz, 1hr/axis (SSD)
Shock	10G, IEC60068-2-27, Half sine wave, 11ms (SSD)
EMC	CE/FCC Class A

Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information -- TPC-C170-S
Model	Description

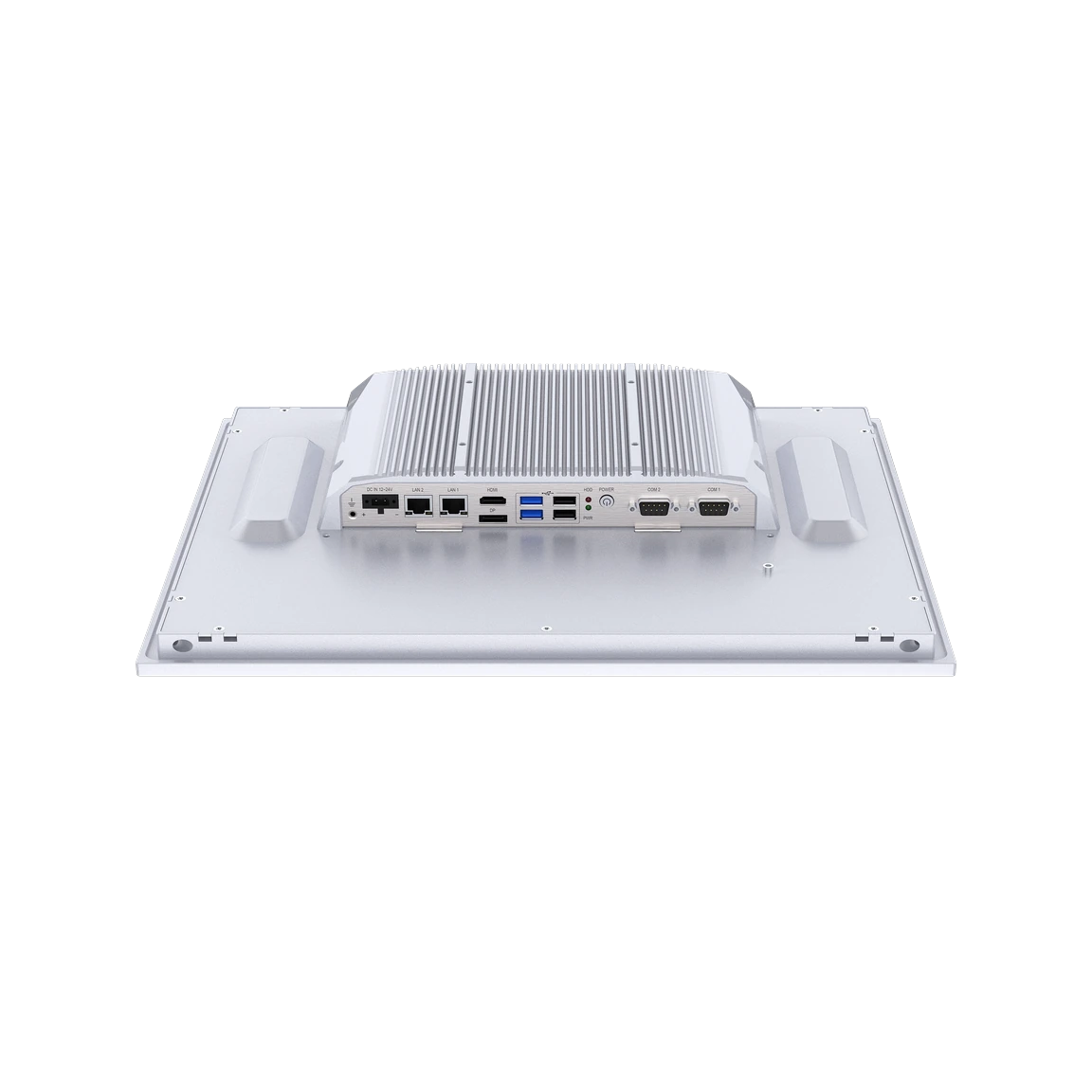

TPC-C170-S-J6412	17" 1280×1024 TFT LCD, Capacitive Touch, Intel Celeron J6412, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C170-S-N97	17" 1280×1024 TFT LCD, Capacitive Touch, Intel Processor N97, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C170-S-i3-1215U	17" 1280×1024 TFT LCD, Capacitive Touch, Intel Core i3-1215U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C170-S-i5-1235U	17" 1280×1024 TFT LCD, Capacitive Touch, Intel Core i5-1235U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage
TPC-C170-S-i7-1255U	17" 1280×1024 TFT LCD, Capacitive Touch, Intel Core i7-1255U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage

Options
RAM	4GB / 8GB / 16GB / 32GB DDR4
SSD	128GB / 256GB / 512GB / 1TB M.2 SATA SSD (2242 or 2280 depending on CPU)
Wi-Fi / 4G Module	Optional Mini PCIe Wi-Fi or 4G module (e.g., Quectel EC20, EC25)
Operating System	Windows 10, Windows 11, Linux (optional pre-installed)
