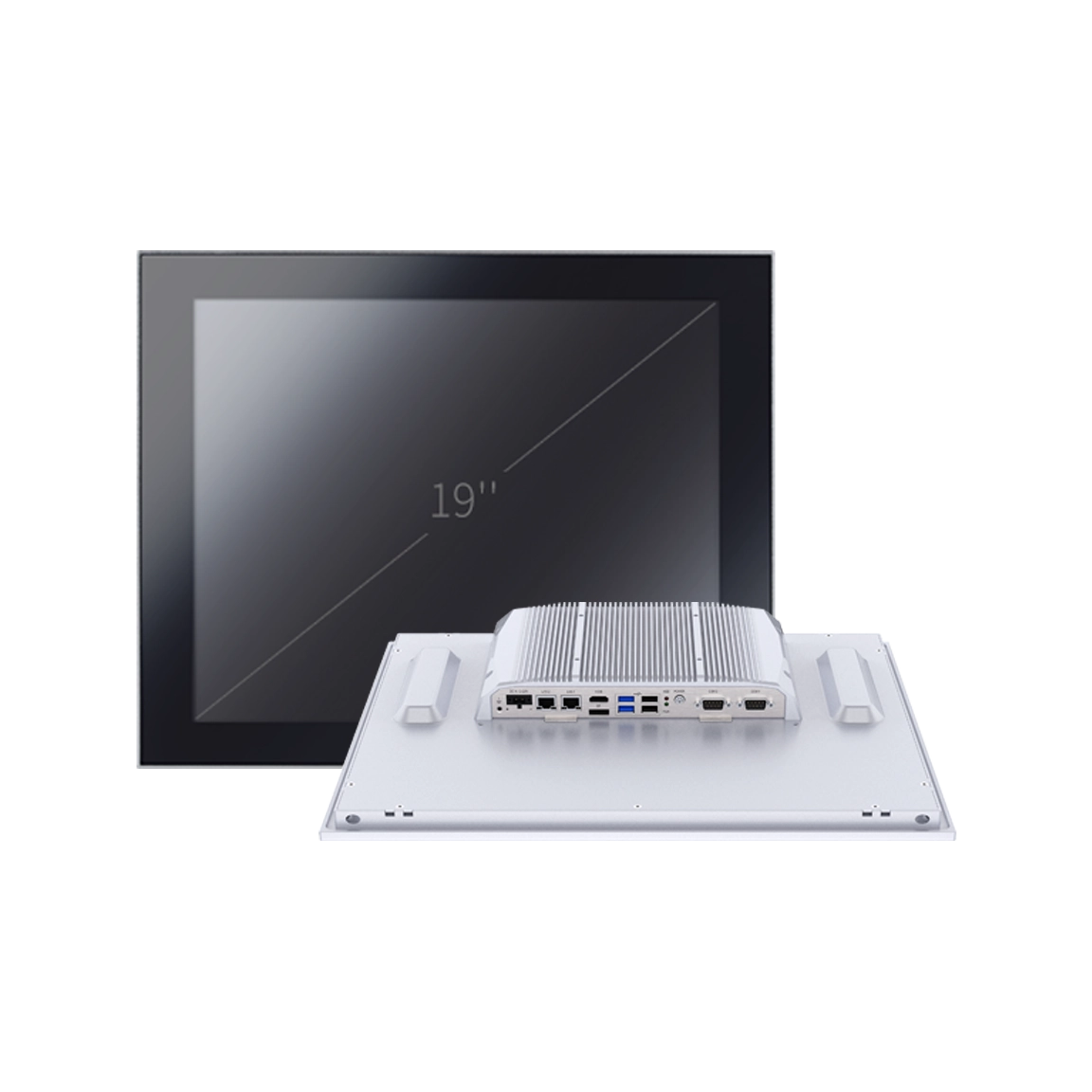

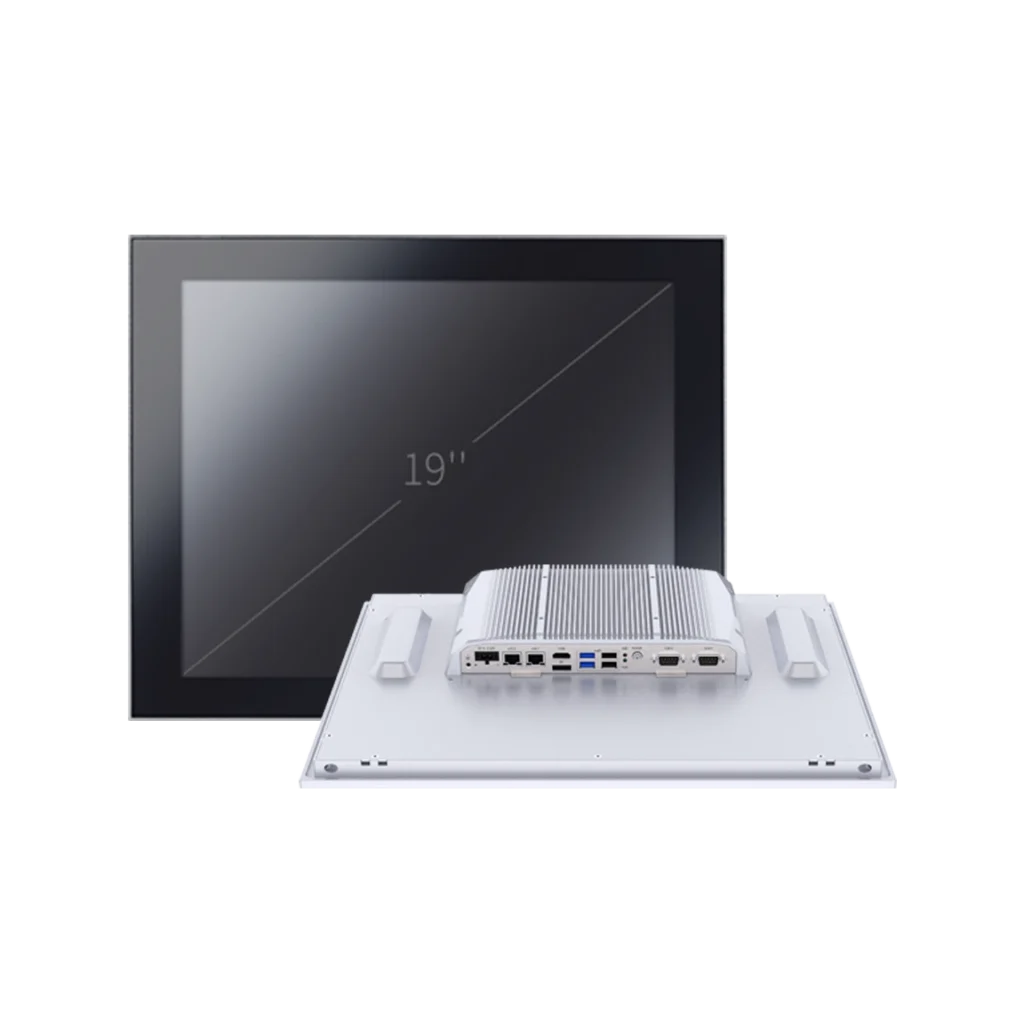

| Technical Specifications - TPC-C190-S |
|---|
| LCD Size | 19" SXGA TFT LCD |
| Resolution | 1280 × 1024 |
| Luminance | 250 cd/m² |
| MTBF | 30,000 hrs |
| Contrast Ratio | 1000:1 |
| Touchscreen Type | Multipoint capacitive touch screen |
| Transmittance | ≥ 87% |
| Touch Controller Interface | USB 2.0 |
| CPU Options | Intel(r) Celeron J6412, N97, CoreTM i3-1215U, i5-1235U, i7-1255U |
| Memory | 1 × DDR4-3200MHz SO-DIMM slot, up to 32GB |
| Storage | 1 × M.2 2242 Key M SATA SSD slot (SATA 3.0) / (12th Gen CPU: 1 × M.2 2280 Key M slot) |
| Serial Ports | 2 × RS-232 (COM1 RS-485 optional) |
| LAN | 2 × GbE (RJ45), N97 & 12th Gen: Intel i210AT; J6412: Intel i211AT |

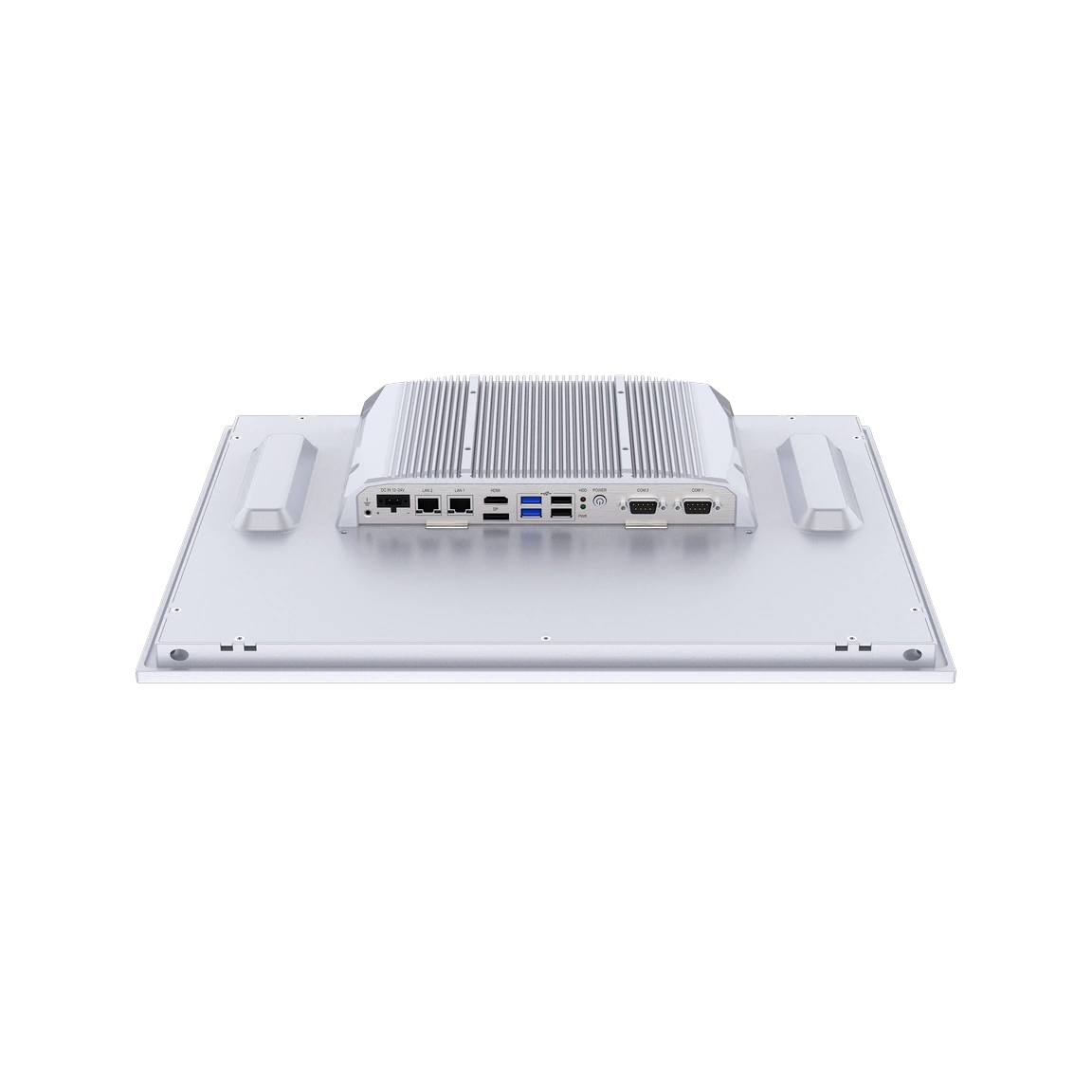

| Rear I/O | 2 × USB3.0, 2 × USB2.0, 1 × HDMI, 1 × DP |
| Expansion | 1 × Mini-PCIe slot, optional 4G/WIFI |
| Power Input | DC 12V-24V |
| Max Power Consumption | < 60W |
| Mounting | Panel Mount / VESA Mount |
| Front Panel | IP65-rated front panel |
| Dimensions (W × H × D) | 432mm × 378mm × 58.5mm |
| Cut-out Dimensions (W × H) | 415mm × 361mm |
| Net Weight | 6.4 kg |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5%~95%@40°C (non-condensing) |
| Vibration | SSD: 1.5Grms, IEC60068-2-64, random, 5~500Hz, 1hr/axis |
| Shock | SSD: 10G, IEC60068-2-27, half sine wave, 11ms duration |
| Certification | CE/FCC Class A |
| Ordering Information -- TPC-C190-S |
|---|
| Model | Description |
| TPC-C190-S-J6412 | 19" 1280×1024 TFT LCD, Capacitive Touch, Intel Celeron J6412, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage |
| TPC-C190-S-N97 | 19" 1280×1024 TFT LCD, Capacitive Touch, Intel Processor N97, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage |
| TPC-C190-S-i3-1215U | 19" 1280×1024 TFT LCD, Capacitive Touch, Intel Core i3-1215U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage |
| TPC-C190-S-i5-1235U | 19" 1280×1024 TFT LCD, Capacitive Touch, Intel Core i5-1235U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage |
| TPC-C190-S-i7-1255U | 19" 1280×1024 TFT LCD, Capacitive Touch, Intel Core i7-1255U, 2 × COM, 2 × USB3.0, 2 × USB2.0, HDMI, DP, 2 × Intel GbE LAN, DC 12~24V, Fanless, Panel Mount, No Memory, No Storage |
| Options |
|---|
| RAM | 4GB / 8GB / 16GB / 32GB DDR4 |
| SSD | 128GB / 256GB / 512GB / 1TB M.2 SATA SSD (2242 or 2280 depending on CPU) |
| Wi-Fi / 4G Module | Optional Mini PCIe Wi-Fi or 4G module (e.g., Quectel EC20, EC25) |
| Operating System | Windows 10, Windows 11, Linux (optional pre-installed) |
