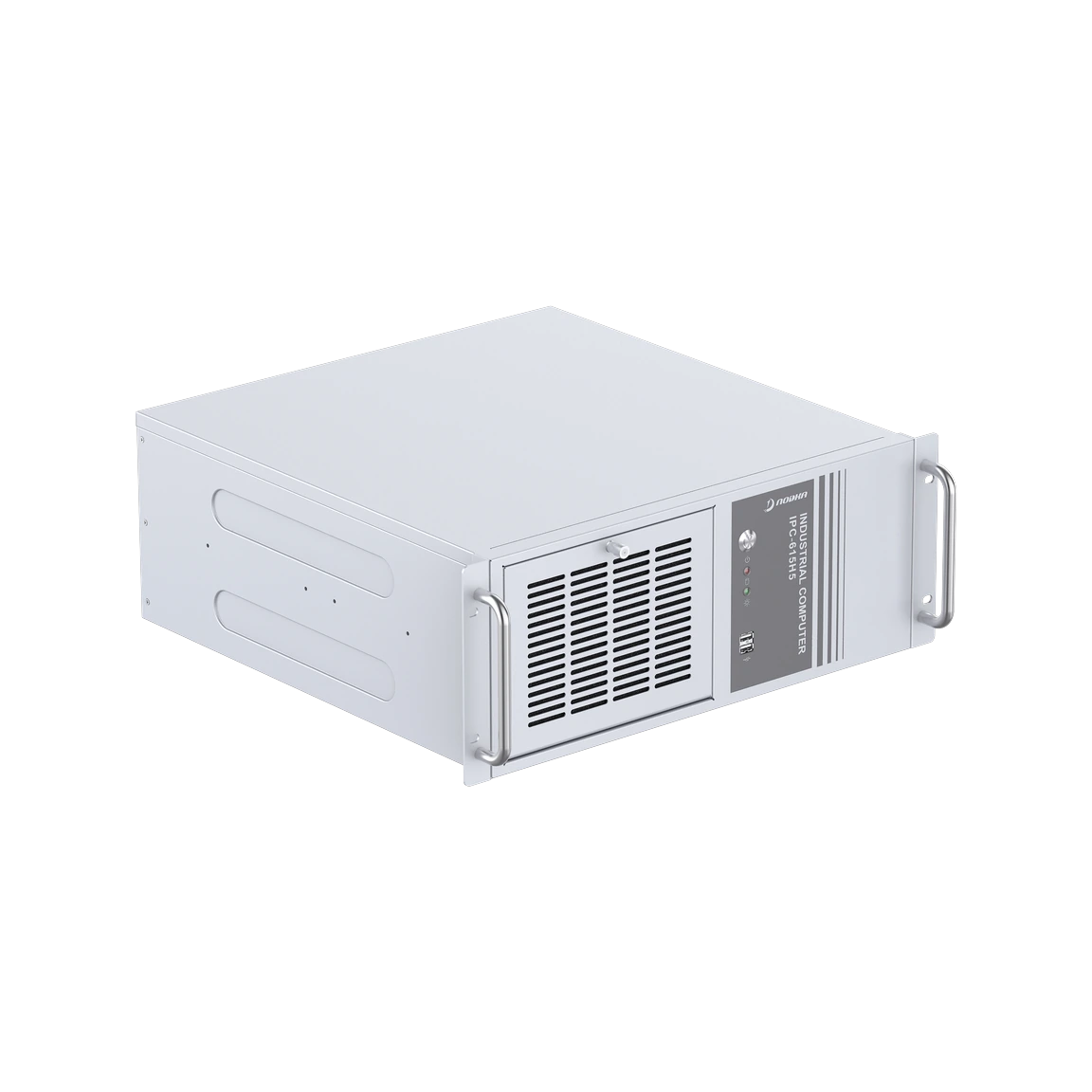

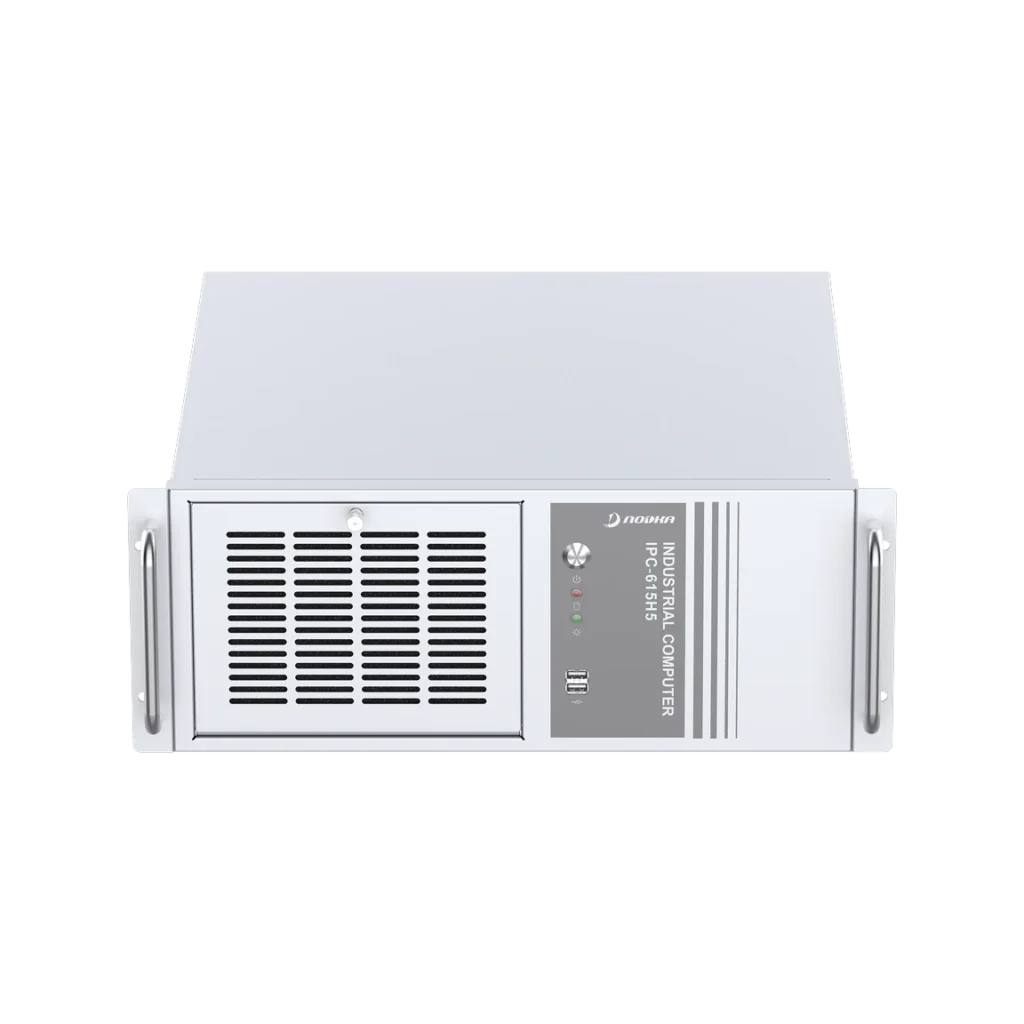

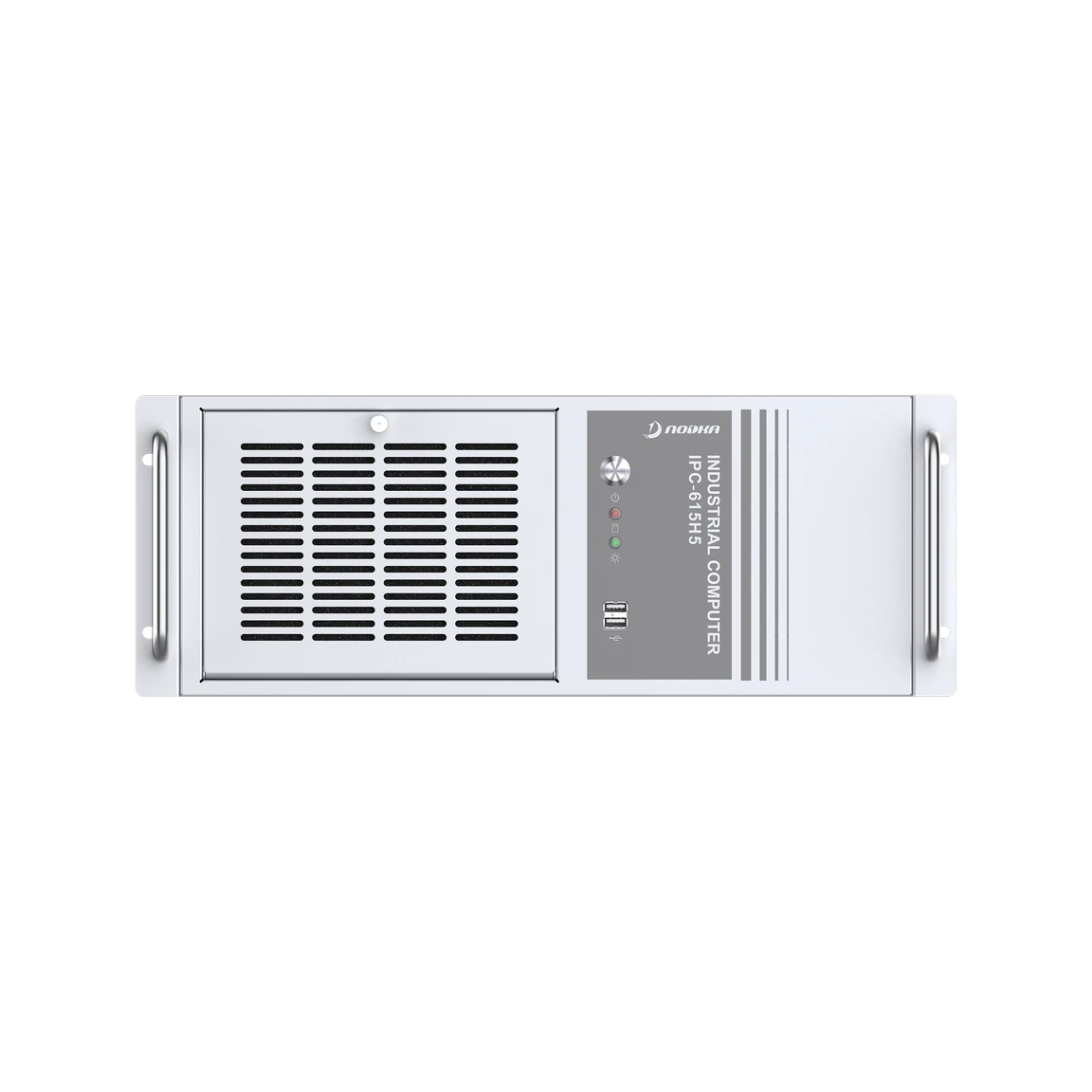

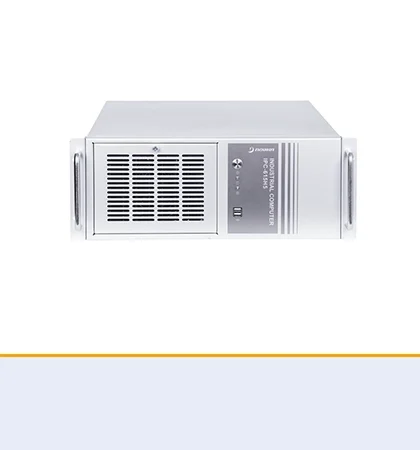

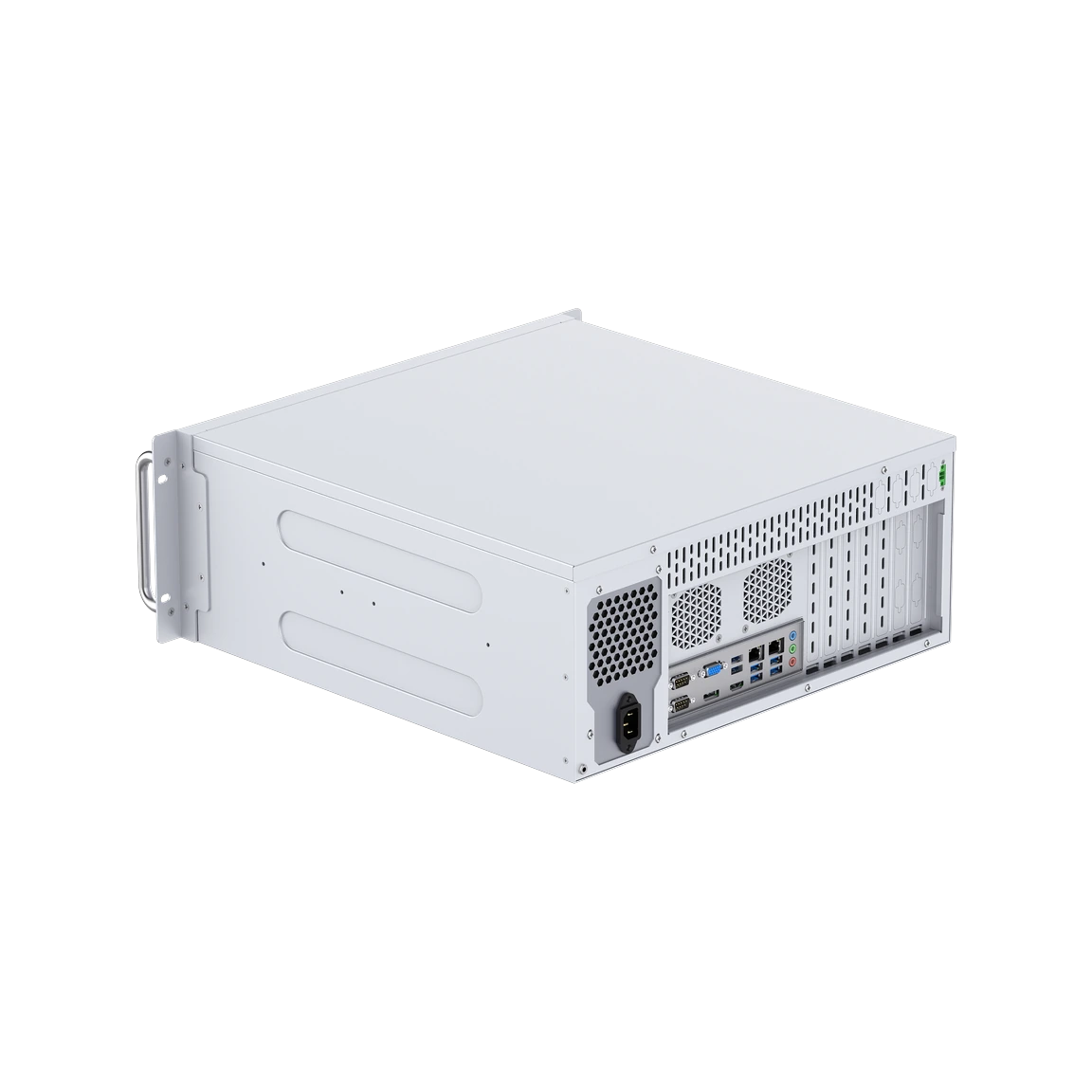

IPC-615H5-H110 | Expandable 4U Industrial PC with Intel® H110 Chipset
4U rackmount industrial PC with Intel® H110 chipset, 6th–9th Gen Core-i CPU support, 4 PCIe + 3 PCI slots, M.2 and SATA storage, and dual display output
Features
- Intel® H110 chipset supports 6th–9th Gen Core-i/Celeron/Pentium processors (TDP up to 95W)
- 2 x DDR4 SO-DIMM slots, up to 64GB (1866–2666MHz)

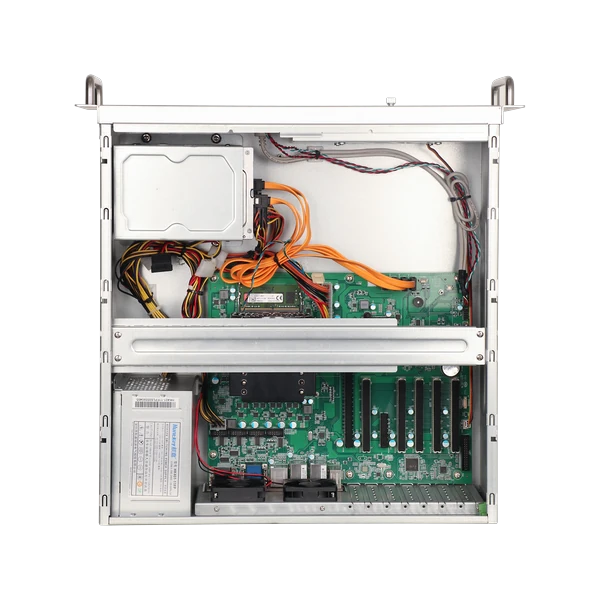

- 4 PCIe slots and 3 PCI slots for expansion cards and control interfaces

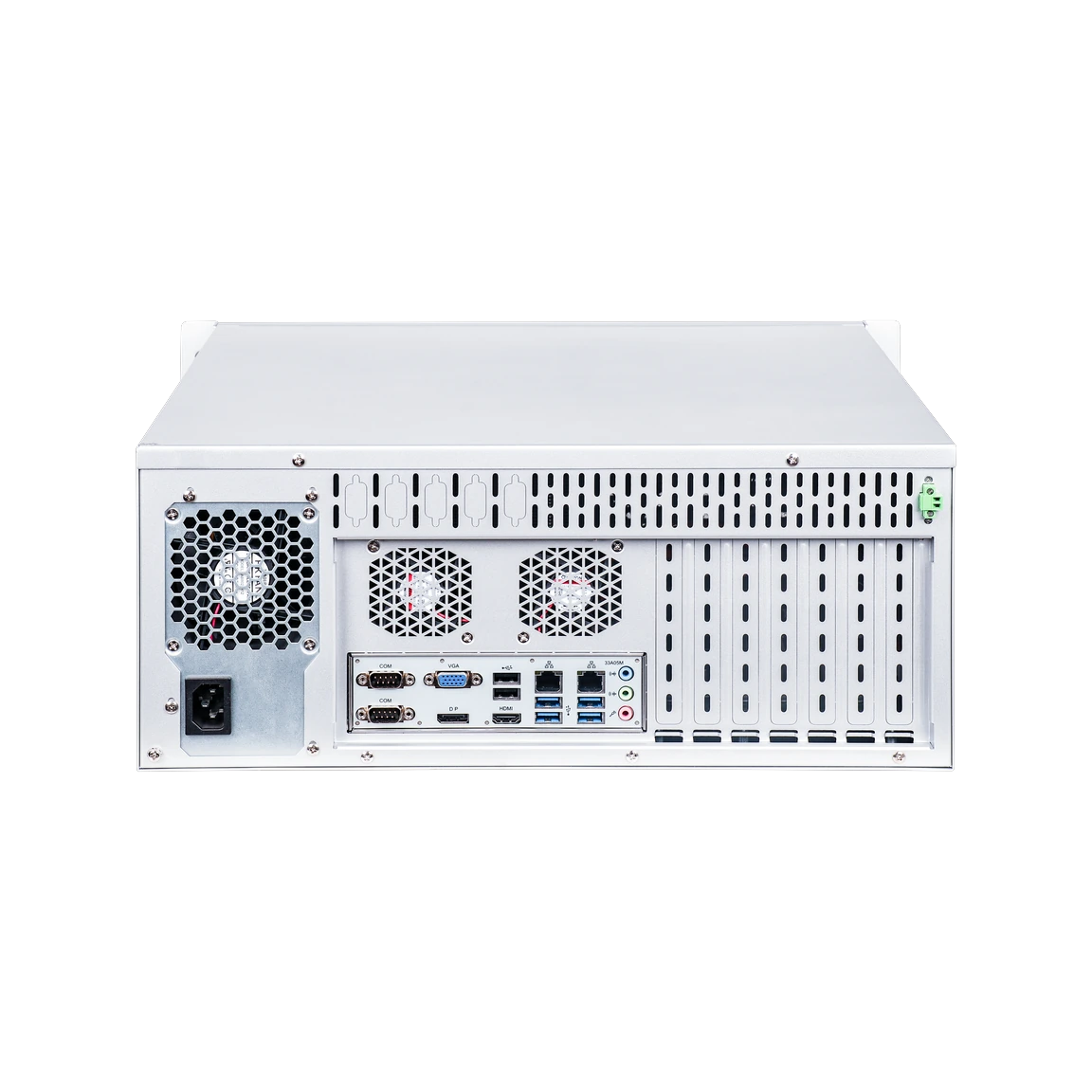

- Triple video output ports: VGA, HDMI (4K@30Hz), DP (4K@60Hz); supports dual display
- 2 x Gigabit Ethernet (Intel i219-V and i210AT)
- 6 COM ports total (2 x RS232/RS485, 4 x RS232 via expansion)
- 4 x USB3.0, 4 x USB2.0, plus internal USB 2.0 dongle support
- 1 x M.2 SSD slot (2242/2280), 2 x SATA3.0 storage interfaces
- All-steel 4U rackmount chassis (451mm depth)
- AC100–240V input, CE/FCC Class A compliant
- Operating temperature: 0–45°C (SSD required for vibration tolerance)
4U rackmount Industrial PC Product Information
| Technical Specifications | |
|---|---|
| Model Name | IPC-615H5-H110 |
| System | |
| CPU | Intel(r) 6th/7th/8th/9th generation Celeron/Pentium/Core-i series processor, TDP up to 95W |
| Chipset | Intel(r) H110 Chipset |
| Memory | 2 x DDR4 260-pin 1866/2133/2400/2666MHz SO-DIMM slots, up to 64GB |
| Storage | 1 x M.2 2242/2280 Key M slot (SATA3.0 Signal), 2 x SATA3.0 (up to 6Gb/s) |
| USB | 4 x USB3.0 (5Gbps), 4 x USB2.0, Built-in USB 2.0 dongle |
| COM | COM1-2: RS232/RS485, Extensible COM3-6: RS232 |
| LAN | LAN1: Intel I219-V, LAN2: Intel I210AT |
| VGA | 1920×1080@60Hz, supports asynchronous dual display |
| HDMI | 4096×2160@30Hz, supports asynchronous dual display |
| DP | 4096×2160@60Hz, supports asynchronous dual display |
| Audio | Realtek ALC897 codec, 1 x Mic-in, 1 x Line-in, 1 x Line-out |
| PCI | 3 x PCI (32bit) |
| PCIE | 1 x PCIe x16 (Gen3), 2 x PCIe x4 (Gen3, x1 link), 1 x PCIe x4 (Gen2, x2 link) |
| Watch Dogs | 1-255 levels programmable setting |
| OS Support | |
| OS | Windows 7/8.1 (only with 6th Gen CPU), Windows 10, Linux |
| Power | |
| Input Voltage | AC100-240V, 50-60Hz |
| Chassis | |
| Structure | All-steel 4U rackmount |
| Dimensions | (D)451mm x (W)430mm x (H)177mm |
| Net Weight | 13Kg |
| Environment | |
| Work Temperature | 0°C ~ 45°C (Use SSD) |
| Storage Temperature | -20°C ~ 60°C (Use SSD) |
| Relative Humidity | 5-95% RH@40°C, non-condensing |
| Vibration | SSD applied: 1.5Grms, IEC60068-2-64, random, 5-500Hz, 1 hr/axis |
| Shock | SSD applied: 10G, IEC60068-2-27, Half sine wave, 11ms duration |
| EMC | CE/FCC Class A |
| Ordering Information | ||
|---|---|---|
| Part Number | Model Name | Description |
| B64.615H5.H1.0013 | IPC-615H5-H110 | Barebones: 6/7/8/9 generation CPU / dual DDR4 notebook memory slots / M.2 hard disk bay / 4 PCIe + 3 PCI / 1.8M GB power cord included |
| Options | ||
| CPU | 6500, 7500, 8700, 9500, ... | |
| DDR4 SO-DIMM | 8GB, 16GB, 32GB | |
| 2.5 Solid Hard Drives | 128GB, 256GB, 512GB, 1TB, ... | |
| M.2 SSD (2242/2280) | 256GB, 512GB, 1TB, ... | |
| 3.5 Inch Hard Drive | 1TB, 2TB, 4TB, ... | |
