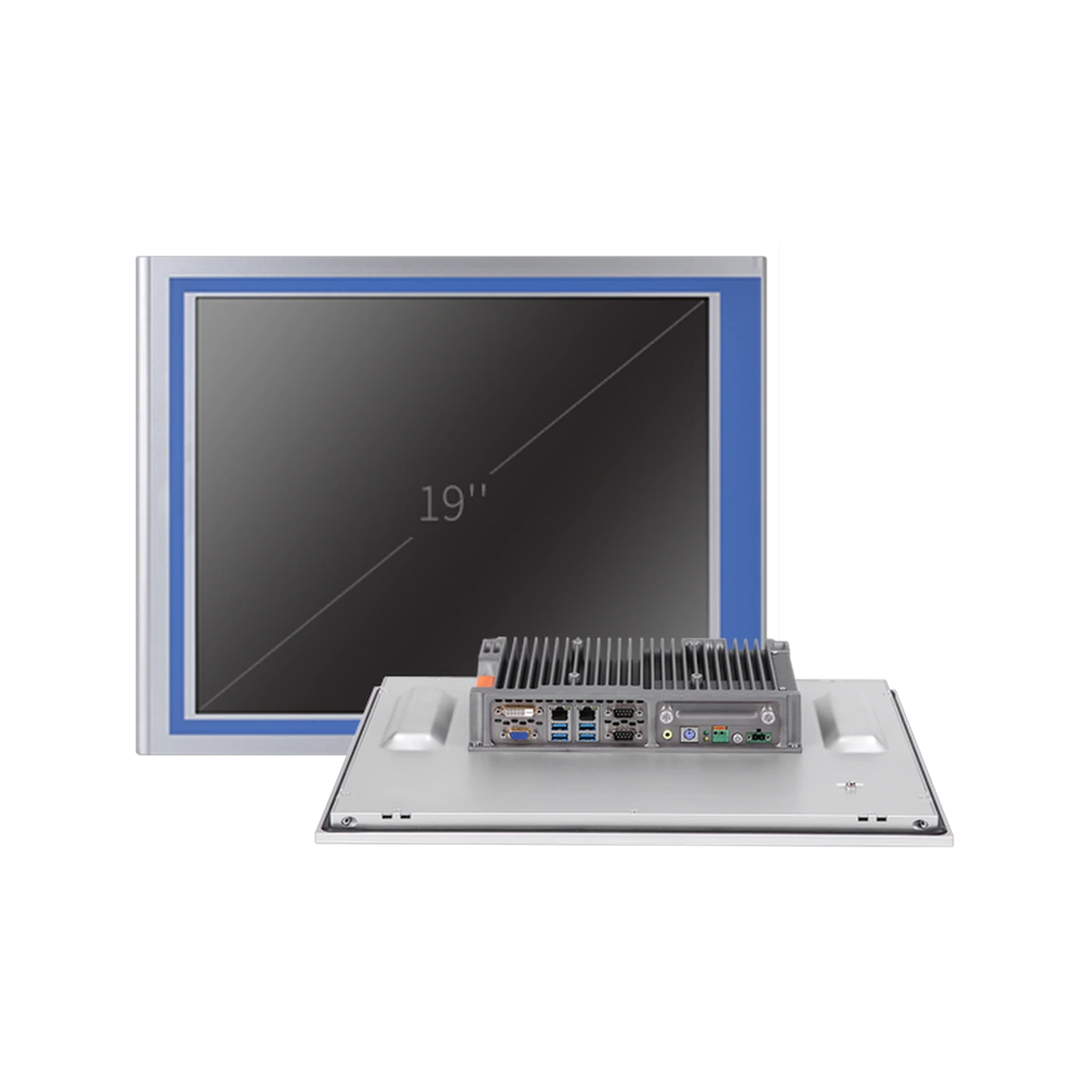

TPC6000-A193-T Series | 19" Fanless Industrial Panel PC with IP65 Front Panel

19″ fanless industrial panel PC with resistive touchscreen, Intel Atom®, Celeron®, Core™ i5/i3, dual LAN & multiple COM ports, and flexible mounting options

Features

19” SXGA (1280×1024) resistive touchscreen for industrial applications
Supports Intel® Atom®, Celeron®, Core™ i5/i3 processors
Dual Intel 1000Mbps LAN ports for reliable networking
2 x COM (RS232/RS485 with surge protection) for industrial communication
4 x USB (USB3.0/2.0/1.1) for multiple peripheral connections
Flexible storage options: 2.5″ SATA SSD/HDD, mSATA
Fanless aluminum chassis for silent and durable operation
Mounting options: Panel Mount & VESA Mount
IP65 front panel for dust & water resistance

Resistive Touch Panel PC Product Information

Technical Specifications
Model Name	TPC6000-A193-T
LCD
Size	19" SXGA TFT LCD
Resolution	1280x1024
Brightness	250 cd/m²
Contrast Ratio	1000:1
Viewing Angle	(L) 85 / (R) 85 / (T) 80 / (B) 80
Backlight	LED
MTBF	30,000 hours
System
CPU	Intel (r) Atom (r) E3845 / Celeron(r) J1900/J6412/42050 / CoreTM 15-7200U/13-8145U
Base Frequency	Up to 2.5GHz (Varies by CPU)
L3 Cache	Up to 4MB (Varies by CPU)
Chipset	Integrated PCH-LP
Memory	1x DDR3L-1600 (Max 8GB) / 1 x DDR4-2400MHz (Max 16GB)
Storage	1x2.5" SATA bay + 1 x mSATA
I/O Interfaces
Network (LAN)	2 x Intel 1000Mbps RJ-45 with surge & lightning protection
USB	4x USB3.0/2.0/1.1
Serial Ports	2 x RS-232 / RS-485 with surge protection
Expansion Slot	1 x Mini-PCIe (Supports 3G, WiFi), 1 x EasyBUS slot
Rear I/O	DVI-I /2 x GLAN / 4 x USB / 2 x COM / 2 x PS2 / Line-out / Mic-in
Chassis
Weight	7.15kg
Installation	Panel Mount & VESA Mount
Dimensions (WxHxD)	466mm x 378mm x 72mm
Cut-out Size (WxH)	443mm x 352mm
Operating System Support
OS Compatibility	Windows 7, Windows 8, Windows 10, Linux, VxWorks, QNX
Power
Input Voltage	DC12~24V ±10%, Reverse polarity, overvoltage, and overcurrent protection
Power Consumption	42.6W
Touch Screen
Type	Resistive Touch Screen
Resolution	4096x4096
Transmittance	>75%
Response Time	<5ms
Surface Hardness	Mohs Hardness 3H
Environmental
Operating Temperature	0~45°C
Storage Temperature	-30~80°C
Humidity	5~95% (Non-condensing)
Vibration Resistance	1.5Grms (IEC 60068-2-64, 5~500Hz)
Shock Resistance	10G Peak Acceleration (IEC 60068-2-27, 11ms)
Waterproof Rating	IP65 Compliant (Front Panel)

Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information
Model Name	TPC6000-A193-T
Description	19" LCD, 1280x1024, Resistive Touch, Intel(r) Atom (r) E3845 / Celeron(r) J1900/J6412/4205U / CoreTM i5-7200U/13-81450, 2x LAN, 2x COM, 4 x USB, DC12~24V Input
Options
CPU	Intel(r) Atom (r) E3845 / Celeron(r) J1900/J6412/4205U / CoreTM i5-7200U/13-8145U
Memory	DDR3L 2GB, 4GB, 8GB / DDR4 4GB, 8GB, 16GB
Storage	2.5" SATA SSD/HDD, mSATA
WiFi Kit	Mini-PCIe WiFi Kit (Supports 3G, WiFi)
3G/4G Module	Mini-PCIe 3G/4G Module
Mounting Option	Panel Mount & VESA Mount
