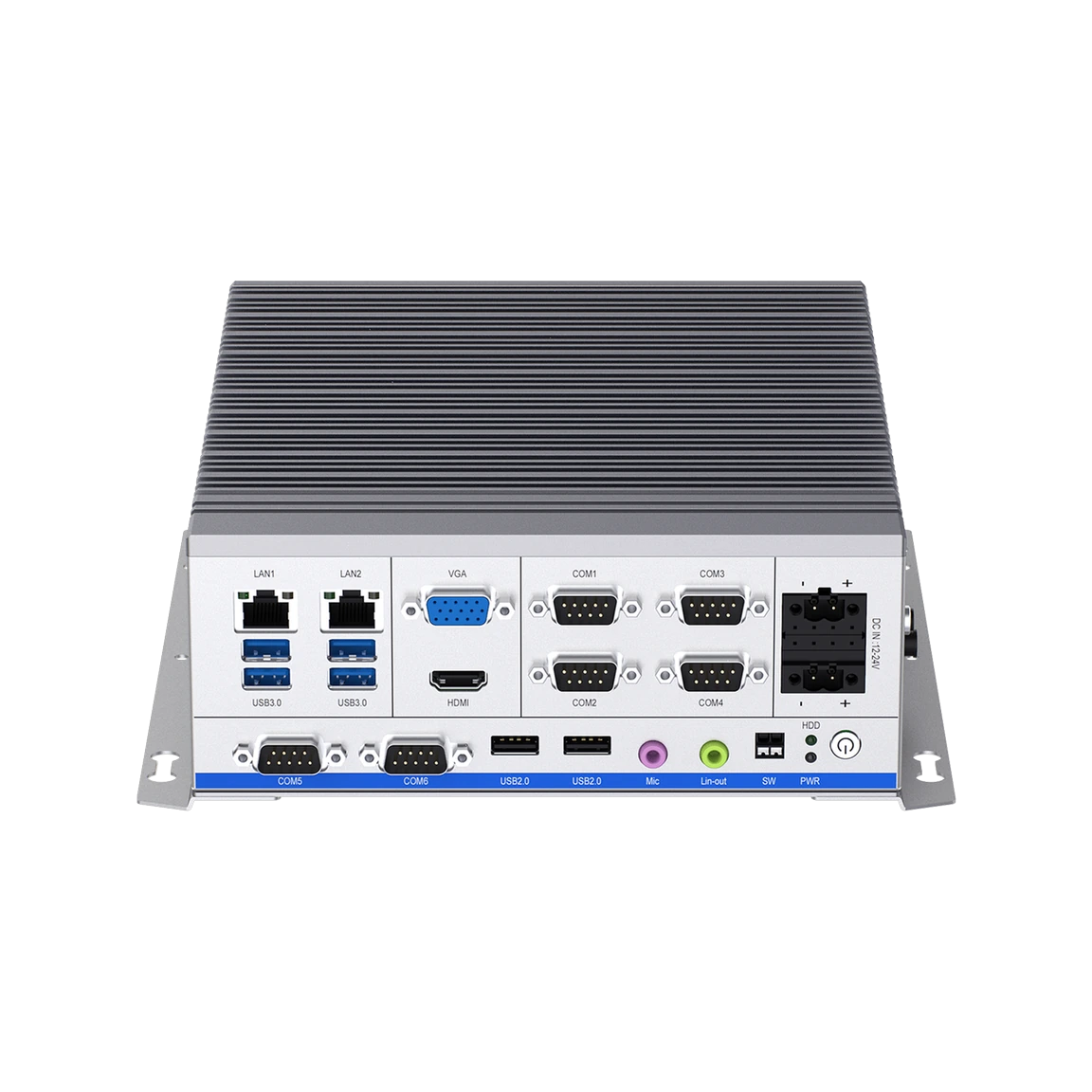

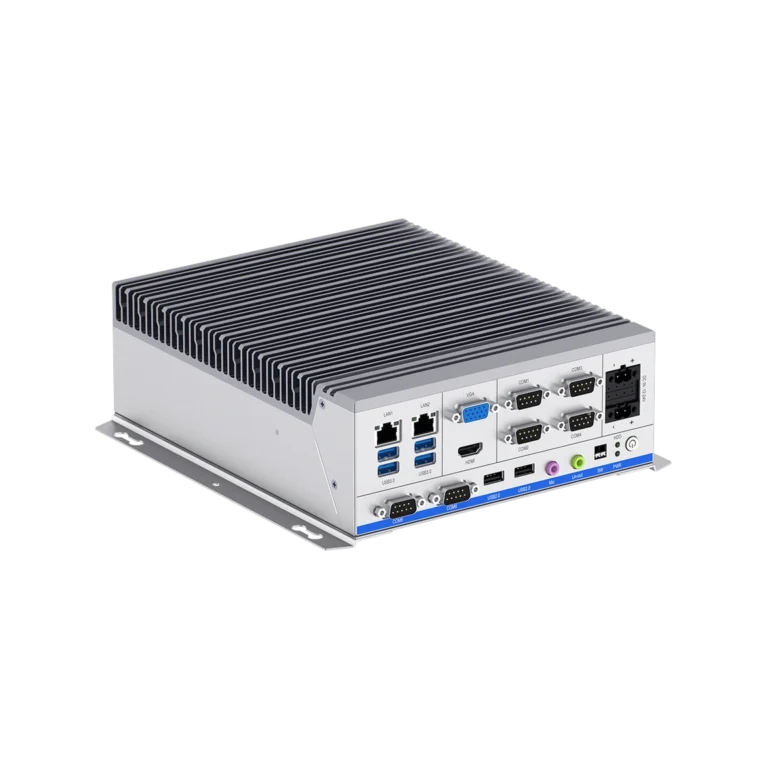

eBOX-3670 | Fanless Industrial Box PC
Fanless industrial box PC with Intel Desktop Core CPUs, 6 COM ports, 2 LAN, 6 USB, dual display (HDMI + VGA), and DC12~24V input
- Fanless Industrial Box PC with aluminum-magnesium alloy enclosure
- Supports Intel® LGA1151 (6/7/8th Gen) or LGA1200 (10/11th Gen) CPUs
- Dual independent display: HDMI (4K) + VGA
- 6 serial ports (COM1~COM6): RS232 & RS485 support
- 2 x Realtek GbE LAN for industrial networking
- 6 x USB ports (4 x USB 3.0, 2 x USB 2.0)
- 2 x Mini-PCIe slots with SIM slot for Wi-Fi/4G modules
- Supports 2.5” SATA HDD and M.2 SSD 2280 (SATA)
- DC12–24V input with overcurrent, overvoltage, and reverse protection
- Compact wall-mount design with robust vibration and shock resistance
Fanless Box PC Product Information
| Technical Specifications | ||
|---|---|---|
| Model Name | eBOX-3670-A | eBOX-3670-B |
| System | ||
| CPU | Intel 6/7/8th Gen. LGA1151 socket CPU (TDP 35W) | Intel 10/11th Gen. LGA1200 socket CPU (TDP 35W) |
| Chipset | H110 | H510 |
| Memory | 2 x DDR4 2400MHz, Max 32GB | |
| Storage | 1 x 2.5" SATA, 1 x M.2 Key M Slot (SATA SSD, 2280) | |
| USB | 4 x USB 3.0, 2 x USB 2.0 | |
| COM | COM1~COM2: RS232/RS485, COM3~COM6: RS232 | |
| LAN | 2 x Realtek GbE LAN | |
| HDMI | 4096 x 2160 @30Hz | |
| VGA | 1920 x 1200 @60Hz | |
| Extension IO | 2 x Full-size Mini PCIe (w/ SIM slot, supports WiFi/4G) | |
| Watchdog | Level 1 to 255 programmable settings | |
| OS Support | ||
| Windows | Windows 10 IoT, Windows 11 | |
| Linux | Ubuntu | |
| Power | ||
| Input Voltage | DC12-24V ±10%, with overcurrent, overvoltage, and polarity protection | |
| Power Consumption | 35W | |
| Mechanical | ||
| Structure | Aluminum-magnesium alloy, fanless, wall-mounted | |
| Dimensions | 230mm (L) x 192mm (W) x 75mm (H) | |
| Net Weight | 3.6kg | |
| Environmental | ||
| Working Temperature | -20ºC ~ 60ºC (w/ airflow & mSATA) | |
| Storage Temperature | -40ºC ~ 80ºC (w/ airflow & mSATA) | |
| Humidity | 5-95% RH (non-condensing) | |
| Vibration | 5-500Hz, 1.5Grms (w/ SSD, IEC60068-2-64) | |
| Shock | 10G peak, 11ms (IEC60068-2-27) | |
| EMC | CE/FCC Class B | |
| Ordering Information | ||
|---|---|---|
| P/N | Model Name | Specifications |
| 6033000001 | eBOX-3670-A | Quasi-system, L510 core module, supports Intel 6/7/8th Gen LGA1151 35W CPU, 12-24V input, 6 serial ports, 6 USB, 2 LAN, VGA + HDMI display output |
| 6039000043 | eBOX-3670-B | Quasi-system, L520 core module, supports Intel 10/11th Gen LGA1200 35W CPU, 12-24V input, 6 serial ports, 6 USB, 2 LAN, VGA + HDMI display output |
| Optional Items | ||
| DDR4 Memory | 4GB, 8GB, 16GB | |
| mSATA SSD | 128GB, 256GB, 512GB | |
| M.2 SSD | 512GB, 1TB | |
| 4G Module | Mini PCIe: EC20, EG25, EC25 | |
