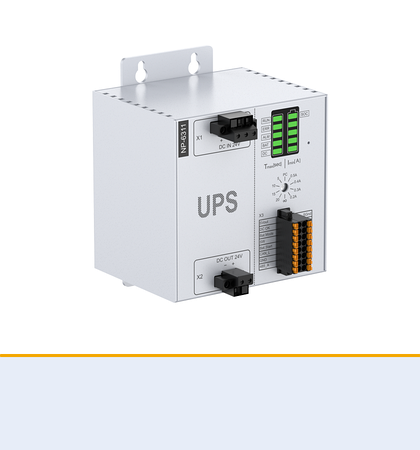

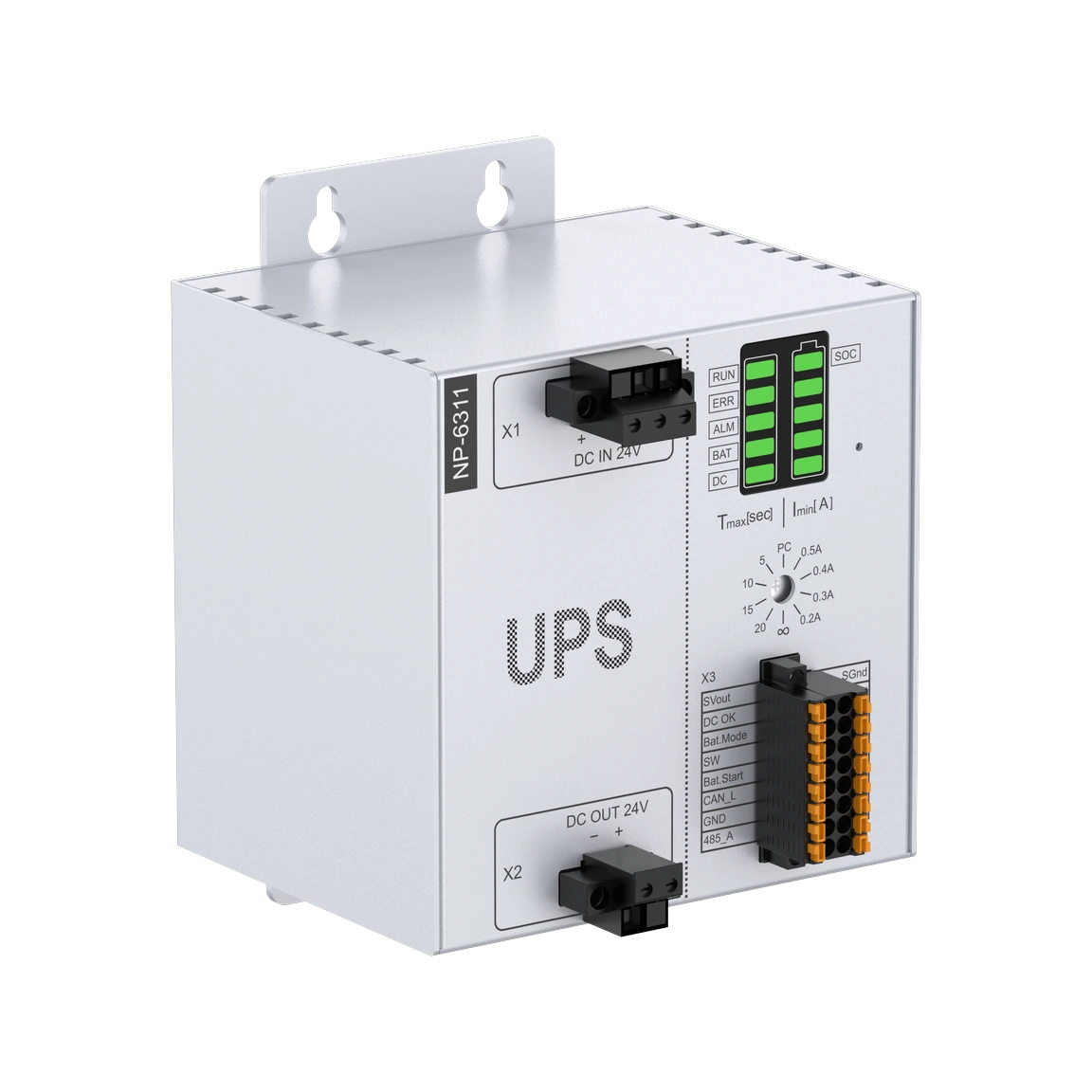

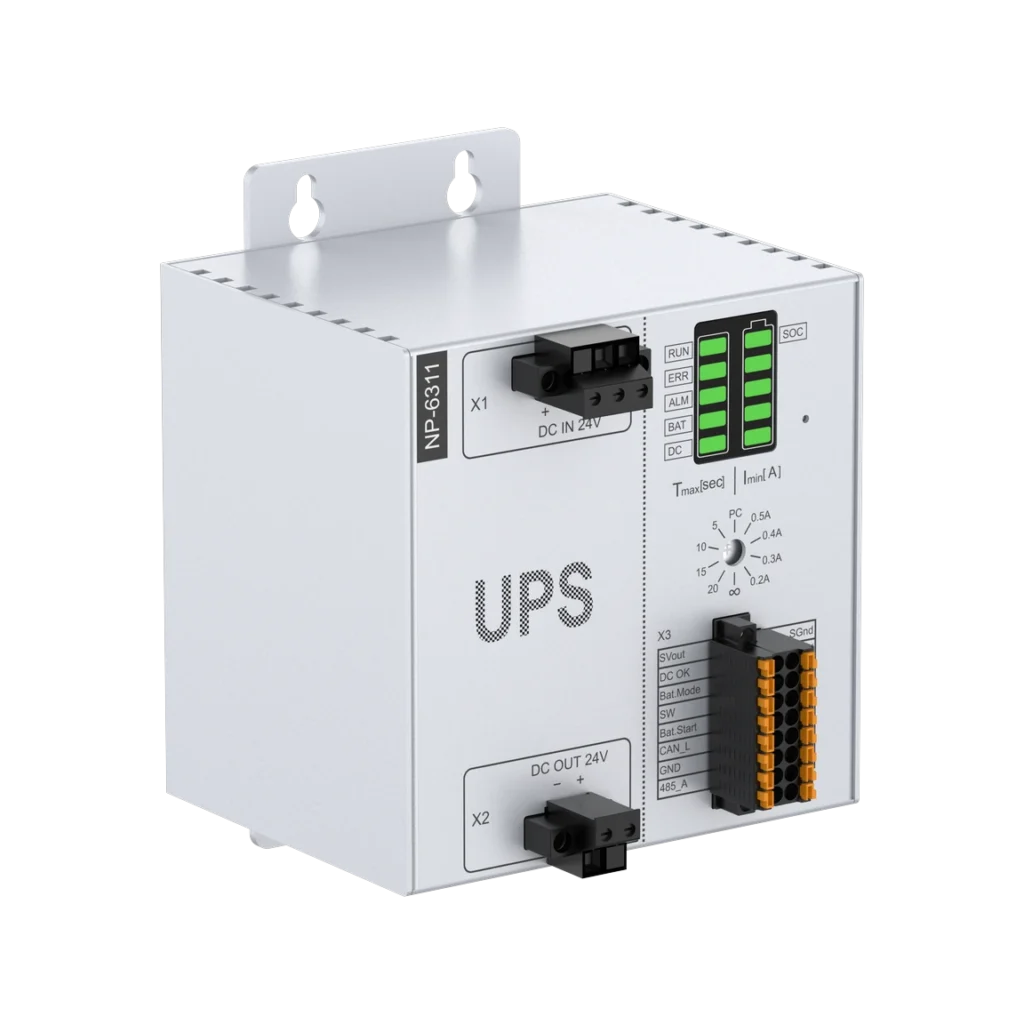

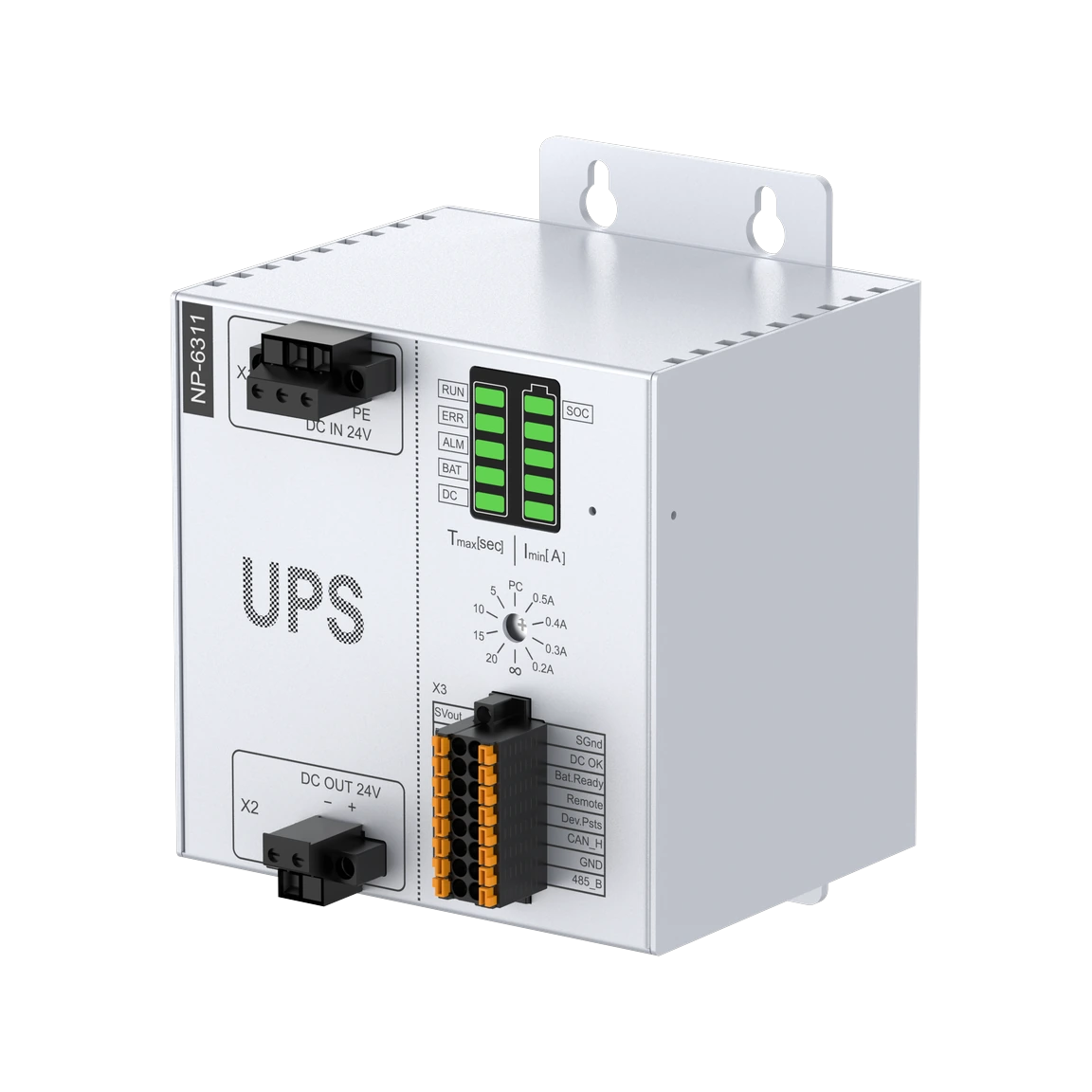

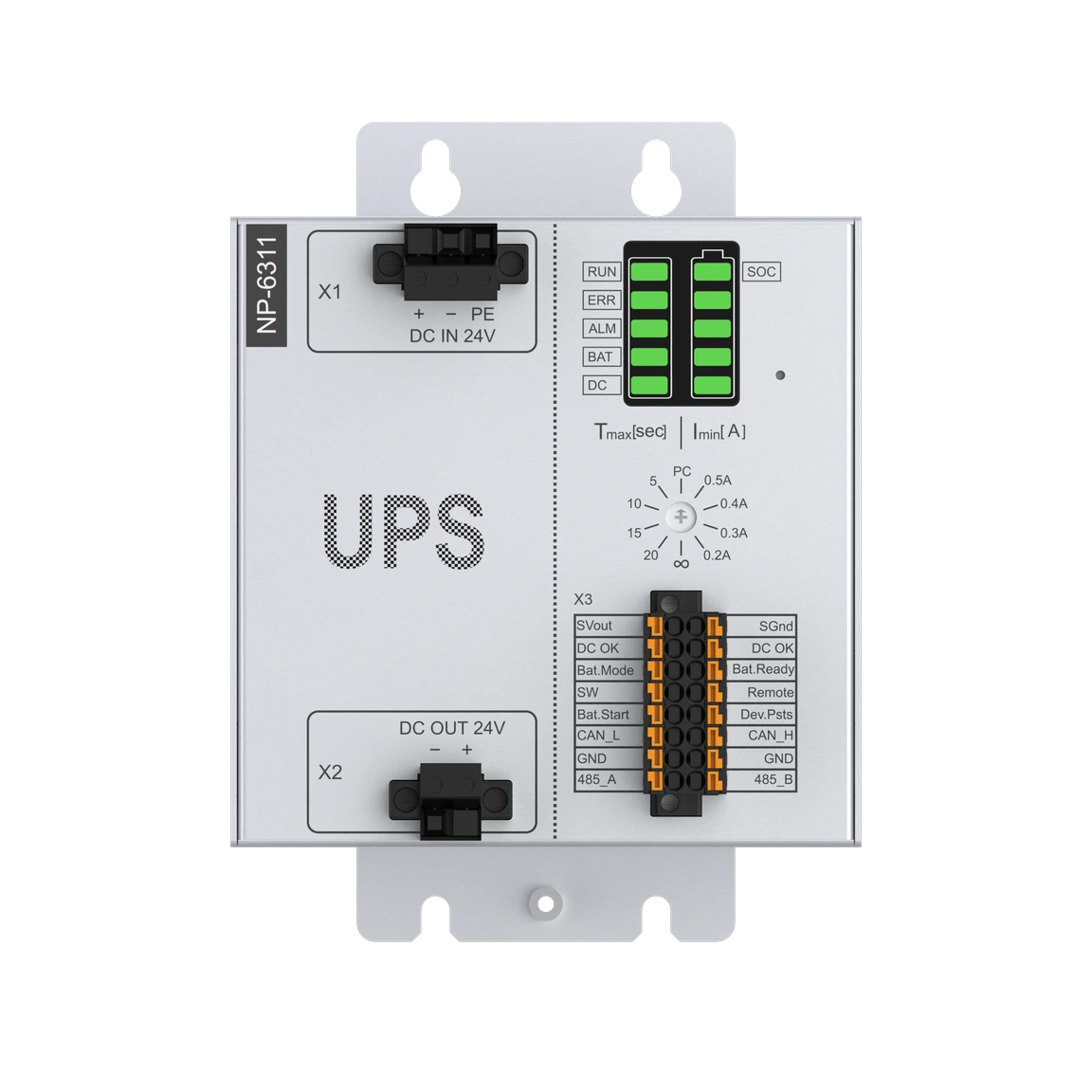

| Technical Specifications -- NP-6311 |
|---|
| DC Input |
|---|
| Input Voltage | 24VDC -15% ~ +20% |
| Max Current | 12A |
| Input Protection | Overvoltage and reverse polarity protection |
| DC Output |
|---|
| Output Voltage | 24VDC |
| Max Current | 6A |
| Output Protection | Short-circuit and overcurrent protection |
| Communication |
|---|
| Interfaces | 1 × RS485 Modbus RTU, 1 × CAN BUS 2.0B |
| Baud Rate | RS485: Max. 115.2kb/s; CAN: Max. 1Mbit/s |
| I/O Interfaces |
|---|
| LED | 5 × LEDs: RUN (green), ERR (red), ALM (orange), BAT (green), DC (green) |
| Rotating Code | Mode selection |
| DC OK | DC power supply status, relay normally open output |
| Bat. Mode | Battery powered mode, NPN output |
| Bat. Ready | Battery fully charged state, NPN output |
| SW | Output signal (active low) for system power off/on control |
| Remote | Remote power on/off output, NPN type output |
| Bat. Start | Forced battery output, NPN type input |
| Dev. Psts | Working status of power receiving equipment, NPN input |
| Super Capacitor |
|---|
| Capacitor | 4 × 200F-2400Ws |
| Charge Time | 50s |
| Discharge Time | 40s/60W or 20s/120W |
| Chassis |
|---|
| Dimensions | 100mm (L) × 100mm (W) × 80mm (H) |
| Structure | Wall-mounted or DIN-rail fixing style |
| Environment |
|---|
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -40°C ~ 80°C |
| Relative Humidity | 5-95% (non-condensing) |
| EMC | CE/FCC |
| Ordering Information -- NP-6311 |
|---|
| Part No. | Product | Description |
| A7Z.63111.00.0002 | NP-6311 | 1 × RS485, 1 × CAN2.0B, 5 × LEDs, Mode selection switch, IO input/output, DC24V input, DC24V output |
