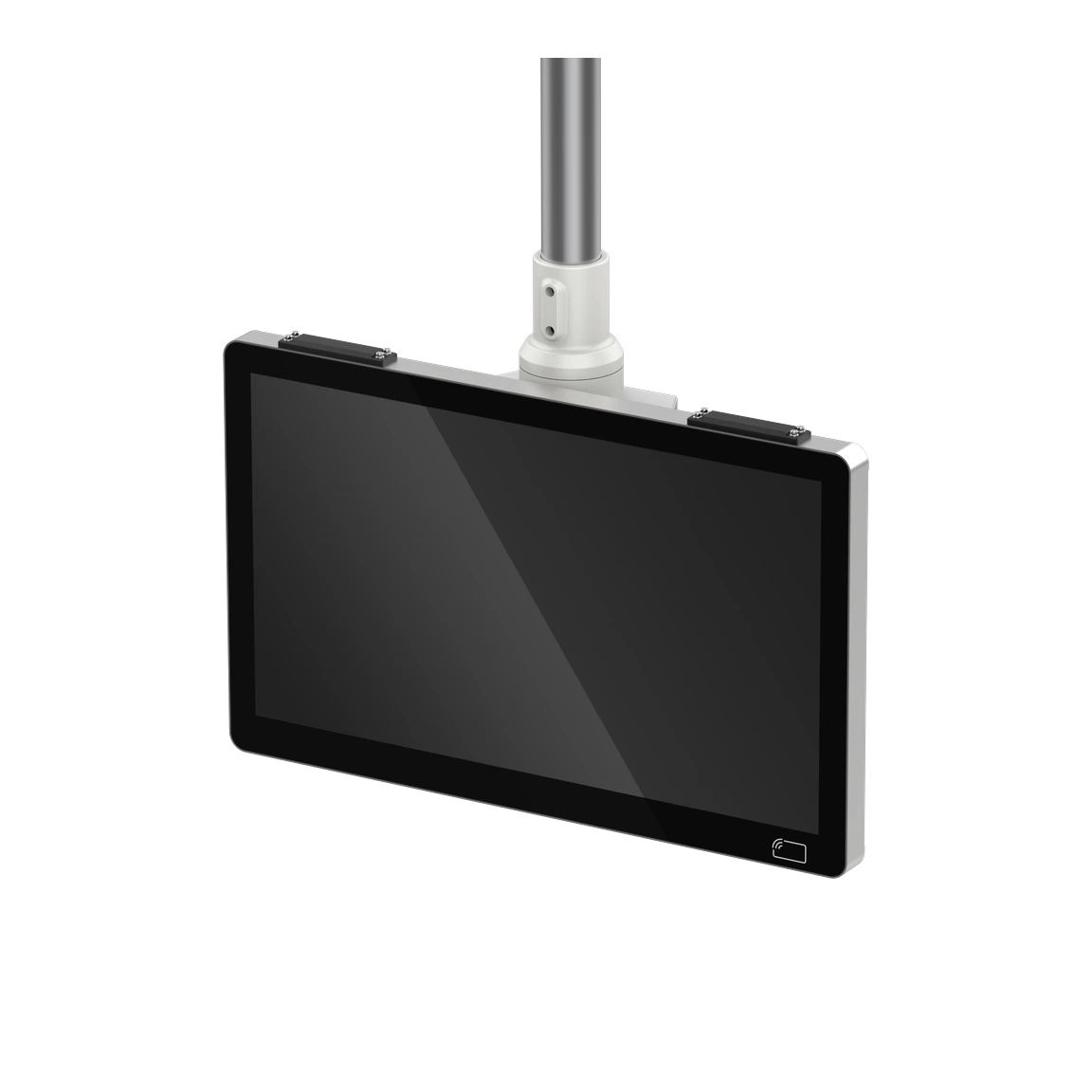

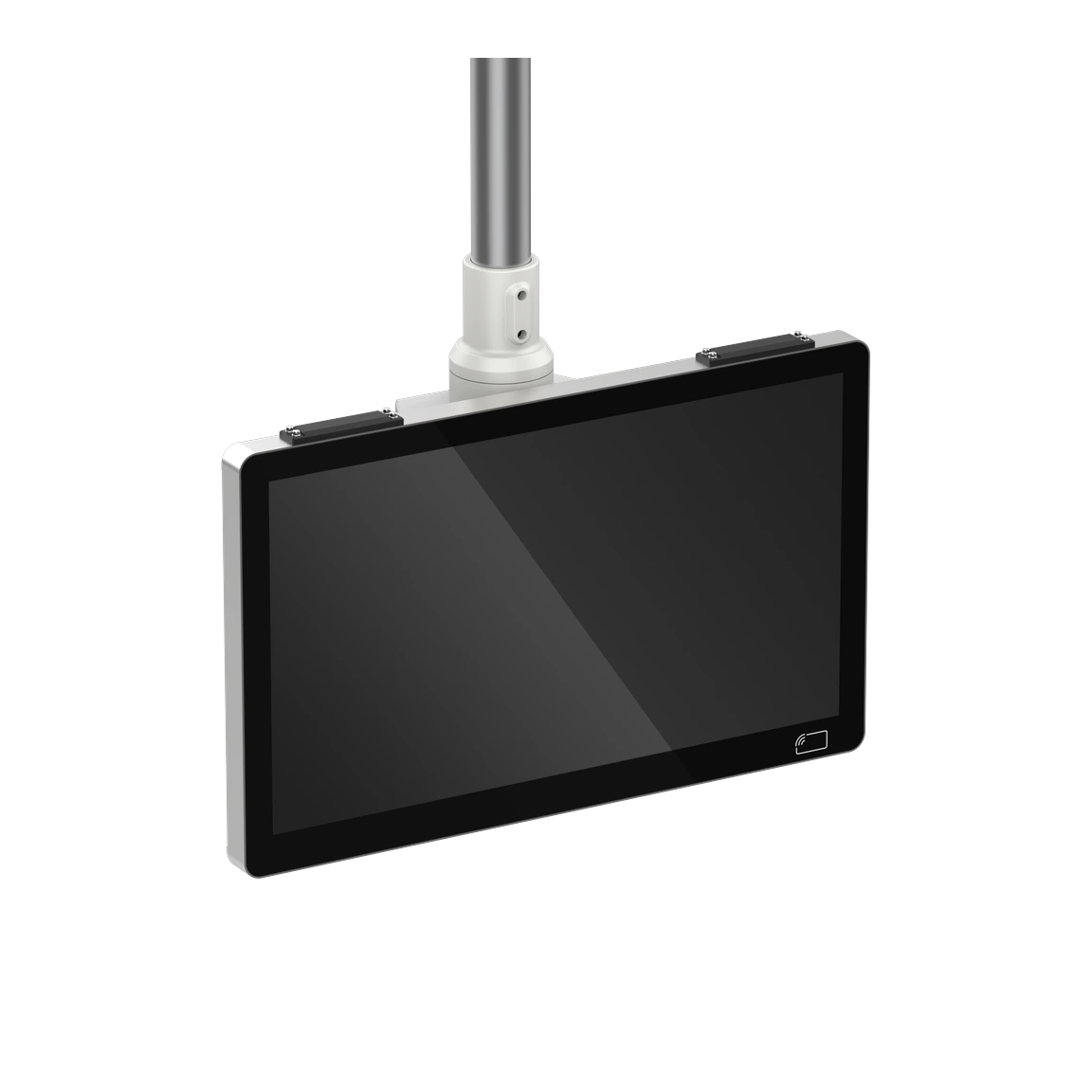

| Technical Specifications -- WP2151-H-C Series |
|---|
| Model | WP2151-H-C-N97 | WP2151-H-C-1235U |
| CPU | Intel® Processor N97 (Quad-core, 2.0 GHz, 12 W TDP) | Intel® Core™ i5-1235U |
| Memory | 1 × DDR4-3200 MHz SO-DIMM slot, up to 32 GB |
| Storage | 1 × M.2-2242 B-Key SSD slot (SATA 3.0) | 1 × M.2-2280 M-Key SSD slot (SATA 3.0) |
| USB | 2 × USB 2.0 |
| COM | 2 × RS-232 (COM1 RS-485 optional) |
| LAN | 2 × GbE (RJ-45), Intel® i210-AT controller |
| Other I/O | 1 × POWER / 1 × DC IN / 2 × LAN / 2 × COM / 2 × USB |
| Wi-Fi | IEEE 802.11 a/g/n |
| NFC | 13.56 MHz (built-in) |
| LCD |
|---|
| LCD Size | 21.5" FHD TFT LCD |
| Resolution | 1920 × 1080 |
| Luminance | 250 cd/m² |
| MTBF | 50,000 hrs |
| Contrast Ratio | 1000 : 1 |
| Touch Screen |
|---|
| Type | Multi-touch, capacitive touch screen |
| Transmittance | ≥ 87% |
| Controller Interface | USB 2.0 |
| OS |
|---|
| Operating Systems | Windows 10, Linux |
| Power |
|---|
| Input Voltage | DC 12-24 V |
| Idle Power Consumption | < 84 W |
| Mechanical |
|---|
| Housing | Rugged stainless steel |

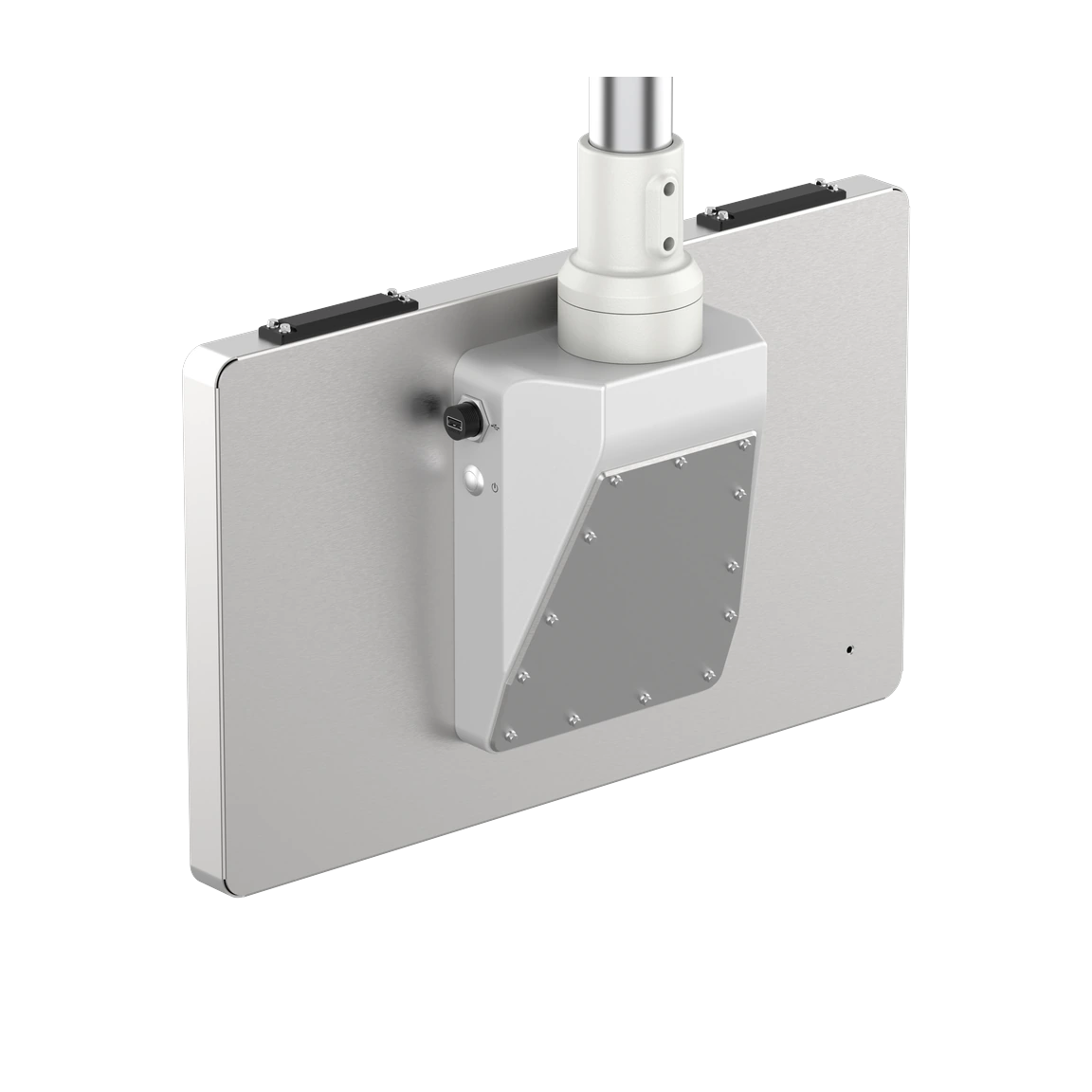

| Mounting Type | Integrated mounting arm adapter (arm tube from above, internal cable routing) |
| Dimensions (W × H × D) | 530.5 mm × 330 mm × 130 mm |
| Weight | 8.5 kg |
| Environment |
|---|
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Relative Humidity | 5 ~ 95% @ 40 °C (non-condensing) |
| Vibration | SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5-500 Hz, 1 hr/axis |
| Shock | Operating 10 G peak acceleration (11 ms), IEC 60068-2-27 |
| EMC | -- |
| Waterproof |
|---|
| Ingress Protection | IP65 |
| Ordering Information -- WP2151-H-C Series |
|---|
| Model Name | Description |
| WP2151-H-C-N97 | 21.5" LCD / Intel® Processor N97 / Optional RAM & SSD / 2× RS-232 (COM1 RS-485 optional) / 2× LAN / 2× USB / Capacitive touch screen / 1920×1080 / DC 12-24 V / Built-in Wi-Fi & NFC / IP65 stainless housing with integrated mounting arm adapter and internal cable routing. |
| WP2151-H-C-1235U | 21.5" LCD / Intel® Core™ i5-1235U / Optional RAM & SSD / 2× RS-232 (COM1 RS-485 optional) / 2× LAN / 2× USB / Capacitive touch screen / 1920×1080 / DC 12-24 V / Built-in Wi-Fi & NFC / IP65 stainless housing with integrated mounting arm adapter and internal cable routing. |
| Options |
|---|
| Memory | 8 GB, 16 GB DDR4 SO-DIMM |
| SSD | 128 GB, 256 GB, 512 GB (M.2 SATA) |
| USB Cable | M12 plug with 5-pin (USB), length 2 m |
| COM Cable | M12 plug with 4-pin (COM), length 2 m |
| LAN Cable | M12 plug with 8-pin (LAN), length 2 m |
| Power Supply | LPV-60-12 waterproof power adapter |
