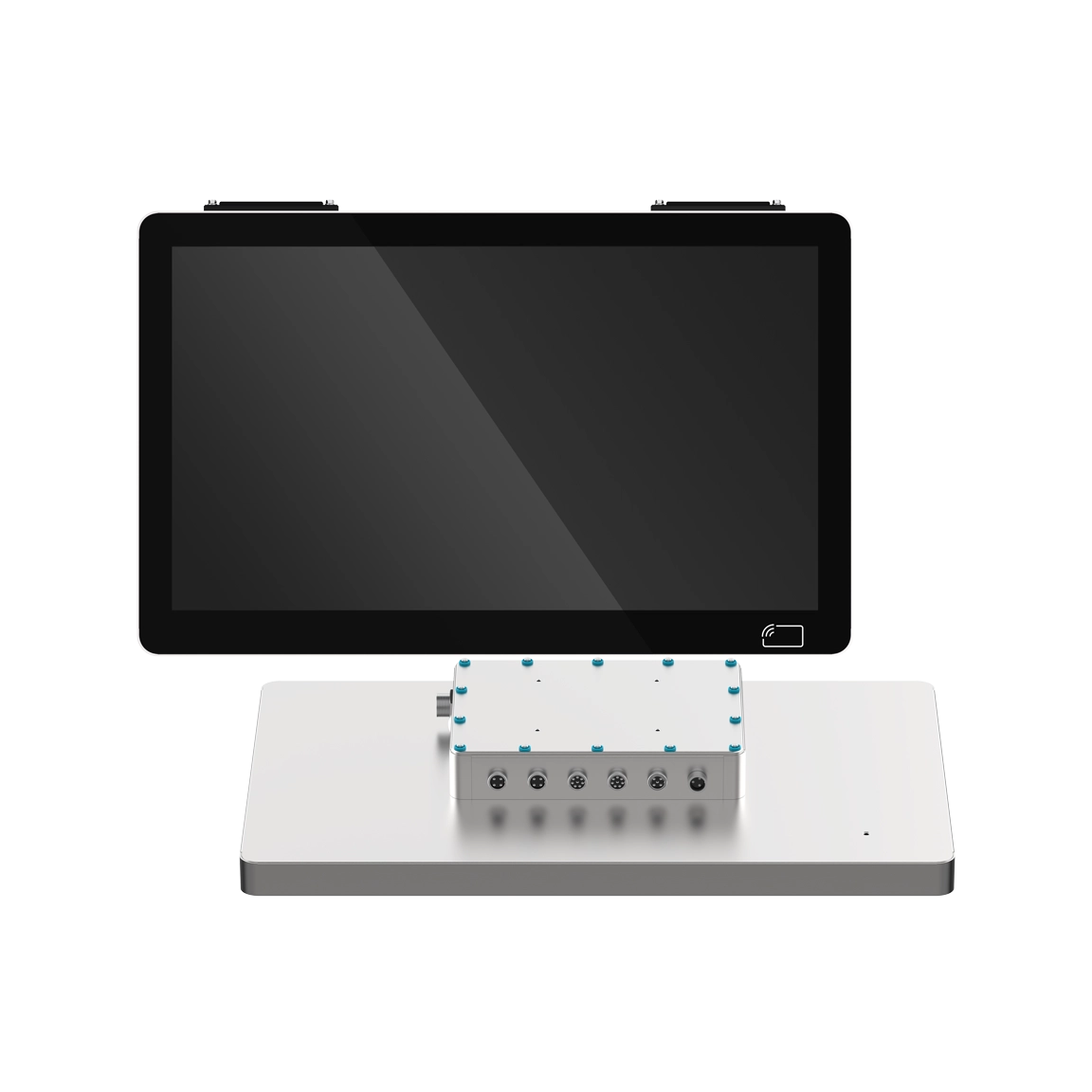

| Technical Specifications -- WP2383-C Series |
|---|
| Model | WP2383-C-N97 | WP2383-C-1235U |
| CPU | Intel Processor N97 (Quad-core, 2.0 GHz, 12 W TDP) | Intel Core i5-1235U |
| Memory | 1 × DDR4-3200 SO-DIMM, up to 32 GB |
| Storage | 1 × M.2-2242 B-Key SSD slot (SATA 3.0) | 1 × M.2-2280 M-Key SSD slot (SATA 3.0) |
| USB | 2 × USB 2.0 |
| Serial | 2 × RS-232 (COM1 supports RS-485 optional) |
| LAN | 2 × GbE (RJ-45), Intel(r) i210-AT controller |

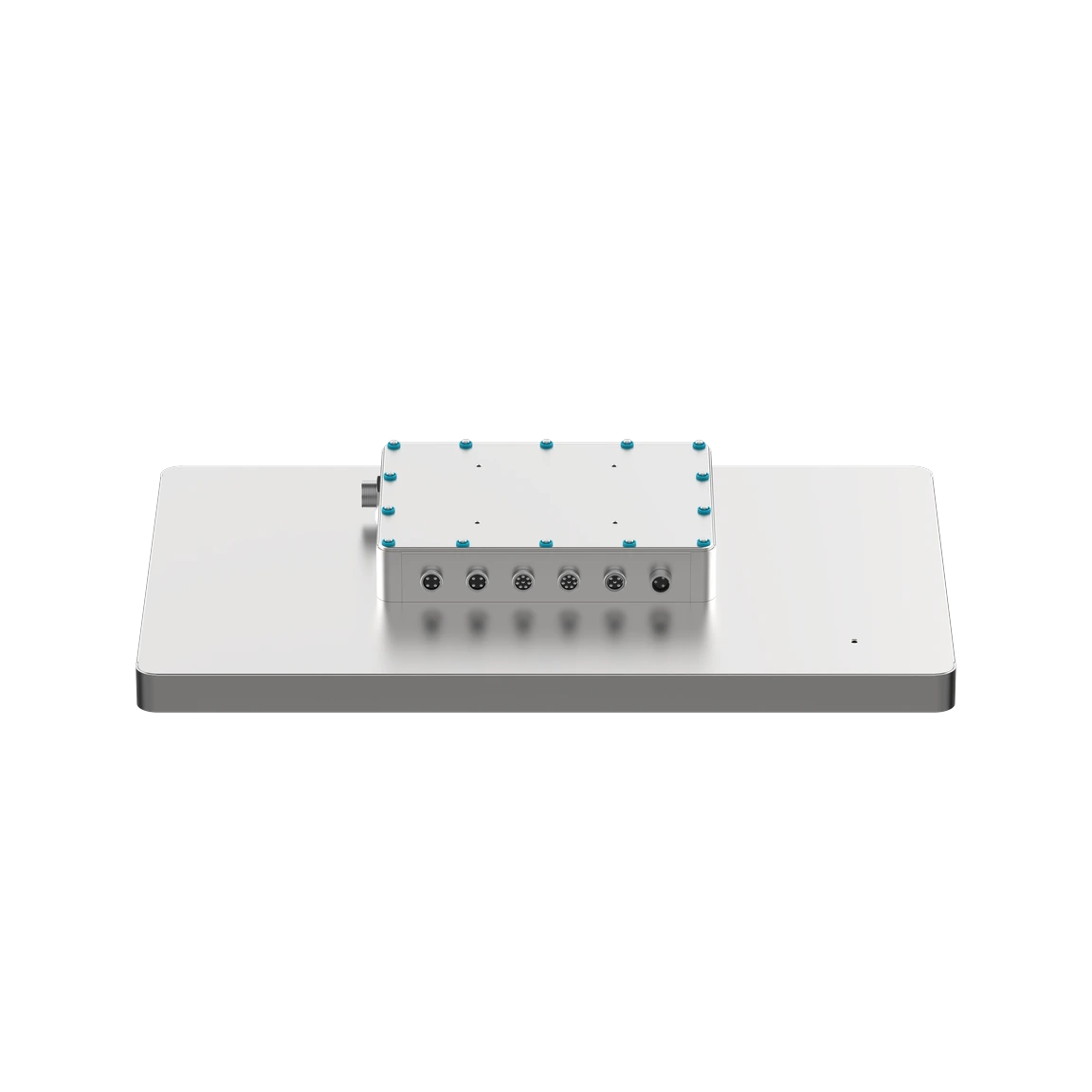

| Other I/O | 1 × POWER / 1 × DC IN / 2 × LAN / 2 × COM / 2 × USB |
| Wi-Fi | IEEE 802.11 a/g/n |
| NFC | 13.56 MHz |

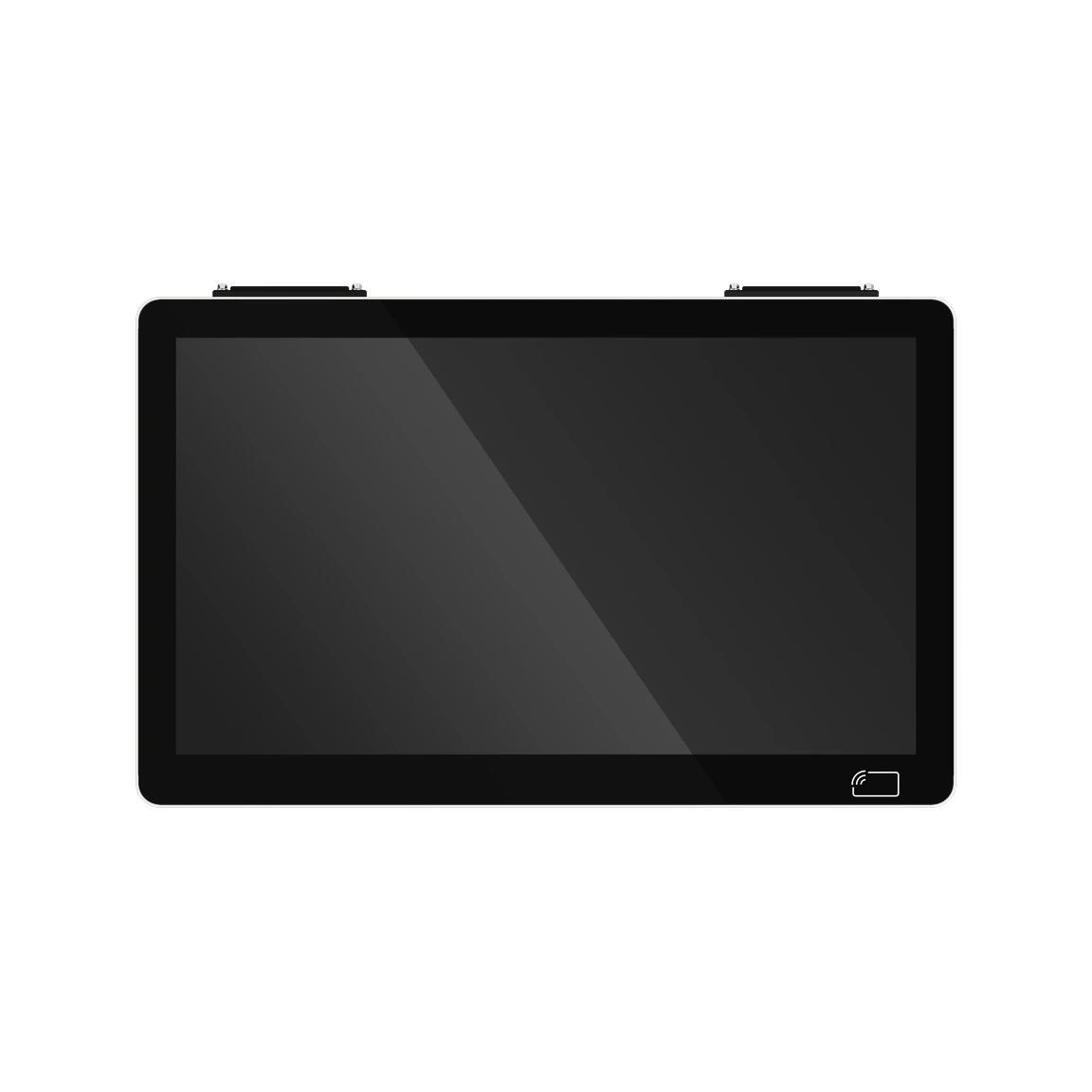

| LCD |
|---|
| LCD Size | 23.8" FHD TFT LCD |
| Resolution | 1920 × 1080 |
| Luminance | 250 cd/m² |
| MTBF | 30,000 hrs |
| Contrast Ratio | 3000 : 1 |
| Touch Screen |
|---|
| Type | Multi-touch, capacitive |
| Transmittance | ≥ 87% |
| Controller Interface | USB 2.0 |
| OS |
|---|
| Operating Systems | Windows 10, Linux |
| Power |
|---|
| Input Voltage | DC 12-24 V |
| Idle Power Consumption | < 84 W |

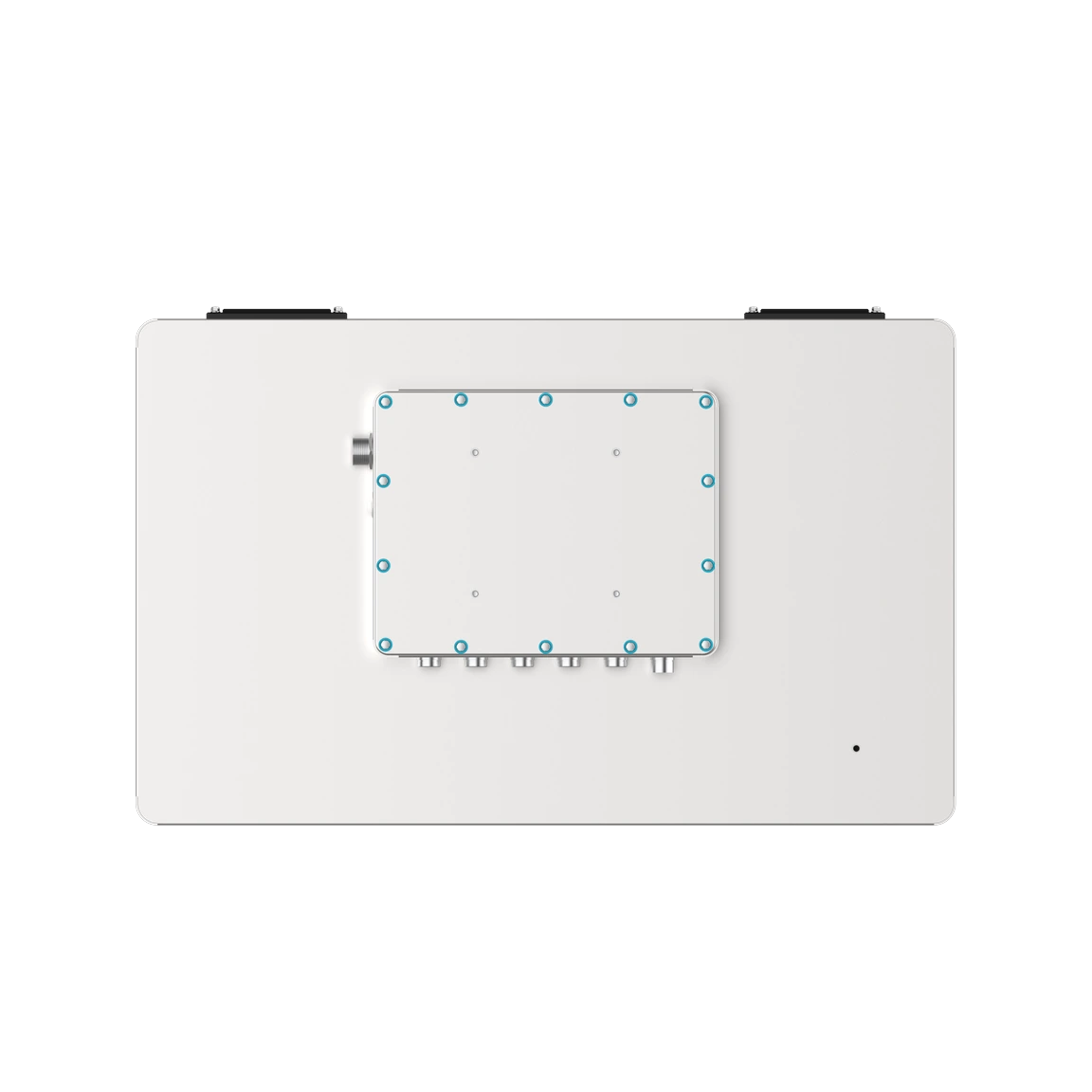

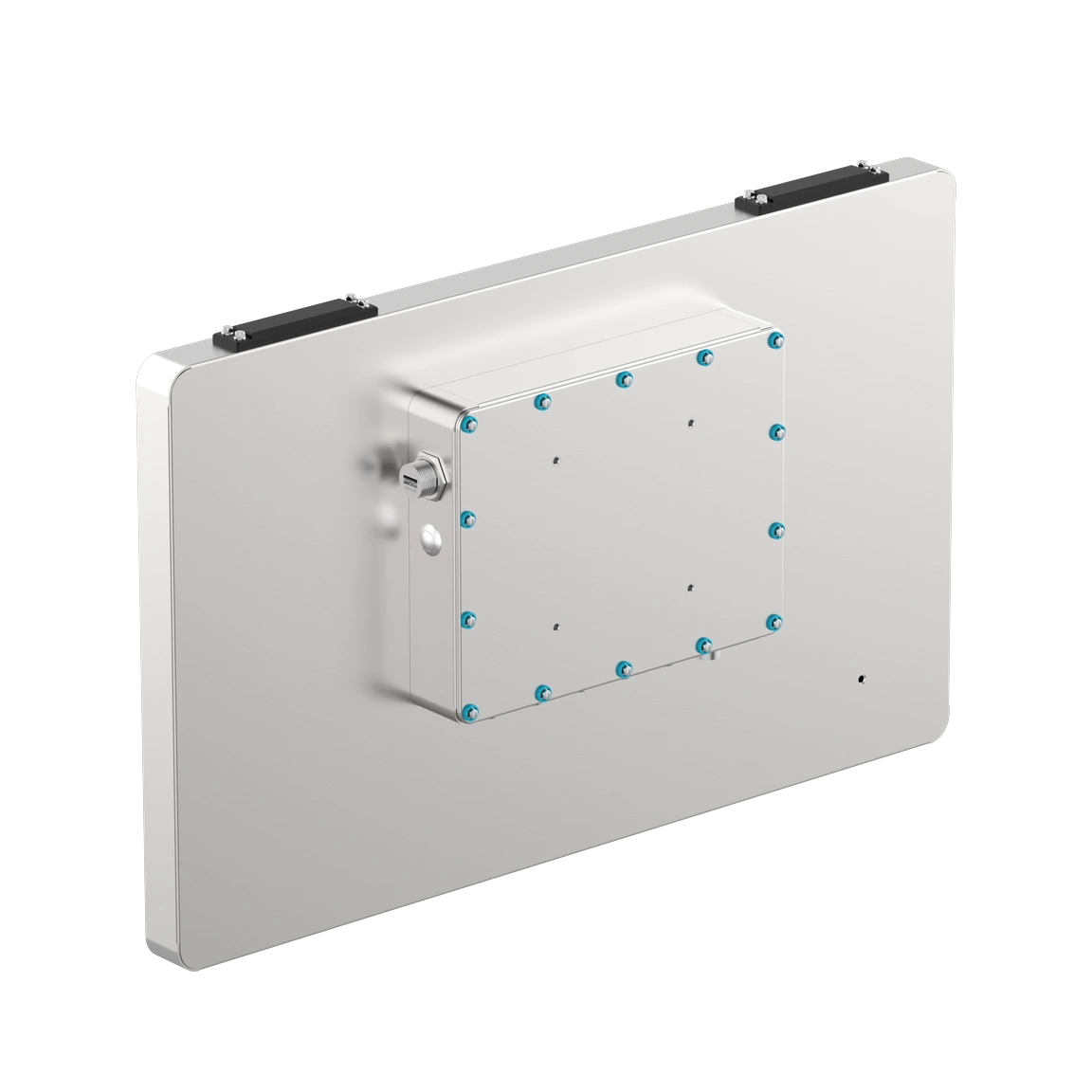

| Mechanical |
|---|
| Housing | Rugged stainless steel |
| Dimensions (W × H × D) | 581 mm × 359 mm × 72.5 mm |
| VESA Size | 100 mm × 100 mm |
| Weight | -- |
| Environment |
|---|
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Relative Humidity | 5 ~ 95% @ 40 °C (non-condensing) |
| Vibration | SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5-500 Hz, 1 hr/axis |
| Shock | Operating 10 G peak acceleration (11 ms), per IEC 60068-2-27 |
| EMC | -- |
| Waterproof |
|---|
| Ingress Protection | IP69K |
| Ordering Information -- WP2383-C Series |
|---|
| Model Name | Description |
| WP2383-C-N97 | 23.8" LCD / Intel N97 / Optional RAM & SSD / 2× RS-232 (COM1 RS-485 optional) / 2× LAN / 2× USB / Capacitive touch / 1920×1080 / DC 12-24 V / Built-in Wi-Fi & NFC / IP69K stainless housing / VESA 100×100. |
| WP2383-C-1235U | 23.8" LCD / Intel Core i5-1235U / Optional RAM & SSD / 2× RS-232 (COM1 RS-485 optional) / 2× LAN / 2× USB / Capacitive touch / 1920×1080 / DC 12-24 V / Built-in Wi-Fi & NFC / IP69K stainless housing / VESA 100×100. |
| Options |
|---|
| Memory | 8 GB, 16 GB DDR4 SO-DIMM |
| SSD | 128 GB, 256 GB, 512 GB (M.2 SATA) |
| USB Cable | M12 plug with 5-pin (USB), length 2 m |
| COM Cable | M12 plug with 4-pin (COM), length 2 m |
| LAN Cable | M12 plug with 8-pin (LAN), length 2 m |
| Power Supply | LPV-60-12 waterproof power adapter |
