Rackmount Industrial PC IPC615H5-XXXX Series
IPC-615H5-C236
High-performance 4U rackmount industrial PC powered by Intel® C236 chipset, supporting 6th–9th Gen Core-i processors, with full-length PCIe/PCI expansion, triple display, RAID, and AC power input. Ideal for automation, vision, and control applications
IPC-615H5-H110
4U rackmount industrial PC powered by Intel® H110 chipset, supporting 6th to 9th Gen Core-i processors, full-length PCIe and PCI expansion, M.2/SATA storage, dual LAN, and multi-display output
IPC-615H5-H420E
4U rackmount industrial PC with Intel® H420E chipset, supporting 10th and 11th Gen Core-i processors, triple 4K display output, PCIe and PCI expansion, M.2/SATA storage, and AC input for industrial AI and automation workloads
IPC-615H5-H610
High-performance 4U rackmount industrial PC with Intel® H610 chipset, supports 12th and 13th Gen Core-i CPUs, PCIe Gen4 slots, triple 4K display, and flexible storage options for demanding automation and AI applications
IPC-615H5-Q170
4U rackmount industrial PC with Intel® Q170 chipset, supports 6th–9th Gen Core-i CPUs, up to 5 PCIe and 2 PCI slots, RAID storage, triple display output, and flexible I/O for factory automation and control systems
IPC-615H5-Q470
Intel® Q470 chipset-based 4U rackmount industrial PC with support for 10th and 11th Gen Core-i CPUs, full-length PCIe/PCI expansion, RAID-capable storage, and triple 4K display output for automation, vision, and AI applications
IPC-615H5-Q670
4U rackmount industrial PC featuring Intel® Q670 chipset with support for 12th/13th/14th Gen Core-i processors, DDR5 memory, Gen4 PCIe expansion, triple 4K display, and RAID storage. Built for vision, AI, control, and automation applications

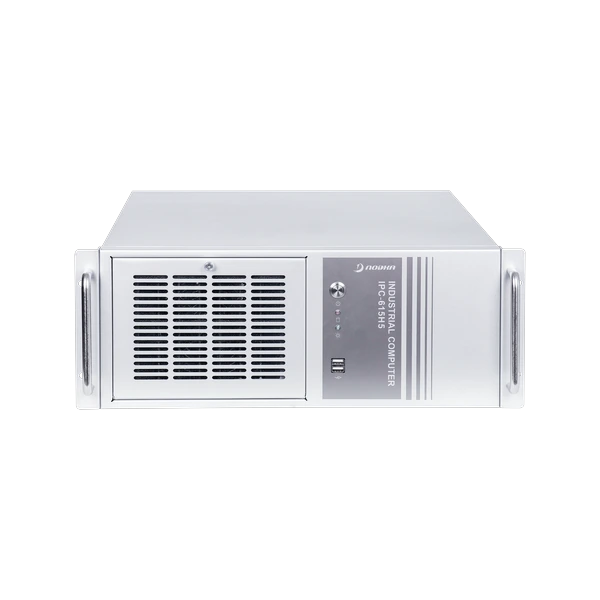

IPC-615H5 Series 4U Rackmount Industrial PC Features
The IPC-615H5 Series is built to accommodate a wide range of industrial performance demands, with support for Intel® 6th to 14th Gen Core™/Pentium®/Celeron® processors, including high-TDP CPUs up to 125W. Depending on model, the series features Intel chipsets from H110 and Q170 to H610, Q470, and Q670, with memory options including DDR4 and DDR5 SO-DIMMs up to 64GB. All models provide extensive expansion with combinations of PCIe Gen3 or Gen4 (x16/x4) and PCI 32-bit slots, supporting full-length cards such as GPUs, vision frame grabbers, motion control, and data acquisition boards. Triple display outputs via VGA, HDMI, and DP come standard, along with dual GbE LAN, multiple COM ports, USB3.0/2.0, and M.2/SATA storage—some models supporting RAID 0/1/5/10.
Show More
Application Areas
The IPC-615H5 Series is ideal for machine vision inspection, AI inference, robotic control, motion automation, CNC and laser cutting, and industrial edge computing. Its rugged 4U rackmount design ensures reliable deployment in factory control cabinets, server rooms, test benches, and smart production lines. The PCIe and legacy PCI expansion options allow integration with advanced and legacy control systems in complex industrial environments.
| Model | Chipset | CPU Support | Memory | PCIe / PCI Slots | Display | Storage |
|---|---|---|---|---|---|---|
| IPC-615H5-H110 | Intel H110 | 6th-9th Gen | DDR4 | 1 x PCIe x16, 3 x PCI, 3 x PCIe x4 | VGA, HDMI, DP (dual) | 2 x SATA3.0, 1 x M.2 |
| IPC-615H5-Q170 | Intel Q170 | 6th-9th Gen | DDR4 | 5 x PCIe, 2 x PCI | VGA, HDMI, DP (triple) | RAID, SATA3.0 + M.2 |
| IPC-615H5-H420E | Intel H420E | 10th-11th Gen | DDR4 | 1 x PCIe x16, 3 x PCIe x4, 3 x PCI | VGA, HDMI, DP (dual) | 3 x SATA3.0, 1 x M.2 |
| IPC-615H5-Q470 | Intel Q470 | 10th-11th Gen | DDR4 | 2 x PCIe x16, 3 x PCIe x4, 2 x PCI | VGA, HDMI, DP (triple) | RAID, SATA3.0 + M.2 |
| IPC-615H5-H610 | Intel H610 | 12th-13th Gen | DDR4 | 1 x PCIe x16, 3 x PCIe x4, 3 x PCI | VGA, HDMI, DP (triple) | 3 x SATA3.0, 1 x M.2 |
| IPC-615H5-Q670 | Intel Q670 | 12th-14th Gen | DDR5 | 2 x PCIe x16, 3 x PCIe x4, 2 x PCI | VGA, HDMI, DP (triple) | RAID, 4 x SATA3.0 + M.2 (PCIe 4.0) |
