IP69K Stainless Waterproof Panel PC WPXXX3-C Series

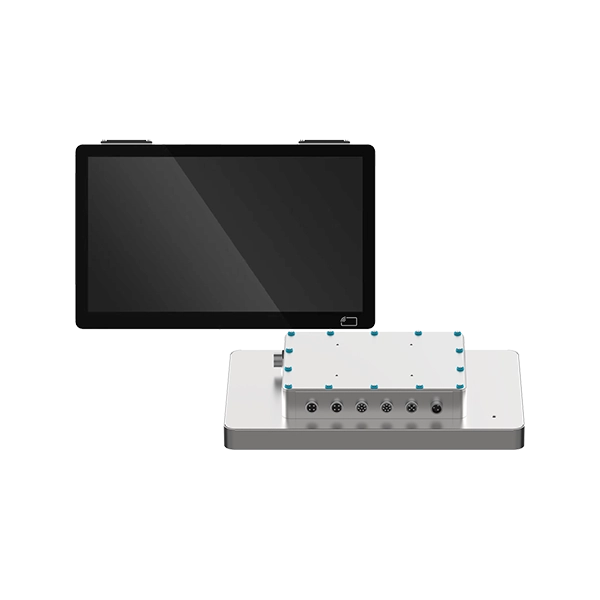

WP1563-C Series
15.6″ IP69K stainless steel Panel PC with Intel® N97 or Core™ i5-1235U, DDR4 up to 32GB, dual GbE (i210), 2×COM, 2×USB2.0, M.2 SATA SSD, built-in Wi-Fi & NFC, DC12–24V input, VESA 100×100 mounting.

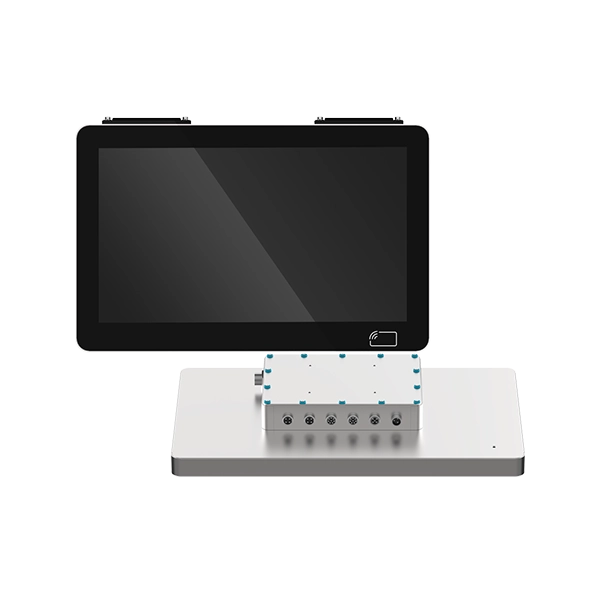

WP2153-C Series
21.5″ IP69K stainless steel Panel PC with Intel® N97 or Core™ i5-1235U, DDR4-3200 up to 32GB, dual GbE (i210), 2×COM, 2×USB2.0, M.2 SATA SSD, built-in Wi-Fi & NFC, DC 12–24V input, VESA 100×100 mounting.

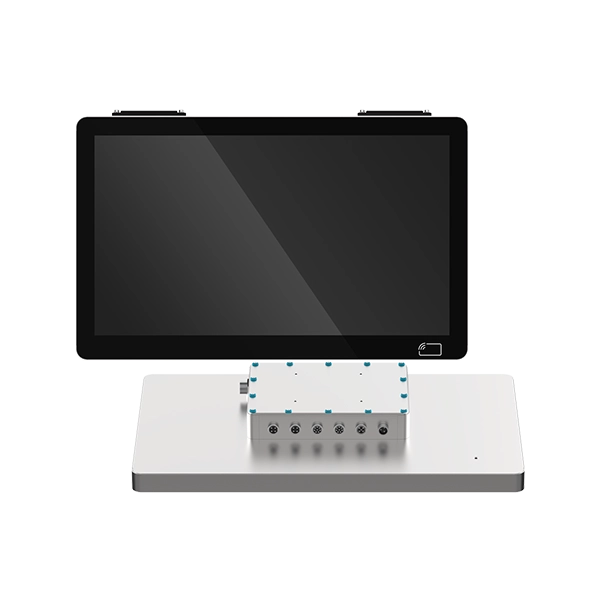

WP2383-C Series
23.8″ IP69K stainless steel Panel PC with Intel® N97 or Core™ i5-1235U, DDR4-3200 up to 32GB, dual GbE (i210), 2×COM, 2×USB2.0, M.2 SATA SSD, built-in Wi-Fi & NFC, DC 12–24V input, VESA 100×100 mounting.
WPXXX3-C IP69K Stainless Waterproof Panel PC Series Features
The WPXXX3-C Series is an IP69K-rated stainless steel fanless Panel PC engineered for high-hygiene and washdown industrial environments. Available in 15.6", 21.5", and 23.8" FHD multi-touch displays, it supports Intel® N97 or Core™ i5-1235U processors with DDR4-3200 memory up to 32GB. Each unit comes with built-in NFC for secure operator authentication, integrated dual GbE LAN, 2×USB, 2×COM (RS-232/RS-485), and Wi-Fi connectivity. Its M.2 SSD slot provides flexible storage options. With a rugged stainless housing, DC12–24V wide-range input, and VESA mounting support, the WPXXX3-C Series delivers exceptional durability and reliability under high-pressure washdown and sanitary operating conditions.
Show More
Application Areas
The WPXXX3-C Series is ideal for food and beverage automation, pharmaceutical cleanrooms, chemical processing, marine systems, and hygienic manufacturing environments. The built-in NFC feature enables contactless user authentication and access control, supporting MES interfaces, packaging and bottling control panels, and traceability terminals in IP69K washdown areas where stainless corrosion-resistant construction and hygiene compliance are critical.
| Model | Display Size | CPU Support | LAN Ports | Serial Ports | Expansion & Storage | Protection / Housing | Mounting |
|---|---|---|---|---|---|---|---|
| WP1563-C-N97 | 15.6" (1920x1080) | Intel Processor N97 | 2× GbE (Intel i210-AT) | 2× RS-232 (RS-485 optional) | 1× M.2-2242 SSD (SATA 3.0); Wi-Fi & NFC built-in | IP69K stainless steel enclosure | VESA 100×100 |
| WP1563-C-1235U | 15.6" (1920x1080) | Intel Core i5-1235U | 2× GbE (Intel i210-AT) | 2× RS-232 (RS-485 optional) | 1× M.2-2280 SSD (SATA 3.0); Wi-Fi & NFC built-in | IP69K stainless steel enclosure | VESA 100×100 |
| WP2153-C-N97 | 21.5" (1920x1080) | Intel Processor N97 | 2× GbE (Intel i210-AT) | 2× RS-232 (RS-485 optional) | 1× M.2-2242 SSD (SATA 3.0); Wi-Fi & NFC built-in | IP69K stainless steel enclosure | VESA 100×100 |
| WP2153-C-1235U | 21.5" (1920x1080) | Intel Core i5-1235U | 2× GbE (Intel i210-AT) | 2× RS-232 (RS-485 optional) | 1× M.2-2280 SSD (SATA 3.0); Wi-Fi & NFC built-in | IP69K stainless steel enclosure | VESA 100×100 |
| WP2383-C-N97 | 23.8" (1920x1080) | Intel Processor N97 | 2× GbE (Intel i210-AT) | 2× RS-232 (RS-485 optional) | 1× M.2-2242 SSD (SATA 3.0); Wi-Fi & NFC built-in | IP69K stainless steel enclosure | VESA 100×100 |
| WP2383-C-1235U | 23.8" (1920x1080) | Intel Core i5-1235U | 2× GbE (Intel i210-AT) | 2× RS-232 (RS-485 optional) | 1× M.2-2280 SSD (SATA 3.0); Wi-Fi & NFC built-in | IP69K stainless steel enclosure | VESA 100×100 |
