Automation PC NP-6123/6133 Series
NP-6123 / NP-6133
Control cabinet industrial automation PC supports Intel Core processors (Max. 65W TDP), 4 x GbE LAN, 1 x RS232/RS485, mSATA storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6123-HDD / NP-6133-HDD
Control cabinet industrial automation PC supports Intel Core processors (Max. 65W TDP), 4 x GbE LAN, 1 x RS232/RS485, mSATA & 2.5” SATA storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6123-L2 / NP-6133-L2
Control cabinet industrial automation PC supports Intel Core processors (Max. 65W TDP), 6 x GbE LAN, 1 x RS232/RS485, mSATA & 2.5” SATA storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6123-L4 / NP-6133-L4
Control cabinet industrial automation PC supports Intel Core processors (Max. 65W TDP), 8 x GbE LAN, 8DI/8DO, 1 x RS232/RS485, mSATA & 2.5” SATA storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations

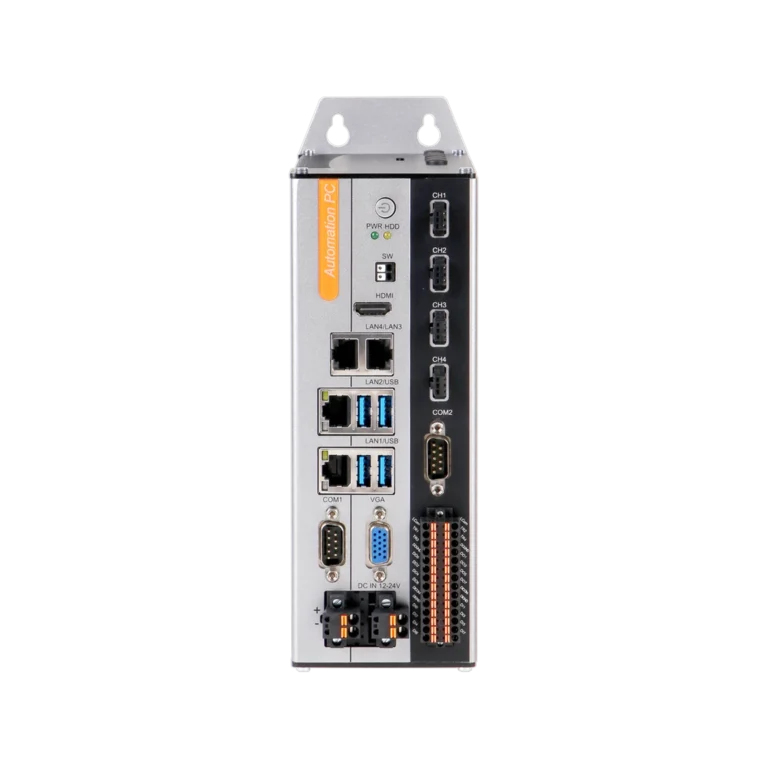

NP-6123-MVS / NP-6133-MVS
Machine vision industrial PC supports Intel Core processors (Max. 65W TDP), 4 x GbE LAN, 8DI/8DO, 4 x PWM Light Control, 1 x RS232/RS485, mSATA & 2.5” SATA storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6123-MVS-L1 / NP-6133-MVS-L1
Machine vision industrial PC supports Intel Core processors (Max. 65W TDP), 5 x GbE LAN, 8DI/8DO, 4 x PWM Light Control, 1 x RS232/RS485, mSATA & 2.5” SATA storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6133-16I16O
Control Cabinet Industrial automation PC supports Intel Core processors (Max. 65W TDP), 4 x GbE LAN, 16DI/16DO, 1 x RS232/RS485, mSATA storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6123 / NP-6133 Series Automation PC Features

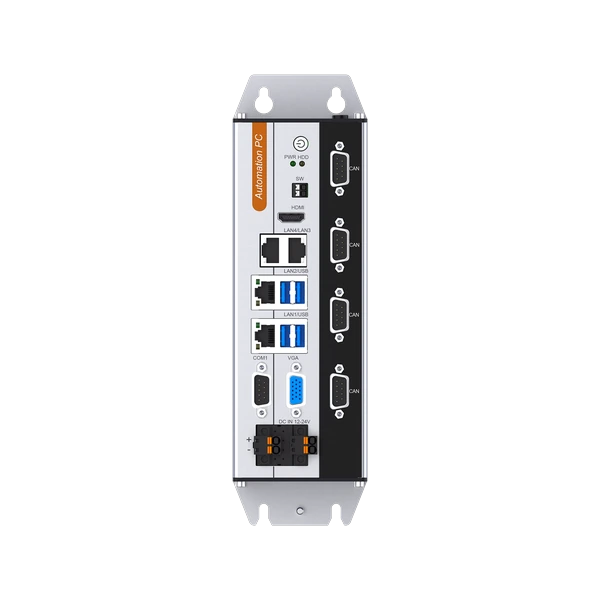

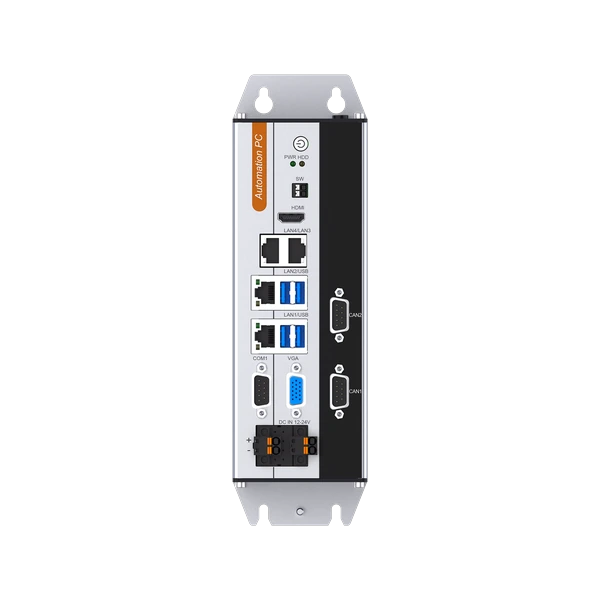

The NP-6123/6133 Automation PC Series is designed for control cabinet integration with Intel® Core™, Pentium®, and Celeron® processors. The NP-6123 supports 6th–8th Gen CPUs, while the NP-6133 supports 10th–11th Gen. All models are fanless with wide 12–24V DC power input and a front I/O layout for easy access. Expansion options include mSATA, SATA HDD/SSD, and miniPCIe slots. Networking options range from 2 to 8 GbE LAN with PoE variants, while serial interfaces include RS232/RS485. Selected models provide DI/DO, PWM light control, and CAN bus to support industrial automation and machine vision.
Show More
Application Areas
These Automation PCs are suitable for diverse industrial applications. Multi-LAN models (L2/L4) enable motion control and robotics when paired with CodeSys or other software. Machine vision models (MVS/MVS-L1) integrate PoE, DI/DO, and lighting control for inspection systems. DI/DO variants (16I16O) support process automation and discrete equipment control. Standard models and HDD variants function as gateways and edge computing devices, while all configurations offer customizable OEM branding for integration into automation systems.
| Model | CPU Support | LAN / PoE | Serial | DIO / Light / CAN | Expansion & Storage | Mounting |
|---|---|---|---|---|---|---|
| NP-6123 | Intel(r) CoreTM 6th-8th Gen (LGA1151) | 4× GbE | 1× RS232/RS485 | -- | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6123-HDD | Intel(r) CoreTM 6th-8th Gen (LGA1151) | 4× GbE | 1× RS232/RS485 | -- | 1× mSATA, 1× SATA HDD/SSD, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6123-L2 | Intel(r) CoreTM 6th-8th Gen (LGA1151) | 6× GbE | 1× RS232/RS485 | -- | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6123-L4 | Intel(r) CoreTM 6th-8th Gen (LGA1151) | 8× GbE | 1× RS232/RS485 | 8× DI, 8× DO | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6123-16I16O | Intel(r) CoreTM 6th-8th Gen (LGA1151) | 4× GbE | 1× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6123-MVS | Intel(r) CoreTM 6th-8th Gen (LGA1151) | 4× GbE (2× PoE opt.) | 1× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6123-MVS-L1 | Intel(r) CoreTM 6th-8th Gen (LGA1151) | 5× GbE (PoE included) | 1× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6133 | Intel(r) CoreTM 10th-11th Gen (LGA1200) | 4× GbE | 1× RS232/RS485 | -- | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6133-HDD | Intel(r) CoreTM 10th-11th Gen (LGA1200) | 4× GbE | 1× RS232/RS485 | -- | 1× mSATA, 1× SATA HDD/SSD, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6133-L2 | Intel(r) CoreTM 10th-11th Gen (LGA1200) | 6× GbE | 1× RS232/RS485 | -- | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6133-L4 | Intel(r) CoreTM 10th-11th Gen (LGA1200) | 8× GbE | 1× RS232/RS485 | 8× DI, 8× DO | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6133-16I16O | Intel(r) CoreTM 10th-11th Gen (LGA1200) | 4× GbE | 1× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6133-MVS | Intel(r) CoreTM 10th-11th Gen (LGA1200) | 4× GbE (2× PoE opt.) | 1× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
| NP-6133-MVS-L1 | Intel(r) CoreTM 10th-11th Gen (LGA1200) | 5× GbE (PoE included) | 1× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 2× miniPCIe | DIN-rail / Wall-mount |
