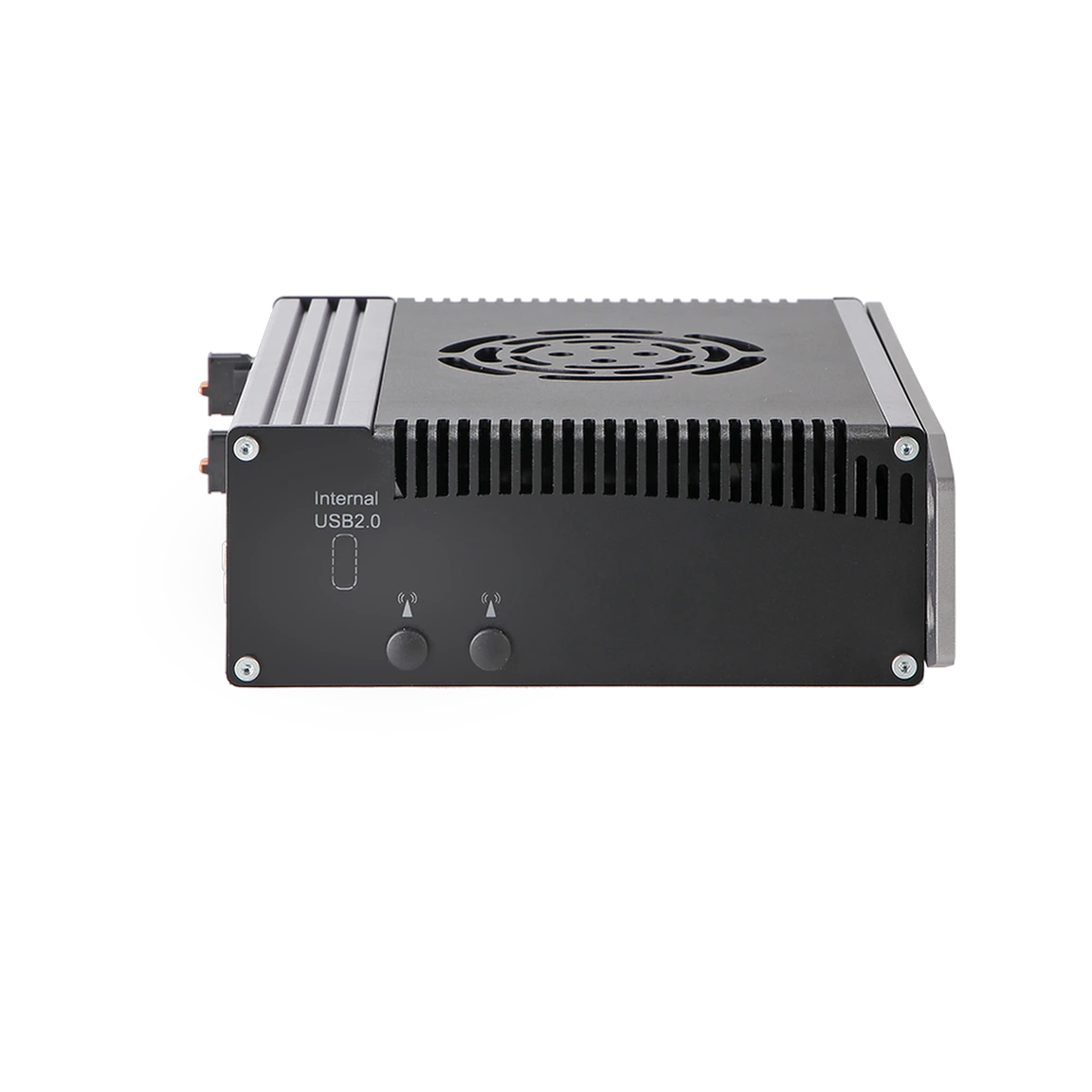

NP-6123 / NP-6133 /NP-6143 | Control Cabinet Industrial Automation PC
Industrial automation PC with Intel® Core™ CPUs, 4 x GbE, RS232/RS485, 4 x USB3.0, mSATA, HDMI/VGA, Mini PCIe expansion, and DC12~24V input.
Features
- Supports Intel® Core™ 6th/7th/8th Gen, 10th/11th Gen, and 12th/13th/14th Gen processors
- 4 x Intel i210-AT GbE LAN for industrial networking and controller integration
- 1 x RS232/RS485 serial port for field device communication
- 4 x USB3.0 plus 1 x onboard USB2.0 Type-A for dongle use
- Dual display outputs with VGA and HDMI
- 1 x mSATA storage with SATA3.0 interface
- 2 x full-size Mini PCIe expansion slots for Wi-Fi, 3G, or 4G modules
- DC12~24V input with overcurrent, overvoltage, and reverse-polarity protection
- Wall-mount or DIN-Rail installation for control cabinet deployment
- Aluminum-magnesium alloy chassis with embedded fan-assisted cooling
Control Cabinet Industrial Automation PC Product Information
| Technical Specifications -- NP-61x3 | |||
|---|---|---|---|
| Model Name | NP-6123 | NP-6133 | NP-6143 |
| System | |||
| CPU | Intel® Core™ 6th/7th/8th gen i7/i5/i3/Pentium/Celeron LGA1151 type CPU | Intel® Core™ 10th/11th gen i7/i5/i3 LGA1200 type CPU | Intel® Core™ 12th/13th/14th gen i7/i5/i3 LGA1700 type CPU |
| TDP | 65W | ||
| BIOS | AMI UEFI BIOS | ||
| Memory | 2 x SO-DIMM DDR4-3200MT/s (max up to 32GB) | 2 x SO-DIMM DDR5-4800MT/s (max up to 64GB) | |
| Storage | 1 x mSATA slot, SATA3.0 | ||
| USB | 4 x USB3.0, 1 x USB2.0 Type-A on the board for USB dongle | ||
| COM | 1 x RS232/RS485 (COM1), maximum baud rate: 115.2kbit/s | ||
| Ethernet | 4 x Intel i210-AT GbE LAN controller | ||
| Remote Switch | 1 x SW | ||
| VGA | Support up to 1920 x 1080 @60Hz | ||
| HDMI | Support up to 3840 x 2160 @30Hz | ||
| Expansion | 2 x Full-size PCIe mini slot (only one slot is equipped with a SIM card holder) | ||
| Watch Dog | 1~255 levels programmable | ||
| TPM | fTPM | ||
| OS | |||
| Microsoft Windows | Windows 10, Windows 11 | ||
| Linux | Ubuntu, Debian, CentOS | ||
| Power | |||
| Voltage Input | DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection | ||
| Power Consumption | Max. 120W | ||
| Chassis | |||
| Structure | Aluminum-magnesium alloy BOX with fan embedded to assist cooling, wall-mounted or DIN-Rail fixing style | ||
| Dimensions | (L)200mm x (W)150.5mm x (H)57.6mm | ||
| Net Weight | 1.9Kg | ||
| Environment | |||
| Work Temperature | -20ºC ~ 60ºC (-4ºF ~ 140ºF) with air flow (SSD) | ||
| Storage Temperature | -40ºC ~ 80ºC (-40ºF ~ 176ºF) with air flow (SSD) | ||
| Relative Humidity | 95%@40 ℃ (Non-condensing) | ||
| Operating Vibration | 5~500Hz, 3Grms@with SSD and wall-mounted, follow IEC60068-2-64 | ||
| Operating Shock | 30G peak acceleration (11ms duration) with SSD and wall-mounted, follow IEC60068-2-27 | ||
| EMC | CE EMC, follow IEC/EN61000-6-2, IEC/EN 61000-6-4, FCC Class A | ||
| Safety | Follow IEC/EN 62368-1 | ||
| Ordering Information -- NP-61x3 | |||
|---|---|---|---|
| Model Name | NP-6123 | NP-6133 | NP-6143 |
| Part No. | B73.61230.00.0001 | B73.61330.00.0001 | B73.61430.00.0001 |
| Description | CPU: NULL, RAM: NULL, mSATA: NULL, 1 x RS232/485 (Selectable), 4 x LAN, 4 x USB3.0, HDMI/VGA display ports, 12-24V Power input | CPU: NULL, RAM: NULL, mSATA: NULL, 1 x RS232/485 (Selectable), 4 x LAN, 4 x USB3.0, HDMI/VGA display ports, 12-24V Power input | CPU: NULL, RAM: NULL, mSATA: NULL, 1 x RS232/485 (Selectable), 4 x LAN, 4 x USB3.0, HDMI/VGA display ports, 12-24V Power input |
| Options | |||
| CPU | i3-6100, i3-6100T, i3-7100, i3-7100T, i3-8100, i3-8100T, i3-9100, i3-9100T i5-6500, i5-6500T, i5-7500, i5-7500T, i5-8500, i5-8500T, i5-9500, i5-9500 i7-6700, i7-6700T, i7-7700, i7-7700T, i7-8700, i7-8700T, i7-9700, i7-9700T i9-9900, i9-9900T G3900, G4400 |
i3-10100, i3-10100T i5-10500, i5-10500T, i5-11500, i5-11500T i7-10700, i7-10700T, i7-11700, i7-11700T i9-10900, i9-10900T, i9-11900, i9-11900T |
i3-12100, i3-12100T, i3-13100, i3-13100T, i3-14100, i3-14100T i5-12500, i5-12500T, i5-13500, i5-13500T, i5-14500, i5-14500T i7-12700, i7-12700T, i7-13700, i7-13700T, i7-14700, i7-14700T i9-12900, i9-12900T, i9-13900, i9-13900T, i9-14900, i9-14900T |
| Memory | DDR4-3200MHz: 4GB, 8GB, 16GB | DDR5 4800MT/s: 8GB, 16GB, 32GB | |
| mSATA SSD | 64GB, 128GB, 256GB, 512GB, 1TB | ||
| Wifi Set | mini PCIe: WIFI Set (AX210/7260 series), Cylindrical antenna | ||
| 3G/4G Module | mini PCIe: EC20, EG25, EC25 | ||
| Mount Option | DIN-Rail | ||
