Fanless PC eBOX-3000-X Series
Robust computing solutions for complex automation tasks
eBOX-3000
High-performance fanless box PC supporting Intel 6th/7th Gen Core processors with triple display output, 6 COM ports, dual LAN, Mini PCIe and PCI/PCIe expansion, mSATA + 2.5″ storage, and wide DC input. Ideal for industrial control and automation
eBOX-3000-MVS
Fanless machine vision box PC with Intel Core i3/i5/i7 CPU, 6 LAN or 4 PoE ports, 8DI/8DO, light control, 4 COM, triple display, PCIe x16, and Mini PCIe expansion
eBOX-3000H
Fanless industrial box PC with Intel Core 6th–9th Gen CPU support, 6 x COM, triple display, dual Mini PCIe, PCIe/PCI expansion, dual SSD, and 12–24V DC input. Designed for high-performance automation and control systems

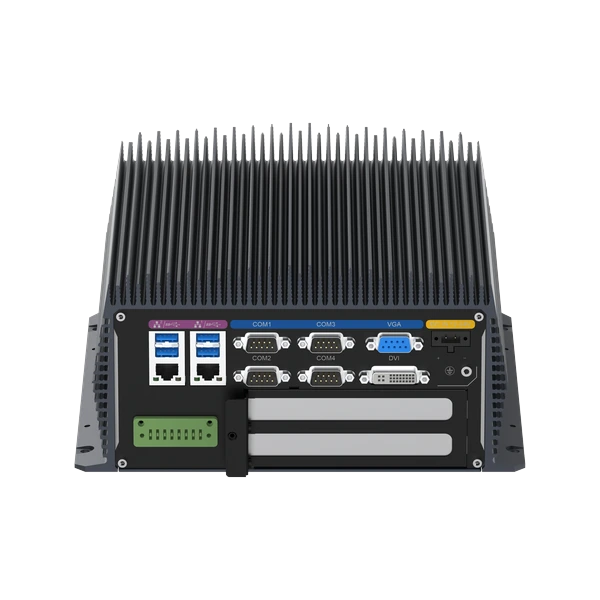

eBOX-3000H-S
Fanless industrial PC with Intel® 12th/13th/14th Gen CPU support, 2× GbE, 6× COM (RS-232/RS-485), VGA/DVI/HDMI dual display, PCIe x16 or 2× PCI expansion, M.2 + SATA storage, and DC12–24V input for wall/desktop mounting.
eBOX-3000-X Series Fanless Industrial PC Features
The eBOX-3000-X Series is a rugged fanless industrial PC platform built around Intel® Core™ 6th–9th generation processors with LGA1151 socket architecture. The series supports up to 32GB DDR4 memory and offers dual Gigabit Ethernet ports for stable industrial networking. Up to six RS-232 ports with optional RS-485 support enable integration with PLCs, sensors, barcode readers, and legacy industrial equipment.
For system expansion, selected models provide PCIe x16 or 32-bit PCI slots for add-on cards such as motion control, data acquisition, multi-LAN, or PoE network cards. Dual full-size Mini PCIe slots with SIM holder support wireless modules including Wi-Fi and 4G communication. Storage options include a 2.5" SATA III drive bay and mSATA, ensuring flexible configuration for industrial data logging and control applications.
The series supports triple independent display output via VGA, DVI, and HDMI. With DC 12–24V wide voltage input and a durable aluminum alloy chassis, the system is designed for wall-mounted or desktop installation inside industrial control cabinets. Operating temperature ranges support industrial SSD deployment in extended environments.
Show More
Application Areas
The eBOX-3000-X Series fanless industrial PCs are widely deployed in machine control systems, production line automation, industrial data acquisition, and control cabinet computing. With rich serial connectivity and PCI/PCIe expansion capability, the platform is well suited for CNC auxiliary control, packaging machinery, conveyor systems, and PLC gateway applications.
The MVS variants support machine vision deployments with multi-LAN and PoE expansion for industrial cameras, while compact models are suitable for edge computing, industrial IoT gateways, and factory network segmentation. The series also fits energy monitoring systems, power infrastructure control cabinets, and industrial process automation environments requiring stable 24/7 operation.
| Model | CPU Support | LAN | Serial Ports | Expansion | Storage | Mounting |
|---|---|---|---|---|---|---|
| eBOX-3000 | Intel(r) CoreTM 6th/7th Gen | 2× GbE | 6× RS-232 (RS-485 opt.) | 1× PCIe x16 or 1× PCI, 2× Mini PCIe | 2.5" SATA + mSATA | Wall / Desktop |
| eBOX-3000H | Intel(r) CoreTM 6th-9th Gen | 2× GbE | 6× RS-232 (RS-485 opt.) | PCIe x16 or 2× PCI, 2× Mini PCIe | 2.5" SATA + mSATA | Wall / Desktop |
| eBOX-3000-MVS | Intel(r) CoreTM 6th/7th Gen | 2×-6× GbE (PoE opt.) | 4× RS-232 | PCIe x16 (LAN/PoE), 2× Mini PCIe | 2.5" SATA + mSATA | Wall / Desktop |
| eBOX-3000H-S | Intel(r) 12th-14th Gen CoreTM | 2× GbE | 4× RS-232 + 2× RS232/485 | PCIe / PCI options, M.2 expansion | M.2 + SATA | Wall / Desktop |
