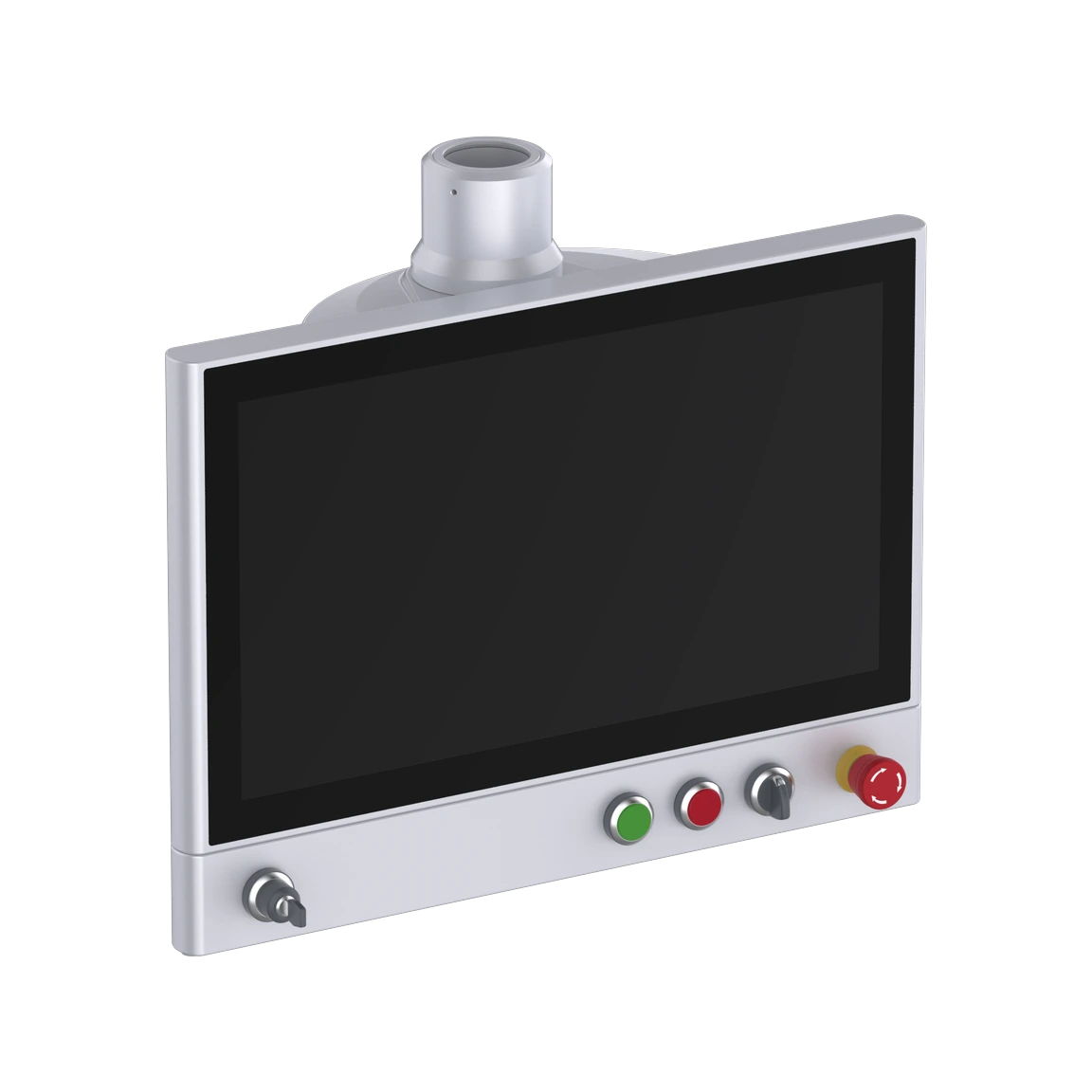

IDP59185-CH-HU | 18.5” Full IP65 Touch Monitor with Arm-Mount Support
18.5” capacitive multi-touch industrial monitor with HDMI + VGA input, USB touch interface, rugged IP65 housing, and customizable control panel
- 18.5″ 1920×1080 full HD capacitive multi-touch display
- HDMI + VGA video input for flexible display integration
- USB 2.0 touch interface (rear and internal ports)
- Supports up to 7x Ø22 control buttons including emergency, push, key switch, USB
- Fanless design with full IP65-rated front and rear aluminum enclosure
- Top or bottom swing arm mount (NODKA 4460 and Rittal CP 40 compatible)
- DC12~24V ±10% input with power protections
- Operating system support: Windows 7, Windows 10 IoT, Ubuntu, CentOS
Arm-mounted Button-Integrated Touch Monitor Product Information
| Technical Specifications | |
|---|---|
| Display | |
| LCD Size | 18.5" |
| Resolution | 1920 x 1080 |
| White Luminance | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | (L)85 / (R)85 / (T)85 / (B)85 |
| MTBF | 30,000 hrs |
| Touchscreen | |
| Type | Capacitive Touchscreen |
| Transmittance | ≥87% |
| Touch Interface | USB 2.0 (Type B) |
| Display Signal Input | |
| Interface | HDMI + VGA |
| System I/O | |
| USB Outputs | 2 x internal USB 2.0 Type-A, 1 x 2-in-1 USB 2.0 at rear |
| Mechanical | |
| Dimensions (W x H x D) | 480mm x 347mm x 135mm |
| Weight | 6.7 kg |
| Mounting | Swing ARM mount (Top or Bottom), compatible with NODKA 4460 and Rittal CP 40 |
| Front Panel Buttons | Default: 1x Emergency, 1x Selection, 1x Red Push, 1x Green Push, 1x Key Switch Customizable up to 7x Ø22 buttons |
| Power | |
| Input Voltage | DC12~24V ±10%, with reverse connection, overvoltage, and overcurrent protection |
| Connector | 2-pin Phoenix Connector (internal) |
| Power Switch | Rear switch with light indicator |
| Idle Power Consumption | Minimum 22W |
| OS Compatibility | |
| Supported OS | Windows 7, Windows 10 IoT, Ubuntu, CentOS |
| Environmental | |
| Operating Temperature | 0ºC ~ 50ºC |
| Storage Temperature | -20ºC ~ 60ºC |
| Humidity | 5~95% RH (non-condensing) |
| Vibration | 1.5 Grms, IEC 60068-2-64 |
| Shock | 10G, IEC 60068-2-27 |
| EMC | Class B |
| IP Rating | Full IP65 |
Click the link below to download datasheets or drivers:
| Ordering Information | |||
|---|---|---|---|
| Model Name | Display Interface | Description | Touch Type |
| IDP59185-CH-HU | HDMI + VGA | 18.5" LCD, 1920x1080, capacitive touchscreen, HDMI + VGA input, USB touch, DC12~24V input, Full IP65 | Capacitive |
| Options | |||
| HDMI Cable | HDMI to HDMI cable (1.5m, optional) | ||
| DVI Cable | DVI to HDMI cable (1.5m, optional) | ||
| USB Cable | USB 2.0 Type-A to Type-B cable (1.5m, optional) | ||
| Front Panel Buttons | Up to 7x Ø22 customizable buttons -- emergency, key switch, red/green push, USB, etc. | ||
| Mounting Options | Top or bottom arm-mount compatible (NODKA 4460 and Rittal CP 40) | ||
