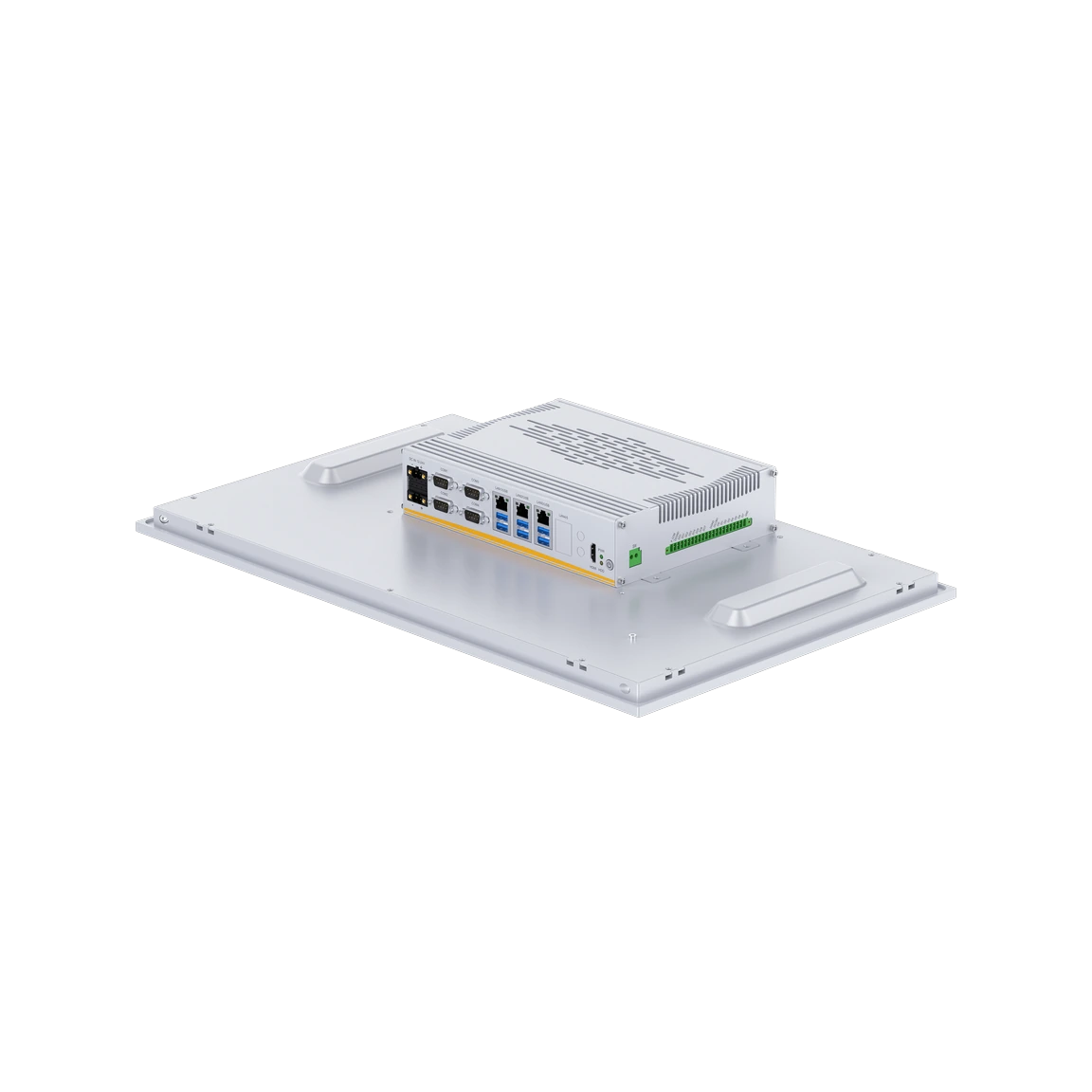

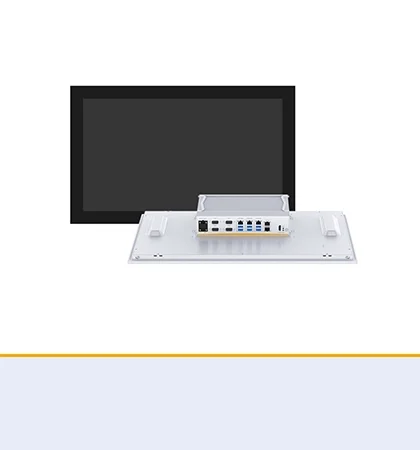

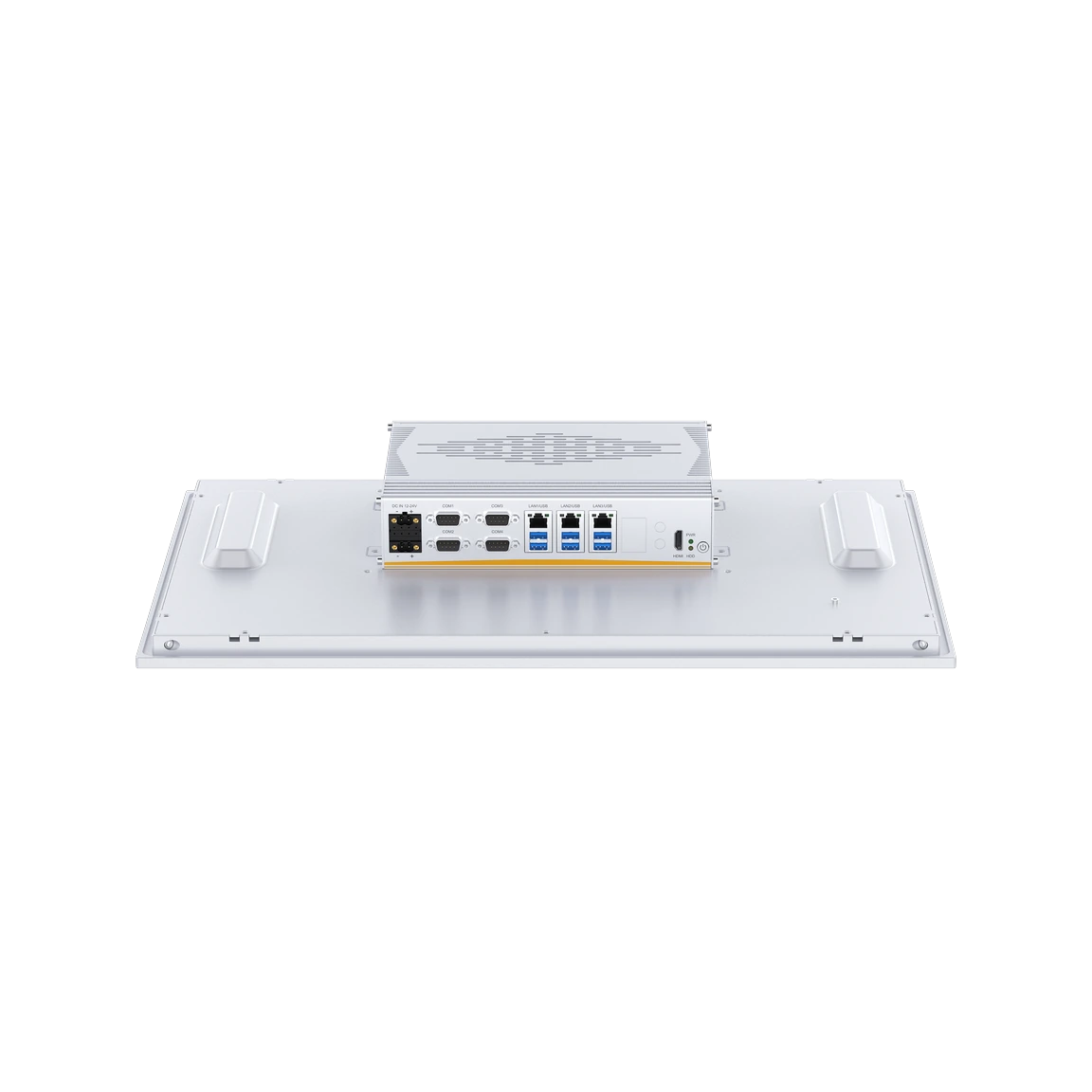

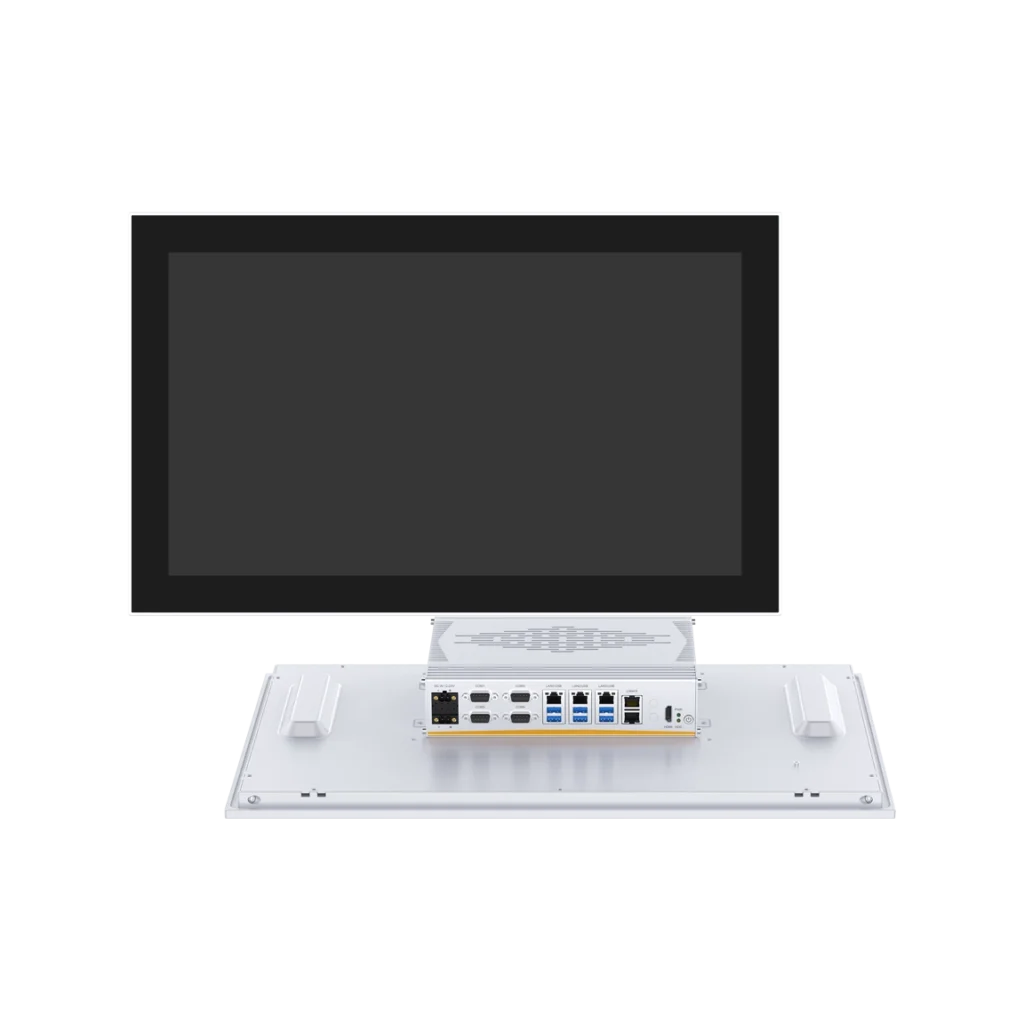

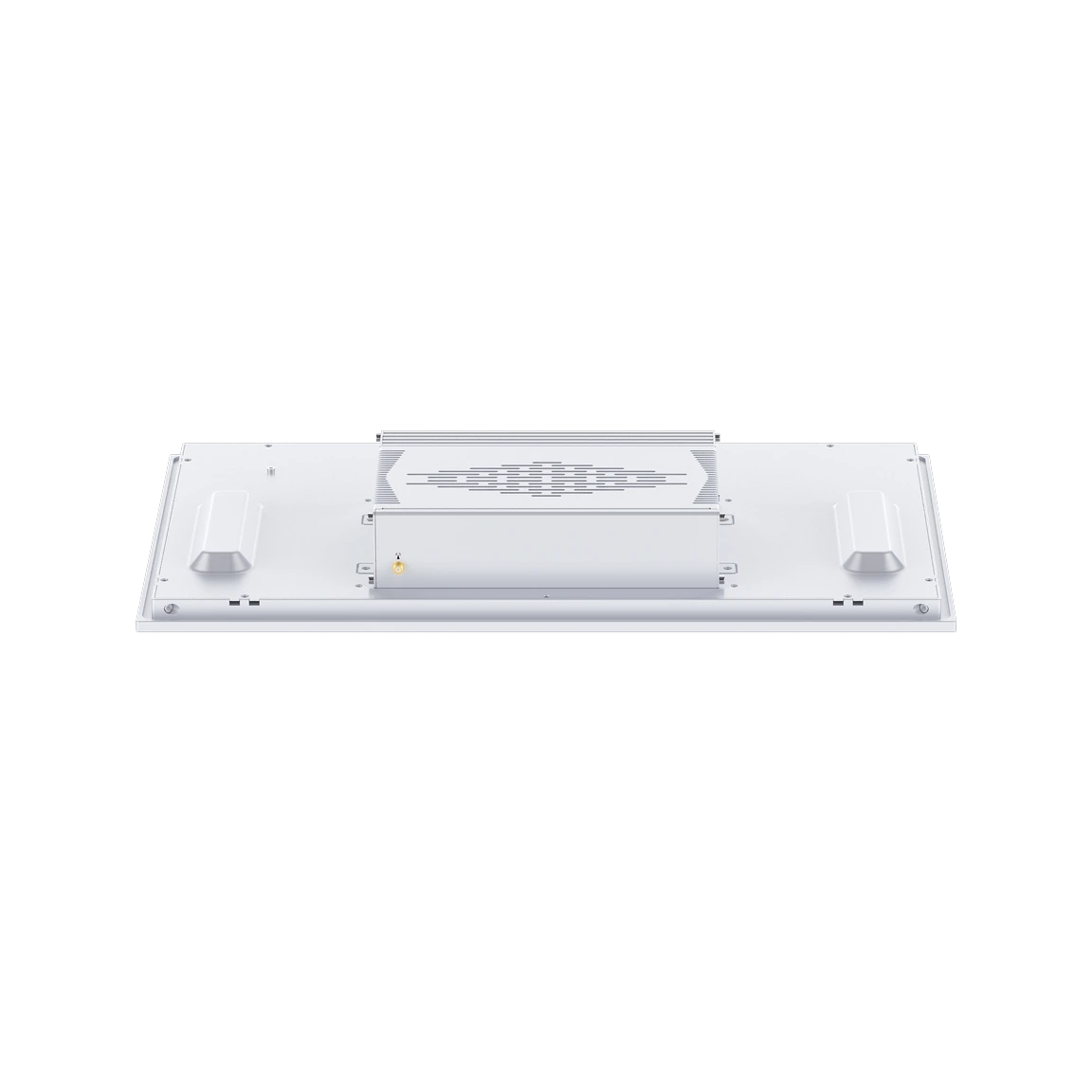

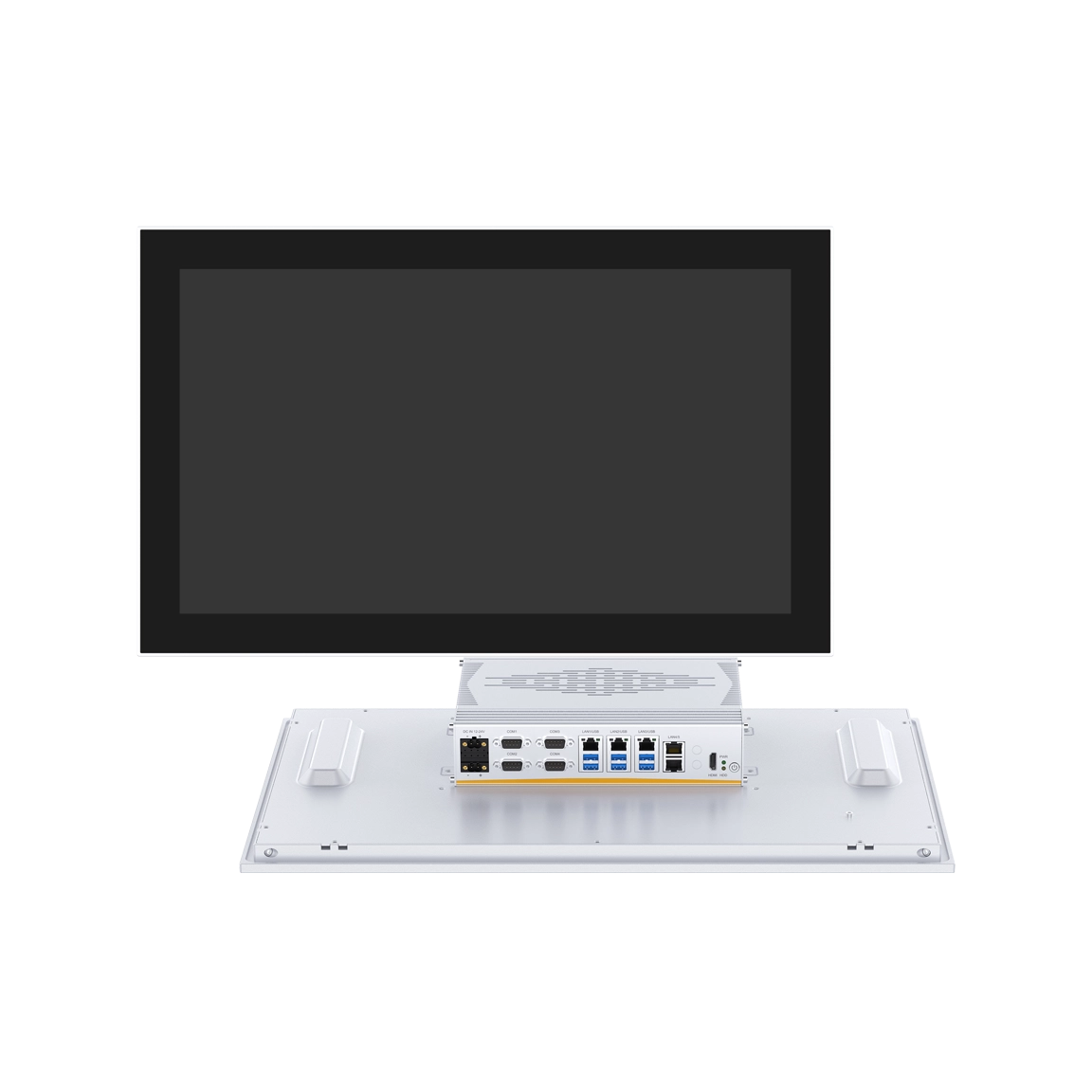

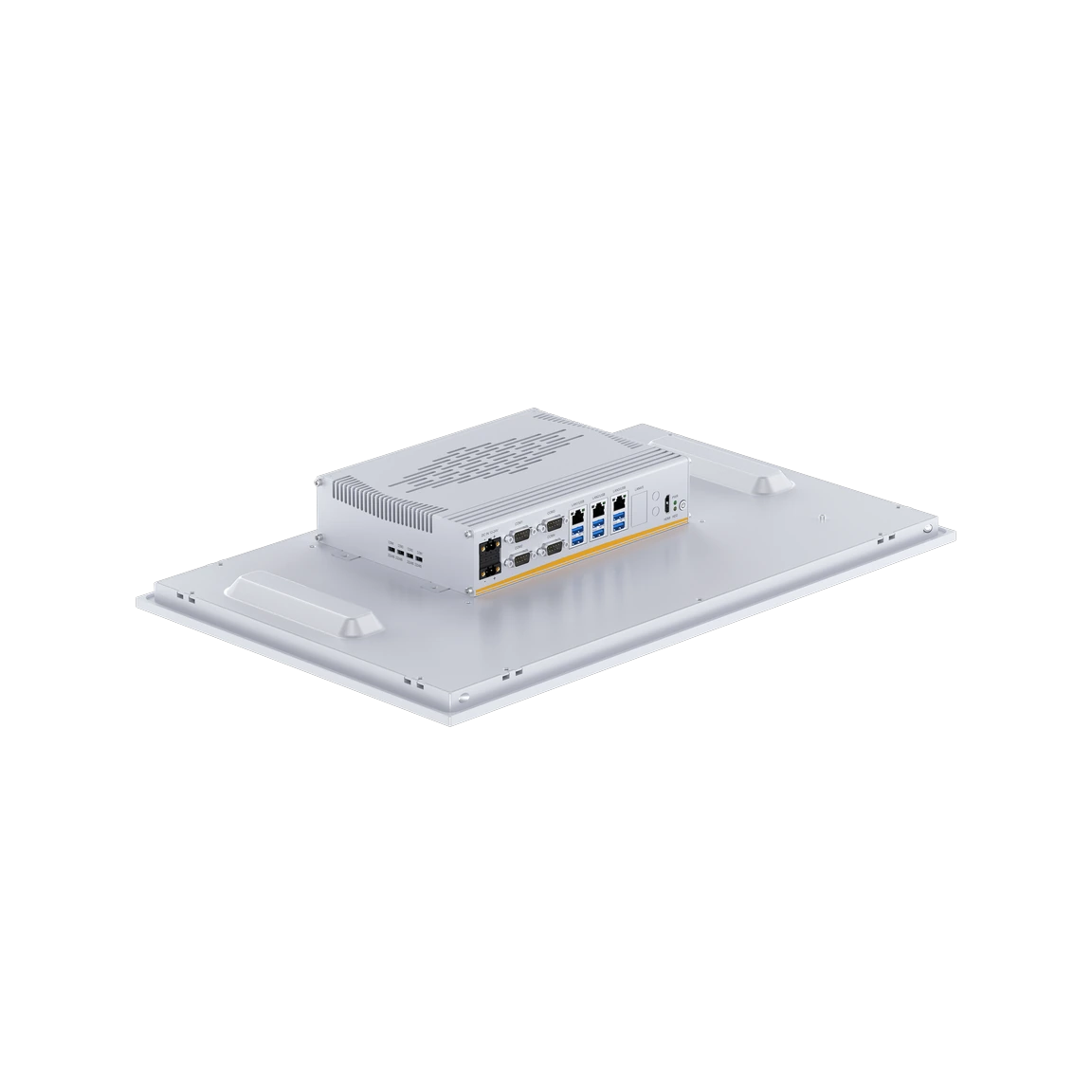

TPC6000-C2384 | 23.8” Full HD Industrial Panel PC
Intel® Core™-powered Panel PC with multi-LAN, DI/DO, RS485, and HDMI for industrial HMI and control systems
Features
- Supports 6th–9th Gen Intel® Core™ i3/i5/i7 processors (LGA1151)
- 23.8” Full HD LCD (1920×1080), 550 nits brightness
- Capacitive multi-touch screen with >87% transmittance
- 3 x GbE LAN (LP model) or 5 x GbE LAN (L5P model)
- 8 x DI and 8 x DO for industrial field I/O
- 4 x RS232/485 ports with auto flow control
- 1 x HDMI, 4 x USB3.0, 2 x USB2.0, 1 x Mini-PCIe for expansion
- Panel mount and VESA support with aluminum alloy fanless housing
- Wide range DC 12–24V input with protection features
- Certified CE/FCC Class B with IP65 front panel protection
Multi-touch Panel PC Product Information
| Technical Specifications | ||
|---|---|---|
| Model Name | TPC6000-C2384-LP-P | TPC6000-C2384-L5P-P |
| System | ||
| CPU | Supports 6th/7th/8th/9th Gen Intel(r) CoreTM i3/i5/i7 (LGA1151), Max 35W | |
| Chipset | Intel(r) H510 | |
| Memory | 2 x DDR4 SO-DIMM, up to 32GB | |
| Storage | 1 x M.2 M-Key 2280 PCIe Gen3 x4, 1 x mSATA | |
| I/O Interfaces | ||
| LAN | 3 x Intel(r) GbE | 5 x Intel(r) GbE |
| USB | 4 x USB3.0, 2 x USB2.0 | |
| Serial Ports | 4 x RS-232/RS-485 (Selectable, with auto-flow control) | |
| Digital I/O | 8 x DI (wet contact, 24V), 8 x DO (PNP, 24V, 500mA) | |
| HDMI | 1 x HDMI (1920×1080 @ 60Hz) | |
| Expansion Slot | 1 x Mini-PCIe (supports Wi-Fi / 4G modules) | |
| Display | ||
| Screen Size | 23.8" TFT LCD | |
| Resolution | 1920 × 1080 | |
| Brightness | 550 cd/m² | |
| Contrast Ratio | 1000:1 | |
| Viewing Angle | 89° (L/R/T/B) | |
| Backlight Life | 30,000 hours | |
| Touchscreen | ||
| Touch Type | Capacitive Multi-Touch | |
| Transmittance | > 87% | |
| Touch Interface | USB | |
| Operating System | ||
| Supported OS | Windows 7 / 8 / 10, Linux | |
| Power | ||
| Input Voltage | DC 12~24V ±10% with reverse polarity and surge protection | |
| Power Consumption | 35W (idle, without additional expansion) | |
| Mechanical | ||
| Mounting | Panel Mount / VESA Mount | |
| Dimensions (W x H x D) | 602.8 × 372.2 × 74 mm | |
| Panel Cutout | 586 × 355 mm | |
| Weight | 7.9 kg | |
| Environmental | ||
| Operating Temperature | 0°C ~ 50°C | |
| Storage Temperature | -20°C ~ 60°C | |
| Humidity | 5% ~ 95% @40°C (non-condensing) | |
| Vibration | 1.5Grms, IEC60068-2-64 | |
| Shock | 10G, IEC60068-2-27 | |
| EMC | CE / FCC Class B | |
| Waterproof | Front panel IP65 | |
| Ordering Information | ||
|---|---|---|
| Model | Description | Power Input |
| TPC6000-C2384-LP-P | 23.8" LCD 1920×1080, Intel(r) H510 chipset, 4 x RS232/485, 3 x GbE LAN, 6 x USB, 8 x DI / 8 x DO, HDMI, Mini-PCIe, Panel Mount/VESA | DC 12~24V |
| TPC6000-C2384-L5P-P | 23.8" LCD 1920×1080, Intel(r) H510 chipset, 4 x RS232/485, 5 x GbE LAN, 6 x USB, 8 x DI / 8 x DO, HDMI, Mini-PCIe, Panel Mount/VESA | DC 12~24V |
| Optional Components | ||
| CPU Options | Supports 6th/7th/8th/9th Gen Intel(r) CoreTM i3/i5/i7 (LGA1151) - CoreTM i5-6500T, 2.5GHz, 4C4T, 6MB Cache - CoreTM i7-6700T, 2.8GHz, 4C8T, 8MB Cache | |
| RAM | DDR4 SO-DIMM: 4GB / 8GB / 16GB / 32GB | |
| mSATA SSD | 64GB / 128GB / 256GB / 512GB / 1TB | |
| M.2 SSD | 128GB / 256GB / 512GB / 1TB / 2TB (PCIe Gen3 x4) | |
| Wi-Fi Module | Mini-PCIe 7260 Series with SMA connector antenna | |
| 4G Module | Mini-PCIe EC20/EC25/EG25 with SIM and antenna kit | |
| Mounting Accessories | Optional mounting clips, brackets, and panel sealing foam | |
| Power Adapter | Optional 60W AC-DC 12V/24V adapter with regional plug | |
