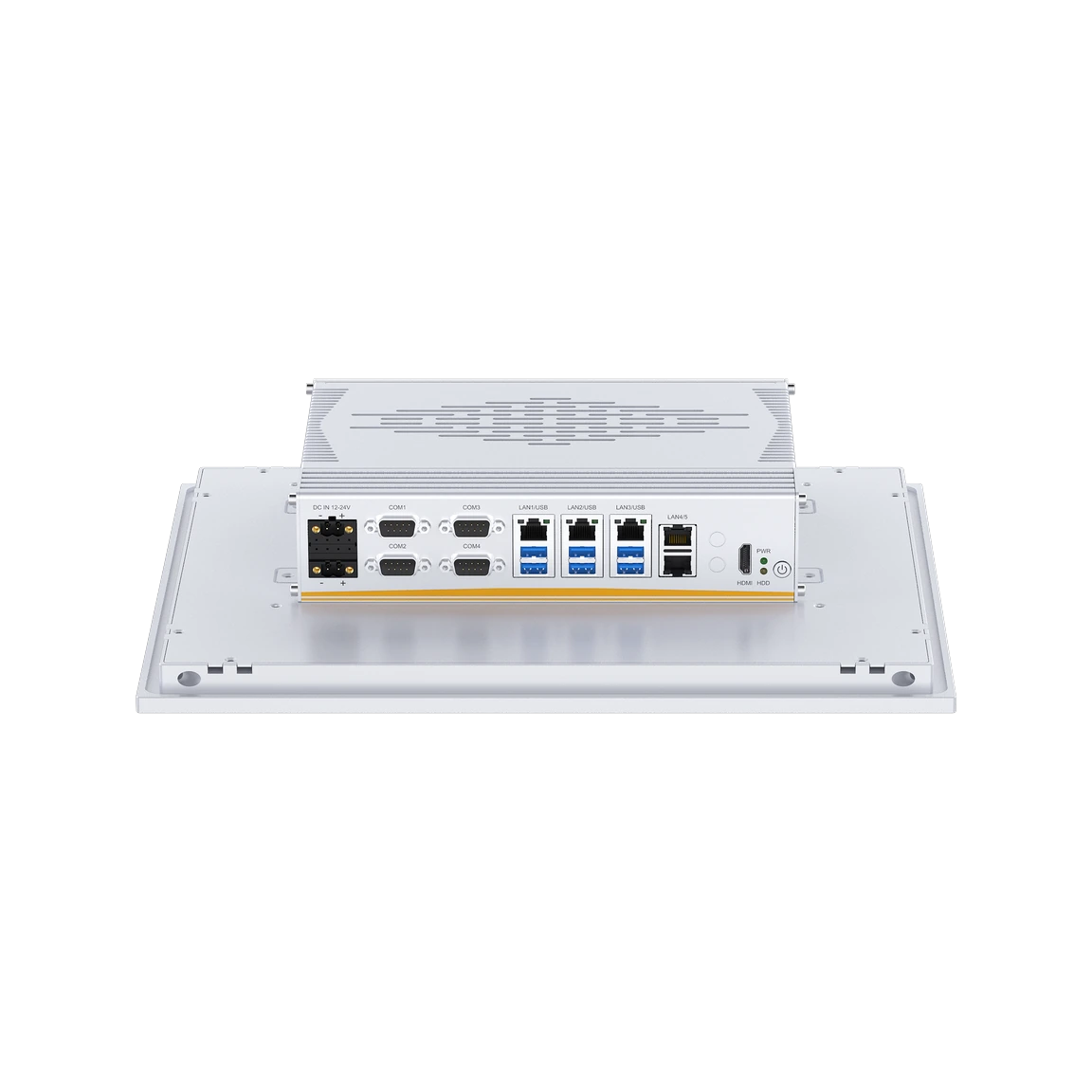

TPC6000-C154 | 15” Industrial Panel PC

15″ capacitive multi-touch industrial Panel PC supporting Intel Core i3/i5/i7 CPUs

Features

15” XGA (1024×768) capacitive touchscreen for precise multi-touch operation
Supports Intel® Core™ i3/i5/i7 (6th-9th or 10th-11th Gen), max 65W TDP
3 or 5 LAN ports (Intel 1000Mbps) for flexible networking options
4 x COM (RS232/RS485), 6 x USB (4 x USB3.0 + 2 x USB2.0) for industrial connectivity
8DI + 8DO I/O with configurable NPN/PNP output (with -P models using PNP output)
1 x M.2 (M Key, PCIe Gen3 x4) and 1 x mSATA for storage expansion
Wide-range power input (DC12~24V ±10%) with protection features
Panel & VESA mounting for easy installation in industrial setups
IP65 front panel protection against dust and water

Multi-touch Panel PC Product Information

Technical Specifications
Model Name	TPC6000-C154-L	TPC6000-C154-L5	TPC6000-C154-B-L	TPC6000-C154-B-L5
System
CPU	Intel(r) CoreTM i3/i5/i7 (6th-9th Gen), LGA1151, Max 65W TDP		Intel(r) CoreTM i3/i5 (10th-11th Gen), LGA1200, Max 65W TDP
Chipset	H110		H510
Memory	2 x DDR4-2666/3200 MHz, up to 32GB
Storage	1 x M.2 (M Key 2280 PCIe Gen3 x 4 Lane) 1 x mSATA
I/O Interfaces
Network	3 x Intel 1000Mbps RJ-45	5 x Intel 1000Mbps RJ-45	3 x Intel 1000Mbps RJ-45	5 x Intel 1000Mbps RJ-45
USB	4 x USB3.0 + 2 x USB2.0
Serial Ports	4 x RS-232 / RS-485 (Auto flow control)
I/O Port	8DI+8DO (Wet contact input 24V, OC gate output 24V 500mA) with -P: 8DI (Wet contact input 24V), 8DO (PNP Output 24V 500mA)
HDMI	1024x768 @ 60Hz
Expansion Slot	1 x Mini-PCIe slot, supports WiFi, 4G modules
Mechanical
Weight	3.7kg
Installation	Panel Mounted & VESA Mounted
Dimensions (W x H x D)	371mm × 295mm × 74mm
Cutout Size (W x H)	354mm × 278mm
OS Support
Operating Systems	Windows 7, Windows 8, Windows 10, Linux
Power
Voltage Input	DC12~24V ±10%, supports reverse polarity protection, overvoltage protection, overcurrent protection
Idle Power Consumption	28W
LCD
LCD Size	15" XGA TFT
Resolution	1024 x 768
MTBF	30,000 hrs
Luminance	400cd/m²
Contrast Ratio	800:1
Viewing Angle	(L)85° / (R)85° / (T)85° / (B)85°
Touchscreen
Type	Capacitive touch screen
Transmittance	>87%
Controller Interface	USB
Environmental
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C
Relative Humidity	5~95% (40°C Non-condensing)
Operating Vibration	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Operating Shock	10G peak acceleration (11ms duration), follow IEC 60068-2-27
EMC	CE/FCC Class B
Waterproof	Front IP65 compliant

Click the link below to download datasheets or drivers:

Datasheet Downloads

Driver Downloads

Ordering Information
Model Name	TPC6000-C154-L	TPC6000-C154-L5	TPC6000-C154-B-L	TPC6000-C154-B-L5	TPC6000-C154-L-P / L5-P / B-L-P / B-L5-P
Description	15" LCD, 1024x768, 4 x COM (RS232/485 Selectable), 3 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input	15" LCD, 1024x768, 4 x COM (RS232/485 Selectable), 5 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input	15" LCD, 1024x768, 4 x COM (RS232/485 Selectable), 3 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input	15" LCD, 1024x768, 4 x COM (RS232/485 Selectable), 5 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input	Same as non-P models, but with 8DO PNP Output instead of 8DO OC Gate Output
Options
CPU	Intel(r) CoreTM 6th/7th/8th/9th gen i7/i5/i3 LGA 1151 i3-6100, i3-7100, i3-8100, i5-6400, i5-6500, i5-6500T, i5-8400, i7-6700T, i7-8700		Intel(r) CoreTM 10th/11th gen i3/i5 LGA 1200 i5-10400T, i5-10500T, i5-11400T, i5-11500T, i5-11400, i5-11500, i5-10400, i5-10500		Same as respective models
Memory	DDR4 4GB, 8GB, 16GB
mSATA SSD	64GB, 128GB, 256GB, 512GB, 1TB
M.2 SATA SSD	128GB, 256GB, 512GB, 1TB, 2TB
WiFi Kit	miniPCIe WiFi Kit (7260 Series), Cylindrical Antenna
3G/4G Module	mini PCIe: EC20, EG25, EC25
Mounting Option	Panel Mounted & VESA Mounted
