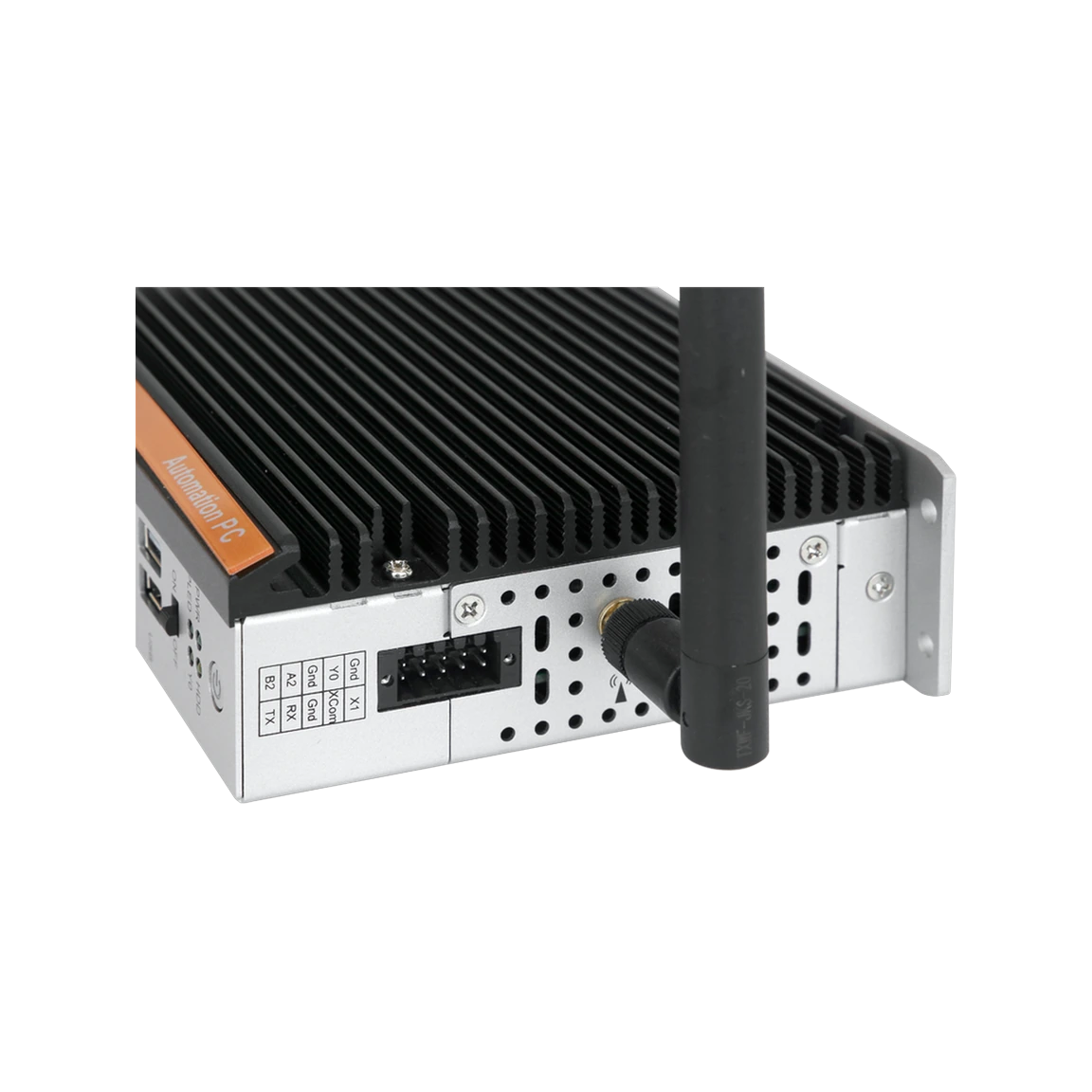

NP-6117 | Fanless Automation PC with Compact Design & Digital I/O
Fanless automation PC with Intel Celeron J1900/J6412, 3 x GbE LAN, RS232/485, 1 x DI, 1 x DO, M.2 SSD storage, DP & HDMI display, and DIN Rail mount
Features
- Fanless Industrial PC with DIN Rail & wall-mounting support for automation applications
- Intel® Celeron J1900/J6412, low-power 10W TDP, quad-core processor for industrial performance
- Triple GbE LAN for reliable industrial networking
- 1 x RS232 & 1 x RS485 for industrial automation and communication
- 1 x DI, 1 x DO for industrial digital control applications
- Programmable Switch & Programmable LED for user-defined automation functions
- DP (4096×2160 @60Hz) & HDMI (1920×1080 @60Hz) for industrial HMI applications
- Mini-PCIe slot for 3G/4G module expansion
- Wide-range DC12~24V power input with overcurrent, overvoltage, and polarity protection
- Aluminum-magnesium alloy chassis, fully fanless for silent operation
- Compact and rugged design, optimized for control cabinets and automation
Fanless Control Cabinet Industrial PCs Product Information
| Technical Specifications | ||
|---|---|---|
| Model Name | NP-6117-J1900 | NP-6117-J6412 |
| System | ||
| CPU | Intel(r) Celeron J1900, 2.0~2.41GHz, 4 cores/4 threads, 2MB L2 cache | Intel(r) Celeron J6412, 2.0~2.6GHz, 4 cores/4 threads, 1.5MB L2 cache |
| TDP | 10W | |
| BIOS | AMI UEFI 64Mbit | |
| Memory | 1 x SO-DIMM DDR3L-1333MHz (Max. 8GB) | 1 x SO-DIMM DDR4-2400MHz (Max. 32GB) |
| Storage | 1 x mSATA SSD bay | |
| I/O Interfaces | ||
| USB | 1 x USB3.0, 1 x USB2.0 | 2 x USB3.0 |
| Onboard USB | 1 x USB2.0 Type A (for USB dongle) | |
| Serial Ports | 1 x RS232, 1 x RS485 | |
| Ethernet | 1 x Intel I210AT GbE LAN, 2 x RTL8111H GbE LAN | |
| Digital I/O | 1 x DI, 1 x DO | |
| Programmable Features | 1 x Programmable Switch, 1 x Programmable LED | |
| Video Output | HDMI (1920x1080) | HDMI (4096x2160) |
| Expansion Slots | ||
| Mini-PCIe | 1 x Full-size PCIe Mini slot with SIM card holder (USB signal support) | |
| Power | ||
| Voltage Input | DC12/24V ±10%, Overcurrent, Overvoltage, and Polarity Inverse Protection | |
| Power Consumption | Max. 45W | |
| Chassis | ||
| Structure | Aluminum-magnesium alloy box, Fanless, Wall-mounted or DIN-Rail | |
| Dimensions | 160mm (L) x 123.2mm (W) x 45mm (H) | |
| Net Weight | 1.1Kg | |
| Environmental | ||
| Operating Temperature | -20ºC ~ 60ºC (-4℉~140℉) with air flow (SSD) | |
| Storage Temperature | -40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD) | |
| Relative Humidity | 5~95% (Non-condensing) | |
| Vibration Resistance | 5~500Hz, 1.5Grms @ with SSD (IEC60068-2-64) | |
| Shock Resistance | 20G peak acceleration (11ms duration) with SSD (IEC60068-2-27) | |
| EMC | CE/FCC Class A | |
Click the link below to download datasheets or drivers:
| Ordering Information | ||
|---|---|---|
| Model Name | NP-6117-J1900 | NP-6117-J6412 |
| Description | Fanless automation PC with Intel(r) Celeron J1900, 3 x GbE LAN, 1 x RS232, 1 x RS485, 1 x DI, 1 x DO, mSATA storage, DIN-Rail & wall-mounting, DC12/24V input | Fanless automation PC with Intel(r) Celeron J6412, 3 x GbE LAN, 1 x RS232, 1 x RS485, 1 x DI, 1 x DO, mSATA storage, DIN-Rail & wall-mounting, DC12/24V input |
| Options | ||
| CPU | Intel(r) Celeron J1900, 2.0~2.41GHz, 4 cores/4 threads, 2MB L2 cache | Intel(r) Celeron J6412, 2.0~2.6GHz, 4 cores/4 threads, 1.5MB L2 cache |
| Memory | 1 x SO-DIMM DDR3L-1333MHz (Max. 8GB) | 1 x SO-DIMM DDR4-2400MHz (Max. 32GB) |
| Storage | 1 x mSATA SSD bay | |
| WiFi Module | M.2 2230 Key-E WiFi Kit (Optional) | |
| 3G/4G Module | Mini-PCIe: EC20, EG25, EC25 (Optional) | |
| Mounting Option | Wall-mount & DIN Rail mounting | |
