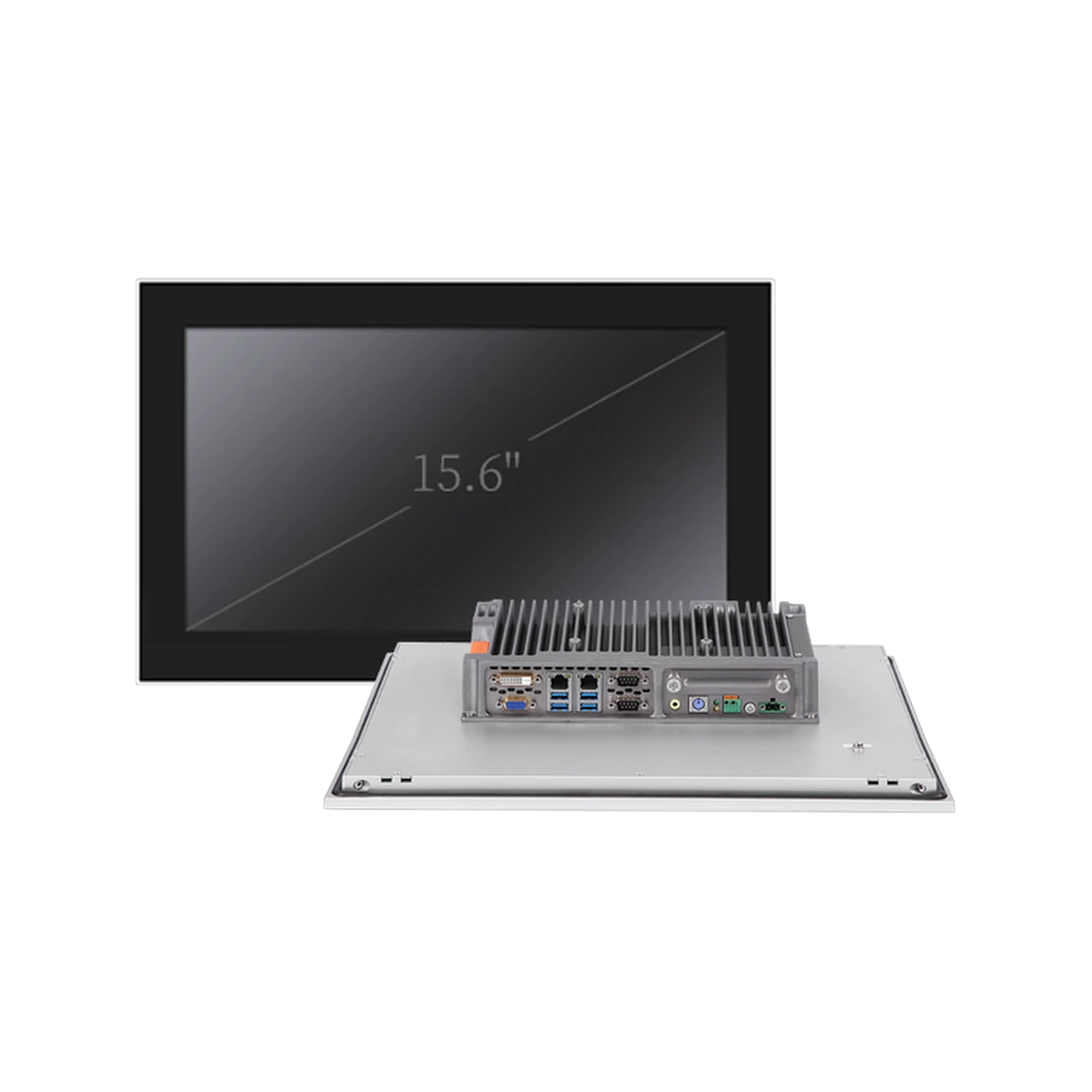

TPC6000-C1563-LH Series | 15.6" Multi-Touch Industrial Panel PC
Rugged fanless Panel PC with Intel® J1900/J6412/N97/N305, dual GbE, 2×COM, 4×USB, VGA/DVI, DC12–24V, IP65 front; supports panel and VESA mounting.
Features
- 15.6″ Full HD TFT with multipoint capacitive touch
- Intel(r) J1900 / J6412 / N97 / Core i3-N305 CPU options
- Fanless design with IP65-rated front panel
- Dual 1000Mbps LAN, 4 × USB, 2 × COM (RS-232 with RS-485 optional)
- VGA & DVI outputs; Line-out, PS/2 (Line-out not on J1900)
- Wide 12-24V DC power input
- Panel mount and VESA mount support
- Mini-PCIe for 4G/Wi-Fi and EasyBUS slot for expansion
Multi-touch Industrial Panel PC Product Information
| Technical Specifications -- TPC6000-C1563-LH | ||||
|---|---|---|---|---|
| Model Name | TPC6000-C1563-LH-BTJ1900 | TPC6000-C1563-LH-J6412 | TPC6000-C1563-LH-N97 | TPC6000-C1563-LH-N305 |
| System | ||||
| CPU | Intel(r) Celeron J1900 Quad-core 2.0GHz | Intel(r) Celeron J6412 Quad-core 2.0GHz | Intel(r) Processor N97 up to 3.6GHz | Intel(r) Core i3-N305 up to 3.8GHz |
| Memory | 1 × DDR3L-1600, up to 8GB | 1 × DDR4-2400, up to 16GB | 1 × DDR5-4800, up to 16GB | 1 × DDR5-4800, up to 16GB |
| Storage | 1 × 2.5" SATA bay + 1 × mSATA | |||
| I/O Interfaces | ||||
| USB | 1 × USB3.0, 3 × USB2.0 | 2 × USB3.0, 2 × USB2.0 | 2 × USB3.0, 2 × USB2.0 | 2 × USB3.0, 2 × USB2.0 |
| Serial Ports | 2 × RS-232 (RS-485 optional) with surge protection | |||
| Ethernet | 2 × Intel 1000Mbps RJ-45 | |||
| Rear I/O | 1 × DVI, 2 × GLAN, 4 × USB, 2 × COM, 1 × PS/2, 1 × Line-out (except J1900) | |||
| Expansion | 1 × Mini-PCIe (4G/Wi-Fi), 1 × EasyBUS slot | |||
| OS Support | Microsoft Windows 10, Linux | |||
| LCD & Touch | ||||
| LCD Size | 15.6" TFT | |||
| Resolution | 1920 × 1080 | |||
| Luminance | 350 cd/m² | |||
| MTBF | 50,000 hrs | |||
| Contrast Ratio | 800 : 1 | |||
| Viewing Angle (L/R/T/B) | 89 / 89 / 89 / 89 | |||
| Touch Type | Multipoint capacitive, ≥87% transmittance, USB interface | |||
| Power | ||||
| Input Voltage | DC 12-24V | |||
| Maximum Power | < 60 W | |||
| Chassis | ||||
| Structure | Ultra-compact fanless design; front panel IP65 | |||
| Dimensions (W×H×D) | 405 × 258 × 65 mm | |||
| Cut-out Size (W×H) | 387 × 240 mm | |||
| Net Weight | 4.8 kg | |||
| Environmental | ||||
| Operating Temp. | 0 ~ 50°C | |||
| Storage Temp. | -20 ~ 60°C | |||
| Humidity | 5-95% @ 40°C (non-condensing) | |||
| Vibration | 1.5 Grms, IEC 60068-2-64, 5-500Hz, 1 hr/axis (SSD) | |||
| Shock | 10G, IEC 60068-2-27, half-sine, 11 ms (SSD) | |||
| EMC | CE/FCC Class A | |||
| Ordering Information -- TPC6000-C1563-LH | |
|---|---|
| Model Name | Description |
| TPC6000-C1563-LH-BTJ1900 | 15.6" LCD / Intel J1900 2.0GHz / No Memory / No Hard / 2 × RS-232/485 (Optional) / 2 × LAN / 1 × USB3.0 / 3 × USB2.0 / 1920×1080 / DC12-24V input |
| TPC6000-C1563-LH-J6412 | 15.6" LCD / Intel J6412 2.0GHz / No Memory / No Hard / 2 × RS-232/485 (Optional) / 2 × LAN / 2 × USB3.0 / 2 × USB2.0 / 1920×1080 / DC12-24V input |
| TPC6000-C1563-LH-N97 | 15.6" LCD / Intel N97 / No Memory / No Hard / 2 × RS-232/485 (Optional) / 2 × LAN / 2 × USB3.0 / 2 × USB2.0 / 1920×1080 / DC12-24V input |
| TPC6000-C1563-LH-N305 | 15.6" LCD / Intel N305 / No Memory / No Hard / 2 × RS-232/485 (Optional) / 2 × LAN / 2 × USB3.0 / 2 × USB2.0 / 1920×1080 / DC12-24V input |
| Options | |
| Expansion Card | 4G/3G module (EC20, EC25, EG25...) -- Mini PCIe |
| DDR3L (J1900) | 4GB, 8GB |
| DDR4 (J6412) | 4GB, 8GB, 16GB |
| DDR5 (N97, N305) | 8GB, 16GB |
| mSATA | 128GB, 256GB, 512GB... |
