TPC6000-C1853W-L | 18.5” Fanless Industrial Panel PC

18.5″ fanless industrial panel PC with capacitive touchscreen, Intel Celeron J1900/i3/i5, dual LAN & multiple USB ports, and flexible mounting options

Features

18.5” TFT LCD (1366×768 or 1920×1080) with 250 cd/m² / 350 cd/m² brightness
Intel® Celeron® J1900 / J6412 / 4205U / Core™ i3-8145U / i5-7200U CPU options
2× LAN, 4× USB3.0, 2× COM (RS232/RS485 optional)
Expandable memory and storage options (DDR3L up to 8GB / DDR4 up to 16GB)
Mini-PCIe slot + EasyBUS expansion for WiFi/3G modules or extended I/O
Fanless aluminum chassis for silent and durable operation
IP65-rated front panel for dust & water resistance
Wide voltage input (DC12-24V, optional 9-30V)
Panel & VESA Mounting for easy integration

Multi-touch Industrial Panel PC Product Information

Technical Specifications
Model Name	TPC6000-C1853W-L-J1900	TPC6000-C1853W-LH-J1900	TPC6000-C1853W-L-WL4205U	TPC6000-C1853W-LH-WL4205U	TPC6000-C1853W-L-WL8145U	TPC6000-C1853W-LH-WL8145U
System
CPU	Intel J1900 Quad Core 2.0GHz	Intel J1900 Quad Core 2.0GHz	Intel 4205U Dual Core 1.8GHz	Intel 4205U Dual Core 1.8GHz	Intel 8145U Dual Core 2.1GHz	Intel 8145U Dual Core 2.1GHz
L3 Cache	2MB	2MB	2MB	2MB	4MB	4MB
Memory	1 x DDR3L-1600 (Max 8GB) / 1 x DDR4-2400MHz (Max 16GB)
Storage	1 x 2.5" SATA Bay + 1 x mSATA
I/O Interfaces
LAN	2 x Intel 1000Mbps RJ-45 Ethernet
USB	4 x USB3.0/2.0/1.1
COM	2 x RS-232 / RS-485 (Optional)
Expansion Slot	1 x Mini-PCIe slot (Supports 3G, WiFi), 1 x EasyBUS slot

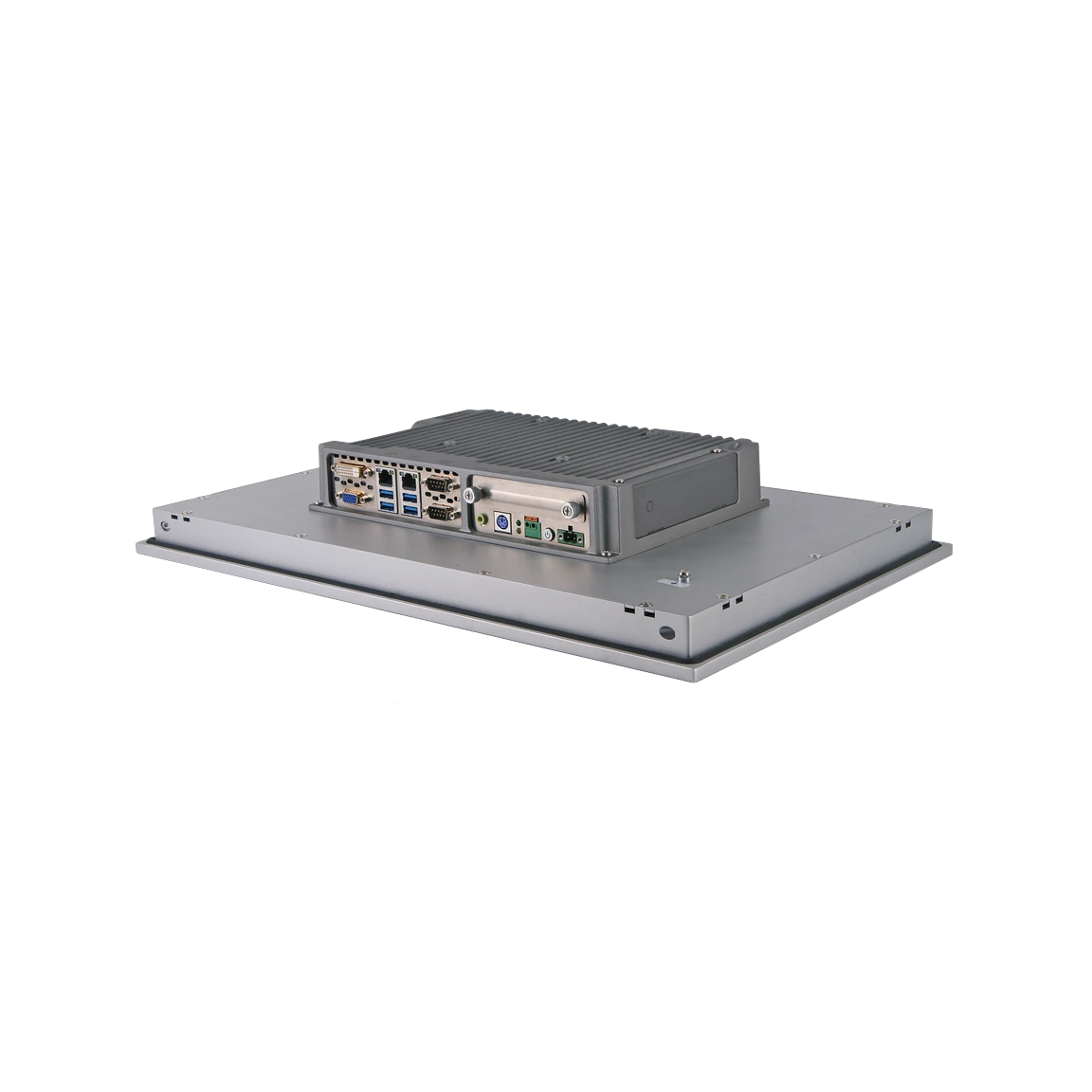

Rear I/O	DVI-I, 2 x LAN, 4 x USB, 2 x COM, 2 x PS2, Line-out, Mic-in
Display
LCD Size	18.5” HD TFT
Resolution	1366 x 768	1920 x 1080	1366 x 768	1920 x 1080	1366 x 768	1920 x 1080
Brightness	250cd/m² / 350cd/m²
Contrast Ratio	1000:1
Viewing Angle	(L) 85 / (R) 85 / (T) 80 / (B) 80 / (L) 89 / (R) 89 / (T) 89 / (B) 89
Backlight	LED
MTBF	30,000 hrs / 50,000 hrs
Touchscreen
Type	Multi-point Capacitive Touchscreen
Transmittance	>87%
Controller Interface	USB
Multi-touch	10 Points (Windows System)
Surface Hardness	Mohs' 7H
Power
Input Voltage	DC 12~24V ±10% (Supports Reverse Polarity, Overvoltage & Overcurrent Protection)
Power Consumption	Max 36W
Environmental
Operating Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature	-30°C ~ 80°C (-22°F ~ 176°F)
Humidity	5~95% @ 40°C (Non-condensing)
Vibration Resistance	1.5Grms (5~500Hz, with SSD, IEC 60068-2-64)
Shock Resistance	10G Peak Acceleration (11ms, IEC 60068-2-27)
Waterproof Rating	IP65 Compliant (Front Panel)

Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information
Model Name	TPC6000-C1853W-L-J1900	TPC6000-C1853W-LH-J1900	TPC6000-C1853W-L-WL4205U	TPC6000-C1853W-LH-WL4205U	TPC6000-C1853W-L-WL8145U	TPC6000-C1853W-LH-WL8145U
Description	18.5” HD Panel PC, Intel J1900 Quad Core, 2 x LAN, 4 x USB3.0, 2 x COM, mSATA + SATA Bay, DC12~24V, IP65 Front Panel	18.5” Full HD Panel PC, Intel J1900 Quad Core, 2 x LAN, 4 x USB3.0, 2 x COM, mSATA + SATA Bay, DC12~24V, IP65 Front Panel	18.5” HD Panel PC, Intel 4205U Dual Core, 2 x LAN, 4 x USB3.0, 2 x COM, mSATA + SATA Bay, DC12~24V, IP65 Front Panel	18.5” Full HD Panel PC, Intel 4205U Dual Core, 2 x LAN, 4 x USB3.0, 2 x COM, mSATA + SATA Bay, DC12~24V, IP65 Front Panel	18.5” HD Panel PC, Intel 8145U Dual Core, 2 x LAN, 4 x USB3.0, 2 x COM, mSATA + SATA Bay, DC12~24V, IP65 Front Panel	18.5” Full HD Panel PC, Intel 8145U Dual Core, 2 x LAN, 4 x USB3.0, 2 x COM, mSATA + SATA Bay, DC12~24V, IP65 Front Panel
Options
Memory	DDR3L-1600 (Max 8GB) / DDR4-2400MHz (Max 16GB)
Storage	1 x 2.5" SATA Bay + 1 x mSATA
Networking	2 x Intel 1000Mbps LAN
Expansion Slot	1 x Mini-PCIe slot (Supports 3G, WiFi), 1 x EasyBUS slot
Mounting Option	Panel Mount & VESA Mount
Operating Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
