| Technical Specifications |
| Model Name |
TPC6000-C153-L-J1900 |
TPC6000-C153-L-WL4205U |
TPC6000-C153-L-WL8145U |
TPC6000-C153-L-SL7200U |
TPC6000-C153-L-J6412 |
| System |
| CPU |
Intel J1900 Quad Core 2.0GHz |
Intel 4205U Dual Core 1.8GHz |
Intel 8145U Dual Core 2.1GHz |
Intel 7200U Dual Core 2.5GHz |
Intel J6412 Quad Core 2.0GHz |
| L3 Cache |
2MB |
2MB |
4MB |
3MB |
1.5MB |
| Memory |
1 x DDR3L-1600 (Max 8GB) / 1 x DDR4-2400MHz (Max 16GB) |
| Storage |
1 x 2.5" SATA Bay + 1 x mSATA |
| I/O Interfaces |
| LAN |
2 x Intel 1000Mbps RJ-45 Ethernet |
| USB |
4 x USB3.0 |
| COM |
2 x RS-232 / RS-485 (Optional) |
| Expansion Slot |
1 x Mini-PCIe slot (Supports 3G, WiFi), 1 x EasyBUS slot |

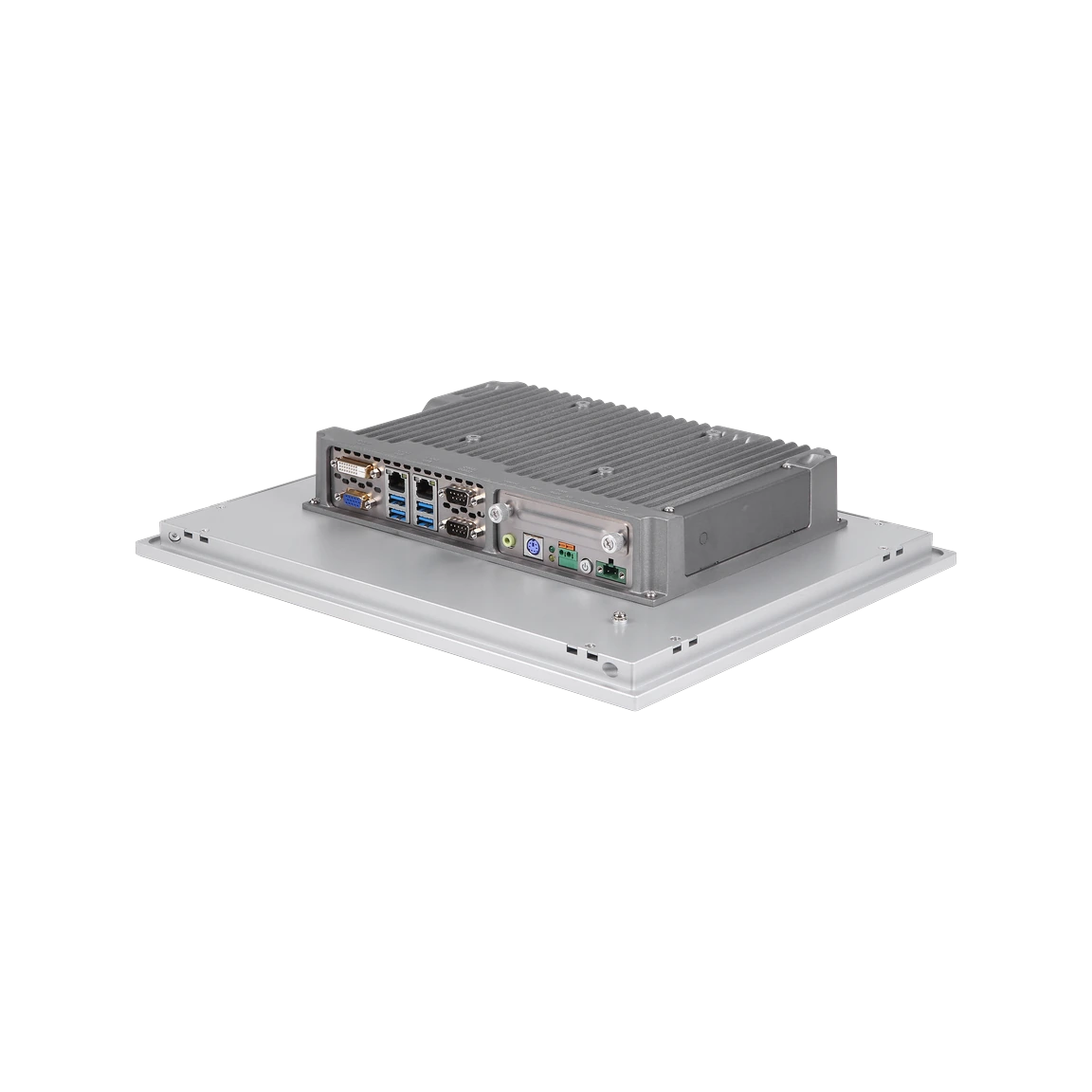

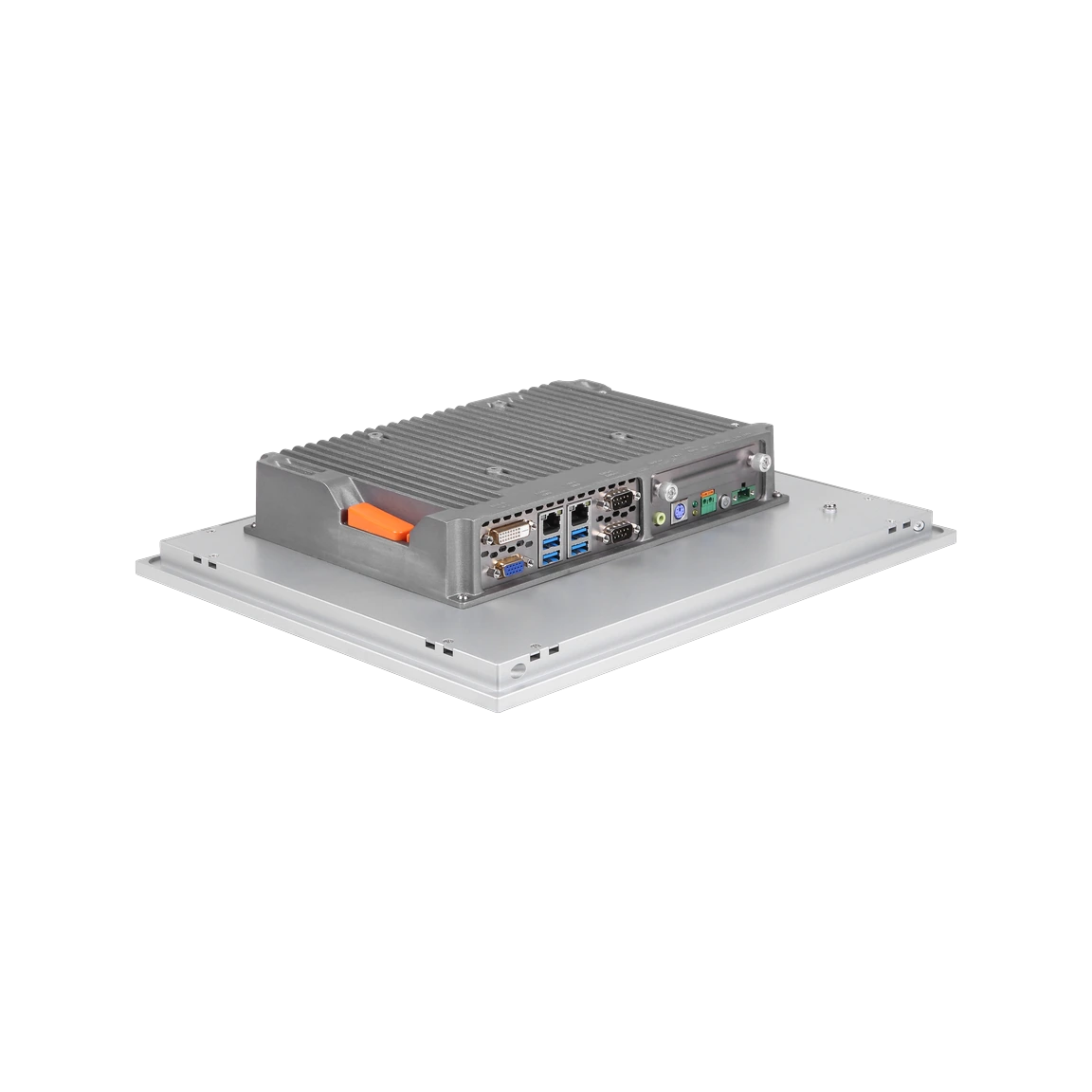

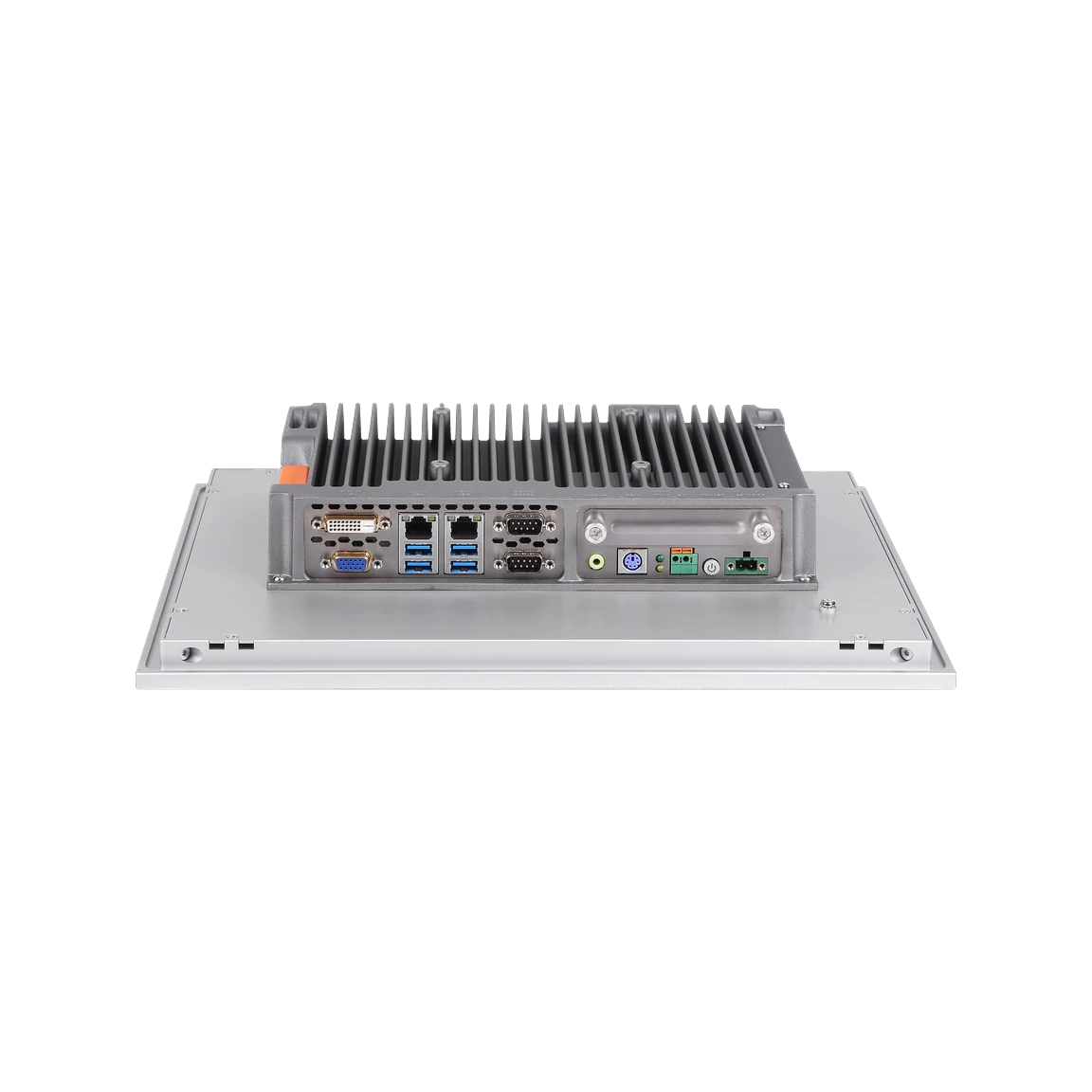

| Rear I/O |
DVI-I / 2 x GLAN / 4 x USB / 2 x COM / 2 x PS2 / Line-out / Mic-in |
| Display |

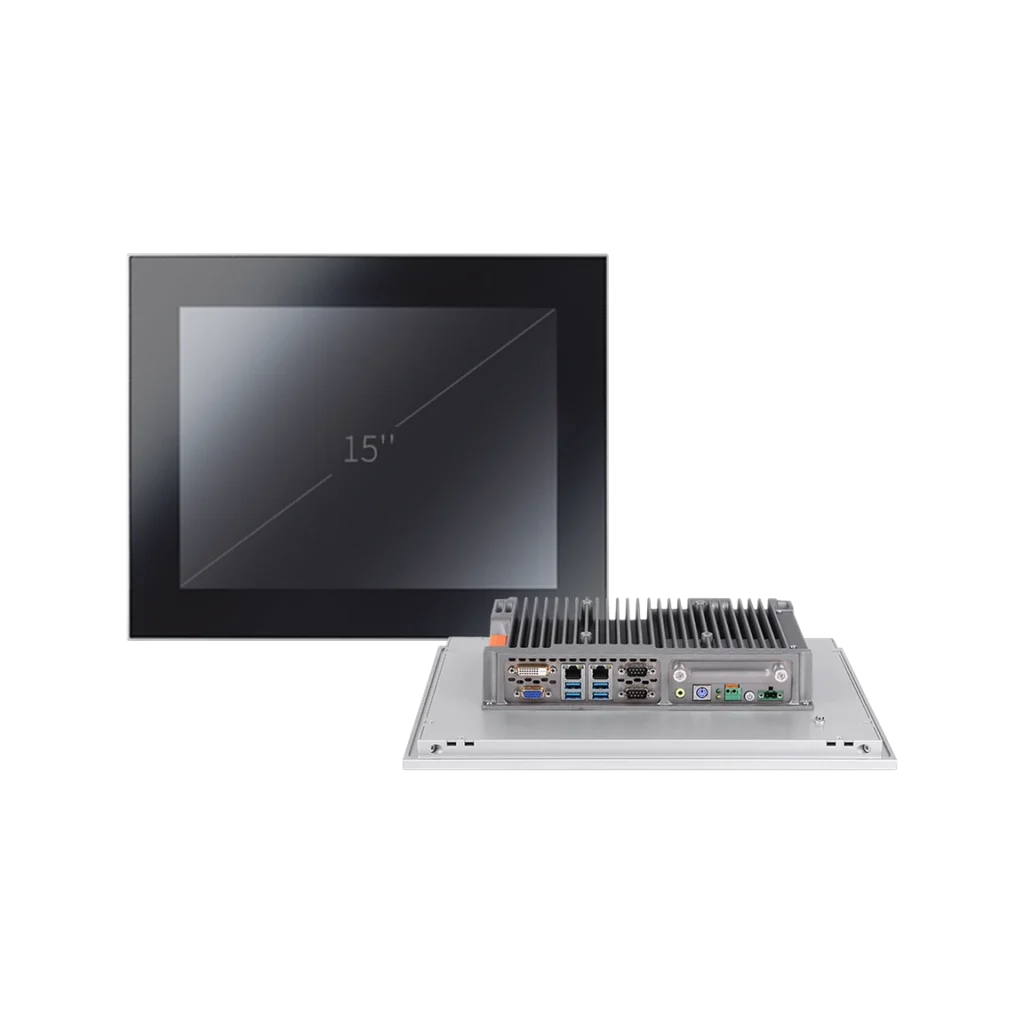

| LCD Size |
15” XGA TFT |
| Resolution |
1024 x 768 |
| Brightness |
420cd/m² (2nd source 350cd/m²) |
| Contrast Ratio |
800:1 (2nd source 1000:1) |
| Viewing Angle |
(L) 80 / (R) 80 / (T) 80 / (B) 80 |
| Backlight |
LED |
| MTBF |
50,000 hours |
| Touchscreen |
| Type |
Multi-point Capacitive Touchscreen |
| Transmittance |
>87% |
| Controller Interface |
USB |
| Multi-touch |
10 Points (Windows System) |
| Surface Hardness |
Mohs' 7H |
| Power |
| Input Voltage |
DC 12~24V ±10% (Supports Reverse Polarity, Overvoltage & Overcurrent Protection) |
| Power Consumption |
Max 40W |
| Environmental |
| Operating Temperature |
-20°C ~ 60°C (-4°F ~ 140°F) |
| Storage Temperature |
-30°C ~ 80°C (-22°F ~ 176°F) |
| Humidity |
5~95% @ 40°C (Non-condensing) |
| Vibration Resistance |
1.5Grms (5~500Hz, with SSD, IEC 60068-2-64) |
| Shock Resistance |
10G Peak Acceleration (11ms, IEC 60068-2-27) |
| Waterproof Rating |
IP65 Compliant (Front Panel) |
| Ordering Information |
| Model Name |
TPC6000-C153-L-J1900 |
TPC6000-C153-L-WL4205U |
TPC6000-C153-L-WL8145U |
TPC6000-C153-L-SL7200U |
TPC6000-C153-L-J6412 |
| Description |
15” XGA Panel PC, Intel J1900 Quad Core, 2 x LAN, 4 x USB3.0, 2 x COM, mSATA + SATA Bay, DC12~24V, IP65 Front Panel |
15” XGA Panel PC, Intel 4205U Dual Core, 2 x LAN, 4 x USB3.0, 2 x COM, mSATA + SATA Bay, DC12~24V, IP65 Front Panel |
15” XGA Panel PC, Intel 8145U Dual Core, 2 x LAN, 4 x USB3.0, 2 x COM, mSATA + SATA Bay, DC12~24V, IP65 Front Panel |
15” XGA Panel PC, Intel 7200U Dual Core, 2 x LAN, 4 x USB3.0, 2 x COM, mSATA + SATA Bay, DC12~24V, IP65 Front Panel |
15” XGA Panel PC, Intel J6412 Quad Core, 2 x LAN, 4 x USB3.0, 2 x COM, mSATA + SATA Bay, DC12~24V, IP65 Front Panel |
| Options |
| Memory |
DDR3L-1600 (Max 8GB) / DDR4-2400MHz (Max 16GB) |
| Storage |
1 x 2.5" SATA Bay + 1 x mSATA |
| Networking |
2 x Intel 1000Mbps LAN |
| Expansion Slot |
1 x Mini-PCIe slot (Supports 3G, WiFi), 1 x EasyBUS slot |
| Mounting Option |
Panel Mount & VESA Mount |
| Operating Temperature |
-20°C ~ 60°C (-4°F ~ 140°F) |
