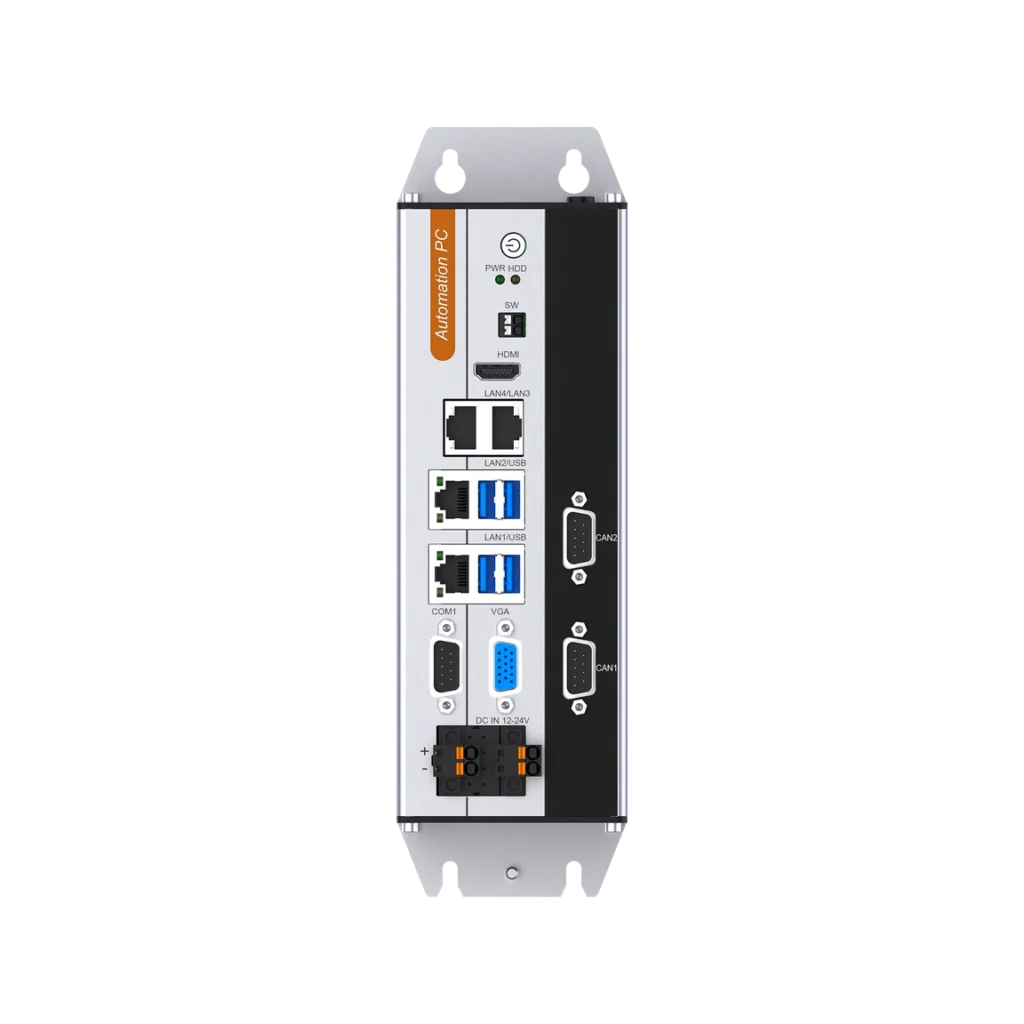

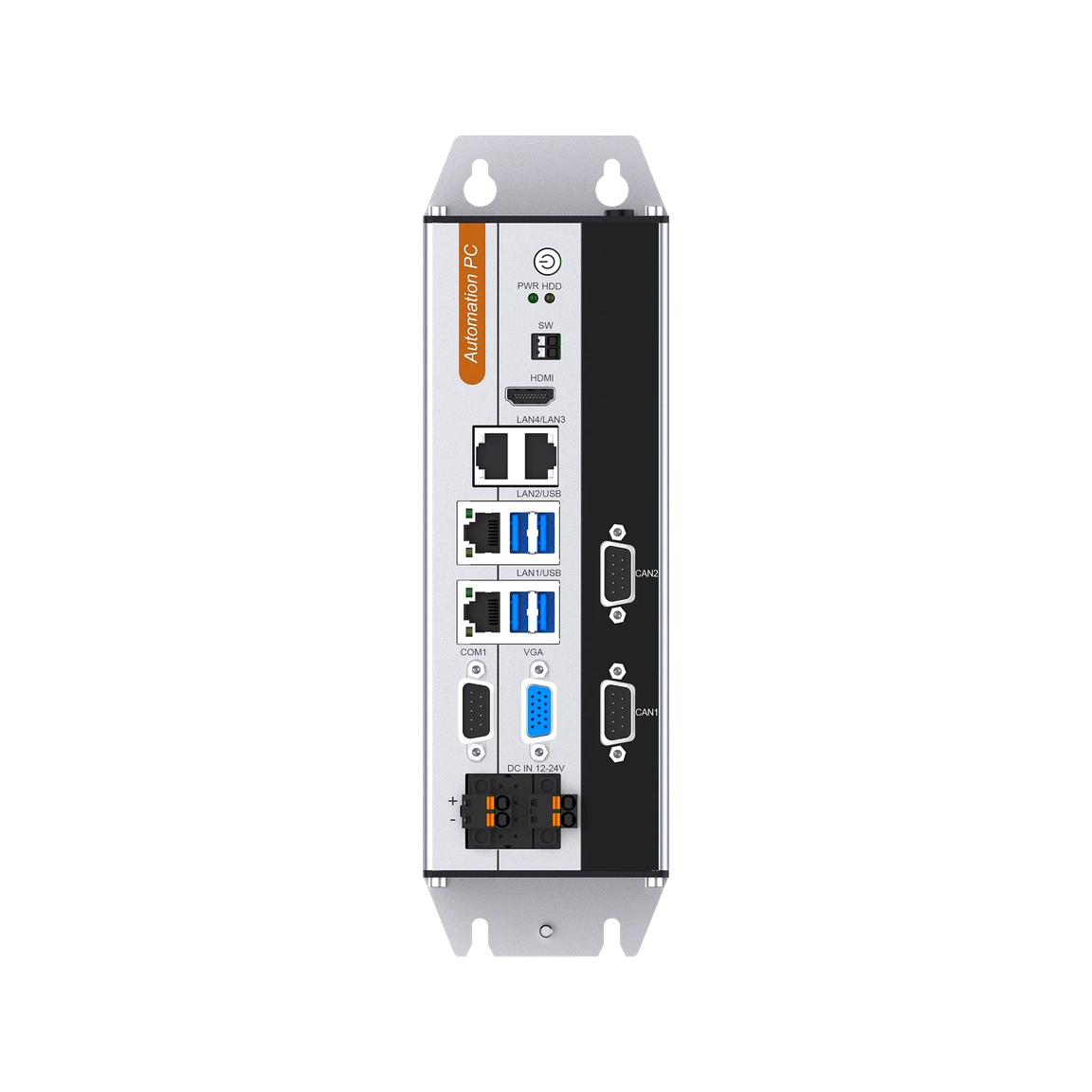

NP-6123-CAN2 NP-6133-CAN2 NP-6143-CAN2 | Industrial Automation PC
Rugged automation PC with Intel® Core™ 6th to 14th Gen CPU support, 4 x Intel GbE, 1 x RS232/RS485, 2 x CAN2.0 bus A/B, mSATA plus 2.5″ SATA, HDMI/VGA, Mini PCIe expansion, and wall-mount or DIN-Rail installation.
Features
- Supports Intel® Core™ 6th/7th/8th Gen, 10th/11th Gen, and 12th/13th/14th Gen processors
- 4 x Intel i210-AT GbE LAN for industrial networking and controller integration
- 1 x RS232/RS485 serial port for field device communication
- 2 x CAN2.0 bus A/B for motion systems, vehicle subsystems, and machine communication
- 4 x USB3.0 plus 1 x onboard USB2.0 Type-A for dongle use
- Supports VGA and HDMI dual display output
- 1 x mSATA slot plus 1 x 2.5″ SATA3.0 storage bay
- 1 x full-size Mini PCIe slot with SIM card holder for Wi-Fi or 3G/4G modules
- DC12~24V power input with overcurrent, overvoltage, and reverse-polarity protection
- Wall-mount or DIN-Rail installation in an aluminum-magnesium alloy chassis
Industrial Automation PC Product Information
| Technical Specifications -- NP-61x3-CAN2 | |||
|---|---|---|---|
| Model Name | NP-6123-CAN2 | NP-6133-CAN2 | NP-6143-CAN2 |
| System | |||
| CPU | Intel® Core™ 6th/7th/8th gen i7/i5/i3/Pentium/Celeron LGA1151 type CPU | Intel® Core™ 10th/11th gen i7/i5/i3 LGA1200 type CPU | Intel® Core™ 12th/13th/14th gen i7/i5/i3 LGA1700 type CPU |
| TDP | 65W | ||
| BIOS | AMI UEFI BIOS | ||
| Memory | 2 x SO-DIMM DDR4-3200MT/s (max up to 32GB) | 2 x SO-DIMM DDR5-4800MT/s (max up to 64GB) | |
| Storage | 1 x mSATA slot, SATA3.0 1 x SATA slot, 2.5-inch SATA3.0 | ||
| USB | 4 x USB3.0, 1 x USB2.0 Type-A on the board for USB dongle | ||
| COM | 1 x RS232/RS485 (COM1), maximum baud rate: 115.2kbit/s | ||
| Ethernet | 4 x Intel i210-AT GbE LAN controller | ||
| CAN | 2 x CAN2.0 bus A/B | ||
| Remote Switch | 1 x SW | ||
| VGA | Support up to 1920 x 1080 @60Hz | ||
| HDMI | Support up to 3840 x 2160 @30Hz | ||
| Expansion | 1 x Full-size PCIe mini slot with SIM card holder | ||
| Watch Dog | 1~255 levels programmable | ||
| TPM | fTPM | ||
| OS | |||
| Microsoft Windows | Windows 10, Windows 11 | ||
| Linux | Ubuntu, Debian, CentOS | ||
| Power | |||
| Voltage Input | DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection | ||
| Power Consumption | Max. 120W | ||
| Chassis | |||
| Structure | Aluminum-magnesium alloy BOX with fan embedded to assist cooling, wall-mounted or DIN-Rail fixing style | ||
| Dimensions | (L)200mm x (W)150.5mm x (H)74.6mm | ||
| Net Weight | 2.2Kg | ||
| Environment | |||
| Work Temperature | -20ºC ~ 60ºC (-4ºF ~ 140ºF) with air flow (SSD) | ||
| Storage Temperature | -40ºC ~ 80ºC (-40ºF ~ 176ºF) with air flow (SSD) | ||
| Relative Humidity | 95%@40 ℃ (Non-condensing) | ||
| Operating Vibration | 5~500Hz, 3Grms@with SSD and wall-mounted, follow IEC60068-2-64 | ||
| Operating Shock | 30G peak acceleration (11ms duration) with SSD and wall-mounted, follow IEC60068-2-27 | ||
| EMC | CE EMC, follow IEC/EN61000-6-2, IEC/EN 61000-6-4, FCC Class A | ||
| Safety | Follow IEC/EN 62368-1 | ||
Click the link below to download datasheets or drivers:
| Ordering Information -- NP-61x3-CAN2 | |||
|---|---|---|---|
| Model Name | NP-6123-CAN2 | NP-6133-CAN2 | NP-6143-CAN2 |
| Part No. | B73.61230.0C.0002 | B73.61330.0C.0001 | B73.61430.0C.0001 |
| Description | CPU: NULL, RAM: NULL, mSATA: NULL, SATA: NULL, 1 x RS232/485 (Selectable), 4 x LAN, 4 x USB3.0, 2 x CAN, HDMI/VGA display ports, 12-24V Power input | CPU: NULL, RAM: NULL, mSATA: NULL, SATA: NULL, 1 x RS232/485 (Selectable), 4 x LAN, 4 x USB3.0, 2 x CAN, HDMI/VGA display ports, 12-24V Power input | CPU: NULL, RAM: NULL, mSATA: NULL, SATA: NULL, 1 x RS232/485 (Selectable), 4 x LAN, 4 x USB3.0, 2 x CAN, HDMI/VGA display ports, 12-24V Power input |
| Options | |||
| CPU | i3-6100, i3-6100T, i3-7100, i3-7100T, i3-8100, i3-8100T, i3-9100, i3-9100T i5-6500, i5-6500T, i5-7500, i5-7500T, i5-8500, i5-8500T, i5-9500, i5-9500 i7-6700, i7-6700T, i7-7700, i7-7700T, i7-8700, i7-8700T, i7-9700, i7-9700T i9-9900, i9-9900T G3900, G4400 | i3-10100, i3-10100T i5-10500, i5-10500T, i5-11500, i5-11500T i7-10700, i7-10700T, i7-11700, i7-11700T i9-10900, i9-10900T, i9-11900, i9-11900T | i3-12100, i3-12100T, i3-13100, i3-13100T, i3-14100, i3-14100T i5-12500, i5-12500T, i5-13500, i5-13500T, i5-14500, i5-14500T i7-12700, i7-12700T, i7-13700, i7-13700T, i7-14700, i7-14700T i9-12900, i9-12900T, i9-13900, i9-13900T, i9-14900, i9-14900T |
| Memory | DDR4-3200MHz: 4GB, 8GB, 16GB | DDR5 4800MT/s: 8GB, 16GB, 32GB | |
| mSATA SSD | 64GB, 128GB, 256GB, 512GB, 1TB | ||
| SATA SSD | 128GB, 256GB, 512GB, 1TB, 2TB | ||
| Wifi Set | mini PCIE: WIFI Set (AX210/7260 series), Cylindrical antenna | ||
| 3G/4G Module | mini PCIE: EC20, EG25, EC25 | ||
| Mount Option | DIN-Rail | ||
