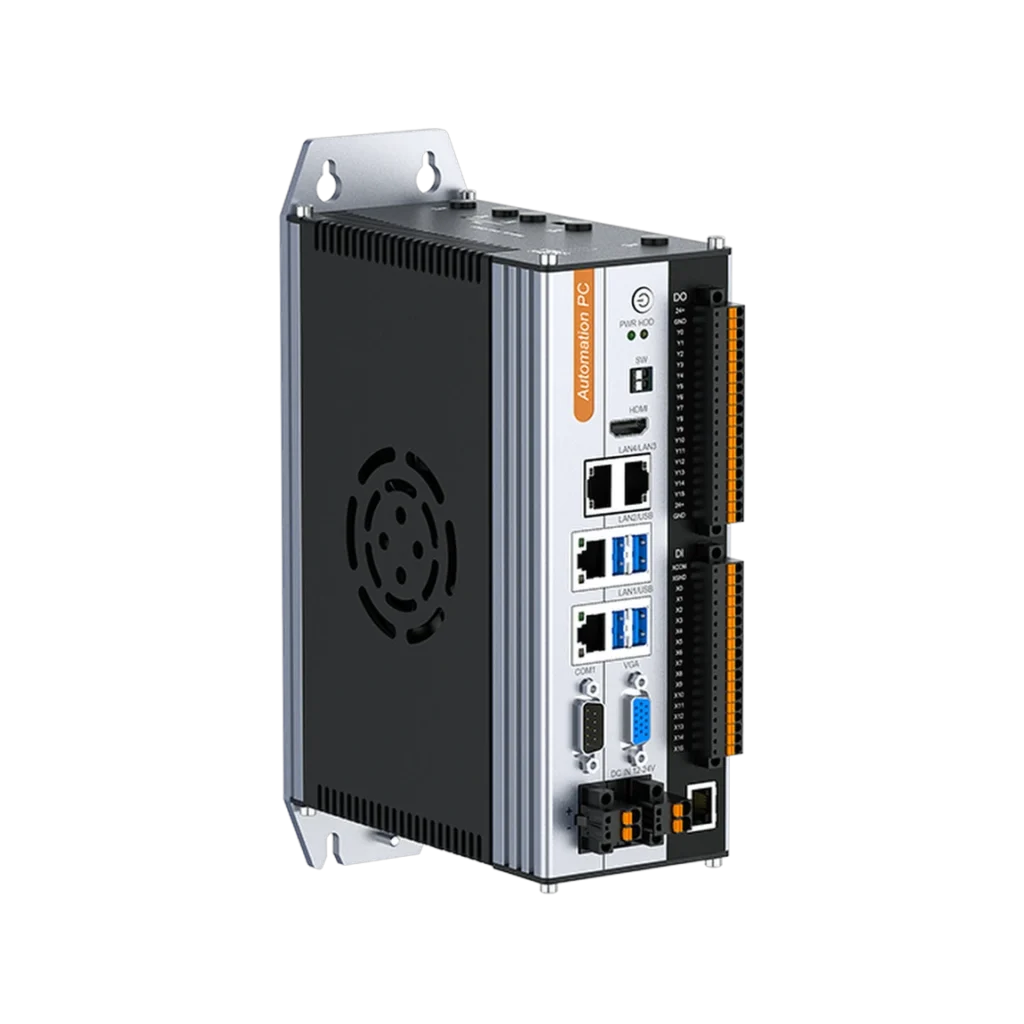

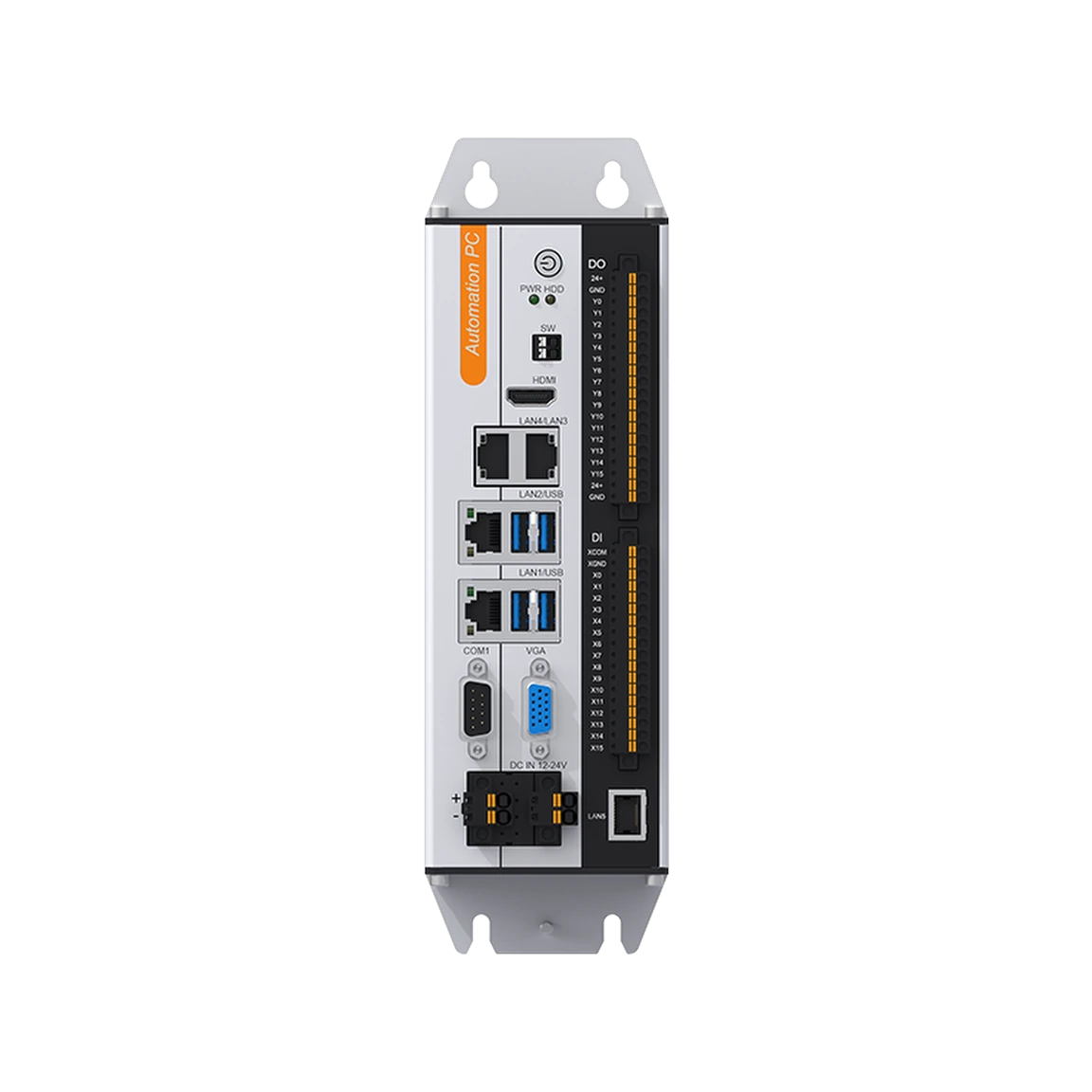

NP-6133-16I16O | Intel® Core™ Ultra Automation PC with 16DI/16DO and 4× GbE
Ultra-series DIN-rail/wall-mount Automation PC with Intel® Core™ Ultra 225H/255H, DDR5 up to 96GB, 4× GbE LAN, USB, RS232/485, 16DI/16DO, mSATA storage and dual mini-PCIe expansion.
Features
- Intel® Core™ Ultra 225H / 255H processors, 28W TDP, built-in Intel® Arc™ GPU
- High-performance AI-ready platform with GPU + NPU TOPS for edge inference workloads
- 2 × SO-DIMM DDR5-5600MT/s, up to 96GB memory
- 4 × Intel® i210 1GbE LAN ports for redundant and segmented industrial networks
- Rich I/O: 4 × USB3.0, 1 × USB2.0 Type-A (internal dongle), 1 × RS232/RS485
- Dedicated 16 × DI and 16 × DO, NPN/PNP selectable, DO current up to 0.5A
- 1 × mSATA slot (SATA3.0) for SSD storage
- 2 × full-size mini-PCIe with SIM slot for Wi-Fi, 4G LTE or 5G cellular modules
- VGA and HDMI display outputs for HMI or external monitoring
- Programmable watchdog timer and onboard dTPM 2.0 for system reliability and security
- Wide-range DC 12–24V input with over-current, over-voltage and reverse polarity protection
- Compact aluminum-magnesium DIN-rail / wall-mount chassis designed for control cabinet installation
- Industrial temperature, vibration and shock ratings suitable for harsh factory environments
Control Cabinet Industrial Automation PC Product Information
| Technical Specifications — NP-6133-16I16O Ultra | ||
|---|---|---|
| Model Name | NP-6133-16I16O-225H | NP-6133-16I16O-255H |
| Processor System | ||
| CPU | Intel® Core™ Ultra 225H, 14 cores / 14 threads, 1.3–4.9GHz, 18MB cache | Intel® Core™ Ultra 255H, 16 cores / 16 threads, 1.5–5.1GHz, 24MB cache |
| TDP | 28W | |
| BIOS | AMI UEFI BIOS | |
| GPU | Intel® Arc™ 130V GPU | Intel® Arc™ 140V GPU |
| Peak TOPS | 83 (GPU63+NPU13) | 96 (GPU74+NPU13) |
| Memory | ||
| Memory | 2 × SO-DIMM DDR5-5600MT/s, up to 96GB | |
| Storage | ||
| mSATA | 1 × mSATA (SATA3.0) | |
| 2.5" SSD Support | *Not supported on the 16I16O model* | |
| I/O Interfaces | ||
| USB | 4 × USB3.0, 1 × USB2.0 Type-A (dongle) | |
| Serial | 1 × RS232/RS485 (COM1), max baud rate 115.2kbps | |
| Ethernet | 4 × Intel i210 1GbE LAN | |
| Remote | 1 × SW (power remote) | |
| VGA | Up to 1920 × 1080 @60Hz | |
| HDMI | Up to 3840 × 2160 @60Hz | |
| Expansion | ||
| Mini-PCIe | 2 × Full-size mini-PCIe slots with SIM slot (3G/4G/WiFi modules) | |
| Watchdog & Security | ||
| Watchdog Timer | 1–255 levels, programmable | |
| TPM | dTPM: SLB9672XU2.0 | |
| Operating System | ||
| Windows | Windows 10, Windows 11 | |
| Linux | Ubuntu, Debian | |
| Power | ||
| Input Voltage | DC 12–24V ±10%, with over-current, over-voltage, polarity-inverse protection | |
| Power Consumption | Max. 90W | |
| Digital I/O (Model-Specific) | ||
| DI | 16 × DI (NPN/PNP selectable) | |
| DO | 16 × DO (NPN/PNP selectable), Imax 0.5A | |
| Mechanical | ||
| Structure | Aluminum-magnesium alloy BOX with fan-embedded assist cooling | |
| Mounting | DIN-rail or wall-mount | |
| Dimensions | 200mm (L) × 150.5mm (W) × 57.6mm (H) | |
| Net Weight | 2.4kg | |
| Environment | ||
| Operating Temp | -20°C ~ 60°C (-4°F ~ 140°F) with air flow (SSD) | |
| Storage Temp | -40°C ~ 80°C (-40°F ~ 176°F) | |
| Humidity | 95% @40°C, non-condensing | |
| Vibration | 5–500Hz, 3Grms (SSD & wall-mounted), IEC60068-2-64 | |
| Shock | 30G, 11ms, IEC60068-2-27 | |
| EMC | CE/FCC Class A | |
| Safety | IEC/EN 62368-1 | |
| Ordering Information — NP-6133-16I16O Ultra | ||
|---|---|---|
| Part No. | Model | Description |
| A72.61332.225H00 | NP-6133-16I16O-225H | Intel® Core™ Ultra 225H processor, 16 × DI (NPN/PNP selectable), 16 × DO (NPN/PNP selectable, 0.5A max), 4 × GbE LAN, 4 × USB3.0, 1 × USB2.0, 1 × RS232/RS485, VGA, HDMI, 2 × full-size mini-PCIe w/ SIM, DC 12–24V input. DIN-rail/wall-mount. |
| A72.61332.255H00 | NP-6133-16I16O-255H | Intel® Core™ Ultra 255H processor, 16 × DI (NPN/PNP selectable), 16 × DO (NPN/PNP selectable, 0.5A max), 4 × GbE LAN, 4 × USB3.0, 1 × USB2.0, 1 × RS232/RS485, VGA, HDMI, 2 × full-size mini-PCIe w/ SIM, DC 12–24V input. DIN-rail/wall-mount. |
| Packing List | ||
| — | 1 × NP-6133-16I16O Ultra unit | |
| — | 1 × Phoenix terminal block set | |
| — | 1 × Quick installation guide | |
| Optional Accessories | ||
| Memory | DDR5 SO-DIMM modules (8GB / 16GB / 32GB / 48GB / 96GB) | |
| mSATA SSD | mSATA storage modules (32GB / 64GB / 128GB / 256GB / 512GB / 1TB) | |
| Wireless Modules | Wi-Fi module (mini-PCIe), 4G LTE module (EC20/EC25/EG25), 5G module (FG650) | |
| Antennas | Wi-Fi/4G/5G antennas (SMA) | |
| Mounting | DIN-rail kit / Wall-mount kit | |
| Adapter | AC/DC power adapter (optional) | |
