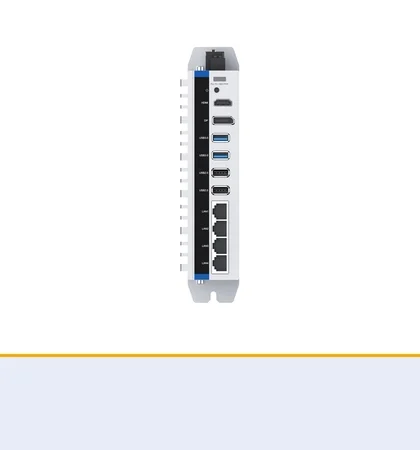

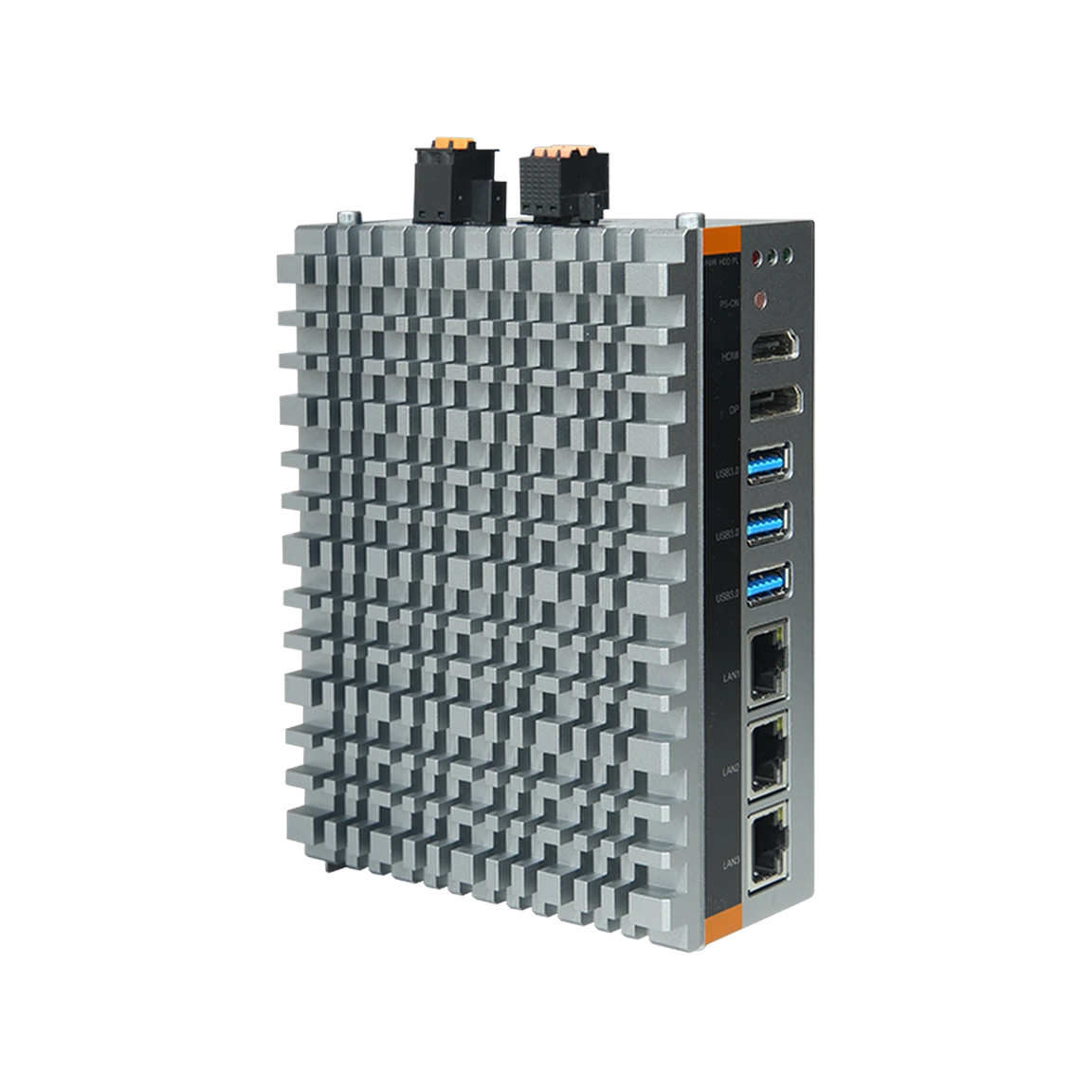

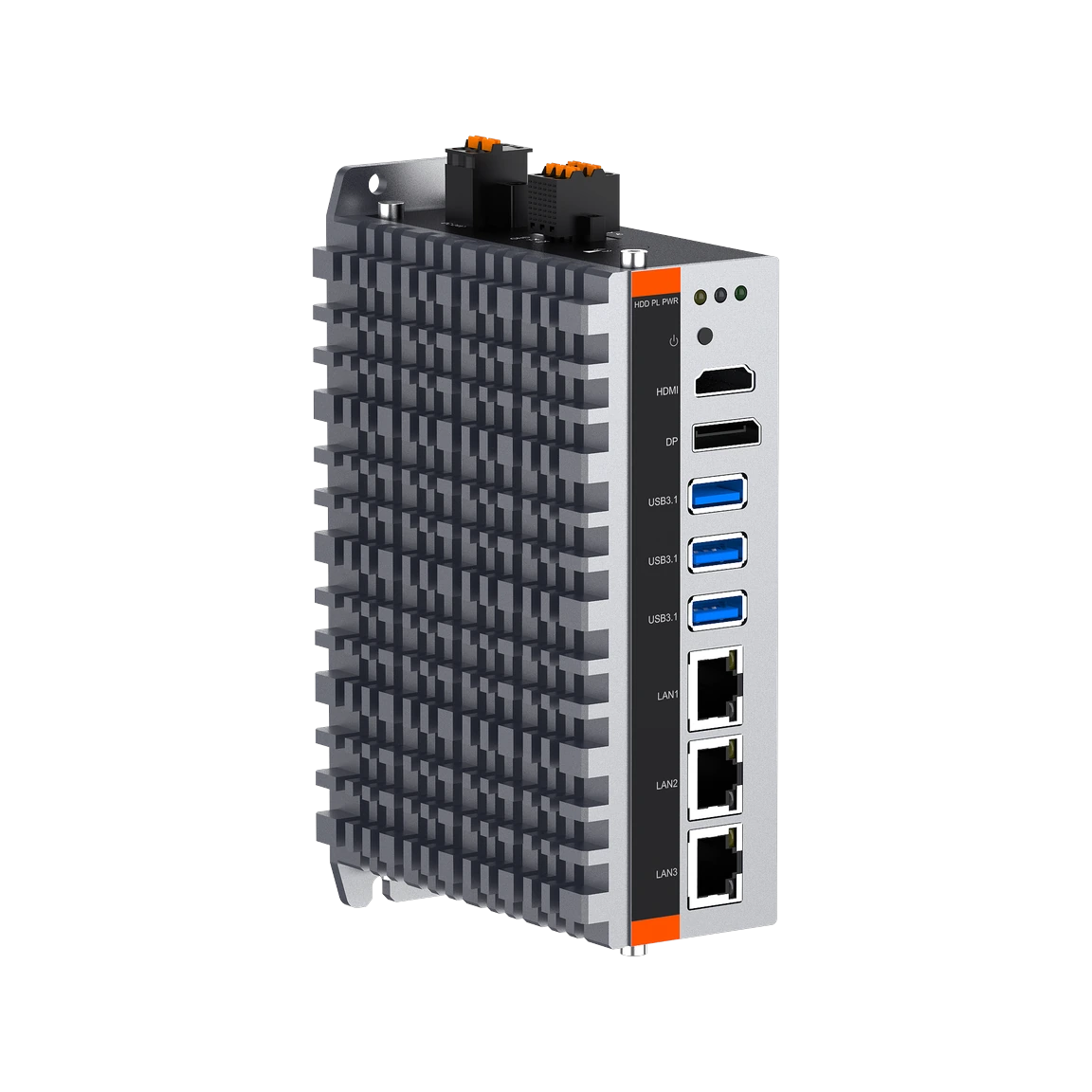

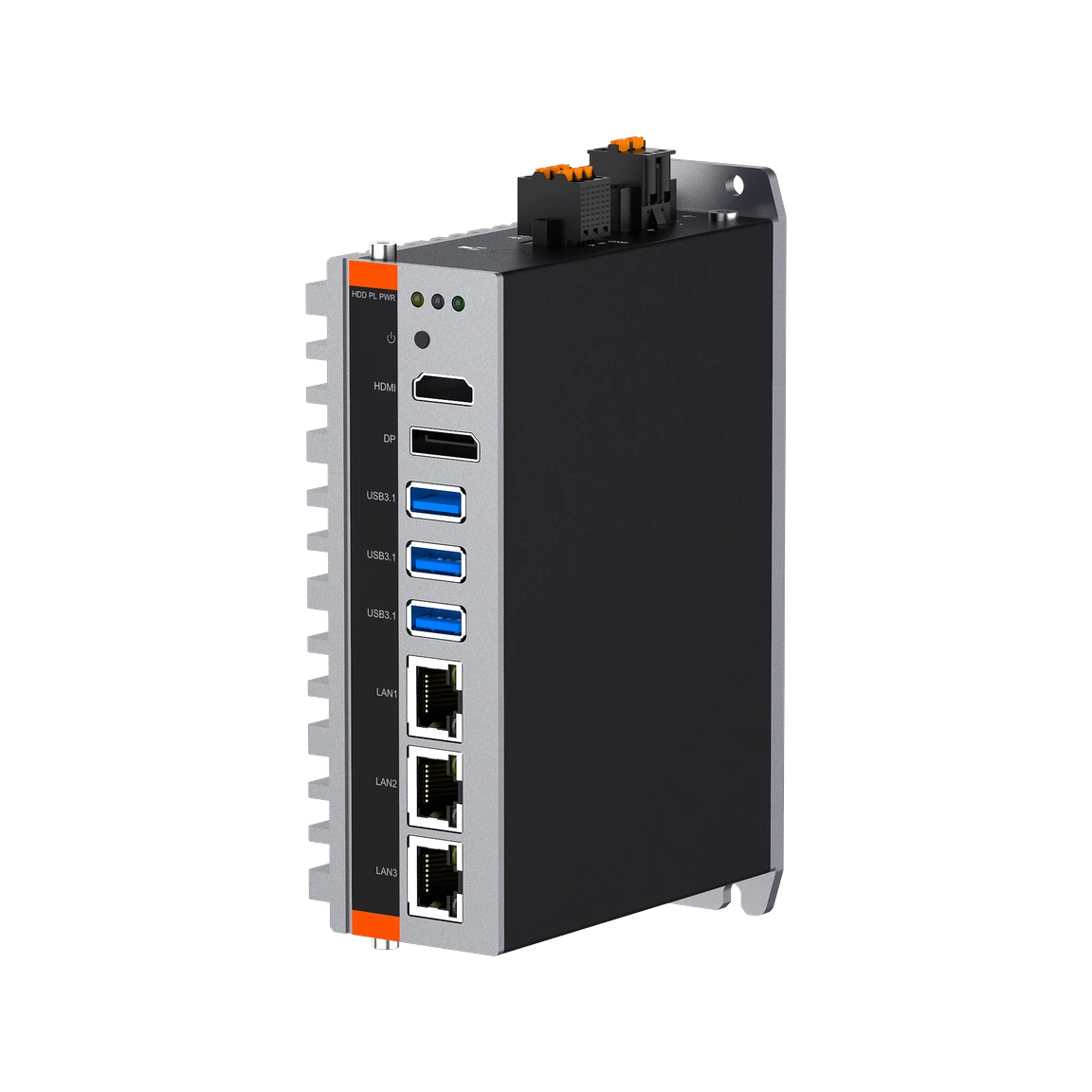

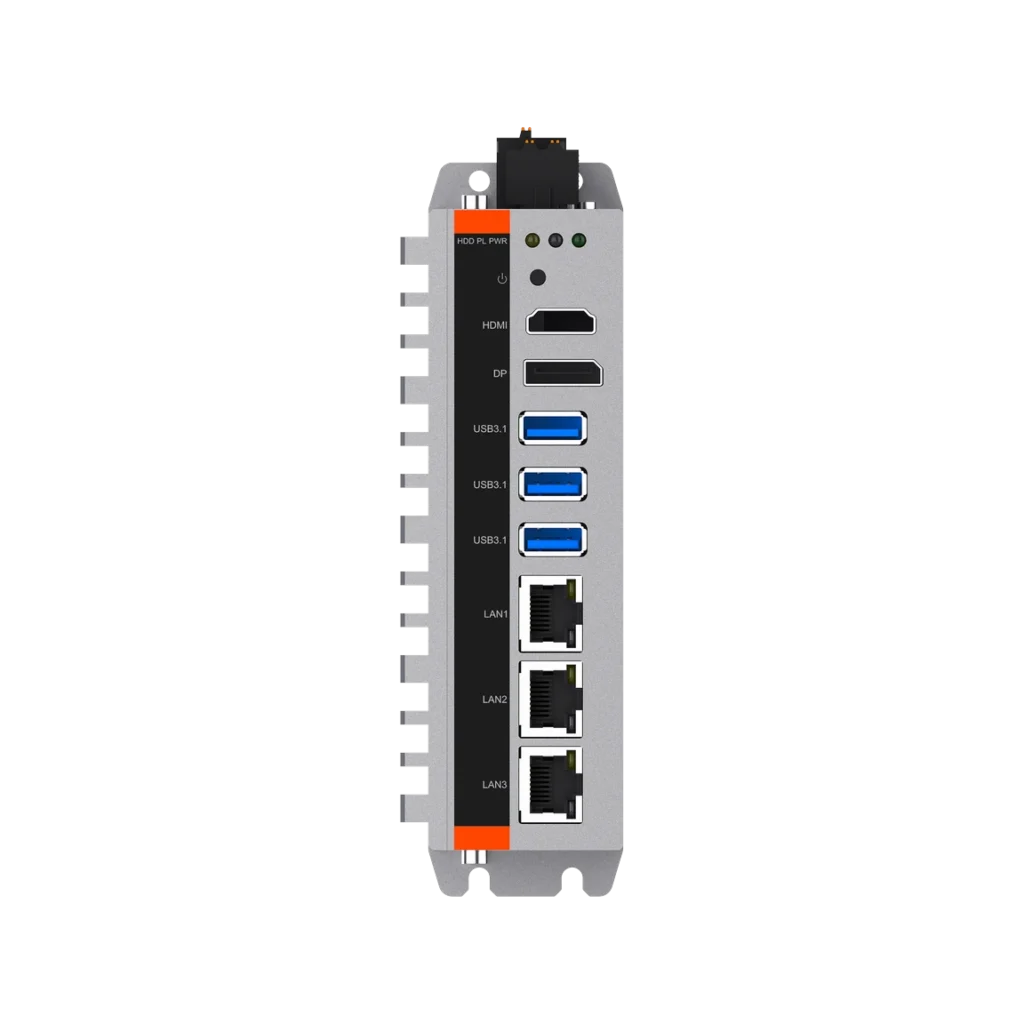

NP-6116-J6412 | Fanless Automation PC with Compact Design
Fanless automation PC with Intel Celeron J6412, 3 x GbE LAN, RS232/485, M.2 SSD storage, DP & HDMI display, and DIN Rail mount
Features
- Fanless Industrial PC with DIN Rail & wall-mounting support for automation applications
- Intel® Celeron J6412, 2.0~2.6GHz, 4 cores/4 threads, 10W TDP
- Triple GbE LAN for reliable industrial networking
- 1 x RS232 & 1 x RS485 for industrial automation and communication
- DP (4096×2160 @60Hz) & HDMI (3840×2160 @60Hz) for industrial HMI applications
- Mini-PCIe slot for 3G/4G module expansion
- Wide-range DC12~24V power input with overcurrent, overvoltage, and polarity protection
- Aluminum-magnesium alloy chassis, fully fanless for silent operation
- Compact and rugged design, optimized for control cabinets and automation
Fanless Control Cabinet Industrial PCs Product Information
| Technical Specifications | |
|---|---|
| Model Name | NP-6116-J6412 |
| System | |
| CPU | Intel(r) Celeron J6412, 2.0~2.6GHz, 4 cores/4 threads, 1.5MB L2 cache |
| TDP | 10W |
| BIOS | AMI UEFI 256Mb |
| Memory | 1 x SO-DIMM DDR4-3200MHz (Up to 32GB) |
| Storage | 1 x M.2 SSD 2242 |
| I/O Interfaces | |
| USB | 3 x USB3.1 |
| Serial Ports | 1 x RS232, 1 x RS485 |
| Ethernet | 3 x Intel GbE LAN |
| Video Output | HDMI (3840 x 2160 @60Hz), DP (4096 x 2160 @60Hz) |
| Expansion Slots | 1 x Full-size PCIe Mini slot with SIM card holder |
| Programmable LED | 1 x Programmable LED |
| Power | |
| Voltage Input | DC12~24V ±10%, Overcurrent, Overvoltage, and Polarity Inverse Protection |
| Power Consumption | Max. 45W |
| Chassis | |
| Structure | Aluminum-magnesium alloy box, Fanless, Wall-mounted or DIN-Rail |
| Dimensions | 138mm (L) x 102mm (W) x 48mm (H) |
| Net Weight | 1.06Kg |
| Environmental | |
| Operating Temperature | -20ºC ~ 60ºC (-4℉~140℉) with air flow (SSD) |
| Storage Temperature | -40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD) |
| Relative Humidity | 5~95% (Non-condensing) |
| Vibration Resistance | 5~500Hz, 1.5Grms @ with SSD (IEC60068-2-64) |
| Shock Resistance | 20G peak acceleration (11ms duration) with SSD (IEC60068-2-27) |
| EMC | CE/FCC Class B |
| Ordering Information | |
|---|---|
| Model Name | NP-6116-J6412 |
| Description | Fanless automation PC with Intel(r) Celeron J6412, 3 x Intel GbE LAN, 1 x RS232, 1 x RS485, M.2 SSD storage, DIN-Rail & wall-mounting, DC12~24V input |
| Options | |
| CPU | Intel(r) Celeron J6412, 2.0~2.6GHz, 4 cores/4 threads, 1.5MB L2 cache |
| Memory | 1 x SO-DIMM DDR4-3200MHz (Max. 32GB) |
| Storage | 1 x M.2 SSD 2242 |
| WiFi Module | M.2 2230 Key-E WiFi Kit (Optional) |
| 3G/4G Module | Mini-PCIe: EC20, EG25, EC25 (Optional) |
| Mounting Option | Wall-mount & DIN Rail mounting |
