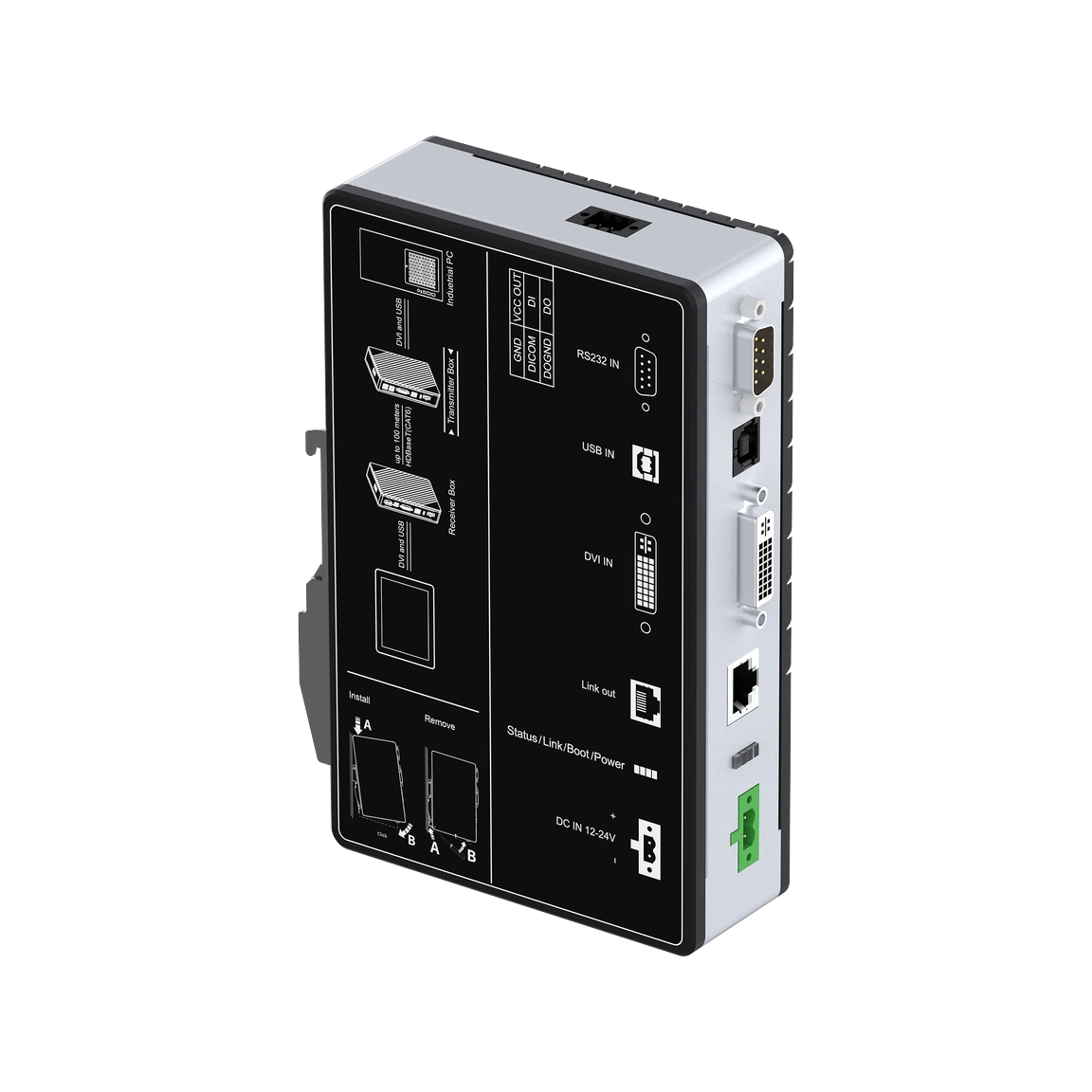

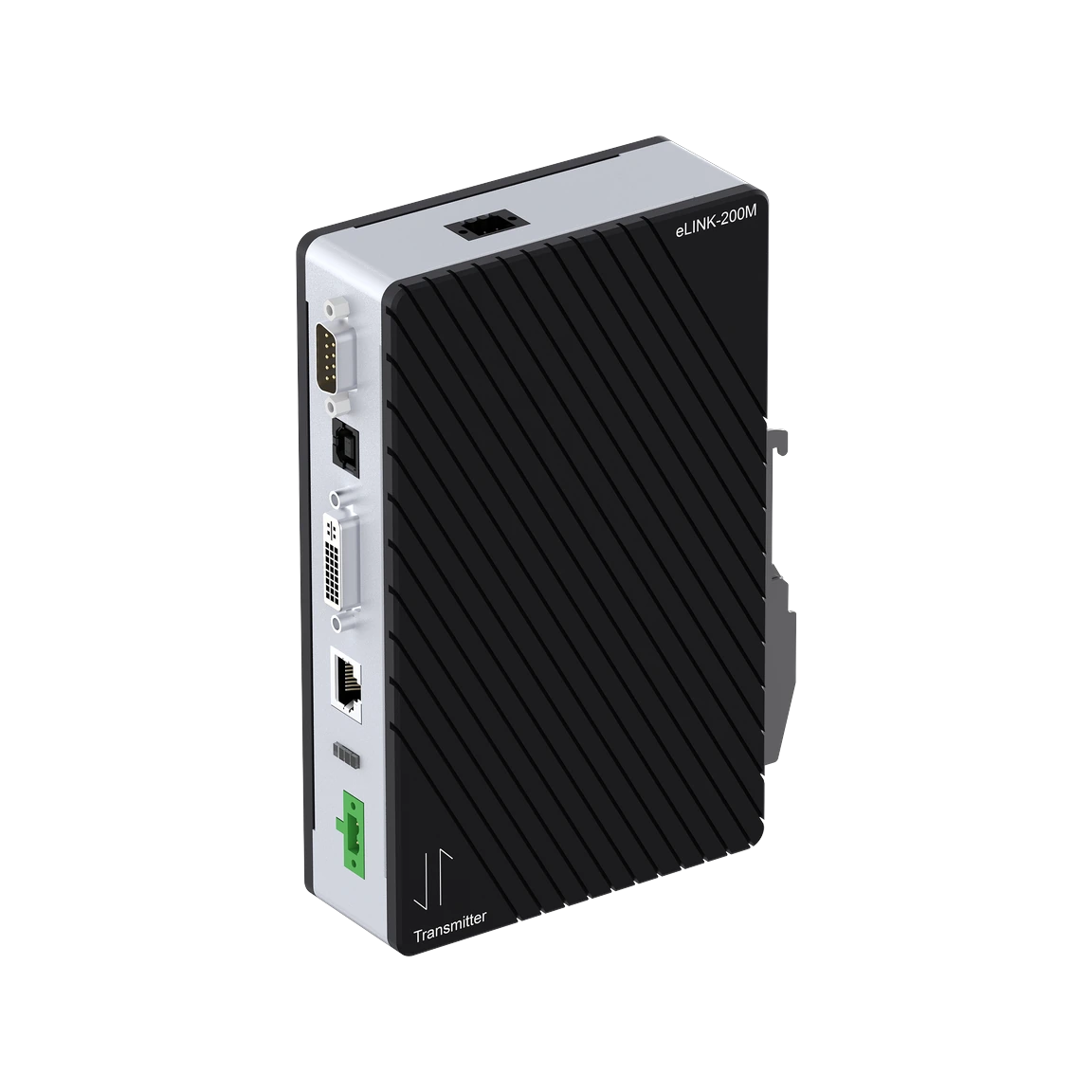

eLINK-200M | HDBaseT Remote Display Transmitter Box
Industrial remote video transmit box with DVI-D input, USB2.0 Type-B, RS232, 1DI+1DO, HDBaseT 2.0 link output, DIN-rail mounting, and DC12–24V input.
Features
- Remote display transmitter box with DVI-D input for long-distance monitor extension
- USB2.0 Type-B input supports remote touch and USB signal transmission
- 1 × RS232 input for serial device communication
- 1DI + 1DO for basic digital signal integration
- HDBaseT 2.0 output supports transmission up to 100 meters over CAT6 or above
- Wide-range DC12-24V input with reverse polarity, overvoltage, and overcurrent protection
- DIN-rail mounting and aluminium housing for industrial installation
- Supports Windows 7, Windows 10 IoT, Ubuntu, and CentOS
eLINK HDBasT Remote Display Product Information
| Technical Specifications -- eLINK-200M | |
|---|---|
| Model Name | eLINK-200M |
| Input | |
| Display | DVI-D |
| USB | USB2.0 (Type B) |
| COM | RS232 |
| DIO | 1DI+1DO |
| Output | |
| eLINK Port | HDBaseT2.0 |
| Distance | Maximum 100 Meters: CAT6 type above |
| OS | |
| Microsoft Windows | Windows 7, Windows 10 IoT |
| Linux | Ubuntu, CentOS |
| Power | |
| Input Voltage | DC 12-24V support reverse polarity protection, overvoltage protection, overcurrent protection |
| Power Consumption | Max Power Consumption 5 Watts |
| Mechanical Parameter | |
| Structure | Aluminium shell |
| Dimension | 176mm * 109mm * 40mm |
| Weight | 1.2 Kg |
| Environment | |
| Operating Temp. | -10ºC ~ 60ºC |
| Storage Temp. | -20ºC ~ 80ºC |
| Relative Humidity | 5~95% @40℃ (Non-condensation) |
| Vibration | Operating Random Vibration Test 5~500Hz, 1.5Grms, follow IEC 60068-2-64 |
| Shock | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 |
| EMC | CE/FCC Class A |
Click the link below to download datasheets or drivers:
| Ordering Information -- eLINK-200M | |
|---|---|
| Model Name | Description |
| eLINK-200M | Remote box, DVI-D in, RS232 in, USB2.0 in, 1DI+1DO, DC in 12V-24V |
| Options | |
| KE3.300004.00.L15 | L=1.8M, USB type A to USB type B |
| KE2.200004.00.A21 | L=1.8M, Male to Male, 18+1, Black, double magnetic loop |
| KE3.300003.00.U04 | L=0.5M, USB type A to USB type B |
| KE2.200001.00.A21 | L=0.5M, Male to Male, 18+1, Black, double magnetic loop |
