IPC-615G4-H110 Series | Expandable Tower/Wallmount Industrial PC
Compact tower/wallmount industrial PC with Intel® H110 chipset, 6th–9th Gen Core™ CPU support, 4 PCIe slots, 1×GbE, 2×COM, VGA/HDMI/DP, mSATA/SATA storage, and 300W/400W AC power.
Features
- Intel® H110 chipset with 6th/7th/8th/9th Gen Celeron®, Pentium®, and Core™ processor support, TDP up to 95W
- 2 x DDR4 260-pin SO-DIMM slots, 1866/2133/2400/2666MHz, up to 64GB

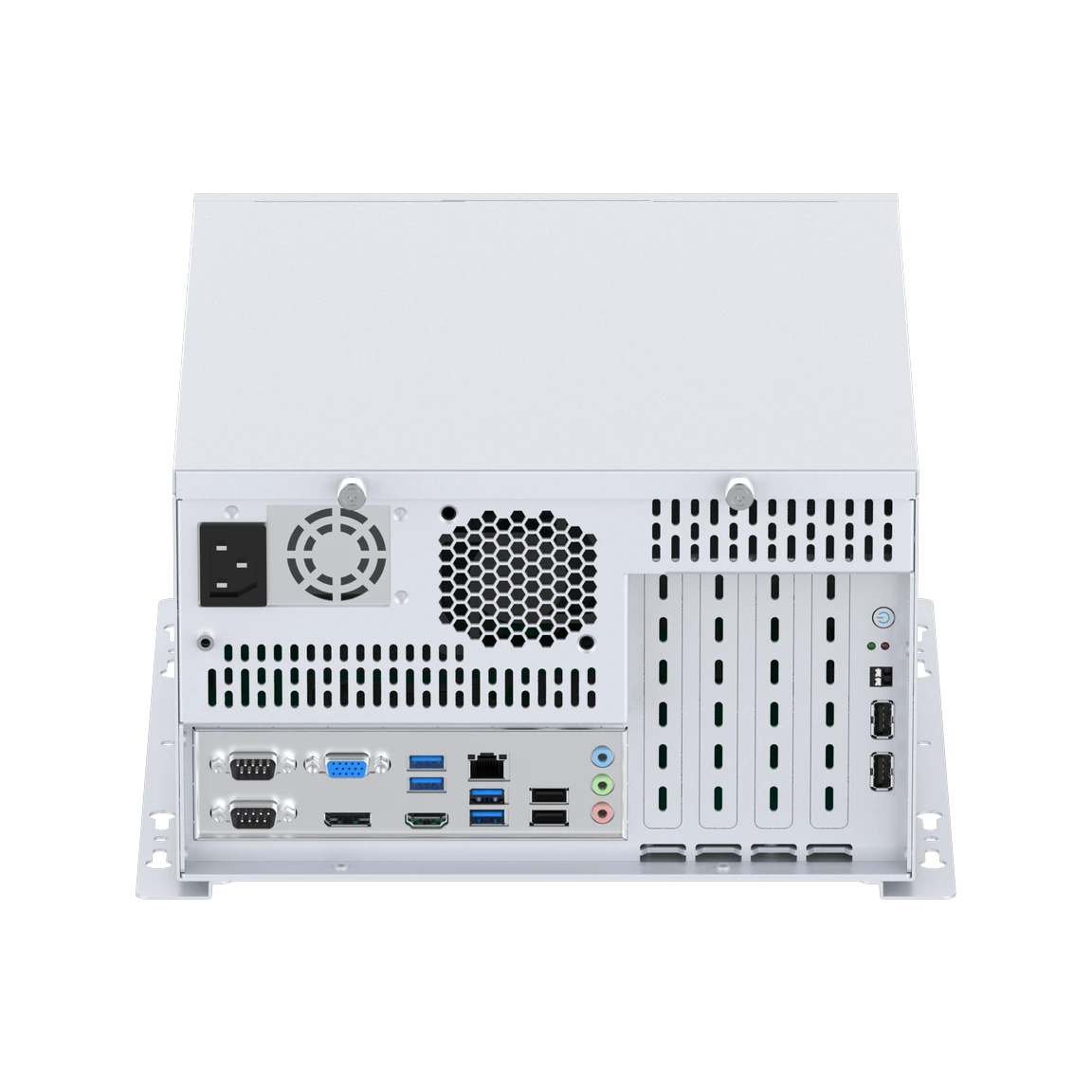

- 1 x PCIe x16 Gen3, 1 x PCIe x4 Gen2 (x2 link), and 2 x PCIe x1 Gen2 expansion slots
- 1 x Intel® i219-V Gigabit Ethernet port
- 1 x RS232/RS485 + 1 x RS232 serial port
- VGA, HDMI, and DisplayPort interfaces with asynchronous dual-display support
- HDMI up to 4096 x 2160@30Hz and DisplayPort up to 4096 x 2160@60Hz
- 4 x USB3.0 + 4 x USB2.0 with built-in USB2.0 dongle support
- 1 x mSATA + 2 x SATA3.0 with 1 x 2.5″ and 1 x 3.5″ drive bays
- IPC-615G4-H110-P300 with 300W AC100-240V, 50-60Hz power supply
- IPC-615G4-H110-P400 with 400W AC200-240V, 50-60Hz power supply

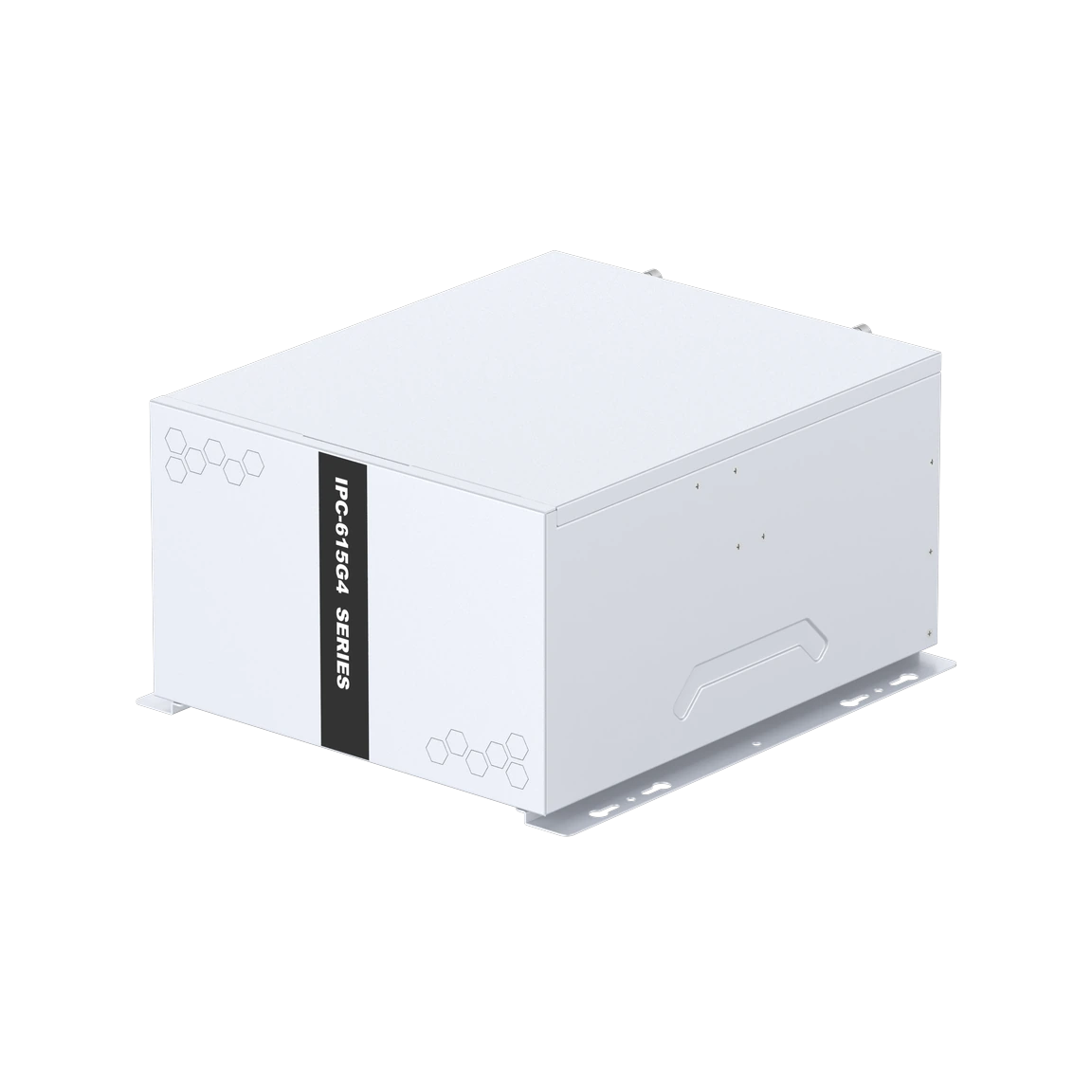

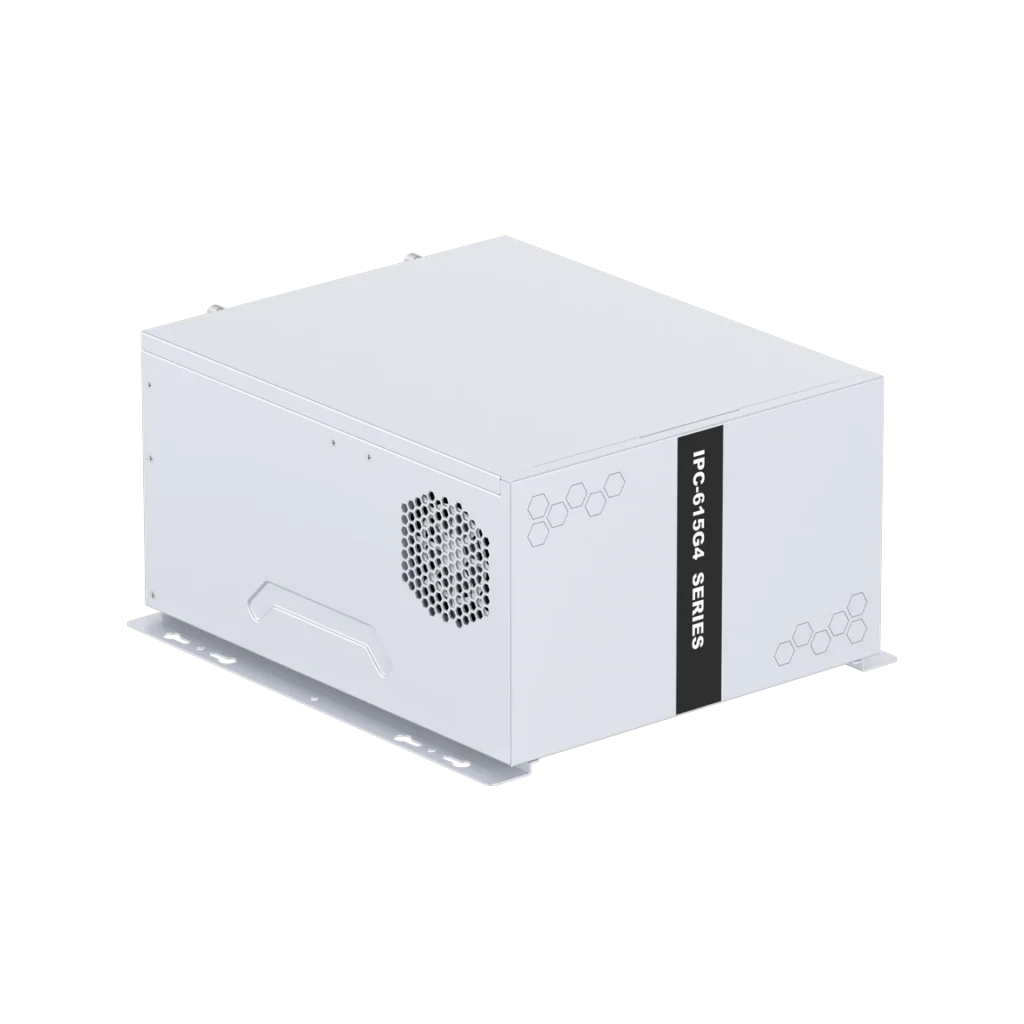

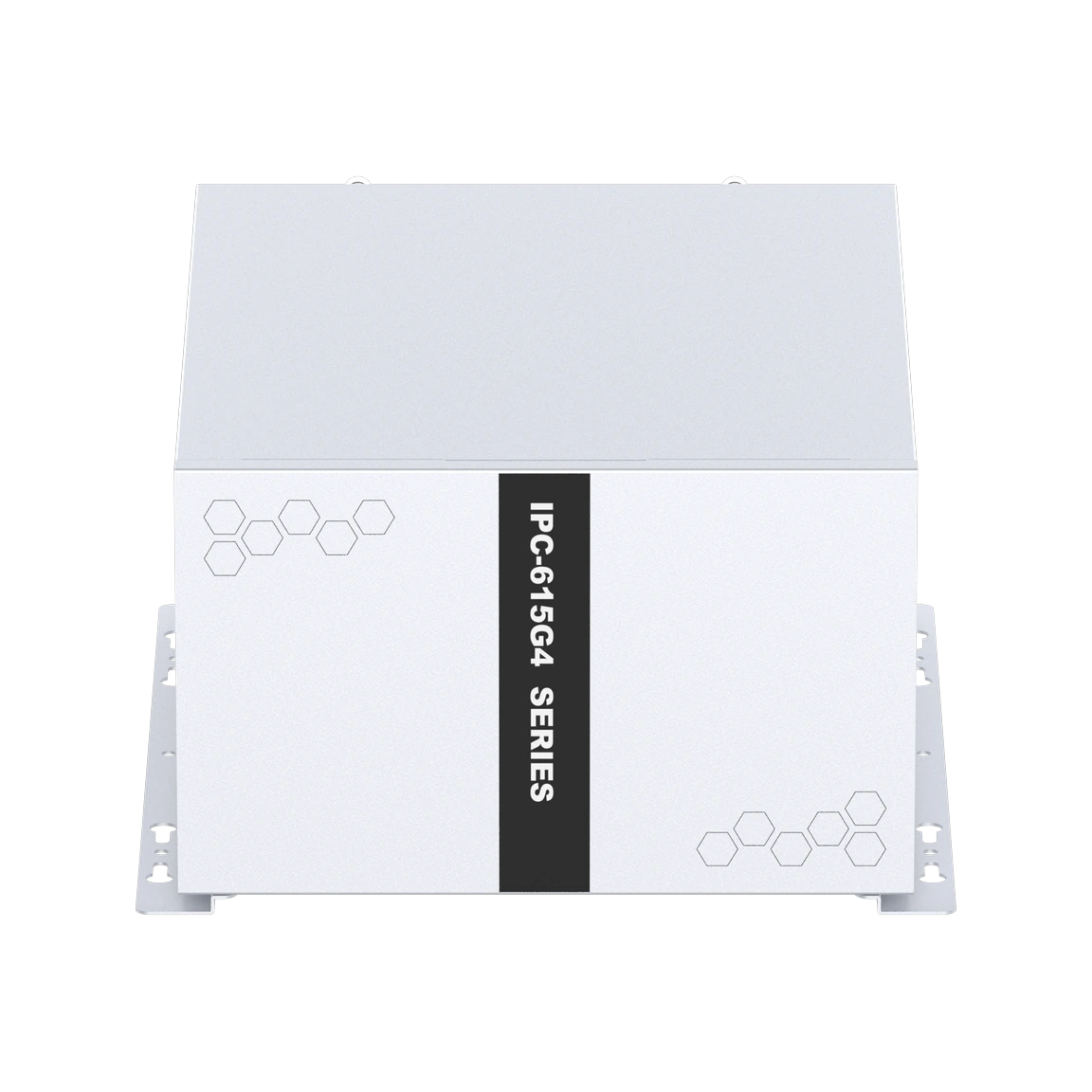

- Compact all-steel tower/wallmount chassis measuring 370 x 300 x 167mm
- 0°C to 45°C operating temperature with SSD and CE/FCC Class A compliance
Tower / wall mount Industrial PC Product Information
| Technical Specifications | |
|---|---|
| Model Name | IPC-615G4-H110 |
| System | |
| CPU | Intel® 6th/7th/8th/9th generation Celeron/Pentium/Core-i series processor, TDP up to 95W |
| Chipset | Intel® H110 Chipset |
| Memory | 2 x DDR4 260-pin 1866/2133/2400/2666MHz SO-DIMM slots, up to 64GB |
| Storage | 1 x mSATA, 2 x SATA3.0 (up to 6Gb/s), supports 1 x 2.5" HDD Bay and 1 x 3.5" HDD Bay |
| USB | 4 x USB3.0 (5Gbps), 4 x USB2.0, Built-in USB 2.0 dongle |
| COM | COM1: RS232/RS485, COM2: RS232 |
| LAN | LAN1: Intel i219-V |
| VGA | Highest resolution 1920 x 1080@60Hz, supports asynchronous dual display |
| HDMI | Highest resolution 4096 x 2160@30Hz, supports asynchronous dual display |
| DP | Highest resolution 4096 x 2160@60Hz, supports asynchronous dual display |
| Audio | Realtek ALC897 codec, 1 x Mic-in, 1 x Line-in, 1 x Line-out |
| PCIE | 1 x PCIe x16 (Gen3) slot, 1 x PCIe x4 (Gen2, x2 link) slot, 2 x PCIe x1 (Gen2) slots |
| Watch Dogs | 1-255 levels programmable setting |
| OS Support | |
| OS | Windows 7/8.1 (Only support with Intel 6th Gen. CPU), Windows 10, Linux |
| Power | |
| Input Voltage | 300W: AC100-240V, 50-60Hz 400W: AC200-240V, 50-60Hz |
| Chassis | |
| Structure | All-steel box structure |
| Dimensions | (D)370mm x (W)300mm x (H)167mm |
| Net Weight | 6.7Kg |
| Environment | |
| Work Temperature | 0°C ~ 45°C (Use SSD) |
| Storage Temperature | -20°C ~ 60°C (Use SSD) |
| Relative Humidity | 5~95% RH@40°C, non-condensing |
| Vibration | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis |
| Shock | SSD applied: 10G, IEC 60068-2-27, Half sine wave, lasting 11ms |
| EMC | CE/FCC Class A |
| Ordering Information | ||
|---|---|---|
| Part Number | Model Name | Description |
| B64.615G4.H1.0001 | IPC-615G4-H110-P300 | Barebones: 6/7/8/9 generation CPU / dual memory notebook DDR4 slot / mSATA hard disk bay / 4 PCIe / 1.8M GB power cord included |
| B64.615G4.H1.0002 | IPC-615G4-H110-P400 | Barebones: 6/7/8/9 generation CPU / dual memory notebook DDR4 slot / mSATA hard disk bay / 4 PCIe / 1.8M GB power cord included |
| Options | ||
| CPU | 6500, 7500, 8700, 9500, ... | |
| DDR4 SO-DIMM | 8GB, 16GB, 32GB | |
| 2.5 Solid Hard Drives | 128GB, 256GB, 512GB, ... | |
| mSATA SSD | 256GB, 512GB, 1TB, ... | |
| 3.5 Inch Hard Drive | 1TB, 2TB, 4TB, ... | |
