PANEL5000-A103-T | 10.4" Resistive Touch Industrial Monitor
Fanless 10.4″ industrial monitor with 5-wire resistive touch, 800 × 600 resolution, VGA and HDMI input, USB touch interface, DC 12~24V input, and IP65 front panel for panel or VESA mounting.
- 10.4″ SVGA LCD with 800 × 600 resolution
- 5-wire resistive touch screen for single-point touch input
- 1 x VGA and 1 x HDMI display input
- USB 2.0 Type-B touch interface
- 2 x USB2.0 host ports
- DC 12~24V power input
- Ultra-compact fanless design

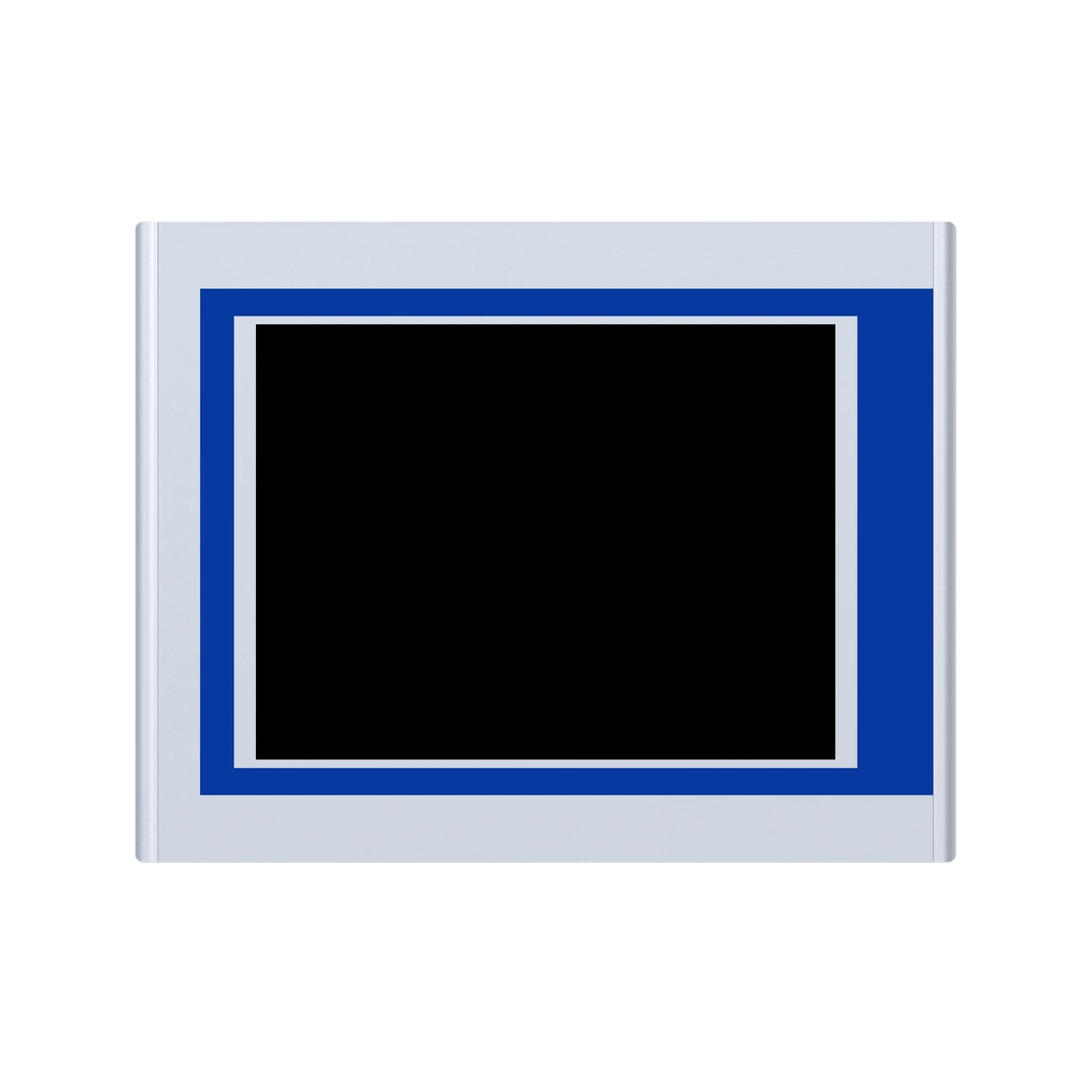

- Front panel IP65 compliant

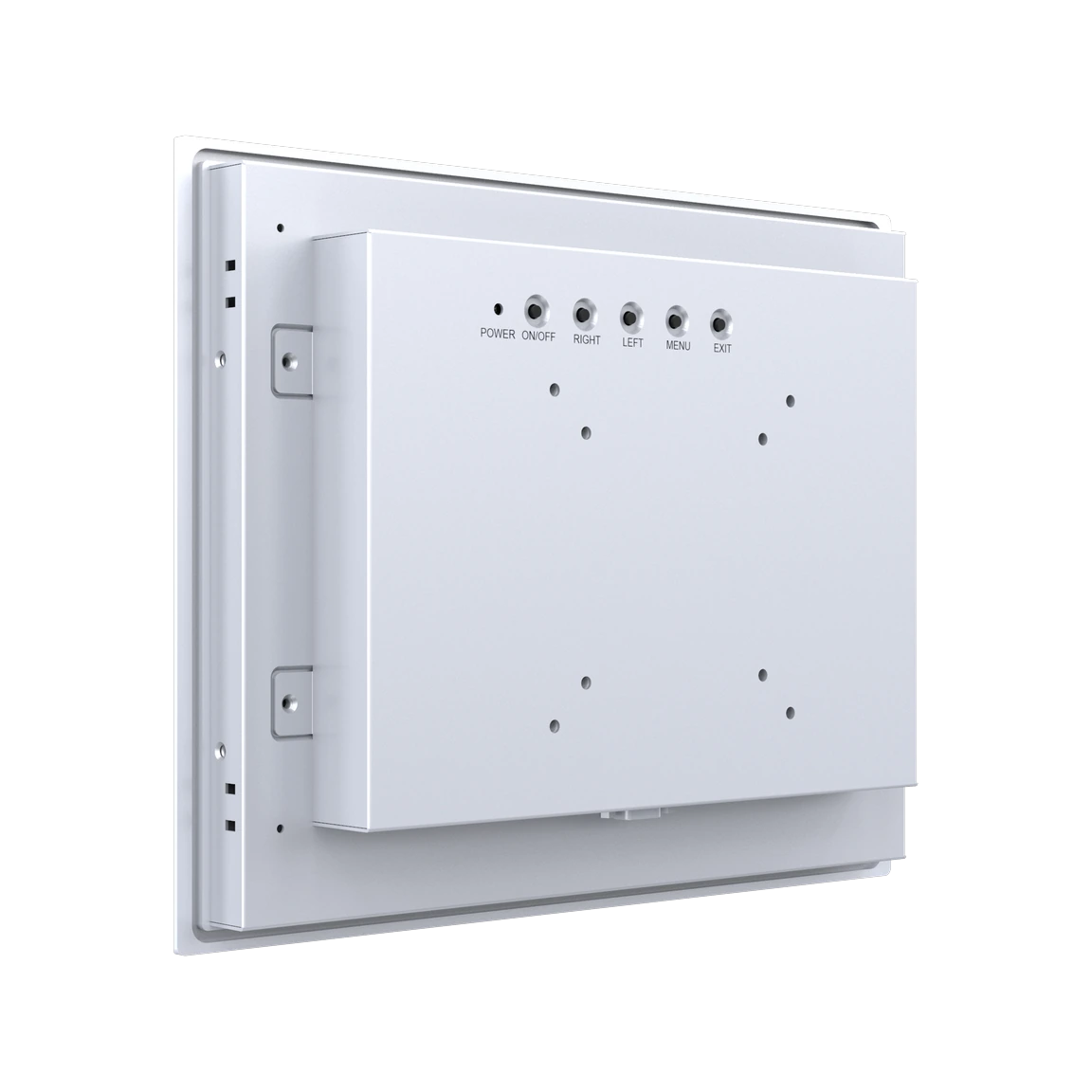

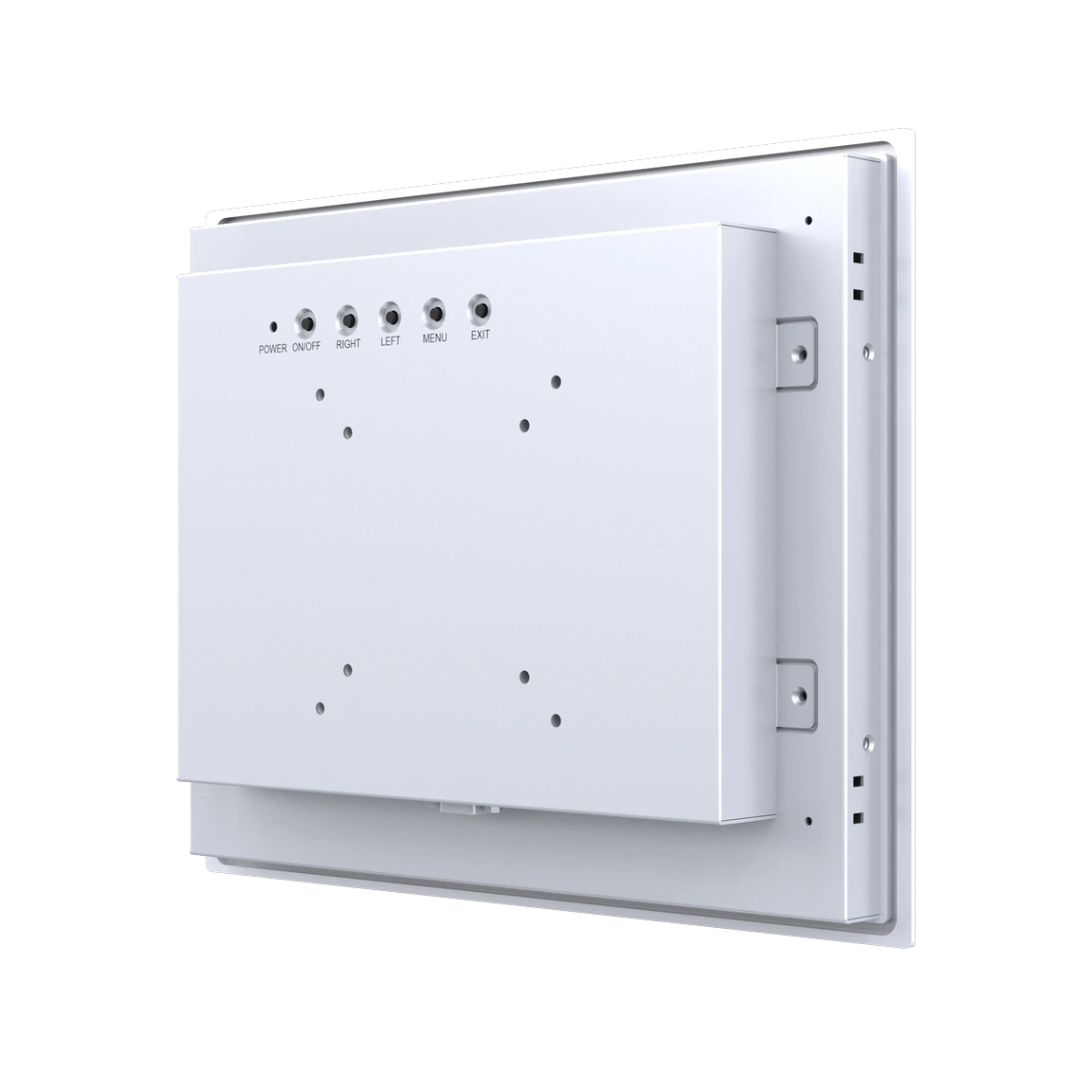

- Supports panel mounting and VESA mounting
- Supports Windows 10 and Linux
Resistive Touch Industrial Monitor Product Information
| Technical Specifications | ||||
|---|---|---|---|---|
| Model Name | PANEL5000-A103-T | |||
| General | ||||

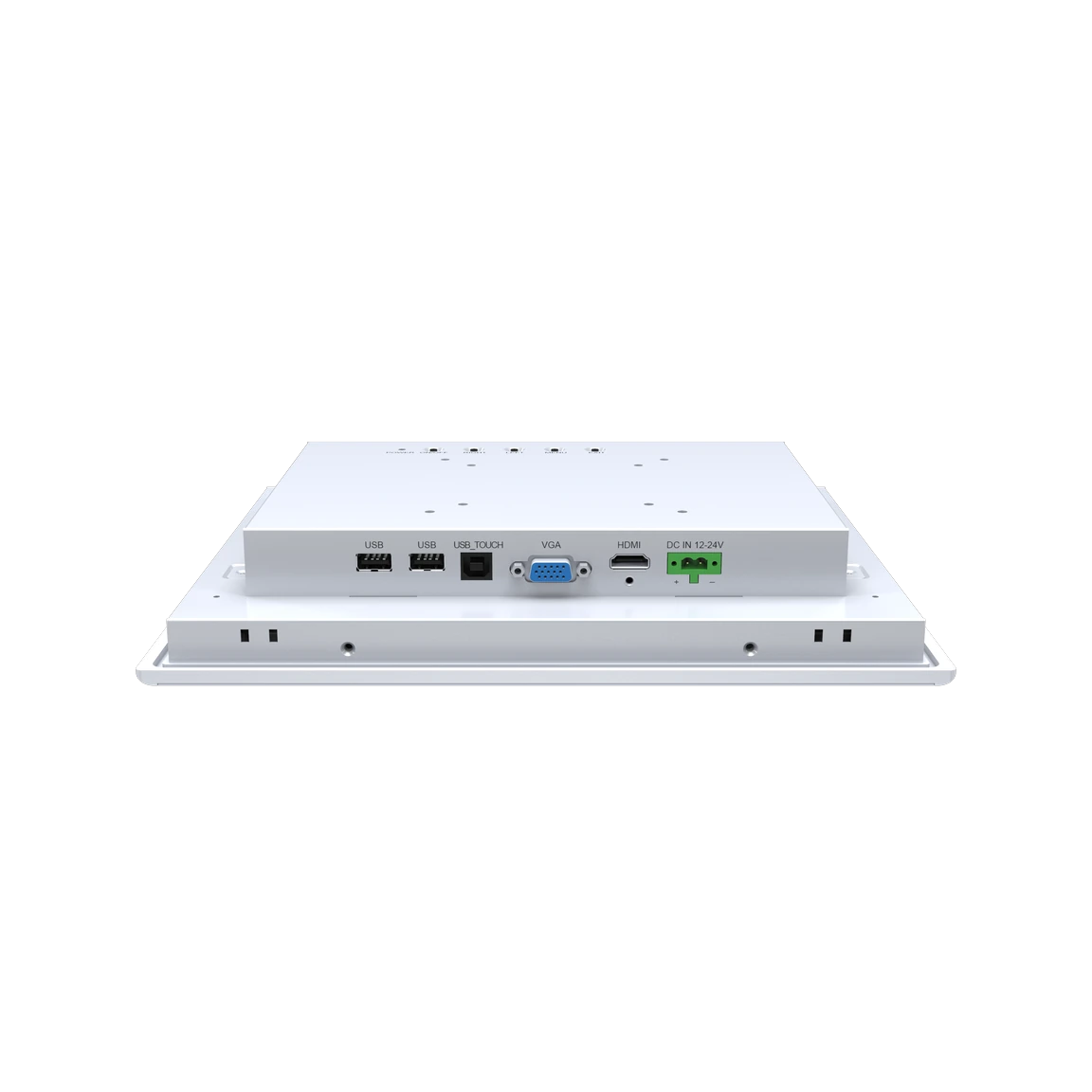

| I/O Port | 1 × VGA; 1 × HDMI; 2 × USB2.0; 1 × USB-B; 1 × DC IN | |||
| Operating System | Windows 10, Linux | |||
| Dimensions (W × H × D) | 301mm × 235mm × 50mm | |||
| Cut-out Size (W × H) | 282mm × 222mm | |||
| Box Structure | Ultra-compact and fanless design, front panel IP65 compliant | |||
| Mounting Support | Panel mount, VESA mount | |||
| Power Supply | DC 12~24V | |||
| Power Dissipation | Max Power Consumption <45 Watt | |||
| Net Weight | 2.6 kg | |||
| LCD | ||||
| LCD Size | 10.4" SVGA | |||
| Resolution | 800 × 600 | |||
| MTBF | 30000 hours | |||
| Luminance | 350 cd/m2 | |||
| Contrast Ratio | 500 : 1 | |||
| Viewing Angle | (L)70 / (R)70 / (T)60 / (B)70 | |||
| Touchscreen | ||||
| Type | Resistive touch screen | |||
| Transmittance | ≥ 75% | |||
| Controller Interface | USB 2.0 Type B | |||
| Environmental | ||||
| Operating Temperature | 0°C ~ 50°C | |||
| Storage Temperature | -20°C ~ 60°C | |||
| Relative Humidity | 5~95% @40°C (non-condensing) | |||
| Vibration Resistance | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis | |||
| Shock Resistance | SSD applied: 10G, IEC 60068-2-27, half sine wave, lasting 11ms | |||
| EMC | CE/FCC Class B | |||
| Ordering Information -- PANEL5000-A103-T | |
|---|---|
| Model Name | Description |
| PANEL5000-A103-T | 10.4" LCD / 800×600 / 1 × VGA / 1 × HDMI / Resistive touch screen / USB / DC 12-24V input |
| Options | |
| Mounting Screws | 4 pcs, thickness = 1mm ~ 1.2mm |
| Terminal | 2-pin Phoenix terminal |
| VGA Cable | 1.8M / 3M / 5M |
| USB Cable | 1.8M / 3M / 5M |
| DVI Cable | 1.8M / 3M / 5M |
| Adapter | 12V / 3.33A / 40W, 2-pin Phoenix terminal |
| Power Cord | 1.8M / 3M / 5M |
