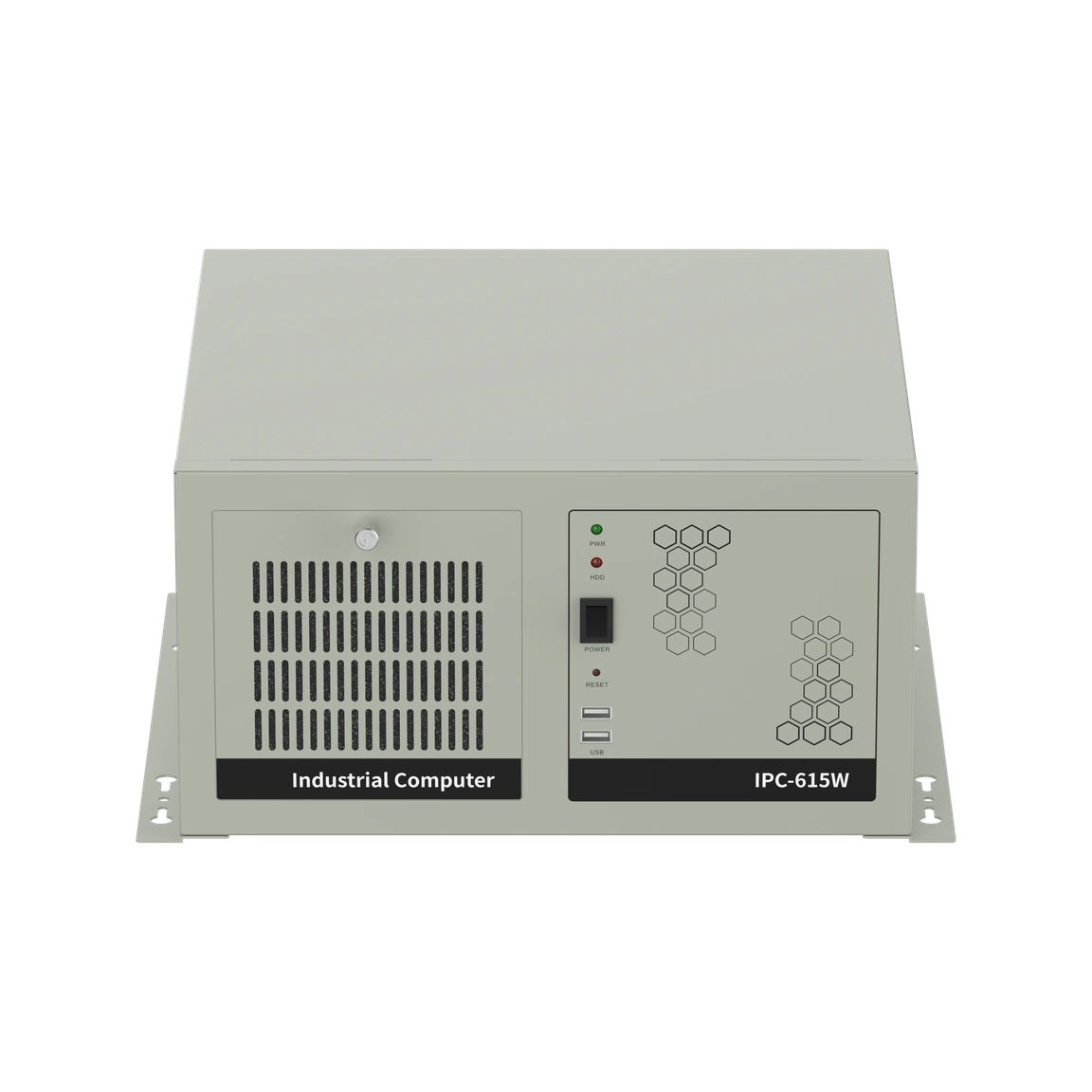

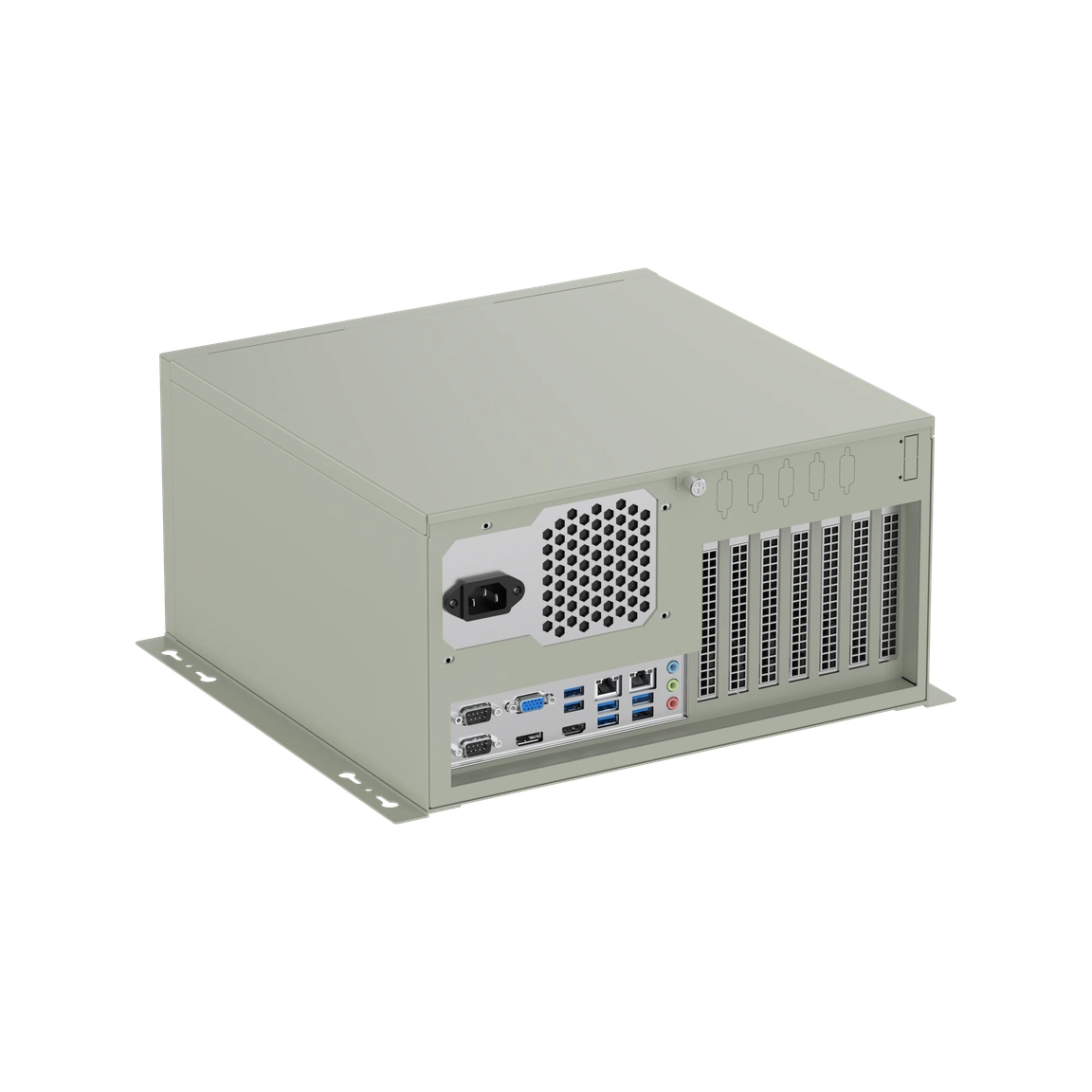

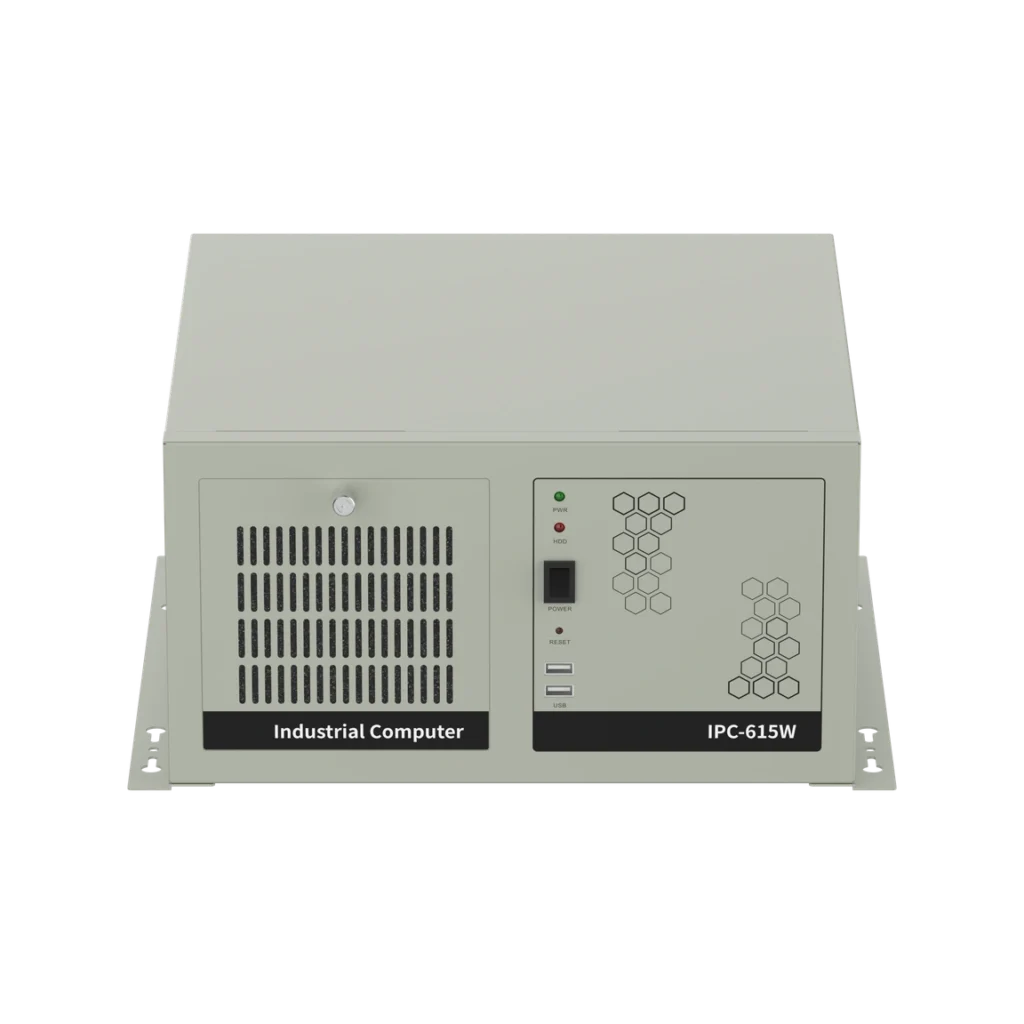

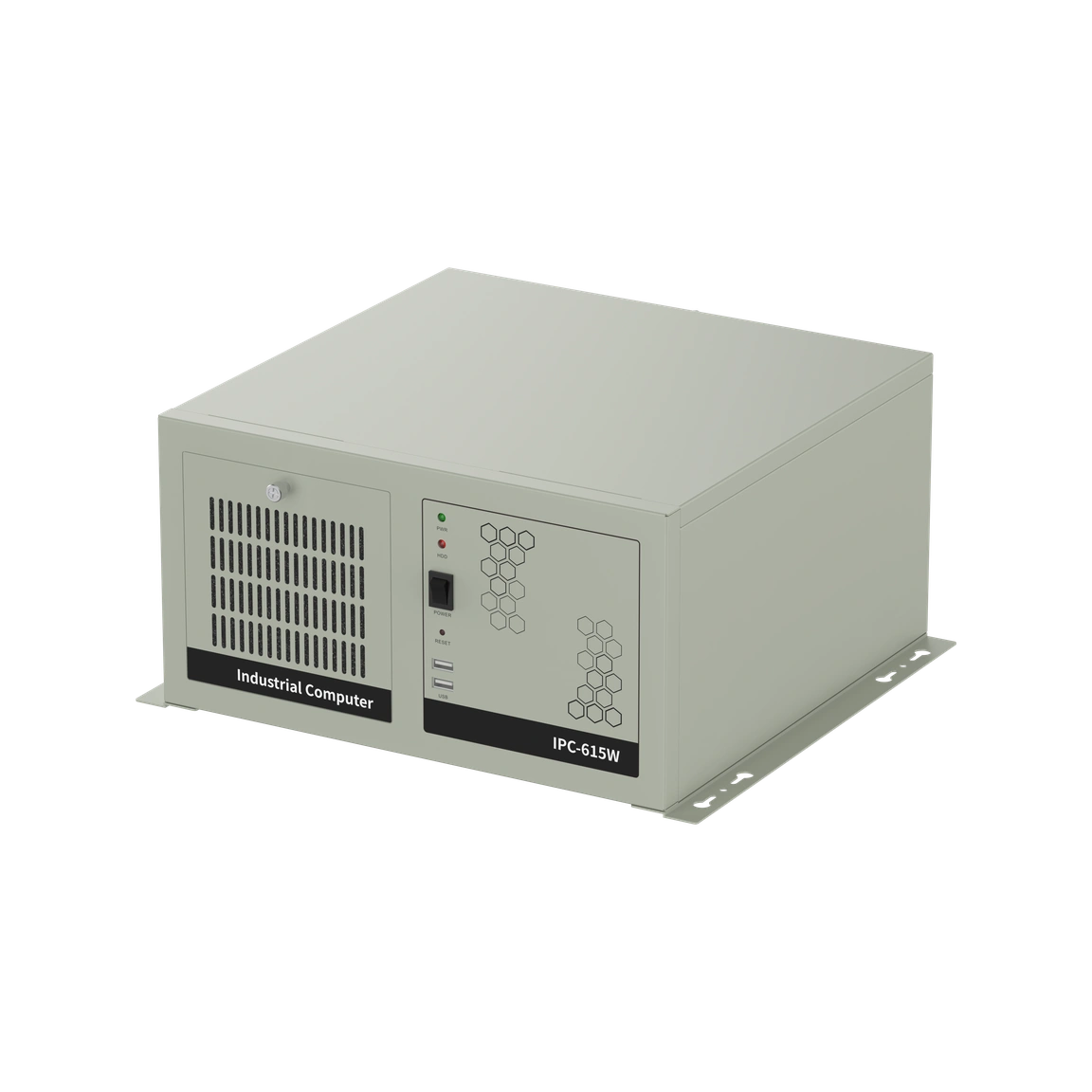

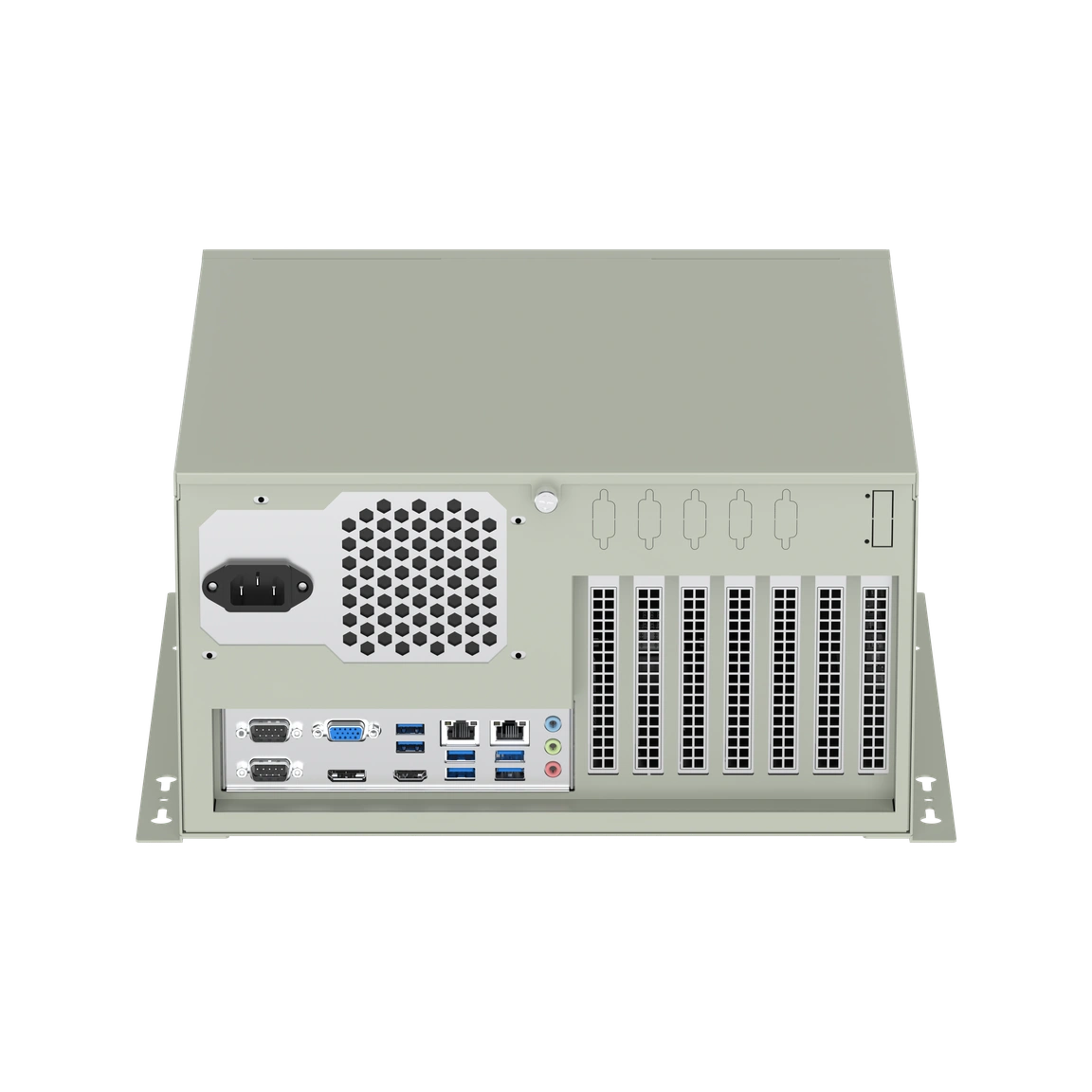

IPC-615W-Q170 | High-Expansion Tower Industrial PC
Q170 tower/wallmount industrial PC with 5 PCIe + 2 PCI slots, triple display, dual Ethernet, 6 COM capability, and RAID storage for industrial automation.
Features
- Intel® Q170 chipset with 6th-9th Gen processor support up to 95W
- Up to 64GB DDR4 SO-DIMM memory
- 2 x PCIe x16 Gen3 slots with default dual x8 links
- 3 additional PCIe expansion interfaces plus 2 legacy PCI slots
- Dual Intel® Gigabit Ethernet
- Up to 6 COM interfaces including 2 x RS232/RS485
- VGA, HDMI, and DisplayPort asynchronous triple display
- M.2 SATA + 2 x SATA3.0 with RAID 0/1
- 6 x USB3.0 + 2 x USB2.0
Tower / wall mount Industrial PC Product Information
| Technical Specifications | |
|---|---|
| Model Name | IPC-615W-Q170 |
| System | |
| CPU | Intel® 6th/7th/8th/9th generation Celeron/Pentium/Core-i series processor, TDP up to 95W |
| Chipset | Intel® Q170 Chipset |
| Memory | 2 x DDR4 260-pin 1866/2133/2400/2666MHz SO-DIMM slots, up to 64GB |
| Storage | 1 x M.2 2242/2280 Key M slot (SATA3.0 signal) 2 x SATA3.0 (up to 6Gb/s), supports RAID 0/1 |
| USB | 6 x USB3.0 (5Gbps), 2 x USB2.0, built-in USB2.0 dongle |
| COM | COM1-2: RS232/RS485; extensible COM3-6: RS232 |
| LAN | LAN1: Intel i219-V LAN2: Intel i210AT |
| VGA | Highest resolution 1920 x 1080@60Hz, supports asynchronous triple display |
| HDMI | Highest resolution 4096 x 2160@30Hz, supports asynchronous triple display |
| DP | Highest resolution 4096 x 2160@60Hz, supports asynchronous triple display |
| Audio | Realtek ALC897 codec, 1 x Mic-in, 1 x Line-in, 1 x Line-out |
| PCI | 2 x PCI (32-bit) |
| PCIe | 2 x PCIe x16 Gen3 slots (default 2 x8 link) 2 x PCIe x4 Gen3 slots 1 x PCIe x4 Gen3 slot (x1 link) |
| Watch Dogs | 1-255 levels programmable setting |
| OS Support | |
| OS | Windows 7/8.1 (only supported with Intel 6th Gen CPU), Windows 10, Linux |
| Power | |
| Input Voltage | AC220V, 50-60Hz |
| Chassis | |
| Structure | All-steel box structure |

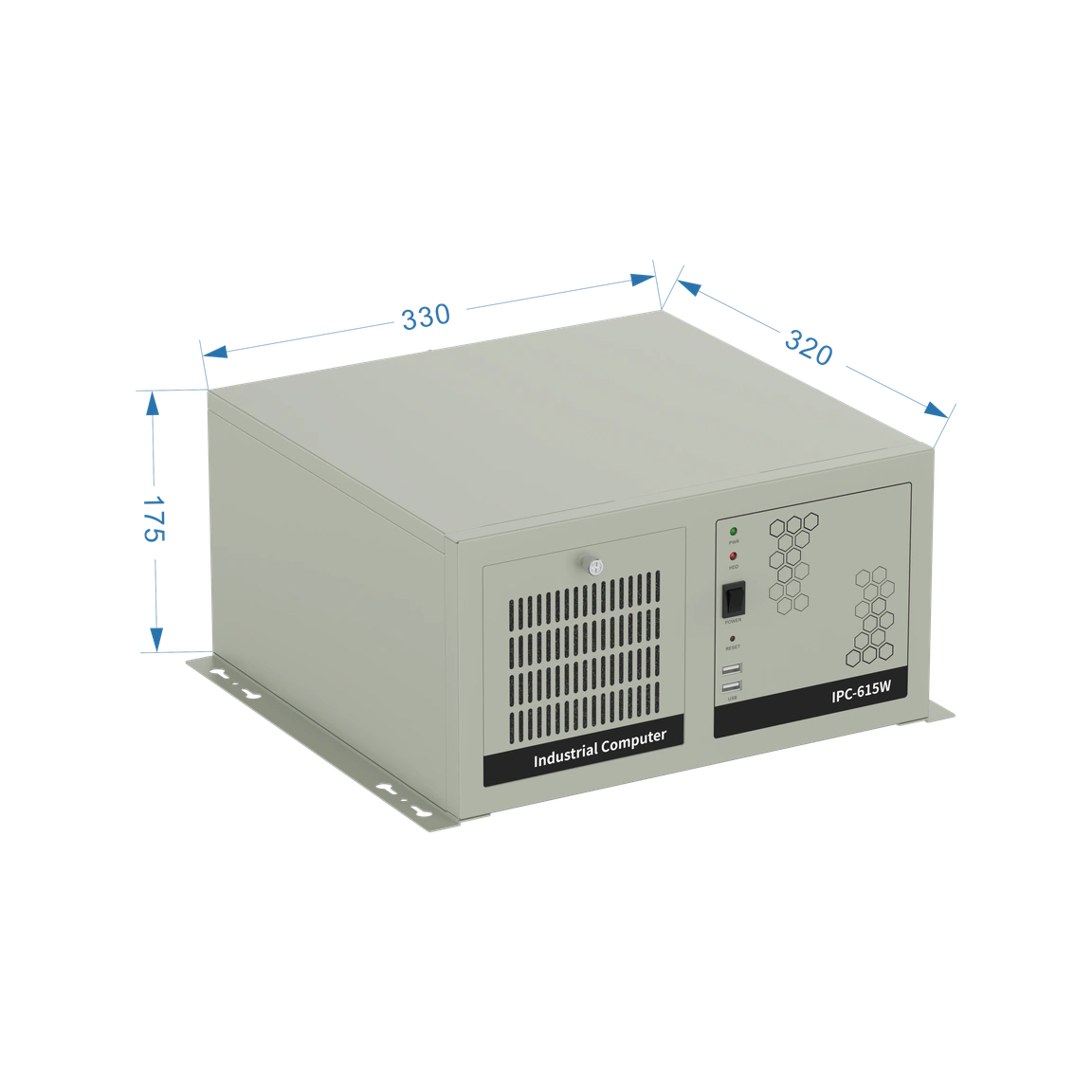

| Dimensions | (D)320mm x (W)369.8mm x (H)177.6mm |
| Net Weight | 8Kg |
| Environment | |
| Work Temperature | 0°C ~ 45°C (Use SSD) |
| Storage Temperature | -20°C ~ 60°C (Use SSD) |
| Relative Humidity | 5~95% RH@40°C, non-condensing |
| Vibration | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis |
| Shock | SSD applied: 10G, IEC 60068-2-27, half sine wave, lasting 11ms |
| EMC | CE/FCC Class A |
| Ordering Information | ||
|---|---|---|
| Part Number | Model Name | Description |
| / | IPC-615W-Q170 | Barebones: 6/7/8/9 generation CPU / dual memory notebook DDR4 slot / M.2 hard disk bay / 5 PCIe / 2 PCI / 1.8M GB power cord included |
