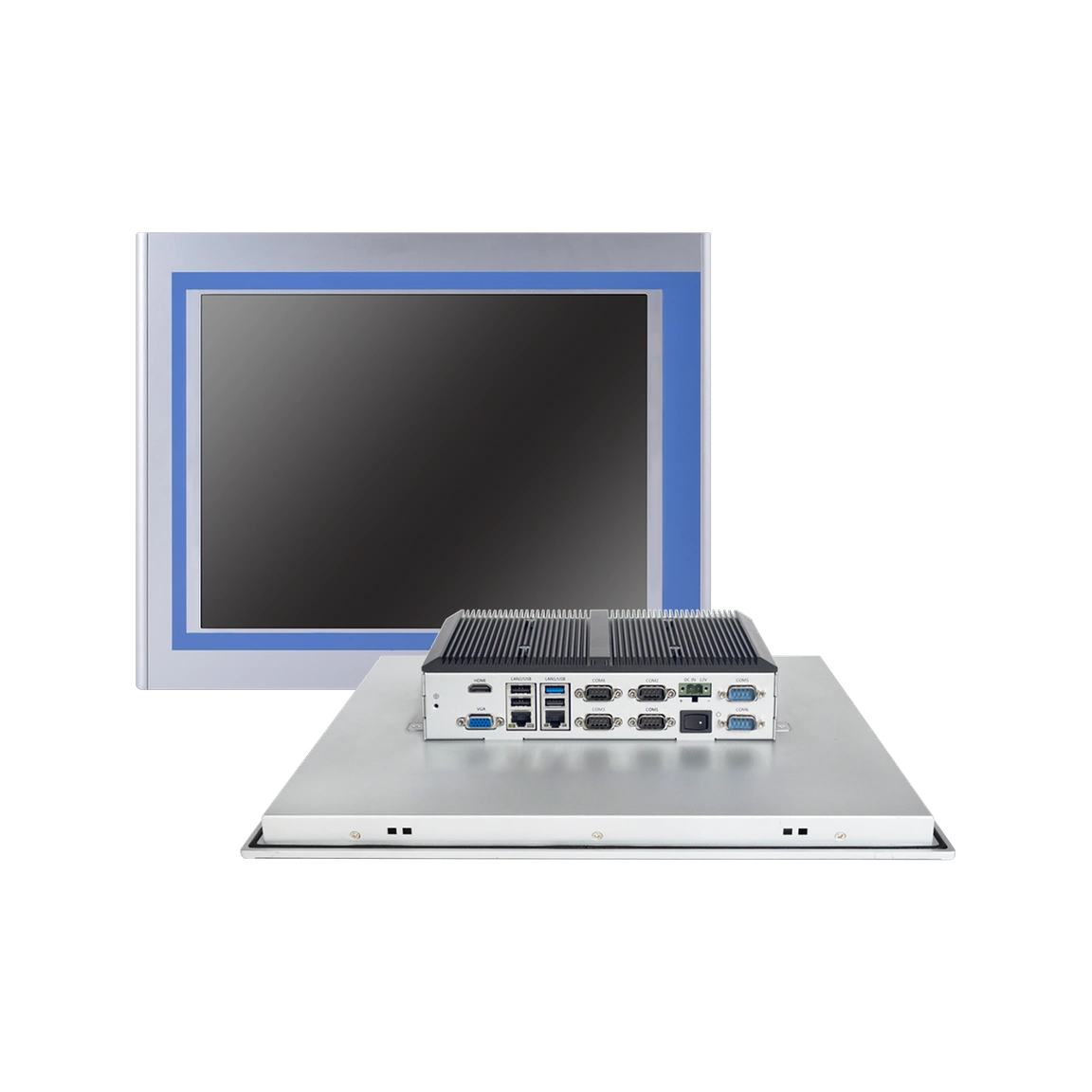

TPC6000-A152-T | 15" Resistive Touch Industrial Panel PC
Fanless 15″ XGA industrial Panel PC with Intel® Celeron® J1900, resistive touch, 6 × COM, dual GbE, 5 × USB, VGA/HDMI, Mini-PCIe, SATA + mSATA storage, front IP65 protection, and DC 12V input.
Features
- 15" XGA TFT LCD with 1024 × 768 resolution
- Intel® Celeron® J1900 quad-core 2.0GHz processor
- 1 × DDR3L-1333MHz SODIMM, supporting up to 8GB memory
- Resistive touch screen with USB controller interface
- 350cd/m² luminance and 700:1 contrast ratio
- 6 × RS-232 serial ports; COM1 configurable to RS-485
- COM5 and COM6 support optional RS-485 via add-on module
- 2 × Realtek Gigabit Ethernet RJ-45 ports
- 1 × USB3.0 and 4 × USB2.0
- 1 × VGA and 1 × HDMI display outputs
- 1 × 2.5" SATA bay plus 1 × mSATA storage interface
- 1 × Mini-PCIe slot for optional 4G/3G or Wi-Fi expansion
- Ultra-compact fanless chassis with front panel IP65 protection
- Supports panel mounting and VESA mounting
- DC 12V input with maximum power consumption below 60W
Resistive Touch Panel PC Product Information
| Technical Specifications -- TPC6000-A152-T | |
|---|---|
| Model Name | TPC6000-A152-T |
| System | |
| CPU | Intel® Celeron® J1900, Quad Core 2.0GHz |
| Memory | 1 x 204-pin SODIMM DDR3L-1333MHz, support up to 8GB |
| Storage | 1 x 2.5" SATA bay + 1 x mSATA |
| USB | 1 x USB3.0, 4 x USB2.0 |
| COM | 6 x RS-232 (COM1 can jumper to RS-485, COM5 and COM6 optional RS-485 by add-on module) |
| LAN | 2 x Realtek 1000Mbps RJ-45 |

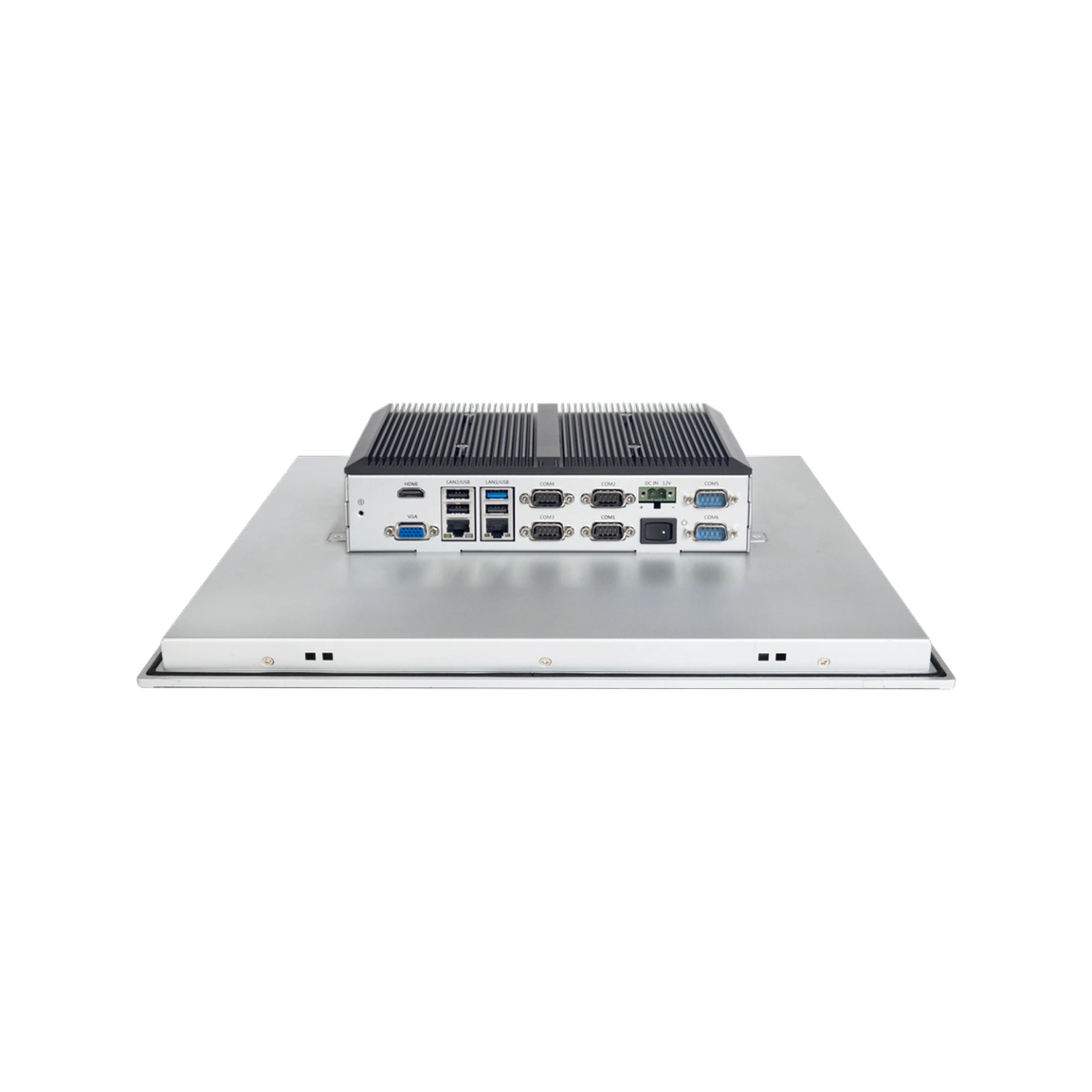

| Rear I/O | 1 x VGA / 1 x HDMI / 2 x GLAN / 5 x USB / 6 x COM |
| Expansion Slot | 1 x Mini-PCIe slot, expandable 4G/Wi-Fi |
| LCD | |
| LCD Size | 15" XGA |
| Resolution | 1024 x 768 |
| Luminance | 350cd/m² |
| MTBF | 50000hrs |
| Contrast Ratio | 700:1 |
| Viewing Angle | (L) 80 / (R) 80 / (T) 80 / (B) 80 |
| Touch Screen | |
| Type | Resistive touch screen |
| Transmittance | > 78% |
| Controller Interface | USB |
| OS | |
| OS Support | Microsoft Windows 7, Windows 10, Linux |
| Power | |
| Input Voltage | DC 12V |
| Maximum Power | <60Watt |
| Chassis | |
| Structure | Ultra-compact and fanless design, front panel IP65 compliant |
| Dimensions (W x H x D) | 373mm x 297mm x 82mm |
| Cut Out Size (W x H) | 376mm x 300mm |
| Net Weight | 4.83kg |
| Environment | |
| Work Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |
| Relative Humidity | 5~95% @40ºC (non-condensing) |
| Vibration | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis |
| Shock | SSD applied: 10G, IEC 60068-2-27, half sine wave, lasting 11ms |
| EMC | CE/FCC Class B |
| Ordering Information -- TPC6000-A152-T | |
|---|---|
| Model Name | Description |
| TPC6000-A152-T | 15" LCD / Intel® J1900 Quad Core 2.0GHz CPU / No Memory / No Hard / 6 x RS-232 (COM1, RS-485 optional) / 2 x LAN / 1 x USB3.0 / 4 x USB2.0 / Resistive touch screen / 1024 x 768 / DC12V input |
| Option Items | |
| Expansion Card | 4G/3G module (optional EC20, EC25, EG25...) -- Mini-PCIe |
| DDR3L | 4GB, 8GB |
| mSATA | 128GB, 256GB, 512GB... |
| SATA (2.5") | 128GB, 256GB, 512GB... |
| Note | |
| System Compatibility | If the system provides some optional parts, additional certification of system compatibility may be required in some regions/countries. Please contact NODKA for system compatibility. |
