Multi-Touch Panel PC TPC6000-CXXX3 Series
TPC6000-C1043-LH
10.4″ SVGA capacitive multi-touch fanless industrial Panel PC with Intel® J1900/J6412/N97/N305, dual GbE, 4×USB, 2×COM, VGA & DVI, DC12–24V input, and IP65 front; supports panel and VESA mounting.
TPC6000-C123-LH
12.1″ XGA capacitive multi-touch fanless industrial Panel PC with Intel® J1900/J6412/N97/N305, dual GbE, 4×USB, 2×COM, VGA & DVI, DC12–24V input, front panel IP65, and panel/VESA mounting. Ideal for rugged HMI and control applications.

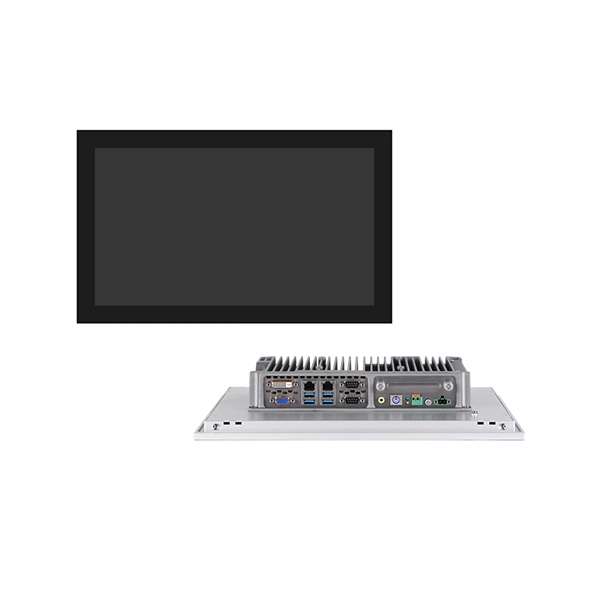

TPC6000-C123W-L
12.3″ WXGA capacitive multi-touch fanless industrial Panel PC with Intel® J1900/J6412/N97/N305 options, dual GbE, 4×USB, 2×COM, VGA & DVI, DC12–24V input, and IP65 front panel for panel/VESA mount deployments.
TPC6000-C153-L
15″ XGA capacitive multi-touch fanless industrial Panel PC with Intel® J1900/J6412/N97/N305 options, dual GbE, 4×USB, 2×COM, VGA & DVI, DC12–24V input, and IP65 front panel for panel/VESA mount deployments.
TPC6000-C1563-L
15.6″ WXGA capacitive multi-touch fanless industrial Panel PC with Intel® J1900/J6412/N97/N305 CPU options, dual GbE, 4×USB, 2×COM, VGA & DVI, DC12–24V input, and IP65-rated front; supports panel and VESA mounting.
TPC6000-C1563-LH
15.6″ FHD (1920×1080) capacitive multi-touch fanless industrial Panel PC with Intel® J1900/J6412/N97/N305 options, dual GbE, 4×USB, 2×COM, VGA & DVI, DC 12–24V input, and IP65 front for panel/VESA mounting.
TPC6000-C173-L
17″ SXGA capacitive multi-touch fanless industrial Panel PC with Intel® J1900/J6412/N97/N305, dual GbE, 4×USB, 2×COM, VGA & DVI, DC12–24V input, front panel IP65, and support for both panel and VESA mounting .
TPC6000-C1853W-L
18.5″ WXGA capacitive multi-touch fanless industrial Panel PC with Intel® J1900/J6412/N97/N305 options, dual GbE, 4×USB, 2×COM, VGA & DVI, DC12–24V input, and IP65-rated front; supports panel and VESA mounting.
TPC6000-C1853W-LH
18.5″ Full HD (1920×1080) capacitive multi-touch fanless industrial Panel PC with Intel® J1900/J6412/N97/N305 options, dual GbE, 4×USB, 2×COM, VGA & DVI, DC 12–24V input, and IP65 front; supports panel and VESA mounting.
TPC6000-C193-L
19″ SXGA capacitive multi-touch fanless industrial Panel PC with Intel® J1900/J6412/N97/N305 options, dual GbE, 4×USB, 2×COM, VGA & DVI, DC12–24V input, and IP65 front for panel/VESA mount deployments.
TPC6000-CXXX3 Panel PC Series Features
The TPC6000-CXXX3 Panel PC Series offers fanless multi-touch designs with screen sizes ranging from 10.4" to 21.5". They support Intel® J1900, J6412, N97, and i3-N305 processors, combined with DDR3L/DDR4 memory. Standard features include dual Intel® Gigabit LAN, up to 6 COM ports, multiple USB ports, and Mini-PCIe expansion for wireless modules. Storage options include mSATA and SSD support. A wide 12–24V DC input ensures flexibility, while IP65-rated front panels provide dust and water resistance. Capacitive multi-touch screens and panel/VESA mounting options make them suitable for industrial environments.
Show More
Application Areas
The TPC6000-CXXX3 series is designed for industrial automation, machine vision, and IIoT applications. They are widely used in SCADA and PLC interfaces, production line HMIs, robotics and AGV/AMR systems, energy monitoring, logistics kiosks, and cleanroom medical or pharmaceutical equipment. Their fanless design ensures reliable operation in harsh and continuous-use environments.
| Model | Screen Size | Resolution | CPU Support | LAN | Serial / USB | Expansion & Storage | Mounting |
|---|---|---|---|---|---|---|---|
| TPC6000-C1043 | 10.4" | 1024 × 768 (XGA) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C123 | 12.1" | 1024 × 768 (XGA) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C123W | 12.1" | 1280 × 800 (WXGA) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C153 | 15" | 1024 × 768 (XGA) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C1563 | 15.6" | 1366 × 768 (HD) / 1920 × 1080 (FHD) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C173 | 17" | 1280 × 1024 (SXGA) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C1853W | 18.5" | 1920 x 1080 (FHD) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C193 | 19" | 1280 × 1024 (SXGA) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C2153W | 21.5" | 1920 × 1080 (FHD) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
