Multi-Touch Panel PC TPC6000-CXXX4 Series

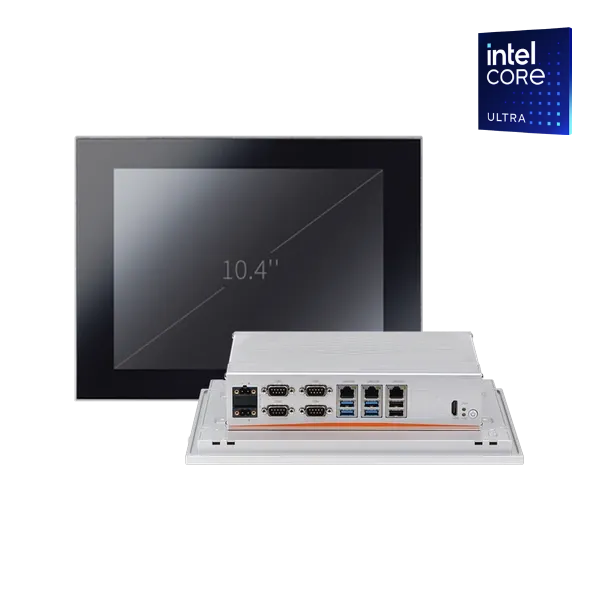

TPC6000-C104
10.4” 1024×768 XGA industrial panel PC with capacitive touchscreen, Intel Core i3/i5/i7 support, active cooling with fan, up to 32GB DDR4, max 65W TDP CPU, 3 or 5 LAN, 4 COM, 6 USB, 8DI/8DO, M.2 & mSATA, DC12~24V input, IP65 front panel
TPC6000-C104 Fanless
10.4” XGA 1024×768 fanless industrial panel PC with capacitive touchscreen, Intel Core i3/i5/i7 support, up to 32GB DDR4, max 35W TDP CPU, 3 or 5 LAN, 4 COM, 6 USB, 8DI/8DO, M.2 & mSATA, DC12~24V input, IP65 front panel

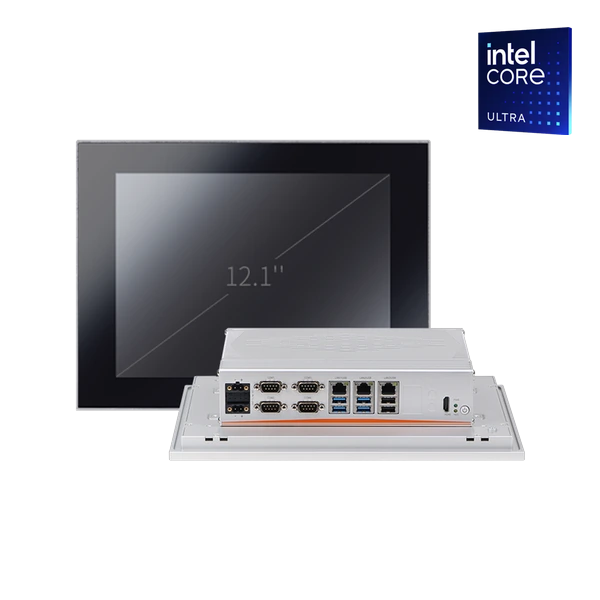

TPC6000-C124
12.1” XGA 1024×768 industrial panel PC with capacitive touchscreen, Intel Core i3/i5/i7 support, active cooling with fan, up to 32GB DDR4, 3 or 5 LAN, 4 COM, 6 USB, 8DI/8DO, M.2 & mSATA, DC12~24V input, IP65 front panel
TPC6000-C124 Fanless
12.1” XGA 1024×768 fanless industrial panel PC with capacitive touchscreen, Intel Core i3/i5/i7 support, up to 32GB DDR4, max 35W TDP CPU, 3 or 5 LAN, 4 COM, 6 USB, 8DI/8DO, M.2 & mSATA, DC12~24V input, IP65 front panel
TPC6000-C124W
12.1” 1280×800 widescreen industrial panel PC with capacitive touchscreen, Intel Core i3/i5/i7 support, up to 32GB DDR4, max 65W TDP CPU, 3 or 5 LAN, 4 COM, 6 USB, 8DI/8DO, M.2 & mSATA, DC12~24V input, IP65 front panel
TPC6000-C124W Fanless
12.1” 1280×800 widescreen fanless industrial panel PC with capacitive touchscreen, Intel Core i3/i5/i7 support, up to 32GB DDR4, max 35W TDP CPU, 3 or 5 LAN, 4 COM, 6 USB, 8DI/8DO, M.2 & mSATA, DC12~24V input, IP65 front panel
TPC6000-C154
15” XGA 1024×768 industrial panel PC with capacitive touchscreen, Intel Core i3/i5/i7 support, up to 32GB DDR4, max 65W TDP CPU, 3 or 5 LAN, 4 COM, 6 USB, 8DI/8DO, M.2 & mSATA, DC12~24V input, IP65 front panel
TPC6000-C154 Fanless
15” XGA 1024×768 fanless industrial panel PC with capacitive touchscreen, Intel Core i3/i5/i7 support, up to 32GB DDR4, max 35W TDP CPU, 3 or 5 LAN, 4 COM, 6 USB, 8DI/8DO, M.2 & mSATA, DC12~24V input, IP65 front panel
TPC6000-C1564
15.6” 1366×768 widescreen industrial panel PC with capacitive touchscreen, Intel Core i3/i5/i7 support, up to 32GB DDR4, max 65W TDP CPU, 3 or 5 LAN, 4 COM, 6 USB, 8DI/8DO, M.2 & mSATA, DC12~24V input, IP65 front panel
TPC6000-C1564 Fanless
15.6” widescreen 1366×768 fanless industrial panel PC with capacitive touchscreen, Intel Core i3/i5/i7 support, up to 32GB DDR4, max 35W TDP CPU, 3 or 5 LAN, 4 COM, 6 USB, 8DI/8DO, M.2 & mSATA, DC12~24V input, IP65 front panel
TPC6000-CXXX4 Panel PC Series Features
The TPC6000-CXXX4 series features industrial-grade multi-touch panel PCs ranging from 10.4" to 23.8". They are powered by Intel® Core™ i3/i5/i7 processors (6th–11th Gen) with DDR4 memory support. Connectivity includes up to 5× GbE LAN ports, multiple RS232/RS485 serial ports, USB 3.0/2.0, and HDMI. Integrated 8-bit GPIO/DIO provides flexible digital input/output control for sensors, relays, and machine status monitoring, enhancing adaptability in automation workflows. Expansion-friendly interfaces such as PCIe, and multiple I/O ports make the TPC6000-CXXX4 Series an ideal solution for industrial automation, machine vision, robotics, and IIoT edge computing. The systems support wide 12–24V DC input and include protection features such as IP65 front panel sealing and fanless thermal design, enabling operation in harsh environments and wide temperature ranges.
Show More
Application Areas
The TPC6000-CXXX4 series is designed for industrial automation, smart manufacturing, robotics, and machine vision. Typical uses include SCADA and MES systems, PLC and CNC integration, IoT gateways, AGV/AMR operator panels, energy monitoring, and medical equipment interfaces. With ruggedized design and flexible mounting options, these panel PCs are suitable for factory automation, transportation control, utilities, kiosks, and other demanding industrial HMI applications.
| Model | Screen Size | Resolution | CPU Support | LAN | Serial | DIO | Expansion & Storage | Mounting |
|---|---|---|---|---|---|---|---|---|
| TPC6000-C104 | 10.4" | 1024 × 768 (XGA) | Intel® Core™ 6th–9th Gen (LGA1151), 10th–11th Gen (LGA1200) | Up to 3/5× GbE | Multiple RS232/RS485 | 8-bit GPIO/DIO | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C124 | 12.1" | 1024 × 768 (XGA) | Intel® Core™ 6th–9th Gen (LGA1151), 10th–11th Gen (LGA1200) | Up to 3/5× GbE | Multiple RS232/RS485 | 8-bit GPIO/DIO | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C124W | 12.1" | 1280 × 800 (WXGA) | Intel® Core™ 6th–9th Gen (LGA1151), 10th–11th Gen (LGA1200) | Up to 5× GbE | Multiple RS232/RS485 | 8-bit GPIO/DIO | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C154 | 15" | 1024 × 768 (XGA) | Intel® Core™ 6th–9th Gen (LGA1151), 10th–11th Gen (LGA1200) | Up to 5× GbE | Multiple RS232/RS485 | 8-bit GPIO/DIO | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C1564 | 15.6" | 1366 × 768 (HD) / 1920 × 1080 (FHD) | Intel® Core™ 6th–9th Gen (LGA1151), 10th–11th Gen (LGA1200) | Up to 5× GbE | Multiple RS232/RS485 | 8-bit GPIO/DIO | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C174 | 17" | 1280 × 1024 (SXGA) | Intel® Core™ 6th–9th Gen (LGA1151), 10th–11th Gen (LGA1200) | Up to 5× GbE | Multiple RS232/RS485 | 8-bit GPIO/DIO | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C1854 | 18.5" | 1366 × 768 (HD) / 1920 × 1080 (FHD) | Intel® Core™ 6th–9th Gen (LGA1151), 10th–11th Gen (LGA1200) | Up to 5× GbE | Multiple RS232/RS485 | 8-bit GPIO/DIO | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C194 | 19" | 1280 × 1024 (SXGA) | Intel® Core™ 6th–9th Gen (LGA1151), 10th–11th Gen (LGA1200) | Up to 5× GbE | Multiple RS232/RS485 | 8-bit GPIO/DIO | 1× mSATA, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C2154 | 21.5" | 1920 × 1080 (FHD) | Intel® Core™ 6th–9th Gen (LGA1151), 10th–11th Gen (LGA1200) | Up to 5× GbE | Multiple RS232/RS485 | 8-bit GPIO/DIO | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC6000-C2384 | 23.8" | 1920 × 1080 (FHD) | Intel® Core™ 6th–9th Gen (LGA1151), 10th–11th Gen (LGA1200) | Up to 5× GbE | Multiple RS232/RS485 | 8-bit GPIO/DIO | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
