Fanless Automation PC NP-6111 Series
NP-6111
Fanless industrial PC with Intel® Celeron J6412, N97, or N305 CPU, compact aluminum-magnesium chassis, 2 x LAN, 4 x USB, 2 x COM, DVI-D, and DC12~24V input. Designed for cabinet mounting with DIN-Rail or wall brackets
NP-6111-CAN2
Compact fanless industrial PC with dual CAN Bus 2.0 A/B, Intel® Celeron J6412/N97/N305 CPUs, dual LAN, COM, USB, mSATA storage, and wide voltage input. Designed for DIN rail or wall mount control cabinet integration.
NP-6111-JH2
Fanless automation PC with Intel® Celeron J6412/N97/N305 CPU, dual PoE GbE ports, 8 DI/8 DO, 4-channel PWM light control, DVI-D display, USB, COM, and DC12~24V input. Designed for DIN-rail or cabinet-mount machine vision applications

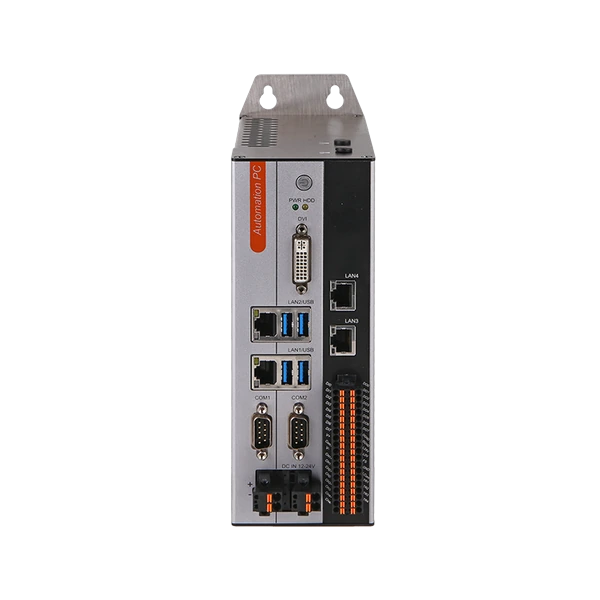

NP-6111-JH2B
Fanless DIN rail industrial automation PC with Intel® Celeron J6412/N97/N305 CPU, dual PoE LAN ports, 16 x DI/16 x DO digital IOs, USB, COM, DVI-D, and wide-range DC power input. Ideal for cabinet-mounted machine vision and automation systems
NP-6111-JH3
DIN-rail fanless automation PC with Intel® J6412/N97/N305 CPU, 4 x COM, 8 x USB, optional dual CAN Bus 2.0 A/B, 8 DI/8 DO, DVI-D, wide voltage DC input. Optimized for automation requiring rich I/O and serial connectivity
NP-6111-JH4
Fanless industrial PC with Intel® Celeron J6412/N97/N305 CPU, dual COM, 8 x RS-485 ports, 8 x DI, 4 x Relay DO, USB, DVI-D, and wide DC input. Designed for cabinet integration in building and energy automation systems
NP-6111-JH5
Fanless DIN-rail mounted automation PC with Intel J6412/N97/i3-N305 CPU, 16DI, 8DO (PNP + Relay), 10 serial ports, 3 LAN, mSATA, and Mini PCIe expansion. Designed for control cabinet integration
NP-6111-L2
Fanless industrial PC with Intel® Celeron J6412/N97/N305 CPU, 4 x GbE LAN, 2 x COM, 4 x USB, mSATA storage, and DC12–24V input. Designed for edge gateways, vPLC, and OT/IT convergence applications
NP-6111 Series Fanless Automation PC Features
The NP-6111 Series from Nodka includes a wide range of fanless industrial automation PCs with compact aluminum-magnesium alloy chassis, wide DC input, and front-access I/O for control cabinets. Models include the base NP-6111 with dual LAN and serial ports; NP-6111-CAN2 with 2 x CAN Bus 2.0 A/B for AGV/AMR; NP-6111-JH2/JH2B with PoE, 8DI/8DO or 16DI/16DO, PWM, and relay control for machine vision; NP-6111-JH3/JH4/JH5 with extended COM and RS485 ports, CAN, relay DOs, and high DI/DO densities for energy systems; and NP-6111-L2 with 4 x GbE LANs for edge gateway and vPLC use. All models support Intel® Celeron J6412, N97, or N305 CPUs, mSATA storage, and run Windows/Linux OS.
Show More
Application Areas
NP-6111 base models suit SCADA/HMI and embedded control, while CAN2 models are ideal for robotic systems, AGV/AMR, and protocol conversion. JH2/JH2B variants with PoE and DI/DO fit well into machine vision, inspection, and image-based quality control. JH3/JH4/JH5 series target industrial energy automation such as EMS, solar+storage, EV charging, and microgrid controllers with extended RS485, CAN, DI/DO, and relay support. The L2 variant with 4 GbE LANs is optimized for edge computing, virtual PLC (vPLC), soft PLCs, and software-defined automation gateways in OT/IT convergence setups.
| Model | LAN | COM | CAN | DI | DO | Relay | PoE | Applications |
|---|---|---|---|---|---|---|---|---|
| NP-6111 | 2 | 2 | -- | -- | -- | -- | -- | Compact base model for control cabinet use |
| NP-6111-CAN2 | 2 | 2 | 2 | -- | -- | -- | -- | AGV/AMR, CAN protocol integration |
| NP-6111-JH2 | 2 | 2 | -- | 8 | 8 (Transistor) | -- | 2 | PoE machine vision with PWM light control |
| NP-6111-JH2B | 2 | 2 | -- | 16 | 16 (Transistor) | -- | 2 | High-density DI/DO vision system integration |
| NP-6111-JH3 | 2 | 4 | 2 (opt.) | 8 | 8 | -- | -- | Expanded COM + CAN for factory automation |
| NP-6111-JH4 | 2 | 2 + 8 x RS485 | -- | 8 | -- | 4 | -- | Relay + RS485 for building/energy automation |
| NP-6111-JH5 | 3 | 2 + 8 x RS485 | 2 (opt.) | 16 | 8 | 8 | -- | Advanced energy systems controller |
| NP-6111-L2 | 4 | 2 | -- | -- | -- | -- | -- | Edge gateway / virtual control platform |
