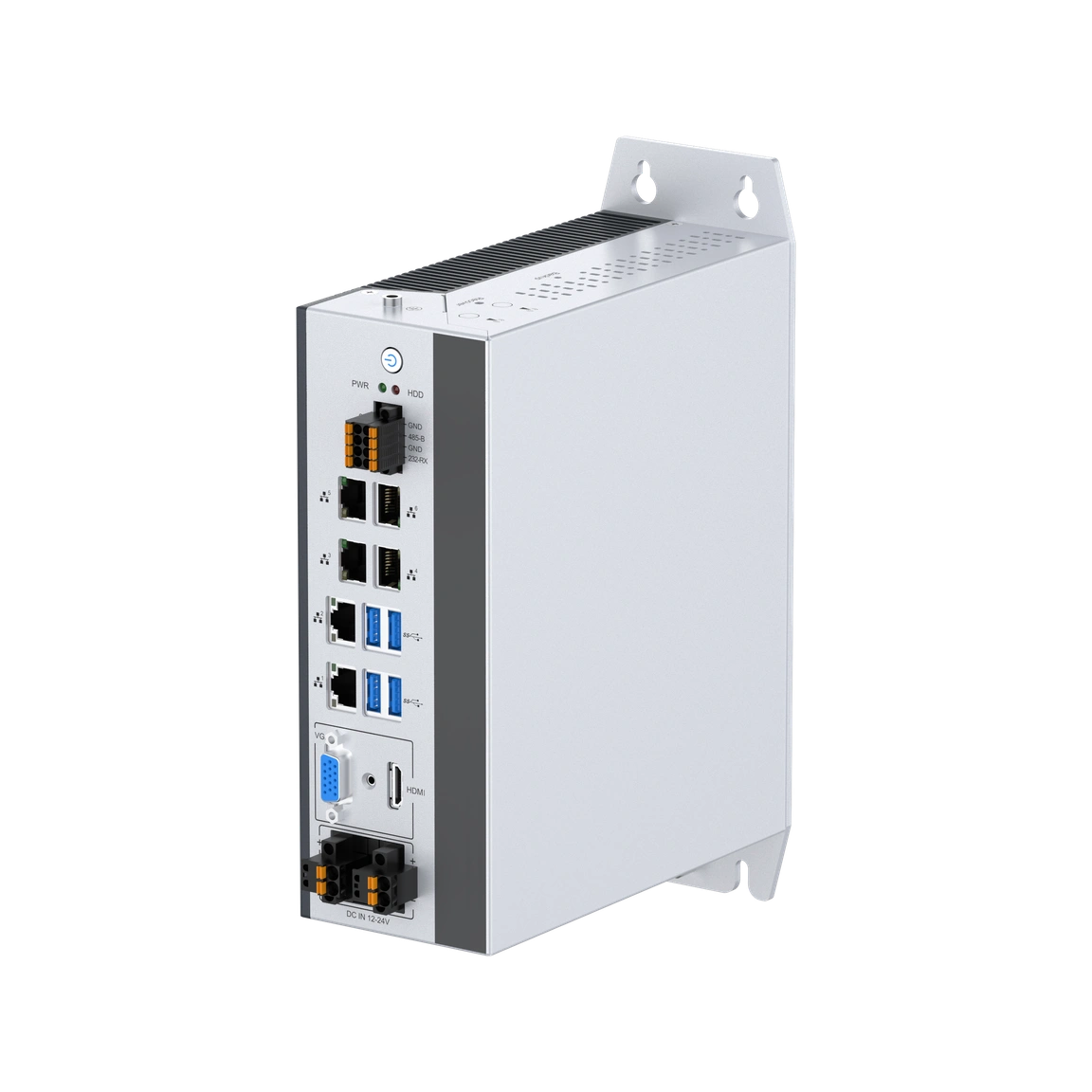

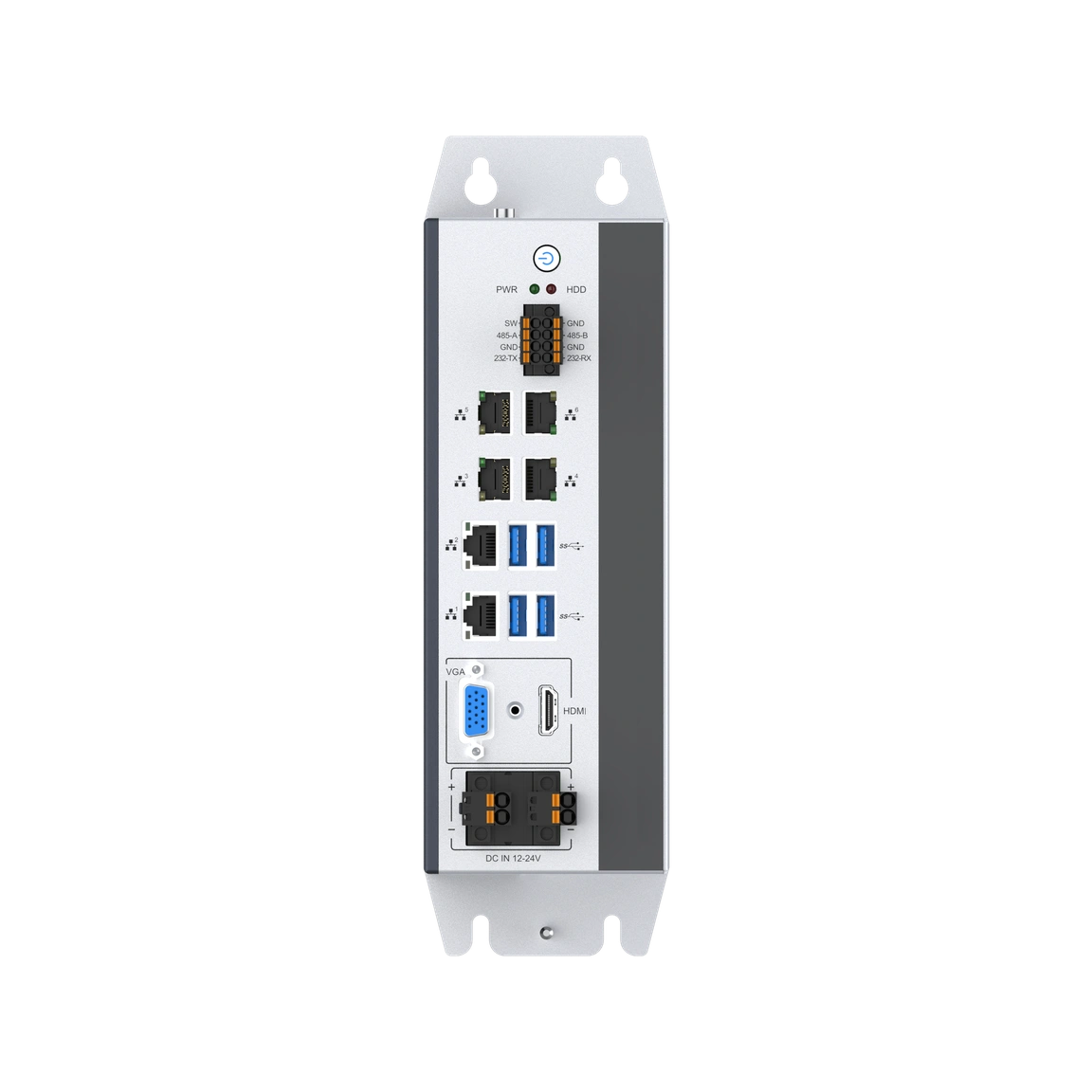

NP-6140 | Multi-LAN Industrial Automation PC
Intel® Core™ 12th–14th Gen LGA1700 Automation PC with 6 Intel® GbE ports, RS232/RS485, dual M.2 SATA storage, mini-PCIe expansion and DIN-rail/wall mounting.
Features
- Intel® Core™ 12th/13th/14th Gen LGA1700 processor support, up to 65W TDP
- 2 × SO-DIMM DDR4-3200MT/s, up to 32GB
- 6 × Intel® GbE LAN: 1 × Intel® i219-V + 5 × Intel® i210-AT
- 4 × USB3.0 plus 1 × onboard USB2.0 Type-A for USB dongle
- 1 × RS232 and 1 × RS485, up to 115.2kbit/s
- Dual M.2 SATA3.0 storage: 2242 Key-M and 2280 Key-M
- VGA up to 1920 × 1080@60Hz and HDMI up to 3840 × 2160@30Hz
- 1 × full-size PCIe mini slot with SIM card holder
- DC12~24V ±10% input with overcurrent, overvoltage and reverse-polarity protection

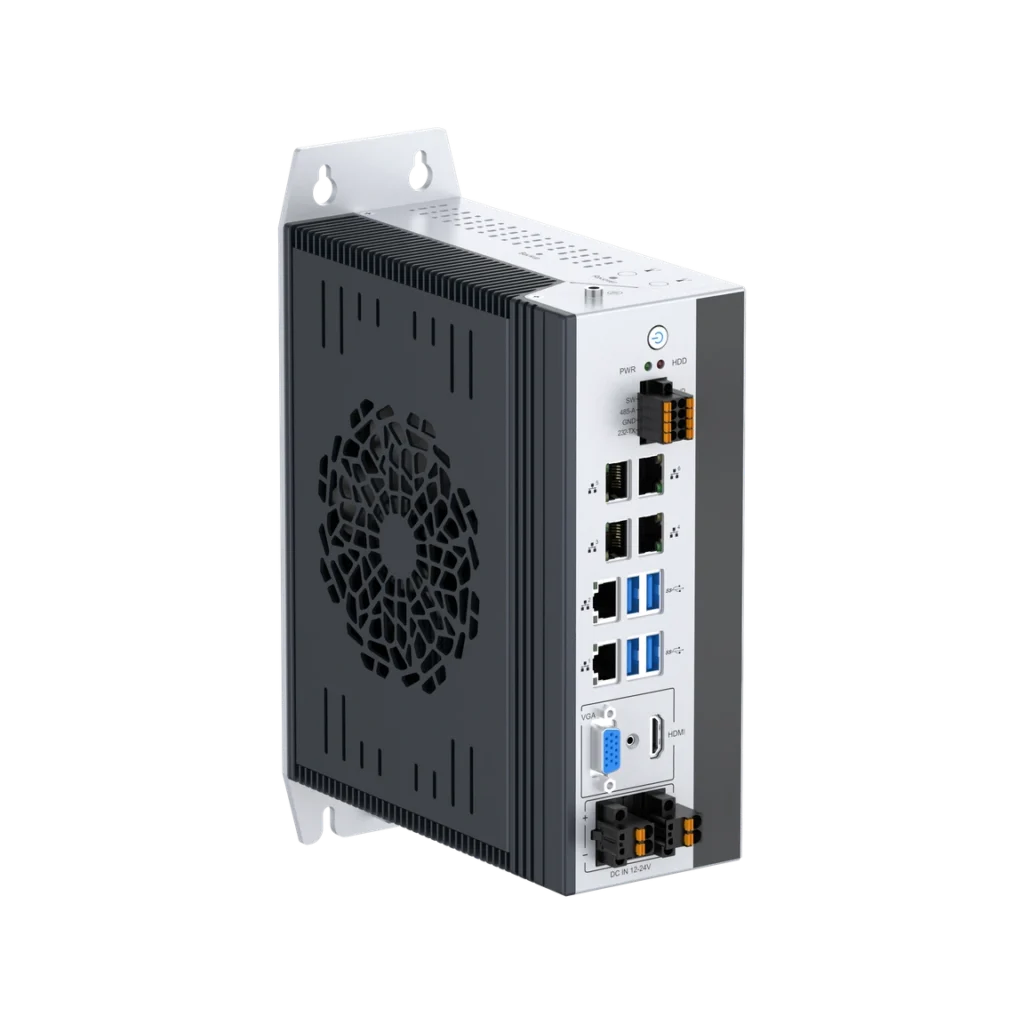

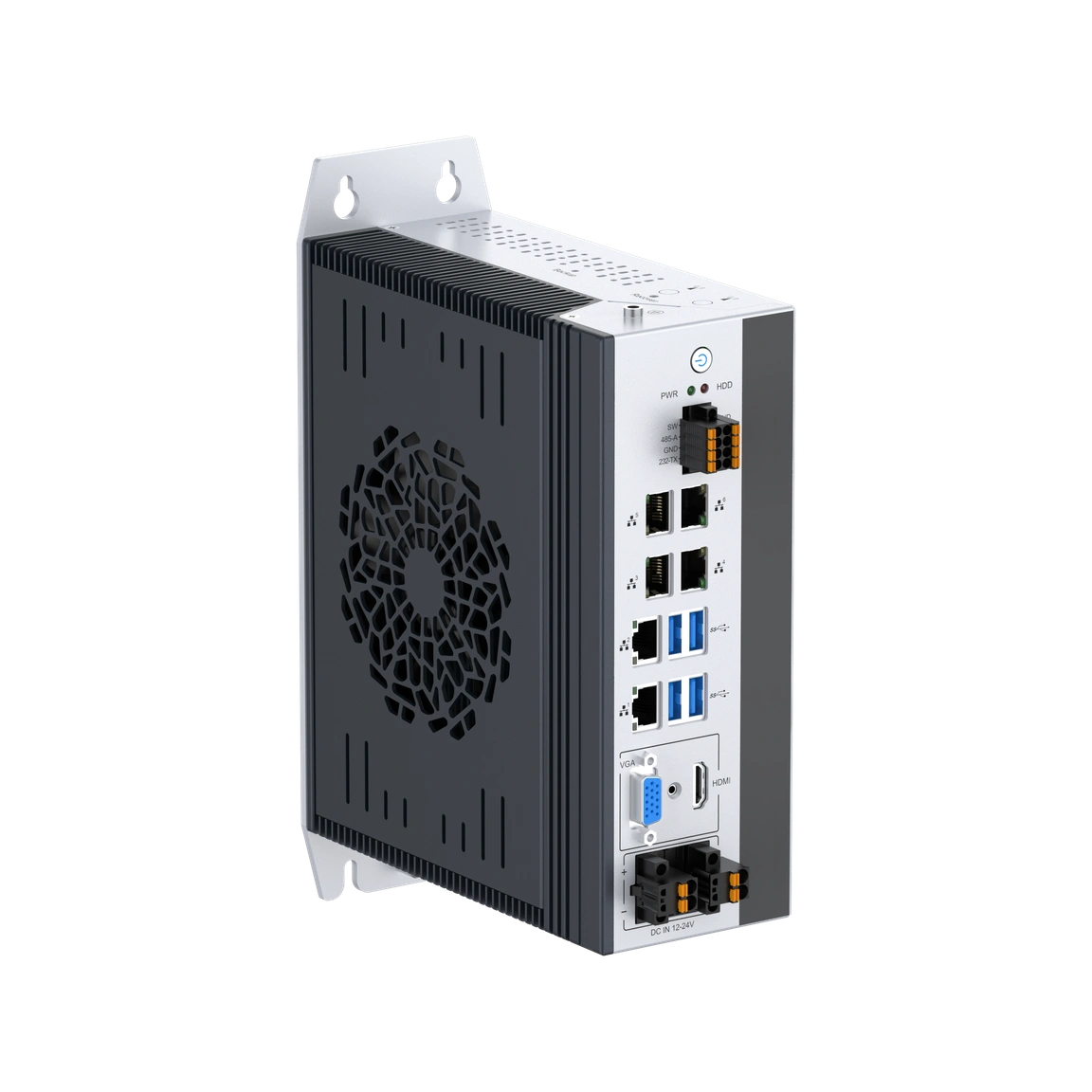

- Aluminum-magnesium alloy chassis with fan-assisted cooling
- Wall-mounted or DIN-rail installation
- -20°C ~ 60°C operating temperature with airflow and SSD
Control Cabinet Industrial Automation PC Product Information
| Technical Specifications -- NP-6140 | |
|---|---|
| Model Name | NP-6140 |
| System | |
| CPU | Intel® Core™ 12th/13th/14th Gen i7/i5/i3 LGA1700 type CPU |
| TDP | 65W |
| BIOS | AMI UEFI BIOS |
| Memory | 2 × SO-DIMM DDR4-3200MT/s, max. 32GB |
| Storage | 1 × M.2 2242 Key-M SATA3.0; 1 × M.2 2280 Key-M SATA3.0 |
| USB | 4 × USB3.0; 1 × USB2.0 Type-A onboard for USB dongle |
| COM | 1 × RS232 (COM1); 1 × RS485 (COM2), maximum baud rate 115.2kbit/s |
| Ethernet | 1 × Intel® i219-V GbE LAN controller; 5 × Intel® i210-AT GbE LAN controllers |
| Remote Switch | 1 × SW |
| VGA | Up to 1920 × 1080@60Hz |
| HDMI | Up to 3840 × 2160@30Hz |
| Expansion | 1 × full-size PCIe mini slot with SIM card holder |
| Watchdog | 1~255 levels programmable |
| TPM | dTPM: SLB9670VQ2.0 |
| Operating System | |
| Microsoft Windows | Windows 10, Windows 11 |
| Linux | Ubuntu, Debian, CentOS |
| Power | |
| Voltage Input | DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection |
| Power Consumption | Max. 120W |
| Chassis | |
| Structure | Aluminum-magnesium alloy BOX with embedded fan to assist cooling; wall-mounted or DIN-rail fixing style |
| Dimensions | 200mm (L) × 168mm (W) × 75mm (H) |
| Net Weight | 2.4kg |
| Environment | |
| Work Temperature | -20°C ~ 60°C (-4°F ~ 140°F) with airflow (SSD) |
| Storage Temperature | -40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity | 95%@40°C, non-condensing |
| Operating Vibration | 5~500Hz, 3Grms with SSD and wall-mounted, IEC60068-2-64 |
| Operating Shock | 30G peak acceleration, 11ms duration, with SSD and wall-mounted, IEC60068-2-27 |
| EMC | CE EMC; EN 55011, EN 55032, EN 55035, EN 61131-2, EN IEC 61000-3-2, EN IEC 61000-6-2, EN IEC 61000-6-4; FCC Class A |
| Safety | EN IEC 62368-1 |
Click the link below to download datasheets or drivers:
| Ordering Information -- NP-6140 | ||
|---|---|---|
| Part No. | Model | Description |
| B73.61400.00.0002 | NP-6140 | CPU: NULL, RAM: NULL, M.2: NULL, 1 × RS232, 1 × RS485, 6 × LAN, 4 × USB3.0, HDMI/VGA display ports, DC12-24V power input |
| Parts Information | ||
| Name | Part No. | Specification |
| 2-pin Power Supply Terminal | K80.000109.00.D35 | 5.08mm, 1 × 2-pin wiring terminal |
| 8-pin I/O Terminal | K80.000110.00.D35 | 3.5mm, 2 × 4-pin wiring terminal |
| DIN-Rail | C78.570001.00.NDJ | DIN-rail bracket; complies with IEC 60715, width 35mm, thickness 1mm |
| Wall-mounted | L10.011246.00.NKL | Hanging board |
| Wi-Fi Set Intel AX210 | F06.000014.00.NDJ | miniPCIe, Wi-Fi 6, external 2.4G/5G rubber antenna |
| Wi-Fi Set Intel 7260AN | F06.000087.00.NDJ | miniPCIe, Wi-Fi 5, external 2.4G/5G rubber antenna |
| Wi-Fi Set Intel 7260AN | F06.000089.00.NDJ | miniPCIe, Wi-Fi 5, external 2.4GHz/5GHz magnetic-mount antenna with 3m cable |
| 4G Module EC20 | F06.000031.00.NDJ | miniPCIe, China 7-mode universal network with external rubber antenna |
| 4G Module EC20 | F06.000034.00.NDJ | miniPCIe, China 7-mode universal network with external 3m magnetic-mount antenna |
| Options | ||
| CPU | i3-12100, i3-12100T, i3-13100, i3-13100T, i3-14100, i3-14100T; i5-12500, i5-12500T, i5-13500, i5-13500T, i5-14500, i5-14500T; i7-12700, i7-12700T, i7-13700, i7-13700T, i7-14700, i7-14700T; i9-12900, i9-12900T, i9-13900, i9-13900T, i9-14900, i9-14900T | |
| Memory | DDR4-3200MHz: 4GB, 8GB, 16GB | |
| M.2 2242 SSD | 64GB, 128GB, 256GB, 512GB, 1TB | |
| M.2 2280 SSD | 128GB, 256GB, 512GB, 1TB, 2TB | |
| Wi-Fi Set | miniPCIe: AX210 / 7260 series, cylindrical antenna | |
| 3G/4G Module | miniPCIe: EC20, EG25, EC25 | |
| Mount Option | DIN-Rail | |
