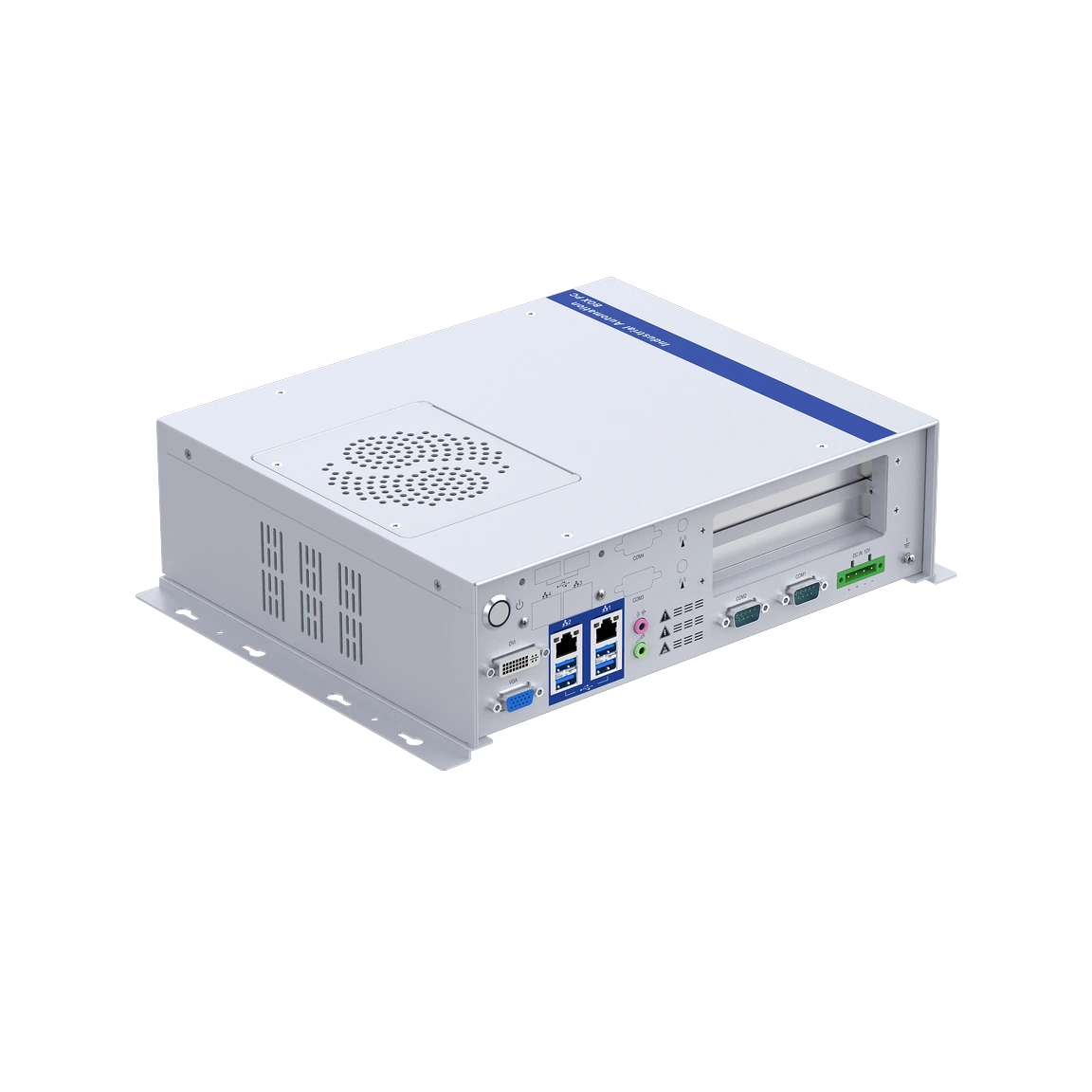

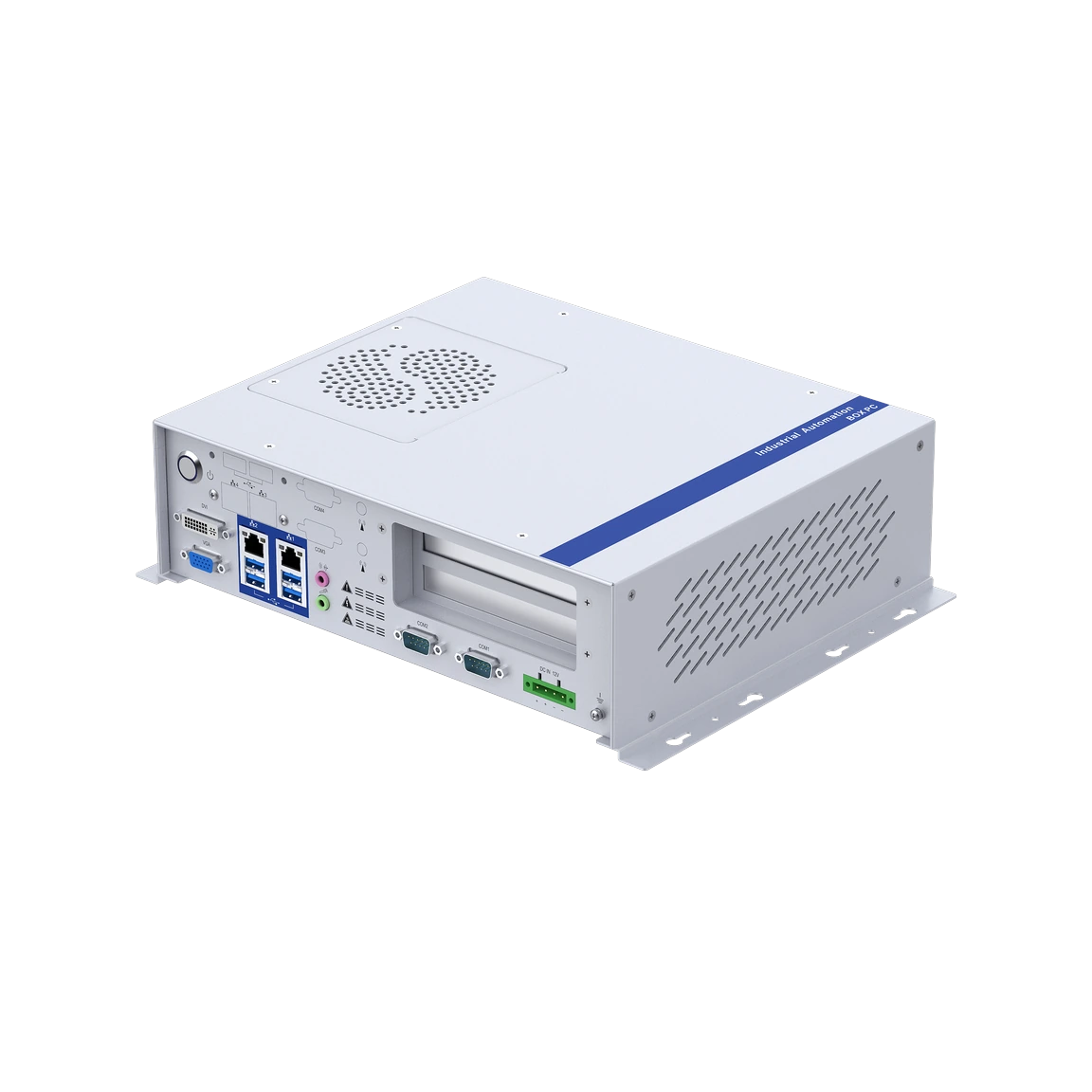

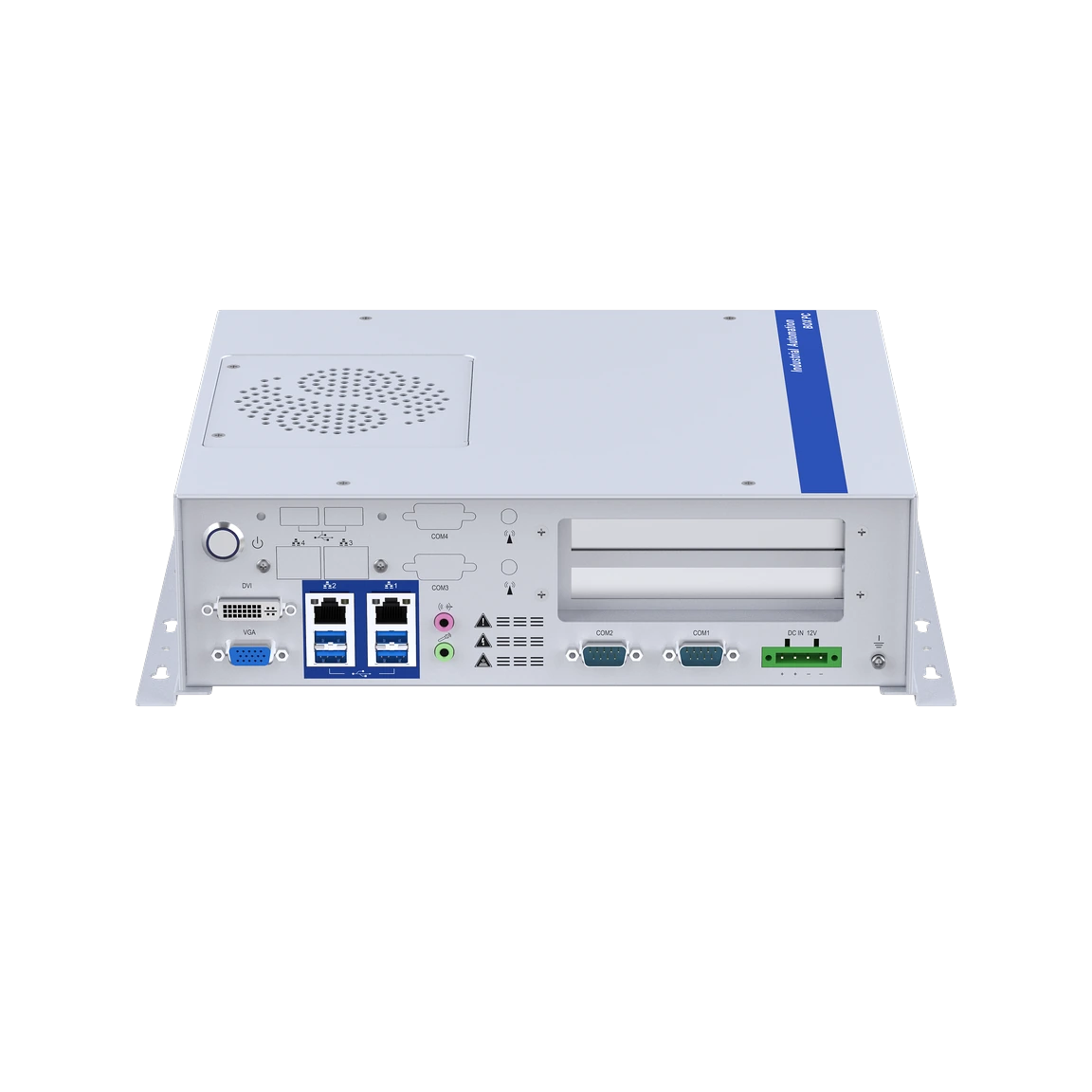

eBOX-3627-S Series | Expandable Fanless Industrial PC
Expandable fanless industrial PC supporting Intel® Core™ 6th–9th Gen LGA1151 processors with dual LAN, 2× RS232/RS485, 4× USB3.0, VGA/DVI, SATA + mSATA storage, Mini PCIe wireless expansion, configurable PCI/PCIe slots, and DC12V input.
- Supports Intel® Core™ 6th-9th Gen i7/i5/i3, Pentium, and Celeron LGA1151 processors
- Intel H110 chipset with up to 32GB DDR4-2400/2600/3200MHz memory
- 2 x Realtek LAN interfaces for industrial network connectivity
- 2 x RS232/RS485 serial ports for PLC and industrial field-device communication
- 4 x USB3.0 with optional 2 x USB2.0
- VGA and DVI display outputs supporting up to 1920 x 1200@60Hz
- 1 x 2.5" SATA and 1 x mSATA storage interface
- 1 x full-size Mini PCIe slot with SIM card slot for Wi-Fi / 4G expansion
- 1 x PCI + 1 x PCIe x16 expansion or 2 x PCI expansion slots ro 1 x PCIe x1 + 1 x PCIe x16 expansion
- Supports Windows 10, Windows 11, and Linux
- DC 12V input with overcurrent, overvoltage, and anti-reverse protection
- -20°C ~ 60°C operating temperature with SSD
- 288mm x 243mm x 83mm industrial chassis
Fanless PC Product Information
| Technical Specifications -- eBOX-3627-S | |||
|---|---|---|---|
| Model Name | eBOX-3627-SE | eBOX-3627-SP | eBOX-3627-SN |
| System | |||
| CPU | Intel® Core™ 6-9th i7 / i5 / i3 / Pentium / Celeron, LGA1151 | ||
| Chipset | H110 | ||
| Memory | 1 x DDR4-2400/2600/3200MHz, up to 32GB | ||
| Storage | 1 x 2.5 SATA, 1 x mSATA | ||
| USB | 4 x USB3.0, optional 2 x USB2.0 | ||
| COM | COM1~COM2: RS232/RS485 | ||
| LAN | 2 x Realtek LAN | ||
| DVI | The maximum resolution is 1920 x 1200@60Hz | ||
| VGA | The maximum resolution is 1920 x 1200@60Hz | ||
| Extension Interface | 1 x Full-size MiniPCIe card slot with SIM card slot for expandable WIFI/4G | ||
| Transfer Specifications | 1 x PCI + 1 x PCIe x16 | 2 x PCI | 1 x PCIe x1 + 1 x PCIe x16 |
| Watch Dogs | 1~255 levels programmable setting | ||
| OS Support | |||
| OS | Windows 10, Windows 11, Linux | ||
| Power | |||
| Input Voltage | DC 12V input with overcurrent, overvoltage, and anti-reverse protection | ||
| Chassis | |||
| Dimensions | (L)288mm x (W)243mm x (H)83mm | ||
| Net Weight | 3.7Kg | ||
| Environment | |||
| Work Temperature | -20ºC ~ 60ºC (Use SSD) | ||
| Storage Temperature | -40ºC ~ 80ºC (Use SSD) | ||
| Relative Humidity | 5~95% RH@40°C, non-condensing | ||
| Vibration | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis | ||
| Shock | SSD applied: 10G, IEC 60068-2-27, Half sine wave, lasting 11ms | ||
| EMC | CE/FCC Class A | ||
| Ordering Information -- eBOX-3627-S | ||
|---|---|---|
| Part Number | Model Name | Description |
| B63.36270.HE.0001 | eBOX-3627-HE | Intel® Core™ 6-9th LGA1151 CPU / 4 x USB3.0 / 2 x LAN / 2 x COM / 1 x PCI + 1 x PCIe / DC12V |
| B63.36270.SP.0001 | eBOX-3627-SP | Intel® Core™ 6-9th LGA1151 CPU / 4 x USB3.0 / 2 x LAN / 2 x COM / 2 x PCI / DC12V |
| B63.36270.SN.0001 | eBOX-3627-SN | Intel® Core™ 6-9th LGA1151 CPU / 4 x USB3.0 / 2 x LAN / 2 x COM / 2 x PCIe / DC12V |
| Options | ||
| DDR4 SO-DIMM | 4GB, 8GB | |
| 2.5 Solid Hard Drives | 128GB, 256GB, 512GB... | |
| mSATA | 128GB, 256GB, 512GB... | |
| 4G Module | Mini PCIe: EC20, EG25, EC25 | |
