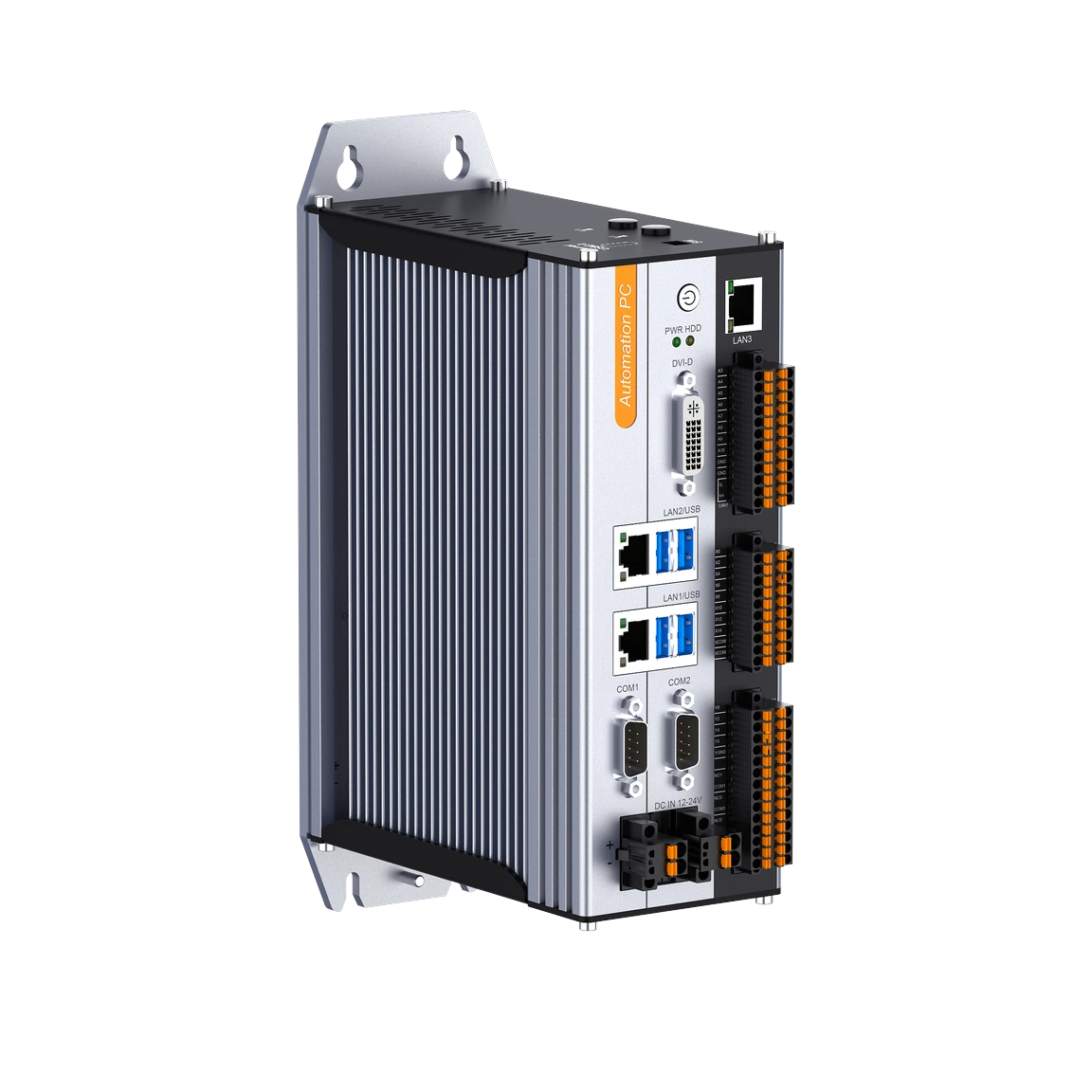

NP-6111-JH5 | Fanless DIN Rail PC with 16DI, 8DO, and 10 COM
Intel-based fanless DIN-rail automation PC with digital I/O, 10 serial ports, 3 LAN, mSATA, Mini PCIe expansion for wireless or CAN, and wide voltage input
Features
- Fanless Automation PC with aluminum-magnesium alloy housing
- Supports Intel® J6412 / N97 / Core i3-N305 processors
- 16 x Digital Inputs, NPN and PNP compatible
- 8 x Digital Outputs: 8 x NPN + 8 x Relay DO (30VDC 3A)
- 10 x Serial Ports: 2 x RS232/485 (DB9) + 8 x RS485 (Phoenix)
- 3 x Intel Gigabit LAN ports for industrial networking
- 1 x DVI-D display output, up to 1920 × 1080
- 2 x USB 3.0, 2 x USB 2.0, + internal USB for dongle
- mSATA slot for SSD storage
- 2 x Mini PCIe for 4G/Wi-Fi or optional CAN Bus
- DIN-rail or wall-mount installation supported
- DC 12–24V input with overcurrent, overvoltage, reverse protection
- Operating temperature: -20°C to 60°C (with airflow and SSD)
Fanless Control Cabinet Industrial PCs Product Information
| Technical Specifications | |||
|---|---|---|---|
| Model | NP-6111-JH5-J6412 | NP-6111-JH5-N97 | NP-6111-JH5-N305 |
| System | |||
| CPU | Intel(r) Celeron J6412, 4C/4T, 2.0GHz, 1.5MB Cache, 10W TDP | Intel(r) N97, 4C, up to 3.6GHz, 6MB Cache, 12W TDP | Intel(r) Core i3-N305, 8C/8T, up to 3.8GHz, 6MB Cache, 15W TDP |
| BIOS | AMI UEFI BIOS | ||
| Memory | 1 x DDR4-2400 SO-DIMM, up to 32GB | 1 x DDR5-4800 SO-DIMM, up to 16GB | 1 x DDR5-4800 SO-DIMM, up to 16GB |
| Storage | 1 x mSATA Bay | ||
| I/O Interfaces | |||
| USB | 2 x USB 3.0, 2 x USB 2.0, 1 x USB 2.0 Type A (internal for dongle) | ||
| COM | 2 x RS232/485 (DB-9, switch-selectable), 8 x RS485 (Phoenix connector) | ||
| LAN | 3 x Intel(r) i210-AT Gigabit LAN | ||
| DI | 16 x DI, NPN/PNP supported | ||
| DO | 8 x DO (NPN, Imax 0.5A) | ||
| Relay DO | 8 x Relay DO (Normally Open, 30VDC Imax 3.0A) | ||
| CAN | 2 x CAN 2.0 A/B (Optional via Mini PCIe) | ||
| Display | 1 x DVI-D, up to 1920x1080 @ 60Hz | ||
| Expansion | |||
| Mini PCIe | 2 x Full-size Mini PCIe slots with support for Wi-Fi, 3G/4G, CAN | ||
| Power | |||
| Input Voltage | DC 12-24V ±10%, with overcurrent, overvoltage, and reverse polarity protection | ||
| Power Consumption | Max. 60W | ||
| Mechanical | |||
| Structure | Aluminum-magnesium alloy, Fanless, Wall-mount or DIN-Rail | ||
| Dimensions | 200mm (L) × 154.5mm (W) × 74.6mm (H) | ||
| Net Weight | 2.1 Kg | ||
| Environmental | |||
| Operating Temperature | -20°C to 60°C (with airflow, SSD) | ||
| Storage Temperature | -40°C to 80°C | ||
| Humidity | 5-95% RH (non-condensing) | ||
| Vibration | 1.5Grms (5-500Hz, with SSD, IEC60068-2-64) | ||
| Shock | 20G peak acceleration (11ms), IEC60068-2-27 | ||
| EMC | CE/FCC Class A | ||
| OS Support | |||
| Microsoft Windows | Windows 10 | ||
| Linux | Ubuntu, CentOS, Debian | ||
Click the link below to download datasheets or drivers:
| Ordering Information | ||
|---|---|---|
| Model | CPU | Description |
| NP-6111-JH5-J6412 | Intel(r) Celeron J6412 | Fanless DIN-rail box PC with 16DI, 8DO (PNP + Relay), 8 x RS485 + 2 x RS232/485, 3 x LAN, 2 x USB3.0, 2 x USB2.0, 1 x DVI-D, 12-24V DC input |
| NP-6111-JH5-N97 | Intel(r) N97 | Same as J6412 version, upgraded with DDR5 memory support and higher CPU frequency |
| NP-6111-JH5-N305 | Intel(r) Core i3-N305 | Same I/O configuration, equipped with 8-core CPU and DDR5 memory for enhanced computing performance |
| Optional Items | |
|---|---|
| Memory | 4GB / 8GB / 16GB / 32GB DDR4 (J6412), DDR5 (N97/N305) |
| Storage | mSATA SSD: 64GB / 128GB / 256GB / 512GB |
| Wireless Module | Mini PCIe 4G / Wi-Fi module with SIM slot (optional) |
| CAN Module | Optional 2 x CAN via Mini PCIe expansion |
| Power Adapter | 12-24V DC adapter with Phoenix connector (optional) |
| Mounting Kit | DIN-rail or wall-mount bracket (included) |
