PANEL5000-A152-T-A | 15" Resistive Touch Screen Industrial Monitor
15″ resistive touch industrial monitor with 1024 × 768 display, RJ45 NDLink HDBaseT remote display input, 2 × USB 2.0 output, embedded installation, aluminum housing, and DC 12~24V input.
- 15″ XGA TFT display with 1024 × 768 resolution
- Resistive touch screen for industrial operator input
- RJ45 NDLink input for remote display connection
- 2 × USB 2.0 Type-A output
- Integrated receiver architecture for long-distance remote display deployment
- Supports CAT6 or higher cable for transmission distance up to 100 meters
- Embedded installation with aluminum housing
- DC 12~24V input with reverse polarity, overvoltage, and overcurrent protection
- Supports Windows 7, Windows 10 IoT, Ubuntu, CentOS, and Linux
- CE / FCC Class B EMC compliance
Resistive Touch Industrial Monitor Product Information
| Technical Specifications | ||||
|---|---|---|---|---|
| Model Name | PANEL5000-A152-T-A | |||
| General | ||||

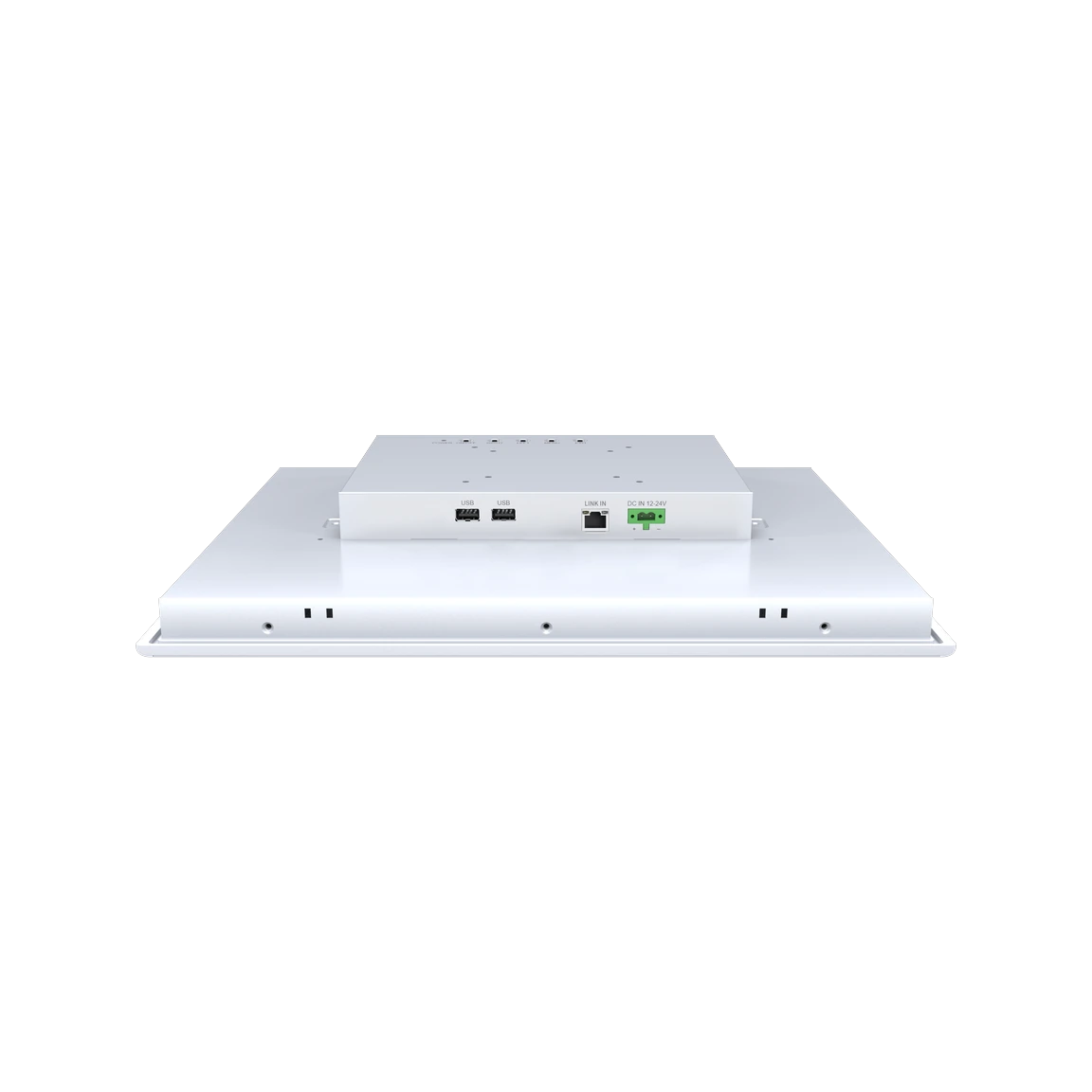

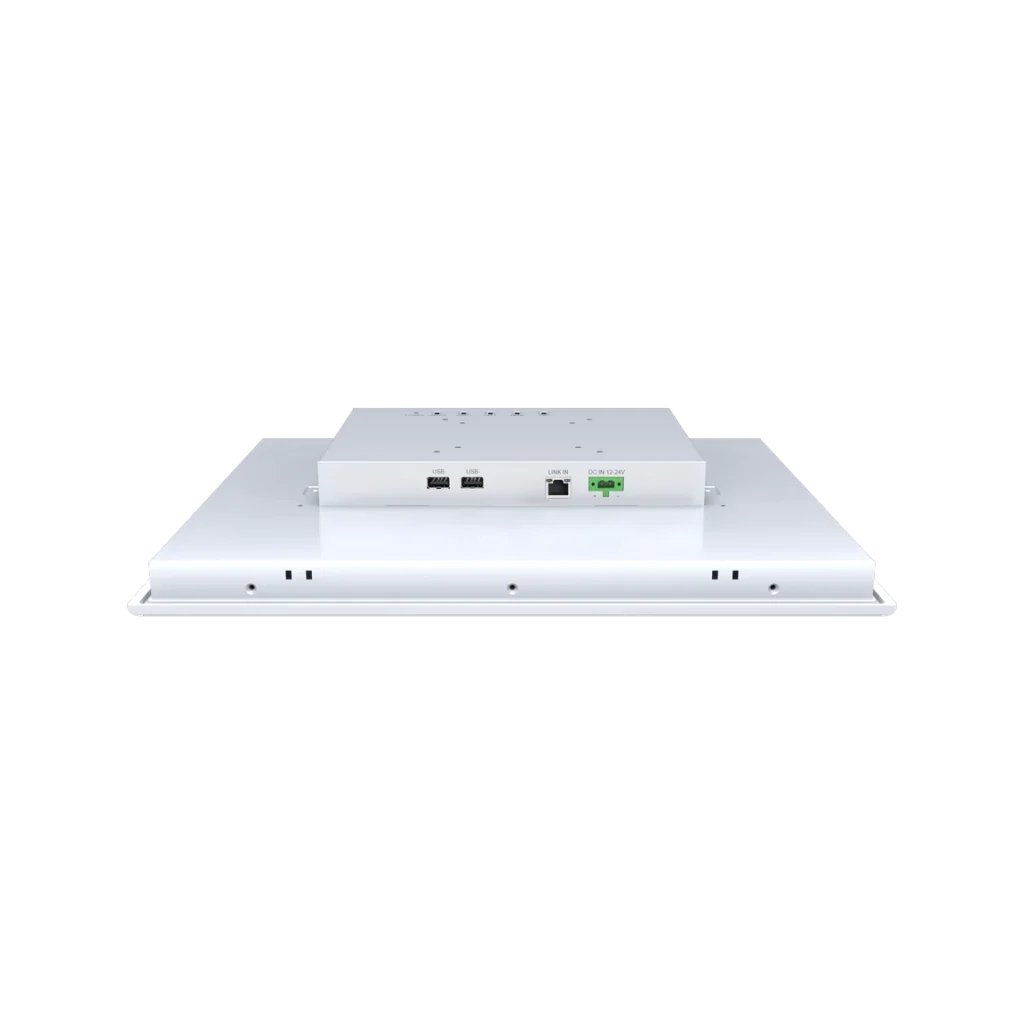

| I/O Port | Input: RJ45 (NDLINK IN); Output: 2 × USB2.0 (Type A) | |||
| Operating System | Windows 7, Windows 10 IoT, Ubuntu, CentOS, Linux | |||
| Dimensions (W × H × D) | 395mm × 313mm × 54mm | |||
| Cut-out Size (W × H) | 376mm × 300mm | |||
| Box Structure | Aluminium shell | |||
| Mounting Support | Embedded installation | |||
| Power Supply | DC 12~24V, support reverse polarity protection, overvoltage protection, overcurrent protection | |||
| Power Dissipation | Max Power Consumption 18 Watts | |||
| Net Weight | 4.5 Kg | |||
| LCD | ||||
| LCD Size | 15" XGA TFT | |||
| Resolution | 1024 × 768 | |||
| Active Area (W × H) | 304.13mm × 228.10mm | |||
| MTBF | 30000 hours | |||
| Luminance | 420 cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| Viewing Angle | (L)80 / (R)80 / (T)80 / (B)80 | |||
| Touchscreen | ||||
| Type | Resistive touch screen | |||
| Environmental | ||||
| Operating Temperature | 0°C ~ 50°C | |||
| Storage Temperature | -20°C ~ 60°C | |||
| Relative Humidity | 5~95% @40°C (Non-condensation) | |||
| Vibration Resistance | SSD applied: Operating Random Vibration Test 5~500Hz, 1.5Grms, follow IEC 60068-2-64 | |||
| Shock Resistance | SSD applied: Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 | |||
| EMC | CE/FCC Class B | |||
| Ordering Information | |
|---|---|
| Model Name | Description |
| PANEL5000-A152-T-A | Remote Display, 15", 1024×768, output USB2.0, DC in 12V-24V (Contain send box and 0.5M USB cable, 0.5M DVI cable) |
| Options | |
| USB cable | USB2.0 Type A to Type B cable optional 1.5m / 2m / 3m / 5m |
| HDMI cable | DVI-D to HDMI cable optional 1.5m / 2m / 3m / 5m |
| DVI cable | DVI-D to DVI-D cable optional 1.5m / 2m / 3m / 5m |
| Remote TX BOX | link-200 |
