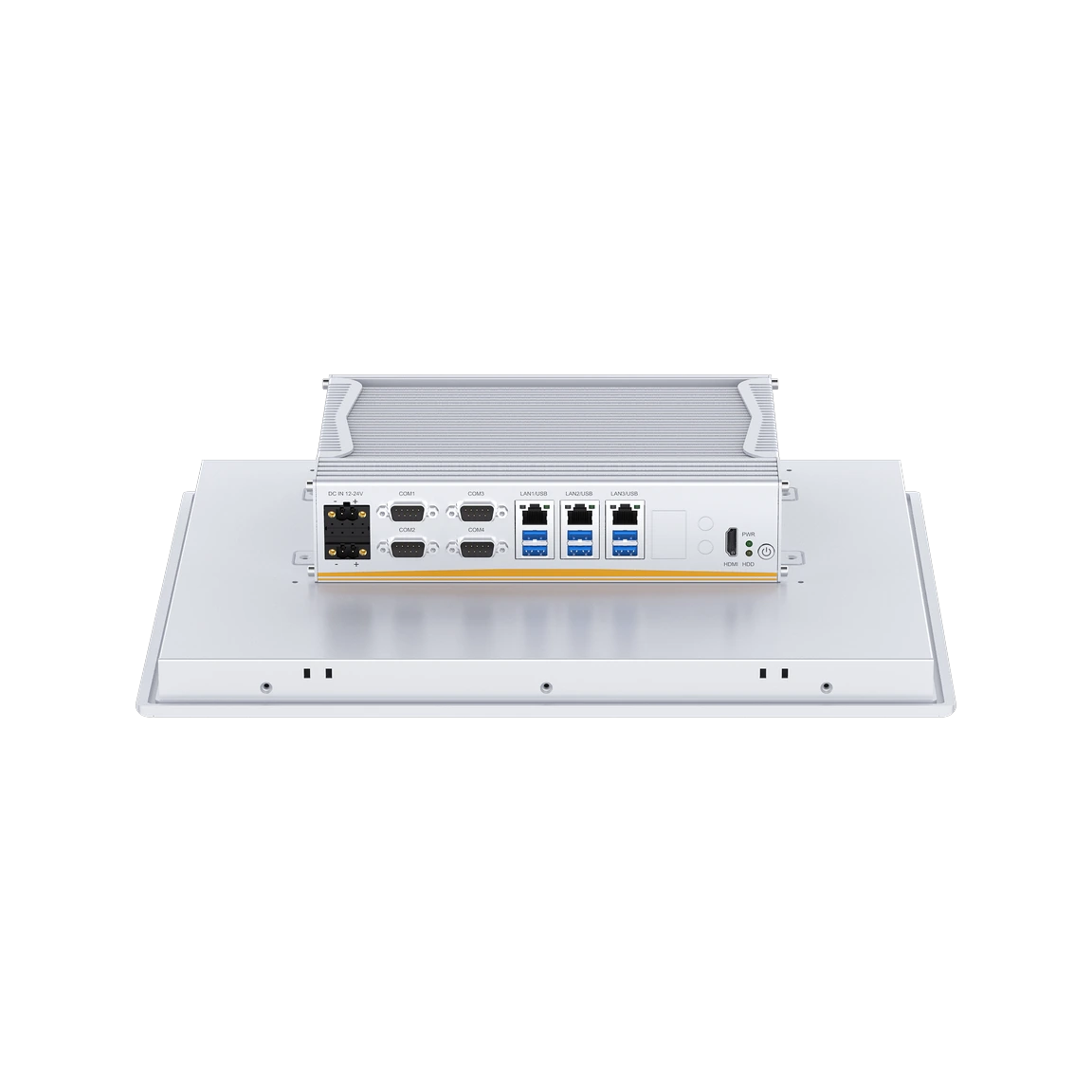

TPC6000-A154 Fanless | 15” Industrial Panel PC

15″ resistive touch fanless industrial Panel PC supporting Intel Core i3/i5/i7 CPUs

15” XGA (1024×768) resistive touchscreen for precise single-touch operation
Supports Intel® Core™ i3/i5/i7 (6th-9th or 10th-11th Gen), max 35W TDP
3 or 5 LAN ports (Intel 1000Mbps) for flexible networking options
4 x COM (RS232/RS485), 6 x USB (4 x USB3.0 + 2 x USB2.0) for industrial connectivity
8DI + 8DO I/O with configurable NPN/PNP output (with -P models using PNP output)
1 x M.2 (M Key, PCIe Gen3 x4) and 1 x mSATA for storage expansion
Fanless design for silent operation and improved reliability
Wide-range power input (DC12~24V ±10%) with protection features
Panel & VESA mounting for easy installation in industrial setups
IP65 front panel protection against dust and water

Resistive Touch Panel PC Product Information

Technical Specifications
Model Name	TPC6000-A154-TP	TPC6000-A154-T5P	TPC6000-A154-B-TP	TPC6000-A154-B-T5P
System
CPU	Intel® Core™ i3/i5/i7 (6th-9th Gen), LGA1151, Max 35W TDP		Intel® Core™ i3/i5 (10th-11th Gen), LGA1200, Max 35W TDP
Chipset	H110		H510
Memory	2 x DDR4-2666/3200 MHz, up to 32GB
Storage	1 x M.2 (M Key 2280 PCIe Gen3 x 4 Lane) 1 x mSATA
I/O Interfaces
Network	3 x Intel 1000Mbps RJ-45	5 x Intel 1000Mbps RJ-45	3 x Intel 1000Mbps RJ-45	5 x Intel 1000Mbps RJ-45
USB	4 x USB3.0 + 2 x USB2.0
Serial Ports	4 x RS-232 / RS-485 (Auto flow control)
I/O Port	8DI + 8DO (Wet contact input 24V, OC gate output 24V 500mA) with -P: 8DI (Wet contact input 24V), 8DO (PNP Output 24V 500mA)
HDMI	1920x1080 @ 60Hz
Expansion Slot	1 x Mini-PCIe slot, supports WiFi, 4G modules
Mechanical
Cooling	Fanless design for silent operation
Weight	5.8kg
Installation	Panel Mounted & VESA Mounted
Dimensions (W x H x D)	395mm × 313mm × 81mm
Cutout Size (W x H)	377mm × 301mm
OS Support
Operating Systems	Windows 7, Windows 8, Windows 10, Linux
Power
Voltage Input	DC12~24V ±10%, supports reverse polarity protection, overvoltage protection, overcurrent protection
Idle Power Consumption	22W
LCD
LCD Size	15" XGA TFT
Resolution	1024 × 768
Luminance	350cd/m²
Touchscreen
Type	Resistive touch screen
Transmittance	>75%
Controller Interface	USB
Environmental
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C
Relative Humidity	5~95% (40°C Non-condensing)
Waterproof	Front IP65 compliant

Ordering Information
Model Name	TPC6000-A154-TP	TPC6000-A154-T5P	TPC6000-A154-B-TP	TPC6000-A154-B-T5P	TPC6000-A154-TP-P / T5P-P / B-TP-P / B-T5P-P
Description	15" LCD, 1024x768, 4 x COM (RS232/RS485 Selectable), 3 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input	15" LCD, 1024x768, 4 x COM (RS232/RS485 Selectable), 5 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input	15" LCD, 1024x768, 4 x COM (RS232/RS485 Selectable), 3 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input	15" LCD, 1024x768, 4 x COM (RS232/RS485 Selectable), 5 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input	Same as non-P models, but with 8DO PNP Output instead of 8DO OC Gate Output
Options
CPU	Intel® Core™ 6th/7th/8th/9th gen i7/i5/i3 LGA 1151 i3-6100, i3-7100, i3-8100, i5-6400, i5-6500, i5-6500T, i5-8400, i7-6700T, i7-8700		Intel® Core™ 10th/11th gen i3/i5 LGA 1200 i5-10400T, i5-10500T, i5-11400T, i5-11500T, i5-11400, i5-11500, i5-10400, i5-10500		Same as respective models
Memory	DDR4 4GB, 8GB, 16GB
mSATA SSD	64GB, 128GB, 256GB, 512GB, 1TB
M.2 SATA SSD	128GB, 256GB, 512GB, 1TB, 2TB
WiFi Kit	miniPCIe WiFi Kit (7260 Series), Cylindrical Antenna
3G/4G Module	mini PCIe: EC20, EG25, EC25
Mounting Option	Panel Mounted & VESA Mounted
