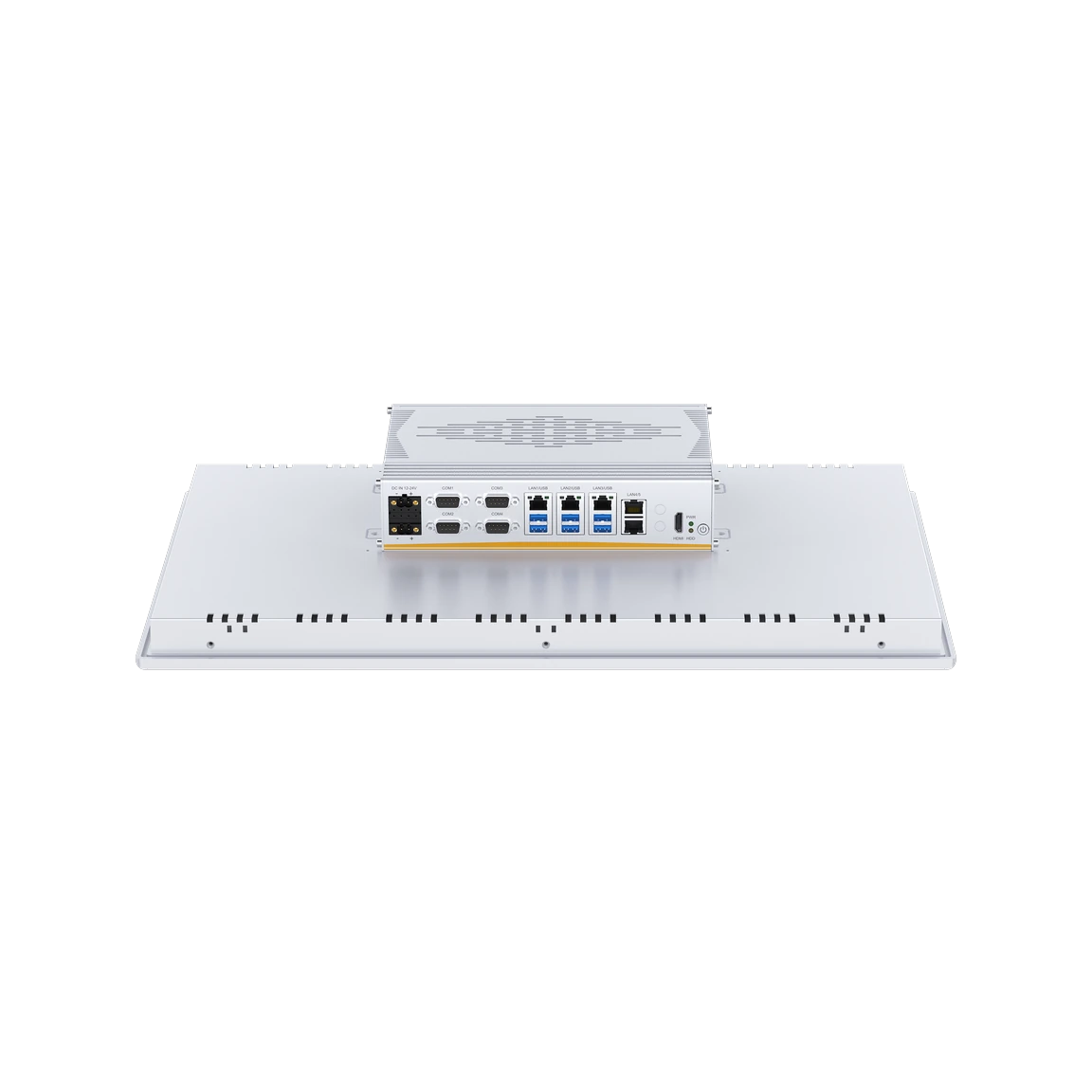

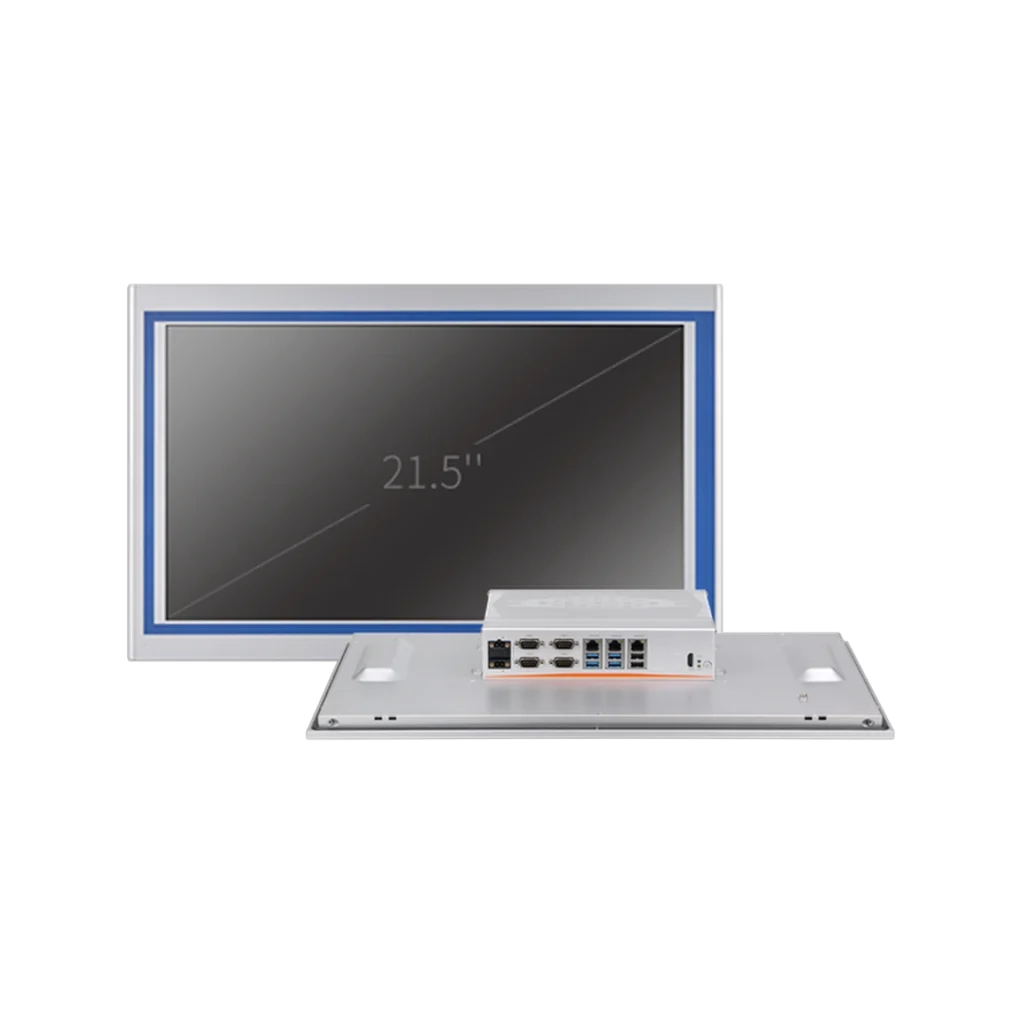

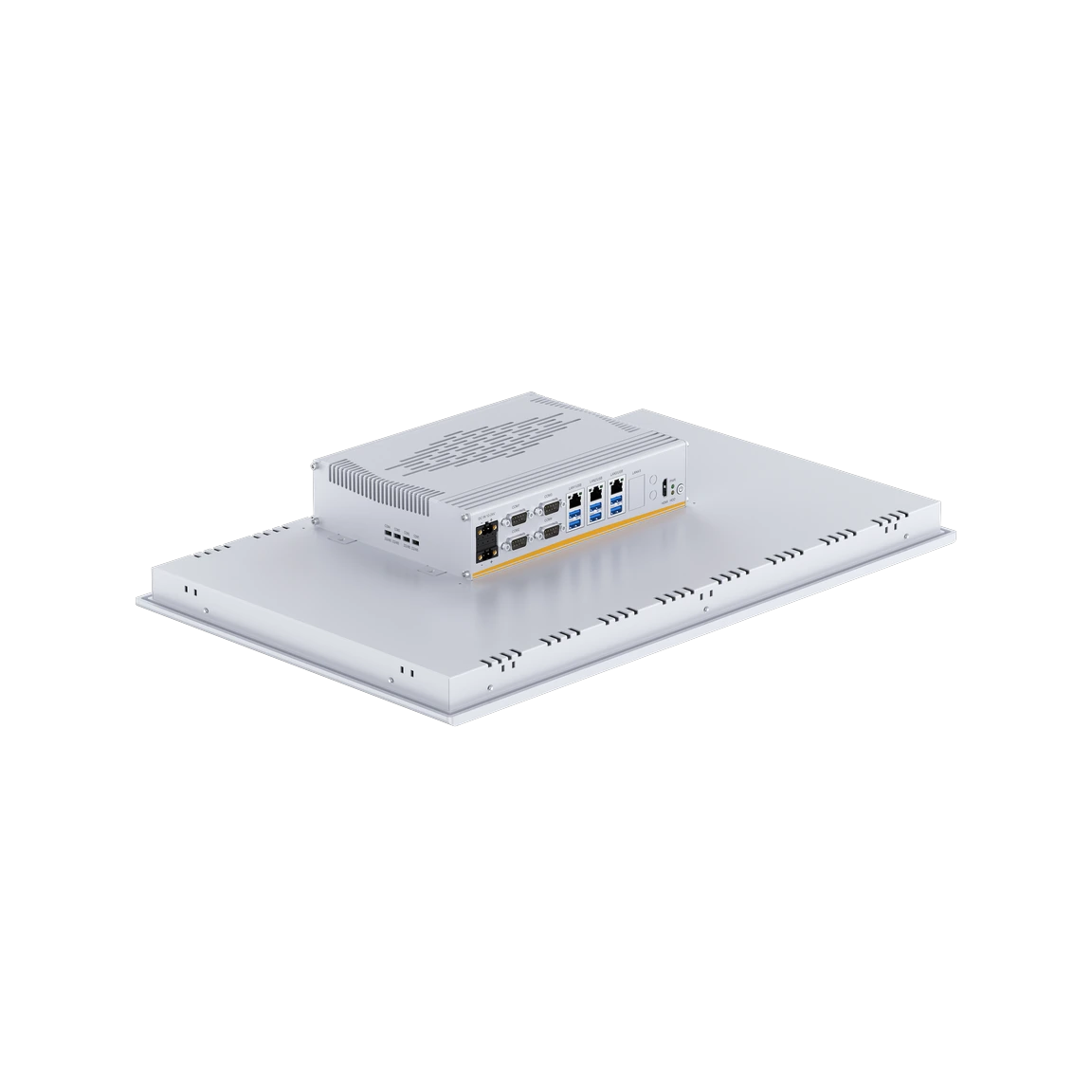

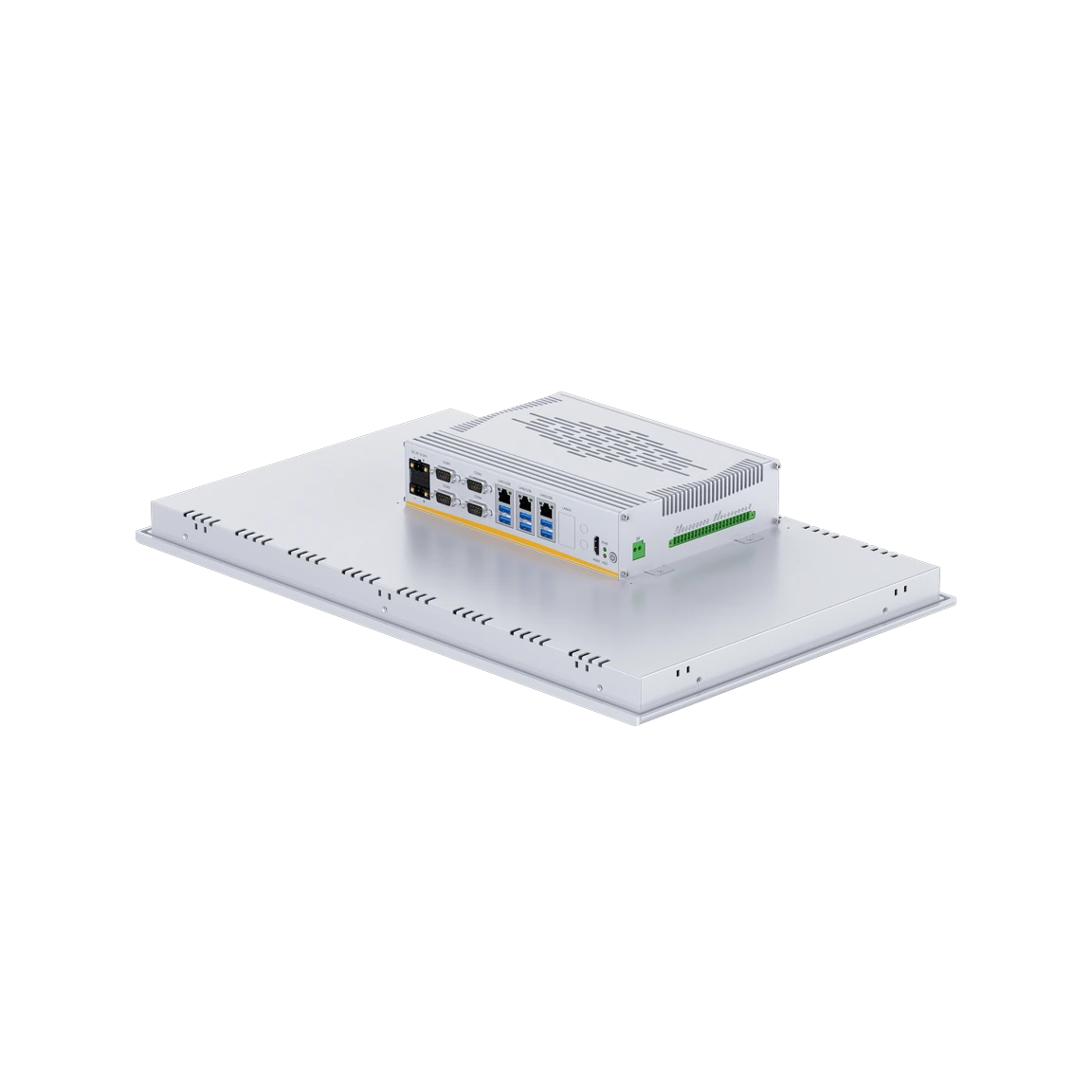

TPC6000-A2154 | 21.5” Industrial Panel PC
21.5″ resistive touch industrial Panel PC supporting Intel Core i3/i5/i7 CPUs
Features

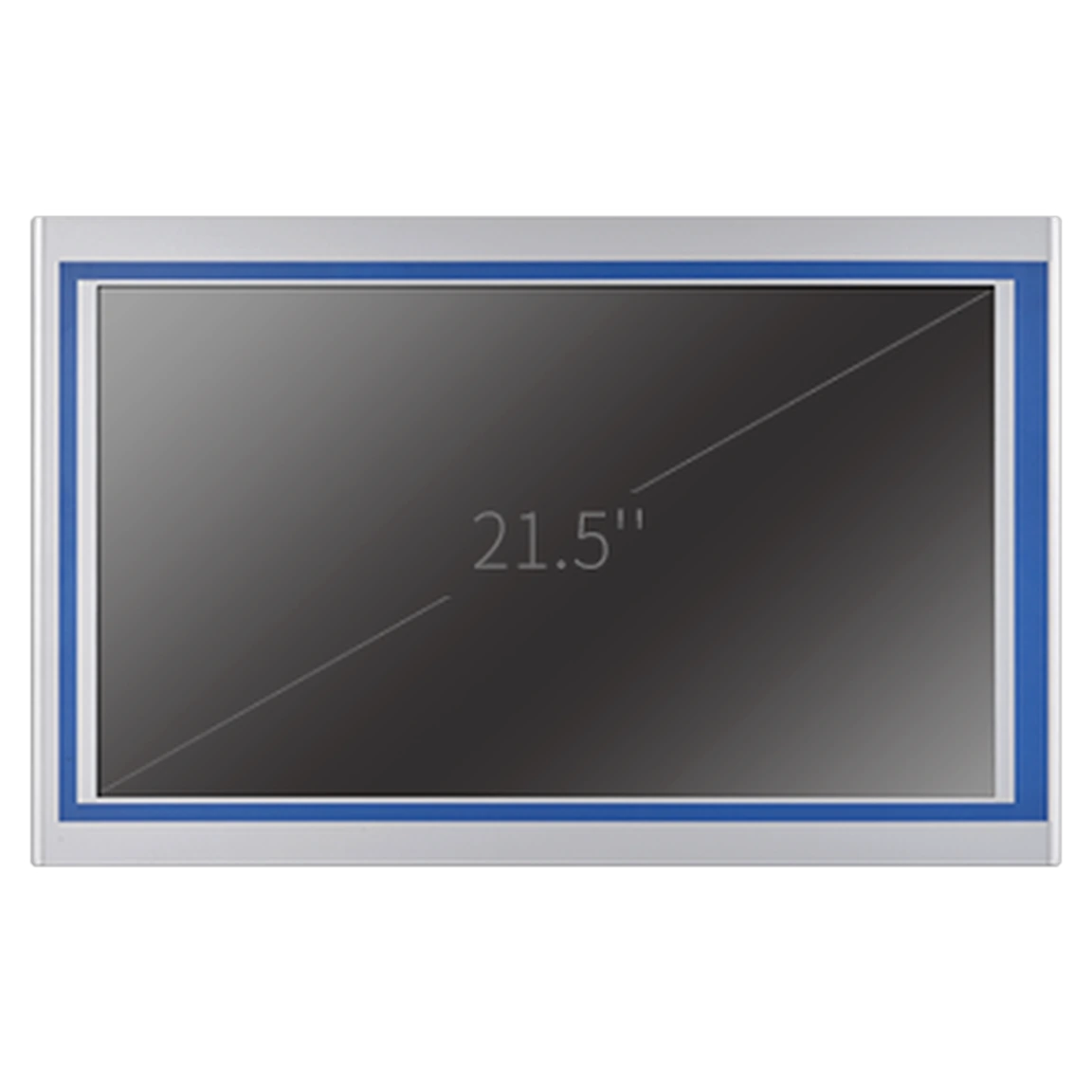

- 21.5” Full HD (1920×1080) resistive touchscreen for precise single-touch operation
- Supports Intel® Core™ i3/i5/i7 (6th-9th or 10th-11th Gen), max 65W TDP
- 3 or 5 LAN ports (Intel 1000Mbps) for flexible networking options
- 4 x COM (RS232/RS485), 6 x USB (4 x USB3.0 + 2 x USB2.0) for industrial connectivity
- 8DI + 8DO I/O with configurable NPN/PNP output (with -P models using PNP output)
- 1 x M.2 (M Key, PCIe Gen3 x4) and 1 x mSATA for storage expansion
- Active cooling with fan for enhanced thermal performance
- Wide-range power input (DC12~24V ±10%) with protection features
- Panel & VESA mounting for easy installation in industrial setups
- IP65 front panel protection against dust and water
Resistive Touch Panel PC Product Information
| Technical Specifications | ||||
|---|---|---|---|---|
| Model Name | TPC6000-A2154-T | TPC6000-A2154-T5 | TPC6000-A2154-B-T | TPC6000-A2154-B-T5 |
| System | ||||
| CPU | Intel® Core™ i3/i5/i7 (6th-9th Gen), LGA1151, Max 65W TDP | Intel® Core™ i3/i5 (10th-11th Gen), LGA1200, Max 65W TDP | ||
| Chipset | H110 | H510 | ||
| Memory | 2 x DDR4-2666/3200 MHz, up to 32GB | |||
| Storage | 1 x M.2 (M Key 2280 PCIe Gen3 x 4 Lane) 1 x mSATA | |||
| I/O Interfaces | ||||
| Network | 3 x Intel 1000Mbps RJ-45 | 5 x Intel 1000Mbps RJ-45 | 3 x Intel 1000Mbps RJ-45 | 5 x Intel 1000Mbps RJ-45 |
| USB | 4 x USB3.0 + 2 x USB2.0 | |||
| Serial Ports | 4 x RS-232 / RS-485 (Auto flow control) | |||
| I/O Port | 8DI + 8DO (Wet contact input 24V, OC gate output 24V 500mA) **with -P: 8DI (Wet contact input 24V), 8DO (PNP Output 24V 500mA)** | |||
| HDMI | 1920x1080 @ 60Hz | |||
| Expansion Slot | 1 x Mini-PCIe slot, supports WiFi, 4G modules | |||
| Mechanical | ||||
| Weight | 8.5kg | |||
| Installation | Panel Mounted & VESA Mounted | |||
| Dimensions (W x H x D) | 550mm × 342mm × 87mm | |||
| Cutout Size (W x H) | 533mm × 325mm | |||
| OS Support | ||||
| Operating Systems | Windows 7, Windows 8, Windows 10, Linux | |||
| Power | ||||
| Voltage Input | DC12~24V ±10%, supports reverse polarity protection, overvoltage protection, overcurrent protection | |||
| Idle Power Consumption | 22W | |||
| LCD | ||||
| LCD Size | 21.5" Full HD TFT | |||
| Resolution | 1920 × 1080 | |||
| Luminance | 250cd/m² | |||
| Touchscreen | ||||
| Type | Resistive touch screen | |||
| Transmittance | >75% | |||
| Controller Interface | USB | |||
| Environmental | ||||
| Operating Temperature | 0 ~ 50°C | |||
| Storage Temperature | -20 ~ 60°C | |||
| Relative Humidity | 5~95% (40°C Non-condensing) | |||
| Waterproof | Front IP65 compliant | |||
| Ordering Information | |||||
|---|---|---|---|---|---|
| Model Name | TPC6000-A2154-T | TPC6000-A2154-T5 | TPC6000-A2154-B-T | TPC6000-A2154-B-T5 | TPC6000-A2154-T-P / T5-P / B-T-P / B-T5-P |
| Description | 21.5" LCD, 1920x1080, 4 x COM (RS232/RS485 Selectable), 3 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input | 21.5" LCD, 1920x1080, 4 x COM (RS232/RS485 Selectable), 5 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input | 21.5" LCD, 1920x1080, 4 x COM (RS232/RS485 Selectable), 3 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input | 21.5" LCD, 1920x1080, 4 x COM (RS232/RS485 Selectable), 5 x GLAN, 6 x USB, 8DIO (OC Gate Output), DC12~24V Input | Same as non-P models, but with 8DO PNP Output instead of 8DO OC Gate Output |
| Options | |||||
| CPU | Intel® Core™ 6th/7th/8th/9th gen i7/i5/i3 LGA 1151 i5-6500T, i7-6700T | Intel® Core™ 10th/11th gen i3/i5 LGA 1200 i5-10400T, i5-10500T, i5-11400T, i5-11500T | Same as respective models | ||
| Memory | DDR4 4GB, 8GB, 16GB | ||||
| mSATA SSD | 64GB, 128GB, 256GB, 512GB, 1TB | ||||
| M.2 SATA SSD | 128GB, 256GB, 512GB, 1TB, 2TB | ||||
| WiFi Kit | miniPCIe WiFi Kit (7260 Series), Cylindrical Antenna | ||||
| 3G/4G Module | mini PCIe: EC20, EG25, EC25 | ||||
| Mounting Option | Panel Mounted & VESA Mounted | ||||
