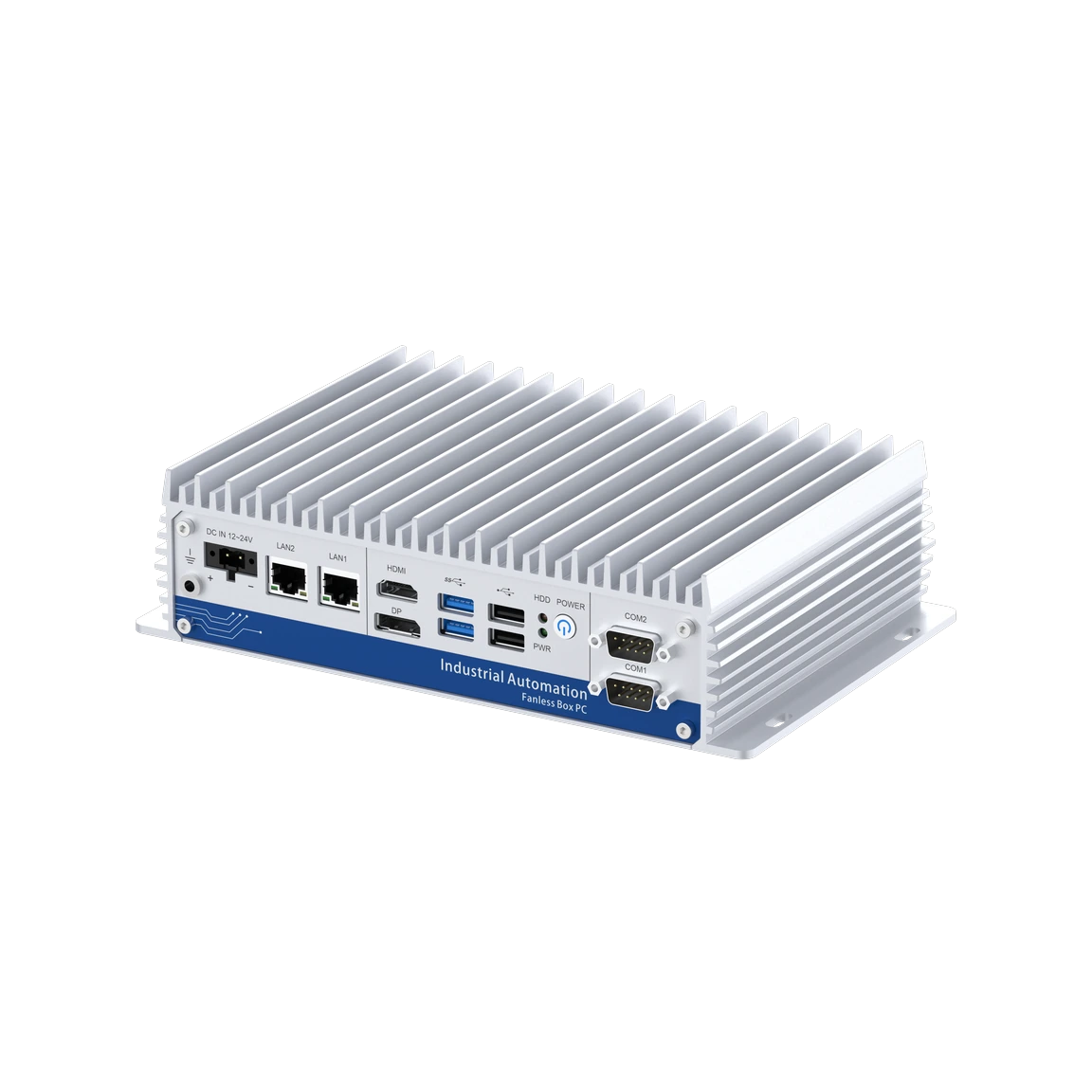

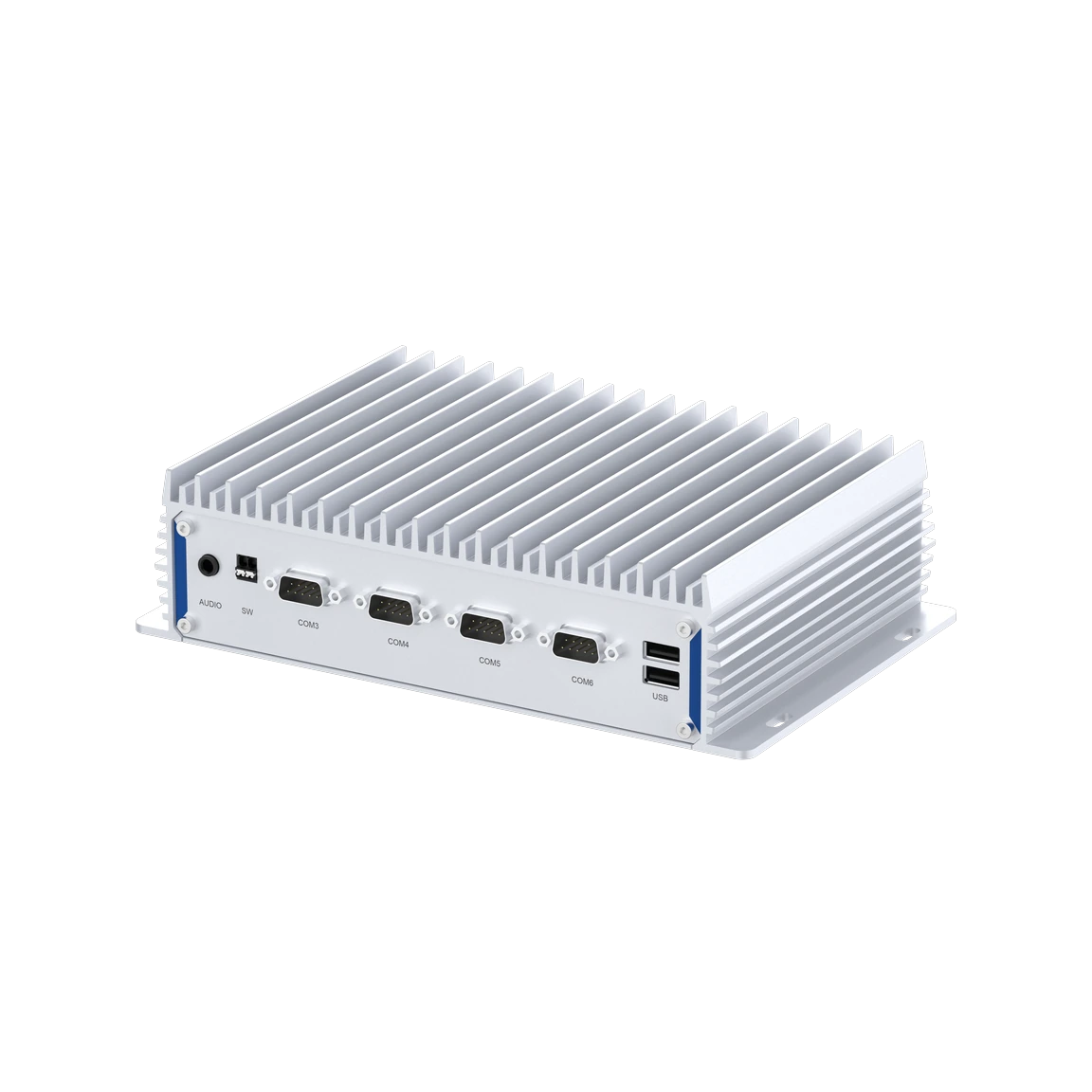

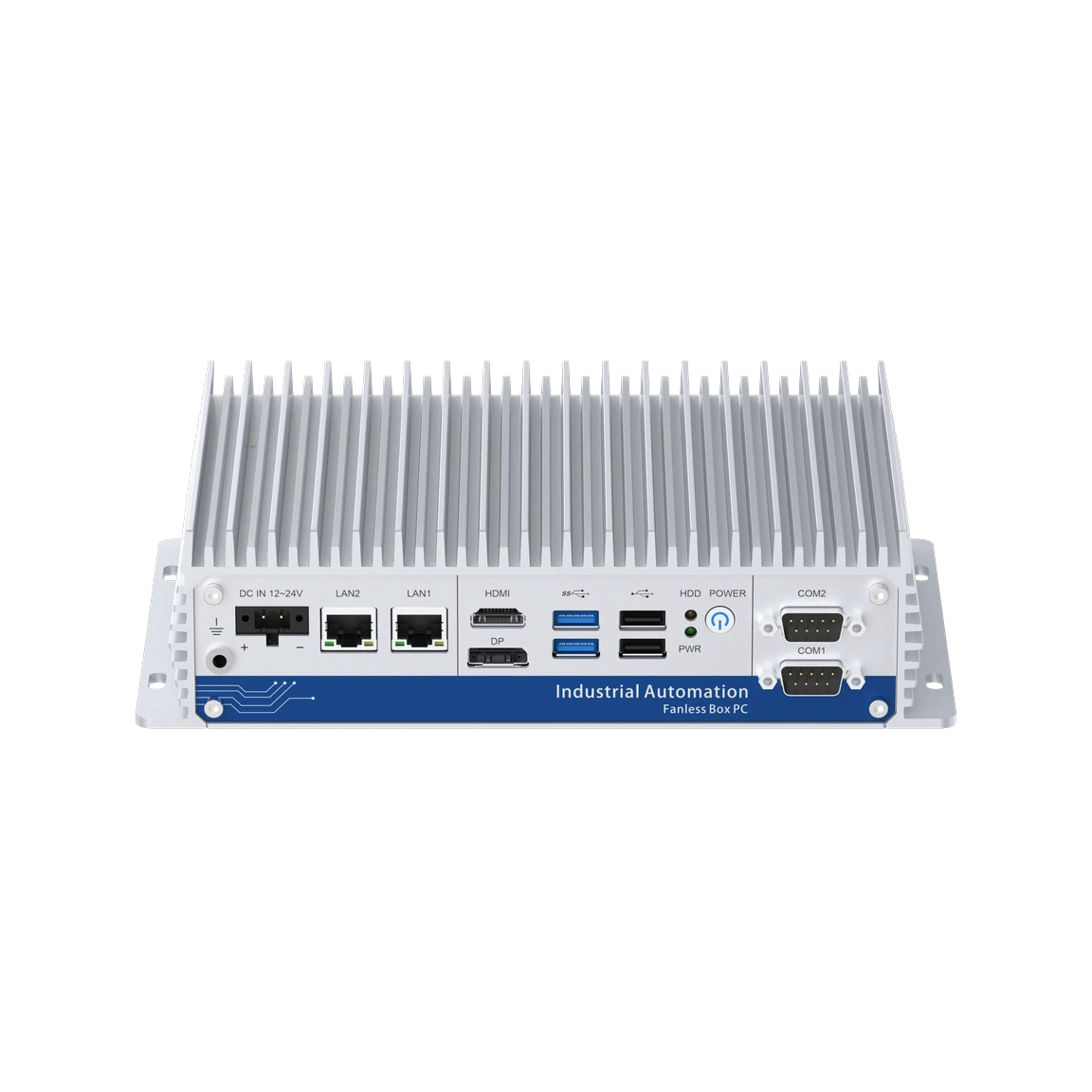

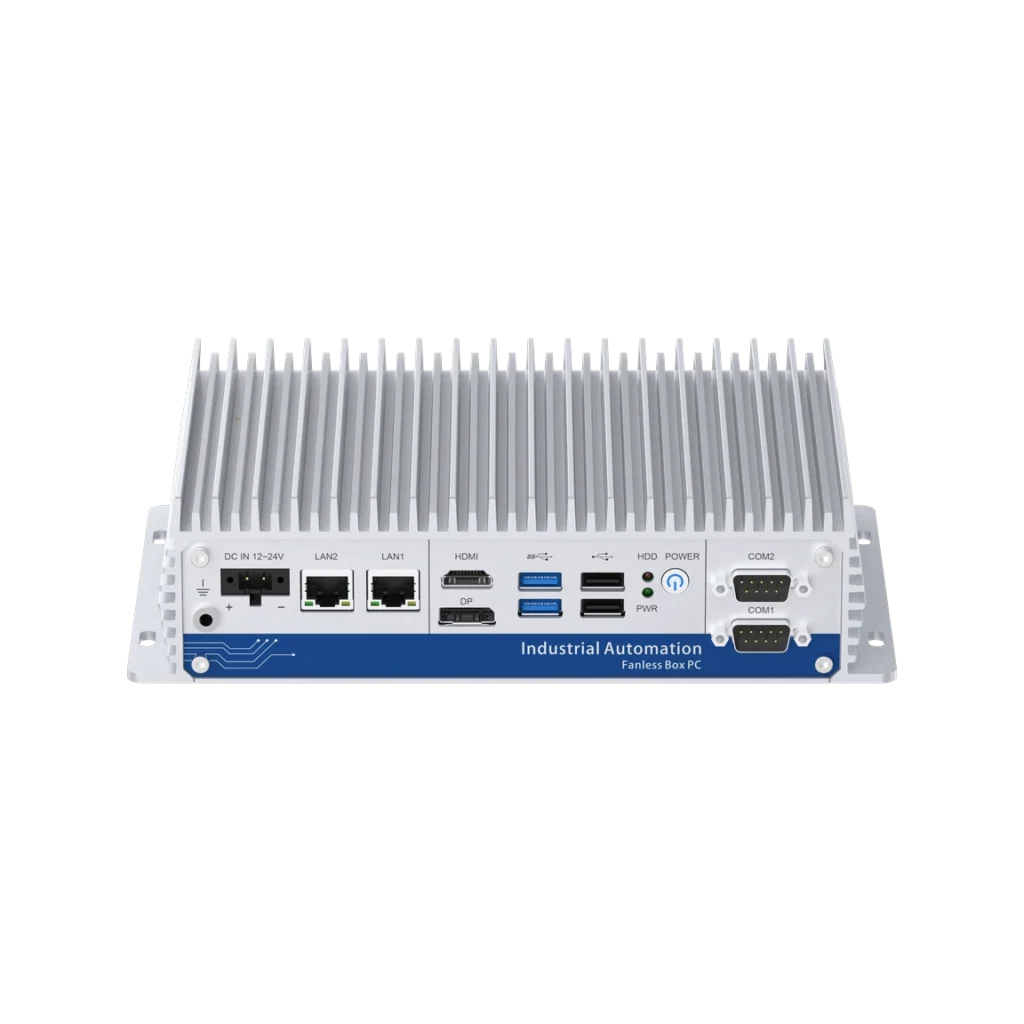

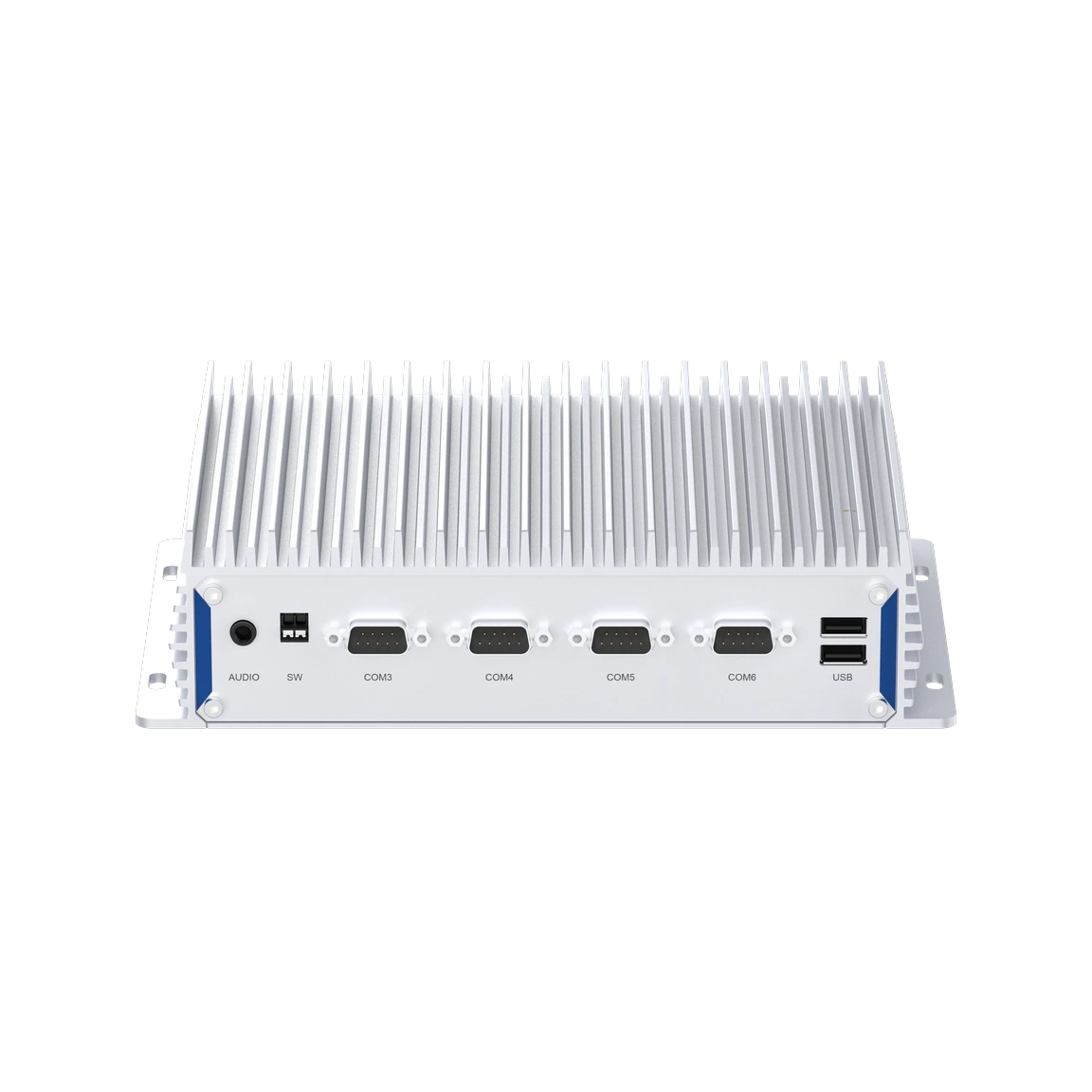

eBOX-3240-12X5U Series | Compact Fanless Industrial PC
High-performance industrial PC with Intel Core CPU, 6 COM, PCIe x16 or dual PCI, Mini PCIe, triple display output, and wide-range DC input
- Compact fanless industrial PC with Intel® Core™ i3-1215U, i5-1235U, or i7-1255U processor
- Up to 32GB DDR4-3200MHz memory
- 2 x Intel i210 GbE LAN for industrial network connectivity
- 6 x serial ports: 1 x RS232/RS485 + 5 x RS232
- 2 x USB3.0 and 4 x USB2.0 for industrial peripherals
- HDMI and DP outputs support asynchronous dual display up to 4096 x 2304@60Hz
- 1 x Mini PCIe slot for Wi-Fi / 4G expansion
- 1 x M.2 Key-E interface for Wi-Fi / Bluetooth expansion
- 1 x M.2 2242/2280 Key-M slot for SATA SSD storage
- DC12-24V input with overcurrent, overvoltage, and anti-reverse protection
- -20°C ~ 60°C operating temperature with SSD
- Compact 234mm x 150mm x 60mm chassis
Fanless Industrial Box PC Product Information
| Technical Specifications -- eBOX-3240-12X5U | |||
|---|---|---|---|
| Model Name | eBOX-3240-1215U | eBOX-3240-1235U | eBOX-3240-1255U |
| System | |||
| CPU | Intel® Core™ i3-1215U | Intel® Core™ i5-1235U | Intel® Core™ i7-1255U |
| Cores | 6 cores and 8 threads | 10 cores and 12 threads | 10 cores and 12 threads |
| Memory | 1 x DDR4-3200MHz, MAX 32GB | ||
| Storage | 1 x M.2 2242/2280 Key-M Slot (SATA SSD 2280) | ||
| USB | 2 x USB3.0, 4 x USB2.0 | ||
| COM | COM1: RS232/RS485 COM2~COM6: RS232 | ||
| Expansion Slots | 1 x MINI PCIE, Scalable WIFI/4G 1 x M.2_KE, Scalable WIFI/BT | ||
| LAN | 2 x Intel GbE LAN | ||
| HDMI | The highest resolution is 4096 x 2304@60Hz, Support asynchronous dual display | ||
| DP | The highest resolution is 4096 x 2304@60Hz, Support asynchronous dual display | ||
| Watch Dogs | 1~255 levels programmable setting | ||
| OS Support | |||
| OS | Windows 10, Windows 11, Linux | ||
| Power | |||
| Input Voltage | DC12-24V | ||
| Chassis | |||
| Dimensions | (L)234mm x (W)150mm x (H)60mm | ||
| Net Weight | 2.0Kg | ||
| Environment | |||
| Work Temperature | -20ºC ~ 60ºC (Use SSD) | ||
| Storage Temperature | -40ºC ~ 80ºC (Use SSD) | ||
| Relative Humidity | 5~95% RH@40°C, non-condensing | ||
| Vibration | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis | ||
| Shock | SSD applied: 10G, IEC 60068-2-27, Half sine wave, lasting 11ms | ||
| EMC | CE/FCC Class A | ||
| Ordering Information -- eBOX-3240-12X5U | ||
|---|---|---|
| Part Number | Product Name | Description |
| B63.32400.15.0001 | eBOX-3240-1215U | 1215U / 5 x RS232 / 1 x (RS232/485) / 2 x USB3.0 / 4 x USB2.0 / 2 x LAN / DC12-24V |
| B63.32400.35.0001 | eBOX-3240-1235U | 1235U / 5 x RS232 / 1 x (RS232/485) / 2 x USB3.0 / 4 x USB2.0 / 2 x LAN / DC12-24V |
| B63.32400.55.0001 | eBOX-3240-1255U | 1255U / 5 x RS232 / 1 x (RS232/485) / 2 x USB3.0 / 4 x USB2.0 / 2 x LAN / DC12-24V |
| Options | ||
| DDR4 Memory | 4GB, 8GB, 16GB | |
| M.2 SSD | 512GB, 1TB... | |
| 4G Module | Mini PCIe: EC20, EG25, EC25 | |
